These 24V LED supplies have two DC barrel plugs pictured on the output cable. They offer a starting point when a display-lighting assembly needs more than one connecting lead. Choose the complete-unit rating and connector arrangement together, then confirm the load permitted on each branch for the ordered version.
The two plugs identify a cable configuration. They do not establish two independently regulated channels, an equal division of current or the full unit rating at each plug. Record all connected loads and the required lead layout before approving the adapter.
Compare the rating of the complete adapter
Each model below lists AC100–240V, 50/60Hz input. The 120W and 144W figures are nominal calculations from labelled voltage and current. The 180W figure is stated on its product label. Keep the output-current figure attached to the whole supply when comparing the choices.
| Model | Labelled complete-unit output | Power reference | Pictured outputs | Enclosure / use reference |
|---|
| FY2405000 | 24V DC; 5A | 120W calculated: 24V × 5A | Two DC barrel plugs | Black ribbed desktop case; dry location |
|---|

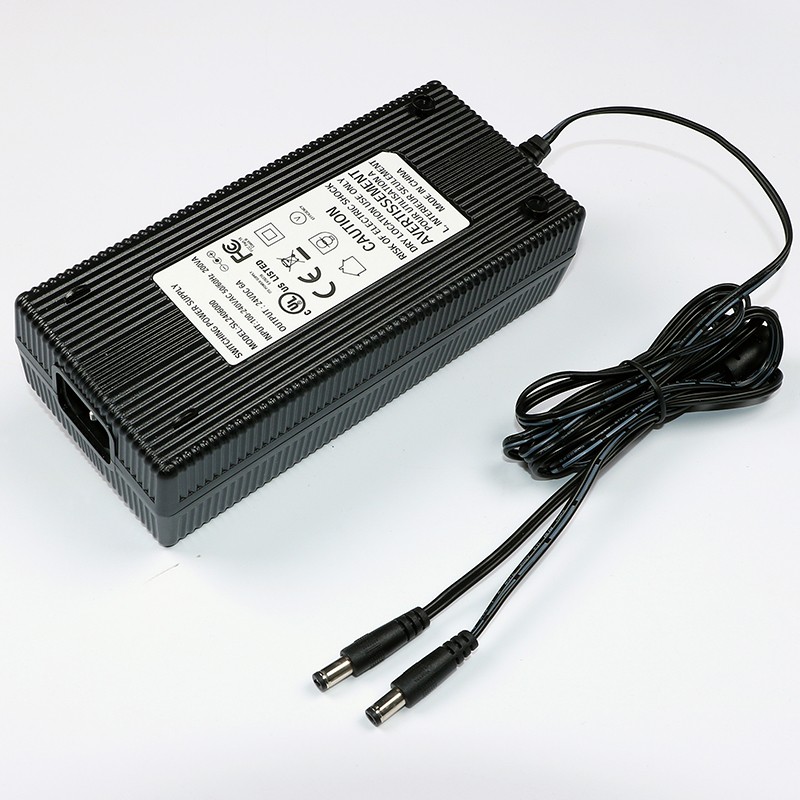

| SL2406000 | 24V DC; 6A | 144W calculated: 24V × 6A | Two DC barrel plugs | Black ribbed desktop case; dry location |
|---|
| SL-VA0247500T | 24V DC; 0–7.5A | 180W rated on label | Two DC barrel plugs | Silver case with mounting tabs; dry location |
|---|
Describe both branches and their combined load
Provide the model and electrical requirement of every connected light, together with the proposed branch arrangement. If the branches serve different quantities or different lighting models, state those separately. Ask for confirmation of the allowable branch loads and the complete connected load for the quoted cable set.
A 5A supply with two plugs is not evidence of 5A available independently at each plug. It also does not establish a fixed 2.5A limit on both branches. The individual lead construction and permitted configuration need to be confirmed alongside the total-unit rating.
Match the barrel plug by dimensions and polarity
Compare the existing socket and proposed plug using outer diameter, inner diameter, insertion length and polarity. Provide a measured photograph or a connector drawing when replacing an existing power unit. The product pictures show barrel plugs but do not establish a universal barrel size or polarity.
Record the required lead length and routing space, including where the cable divides. A plug that looks similar may still differ electrically or mechanically. Approve the mating connector and cable version with the sample rather than using the appearance alone as a compatibility decision.
Select the incoming cord and installation arrangement
The desktop formats use an incoming mains connection; confirm the matching cord and destination plug as part of the quotation. The silver 180W unit also shows mounting tabs and its own connector arrangement. State how the supply will be supported and where the incoming and output cables need to run.
These model labels identify dry-location use. Provide the enclosure conditions and installation space for review. The unit rating does not establish an environmental rating, a permitted enclosed-cabinet temperature or the protection of every connection in the finished display.
Keep the replacement version identifiable
Include the complete model number on the purchase order. SL2406000 is the model shown on the 144W unit label; its legacy URL is retained. The 180W twin-barrel listing is distinct from the separately listed wire-lead version. Specify the photographed output configuration to avoid substituting a different cable arrangement.
View the documented product options
Purchasing and configuration questions
Does each DC plug provide the full rated output?
The listed current and power apply to the complete unit. Confirm the permitted load on each branch and the combined connected load for the selected cable configuration.
Are these two independently controlled outputs?
Two pictured plugs establish the lead arrangement. Independent regulation, isolation or separate control is not documented; include any such requirement in the technical enquiry.
Can I reuse my existing DC sockets?
Send their measurements and polarity together with the load specification. Connector fit and electrical compatibility must both be confirmed for the selected supply.
What should I request in a sample quotation?
Identify the supply model, both branch loads, connector dimensions, polarity, lead lengths and destination mains cord. Ask for the quoted set to list all supplied components.
Details for the configuration enquiry
Supply model and total connected load
Separate branch loads and required lead lengths
Socket dimensions, insertion length and polarity
Destination plug, incoming cord and mounting space
Confirm the twin-lead adapter and cable set
Send the lighting model list and a sketch of both branches. Add socket measurements and the destination plug requirement so the quotation can define the supply, connectors and cables as one approved configuration.
