24V LED drivers with twin DC connection leads

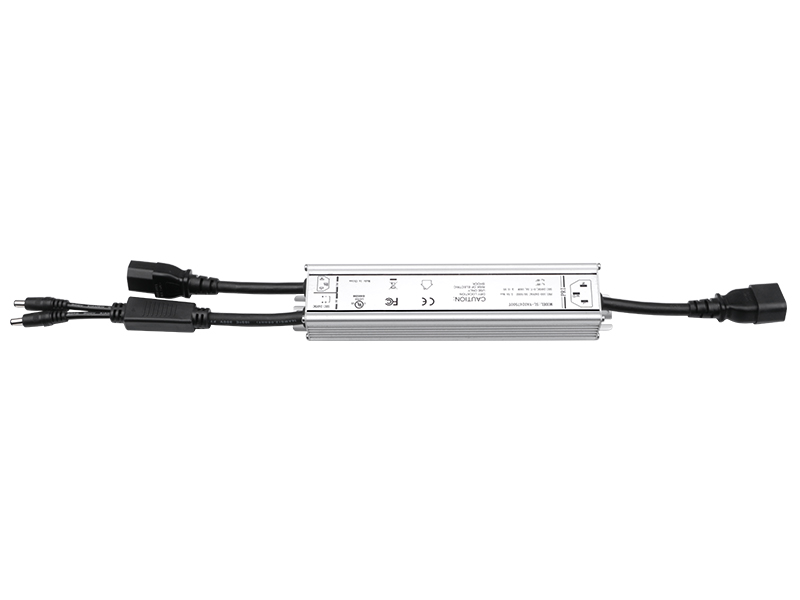

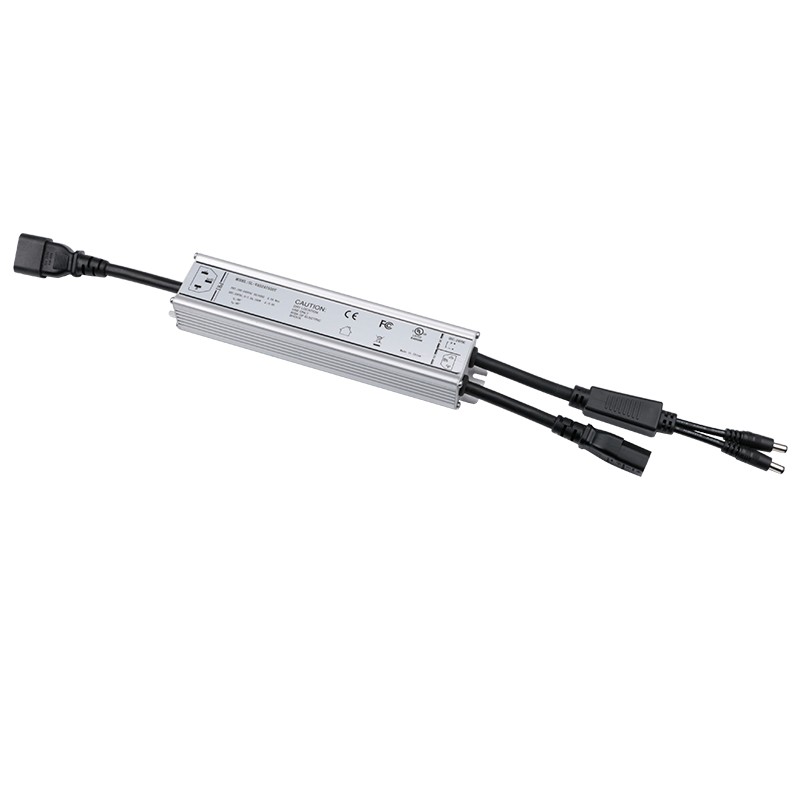

Choose the power unit and mating connectors as one project configuration. SL-VA0247500T is a 180W LED driver labelled for 24V DC output at 0–7.5A. This version is pictured with two DC barrel plugs, a separate moulded female connector and an opposite-end moulded male connector. The original label specifies dry-location use.
For exhibition-display builders, lightbox manufacturers and wholesale lighting buyers, the two pictured DC leads make connector selection a key ordering detail. Supply the connected lighting models, total load and mating-plug requirements to approve the cable arrangement and sample configuration.
24V twin-lead LED driver specification
| Specification | SL-VA0247500T |
|---|
| Catalogue ordering reference | SL-VA0247500T |
| Rated power, complete unit | 180W |
| DC output | 24V DC, 0–7.5A |
| AC input on pictured label | 100–240V AC, 50/60Hz |
| Input current on pictured label | 2.5A maximum |
| Pictured DC connection | Two DC barrel plugs; dimensions and polarity confirmed with the order |
| Pictured enclosure | Silver enclosed case with mounting tabs |
| Use environment on original label | Dry location |
| Power-cord and lead scope | Confirm required items and cable specifications in the quotation |
Twin DC plugs and mating-connector selection

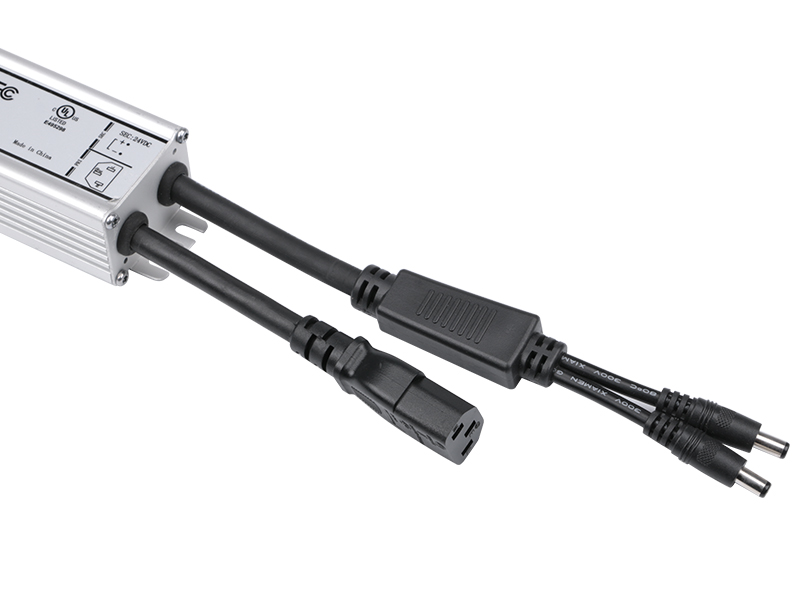

The close-up shows two male DC barrel plugs beside a separate moulded female connector. Confirm the barrel dimensions, polarity, branch ratings and cable functions against the mating lighting assembly and approved connection drawing.
The 180W and 7.5A ratings apply to the complete power unit. Provide the total lighting load and intended connections to confirm the permitted operating configuration. Identify any control equipment required so the quoted electrical arrangement can be assessed with the sample.
Mounting layout and connection examples

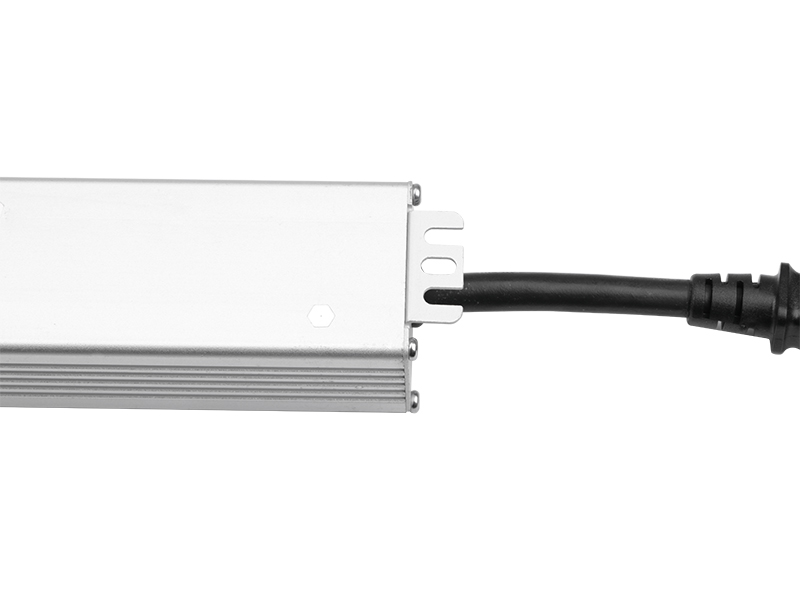

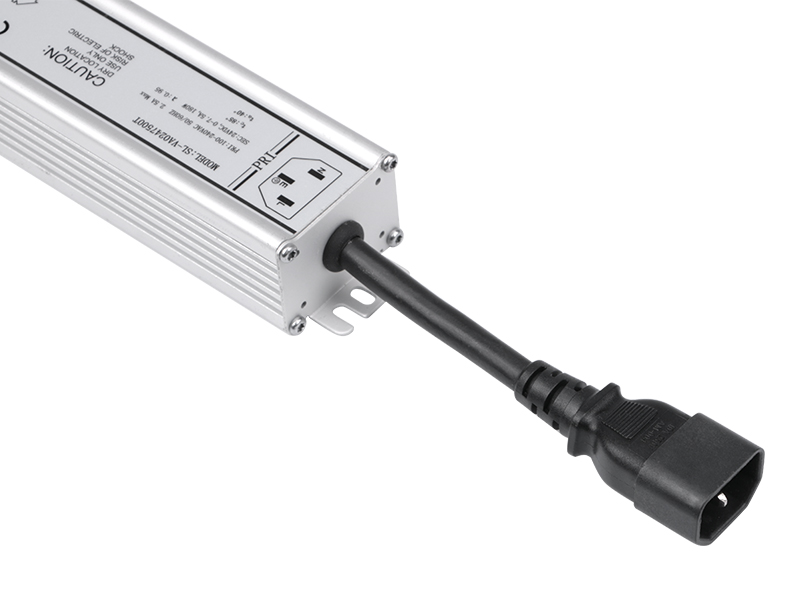

The enclosure pictures show cable entries and slotted mounting tabs. Request the complete dimensions and cable lengths to check mounting space, cord routing and access within the display. The original label specifies dry-location use; define the project environment when selecting the version.

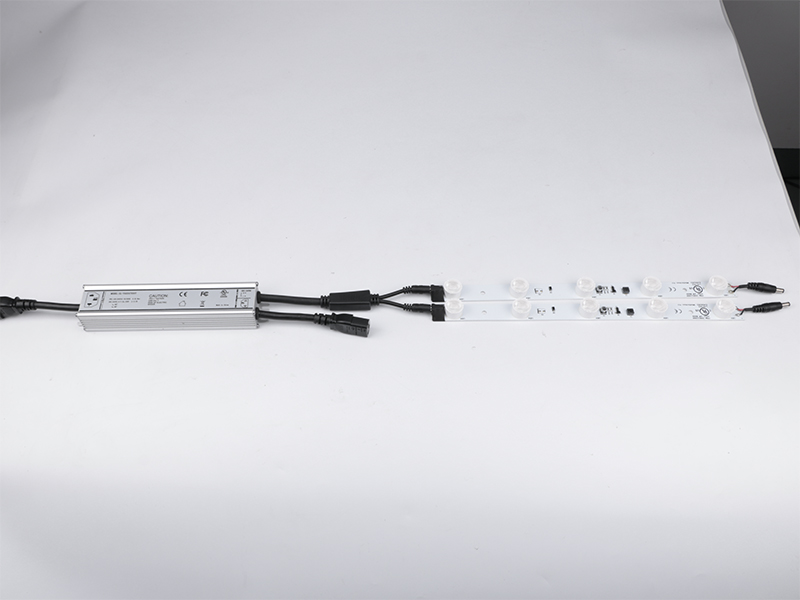

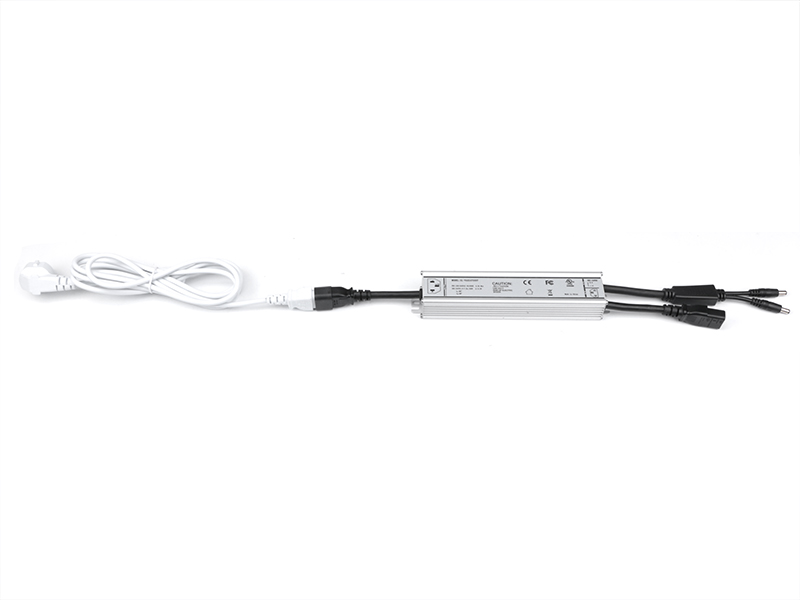

The original pictures include a power-cord connection and two LED bars connected to the DC leads. List the required power cord, lighting components and connection leads in the quotation. Approve the mating connectors, wiring drawing and supply scope with a sample.
OEM assembly requirements and wholesale supply

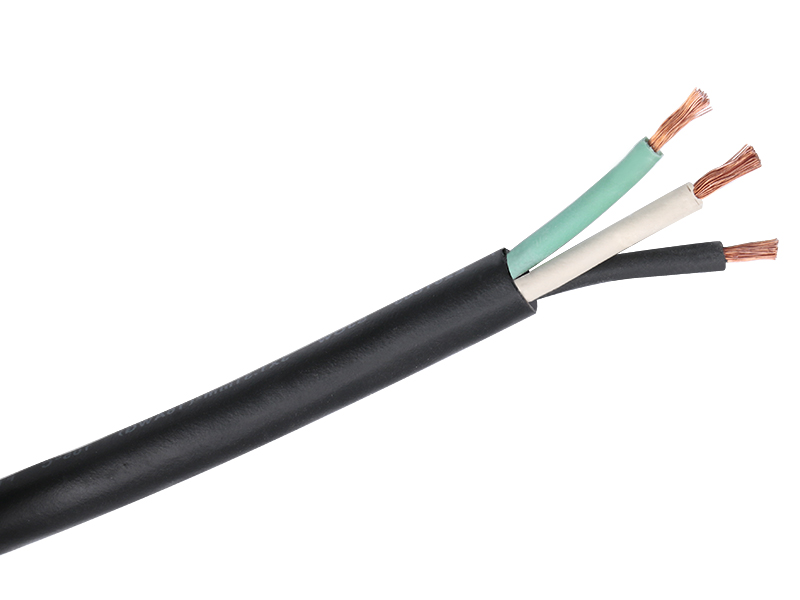

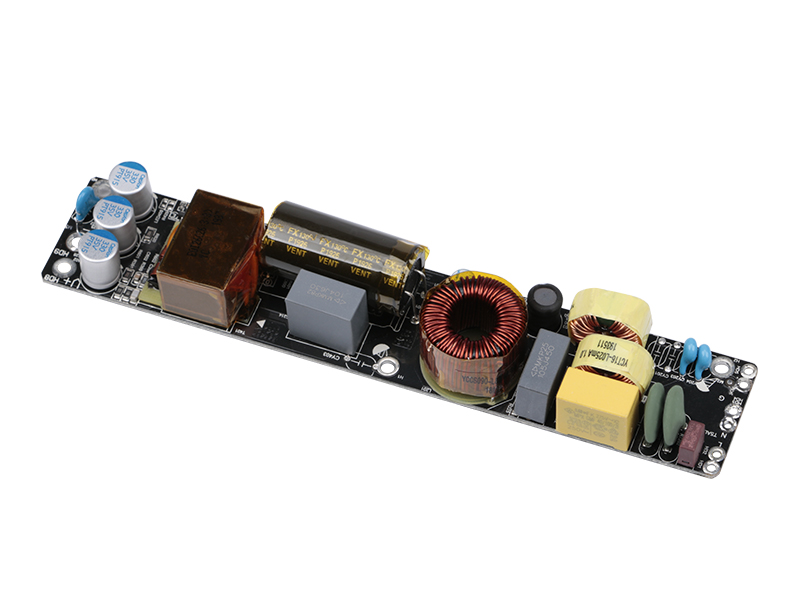

The cable and board pictures illustrate construction details. Define conductor assignments, cable terminations and any OEM marking through the approved assembly specification. Request current technical and compliance documents for the destination market and quoted configuration.
Orders start at 20 pcs, with volume pricing for larger quantities. Samples are available; charges and shipping are confirmed for the destination. Standard lead time is 12–18 days. OEM, ODM and private-label requirements are supported, with custom work and transit scheduled separately.
Twin DC-plug driver purchasing questions
Are the two pictured DC plugs a standard size and polarity?
Confirm the barrel dimensions and polarity for the quoted version against your mating lighting connectors. Send connector photographs or a drawing with the enquiry to define the sample assembly.
Is the 7.5A rating available from each DC lead?
The 0–7.5A output and 180W rating describe the complete power unit. Confirm the combined lighting load and permitted branch current with the cable and connector specifications.
What environment is shown on the original driver label?
The label specifies dry-location use. Provide the installation environment and target market with the enquiry so the selected configuration and current technical documents can be confirmed.
Does the photographed power cord and LED-bar connection define the supplied kit?
The pictures show connection examples. State the required power cord, lighting components, leads and quantity in the quotation so the approved sample and packing list identify the supplied items.
