950mm ladder backlights rated at 1200 lm

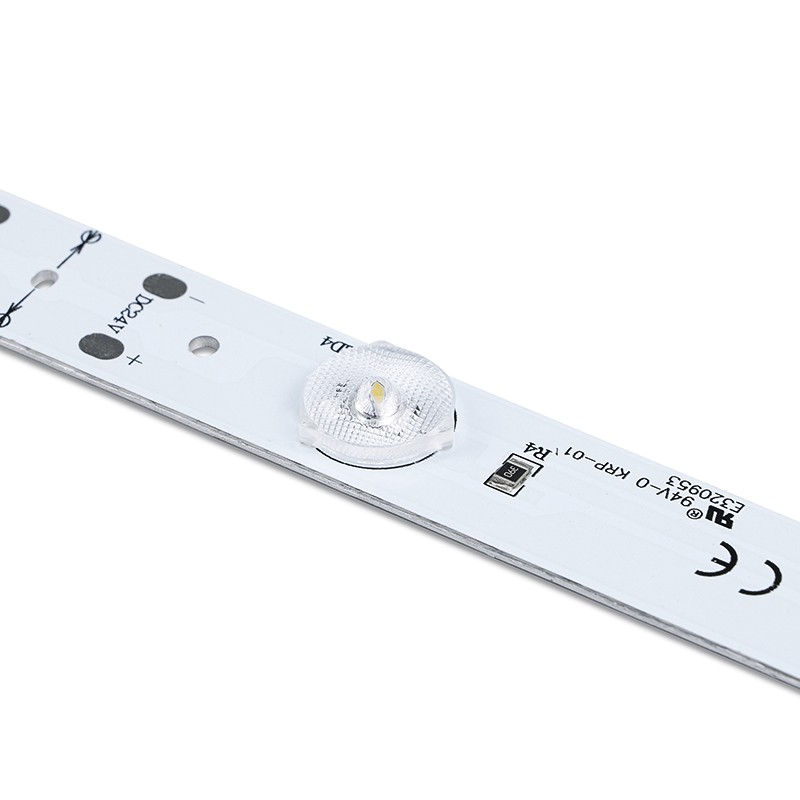

Specify a defined white-light source for the display layout. SL-BM037-6000 is a 950 × 20 × 7mm LED ladder backlight listed at 12W and 1200 lm, with twelve LEDs, a 24V DC input and 180° lenses. The original artwork shows rows of lens bars behind illuminated advertising and fabric-display faces.
For lightbox manufacturers, textile-display fabricators and lighting-component wholesalers, select the white-light version together with the bar spacing, fixing positions and power configuration. Provide the enclosure drawing and face material to evaluate a sample and agree the production supply specification.
12W twelve-LED ladder backlight specification
| Specification | SL-BM037-6000 |
|---|
| Ordering model | SL-BM037-6000 |
| Complete dimensions | 950 × 20 × 7mm |
| Power per bar | 12W |
| Input | 24V DC |
| Listed luminous flux | 1200 lm |
| LED quantity | 12 LEDs per bar |
| Optical angle | 180° |
| White-light order ranges | 3000–3500K / 4700–5300K / 6000–7000K / 9000–16000K |
| Aluminium substrate thickness | 1.6mm |
| Colour-rendering order option | CRI 90+ available; specify with the order |
Lens-bar construction and white-light selection

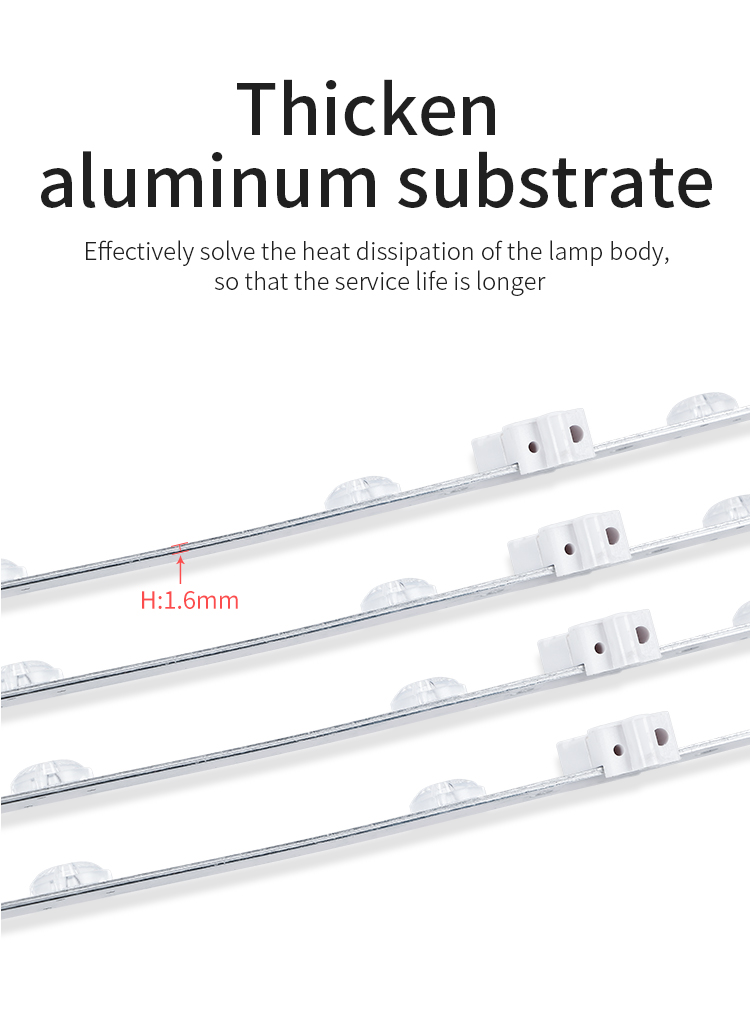

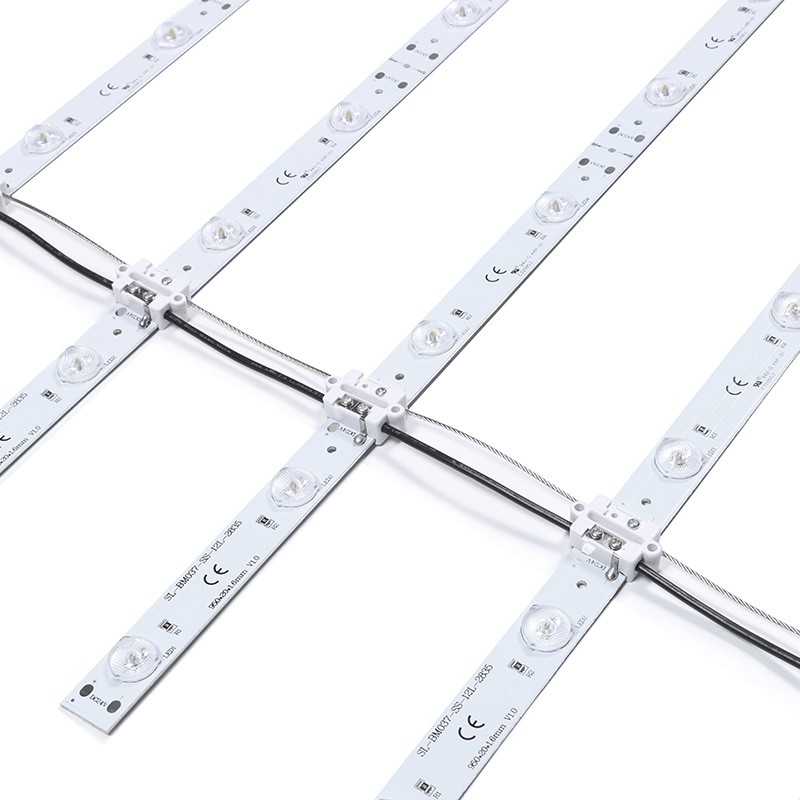

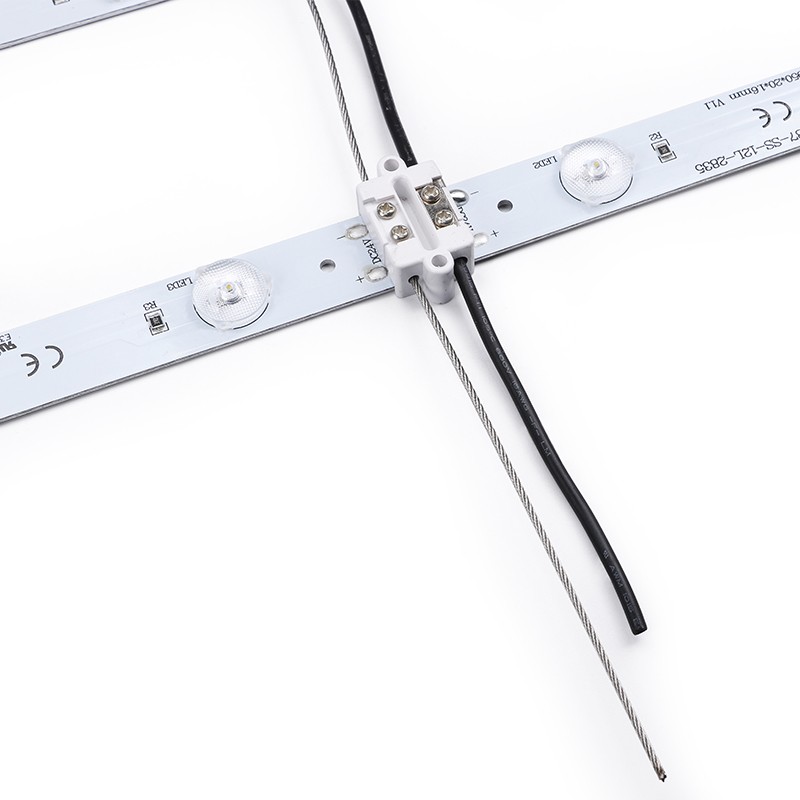

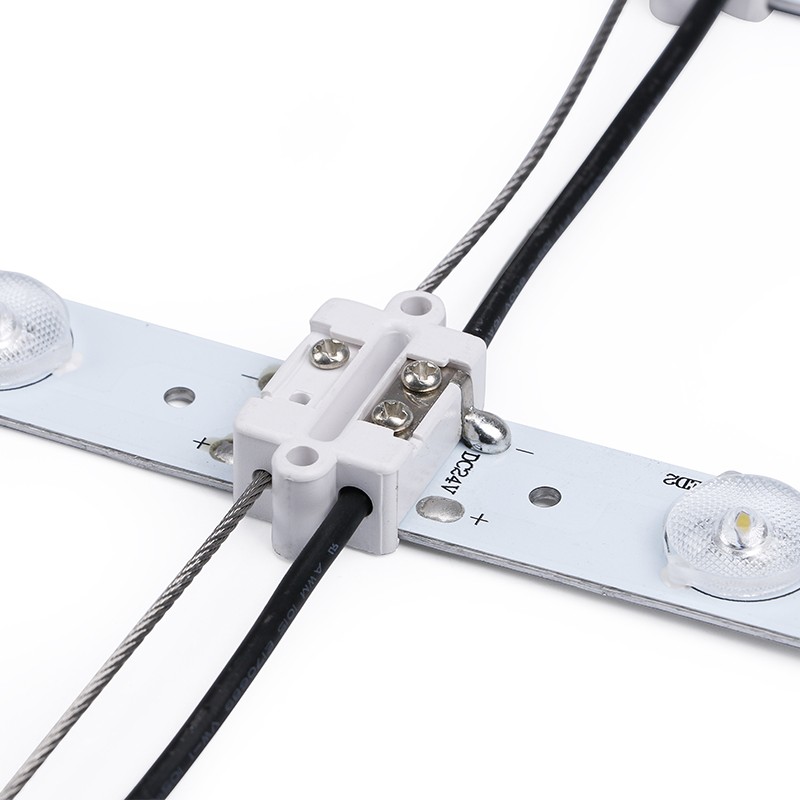

The complete bar dimensions are 950 × 20 × 7mm. The construction picture separately identifies a 1.6mm aluminium substrate. Check the mounting positions, lens clearance and lead route against the complete assembly drawing.
Choose 3000–3500K, 4700–5300K, 6000–7000K or 9000–16000K from the white-light order ranges. CRI 90+ white LEDs are available as an order option; confirm data for the quoted version and approve its appearance with the intended graphic.

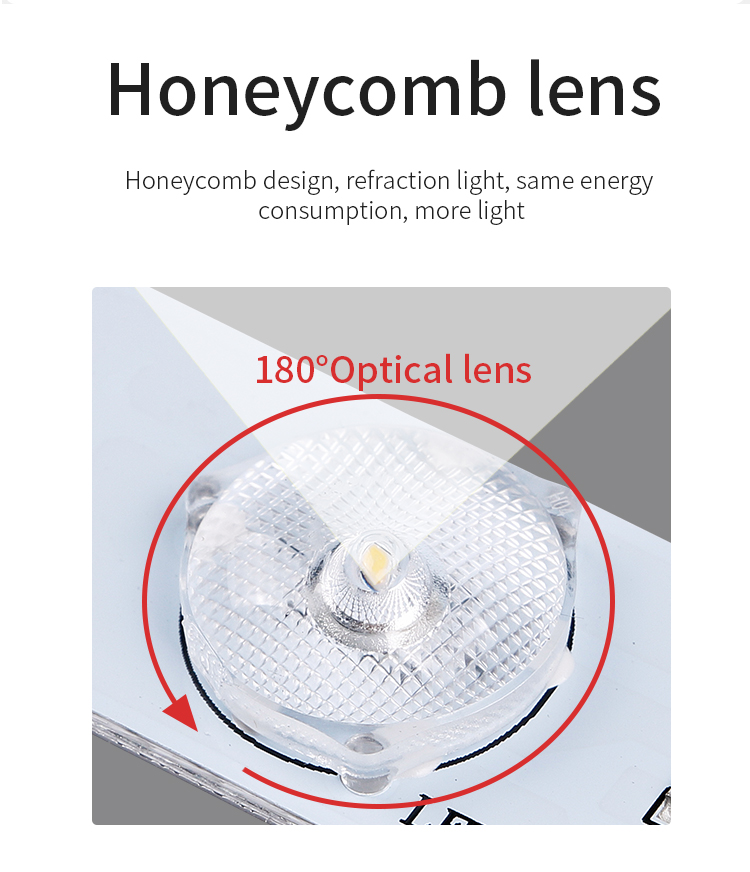

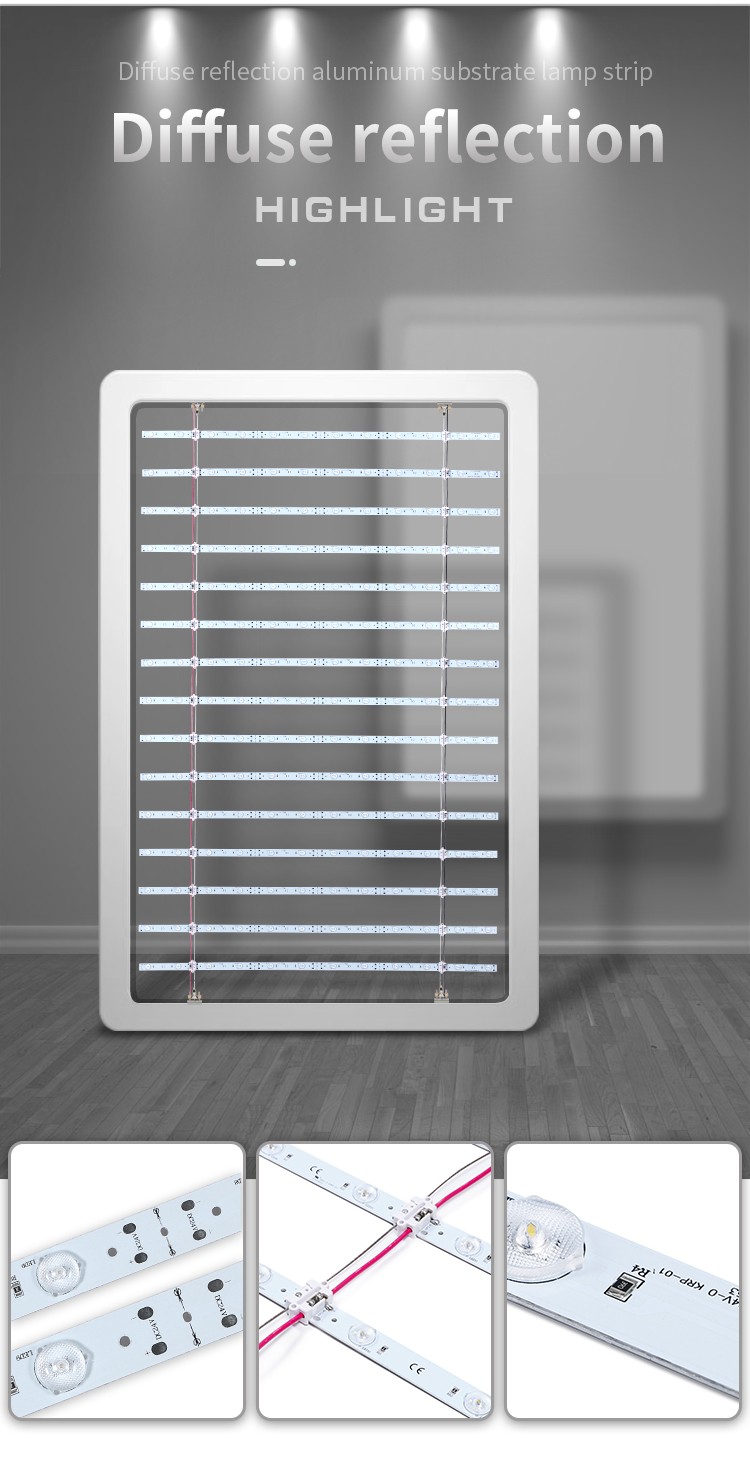

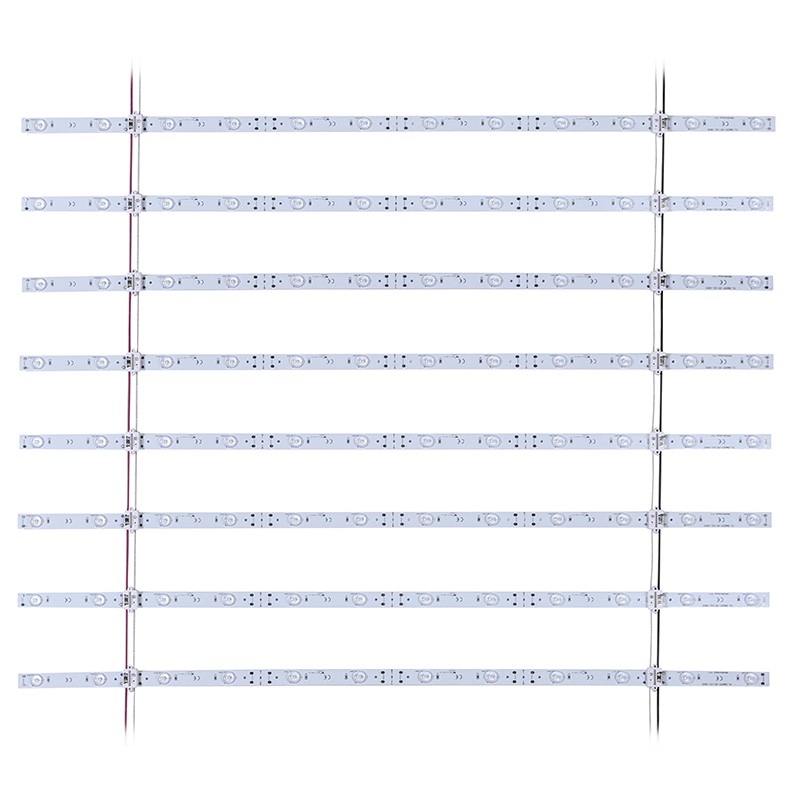

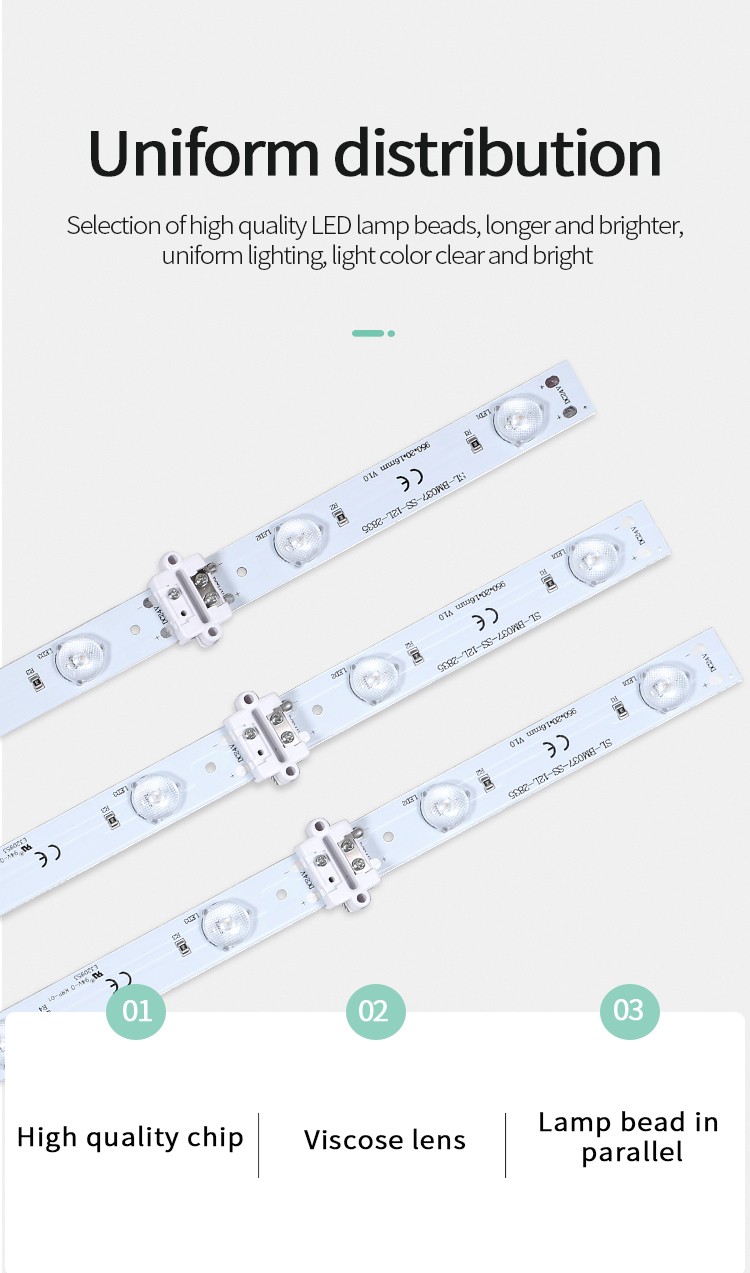

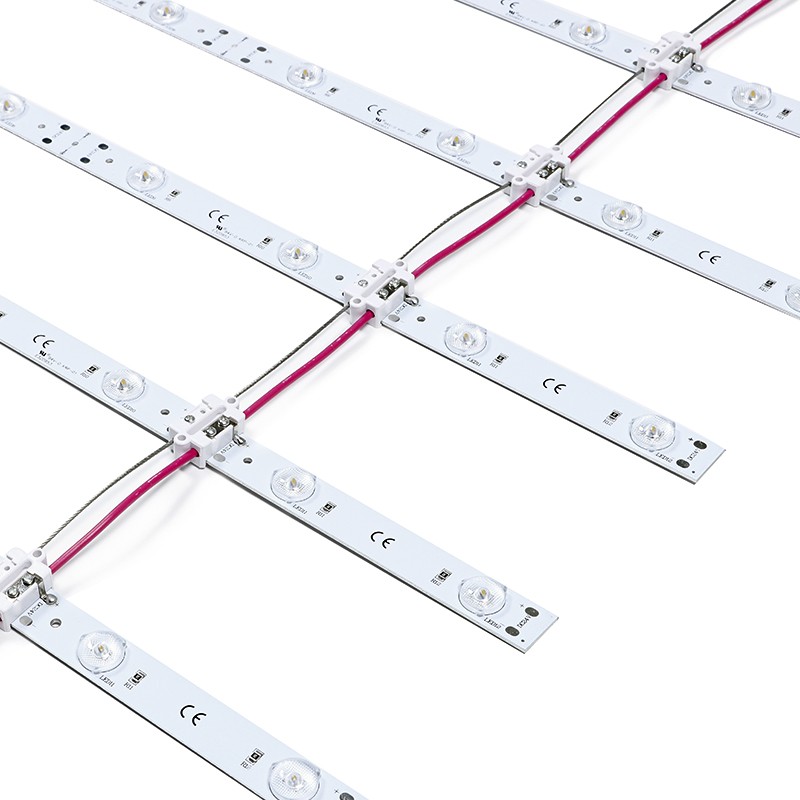

The lens illustration identifies 180° optics, and the arrangement artwork shows rows of bars. Supply the proposed spacing and enclosure drawing to agree the lighting layout, matching power unit and permitted connection quantity.
Fabric lightbox and soft-film display applications

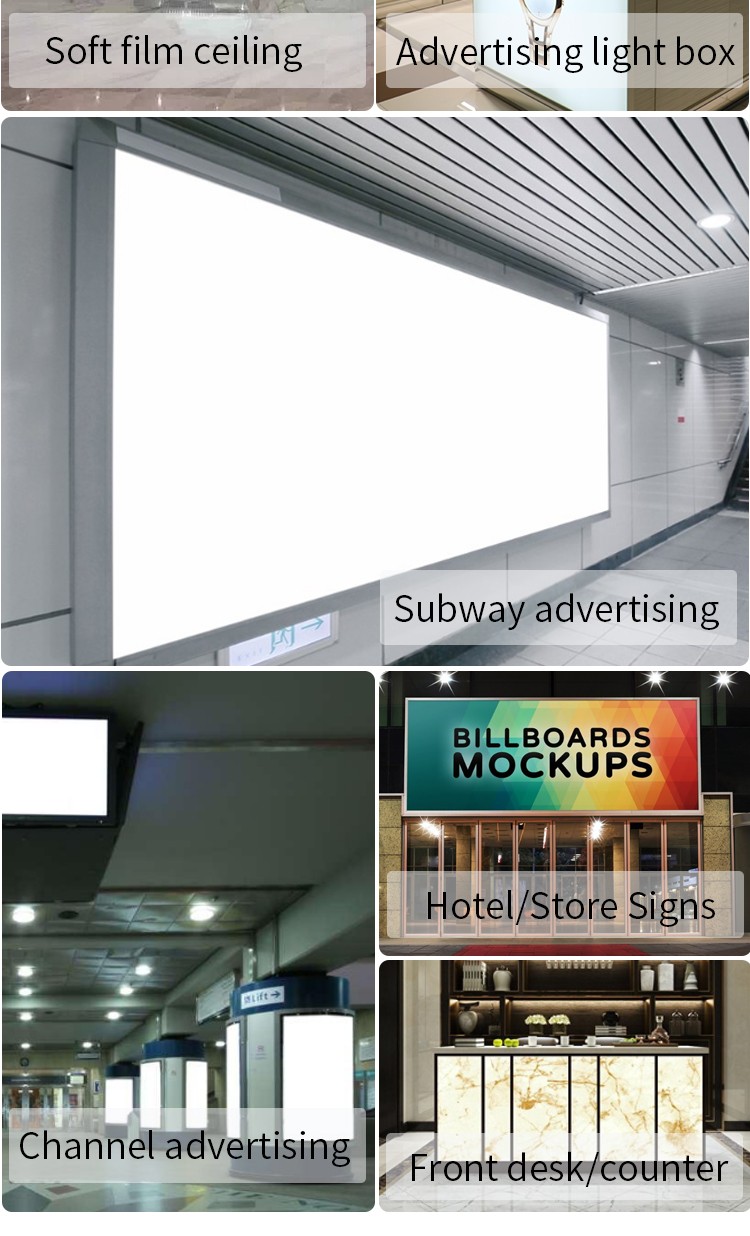

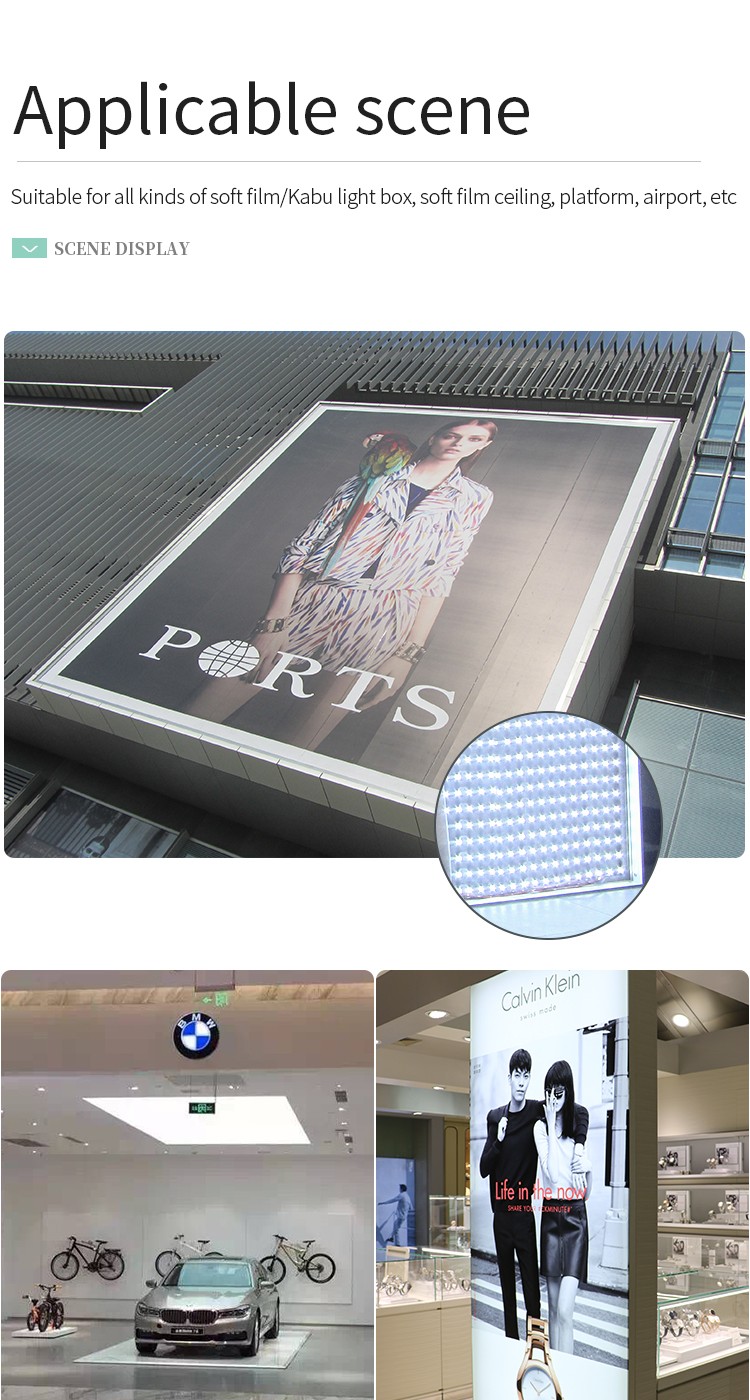

The application pictures include fabric lightboxes, illuminated advertising graphics, soft-film ceilings and retail-display concepts. Define the face material and enclosure dimensions with the sample request so the layout can be assessed for the project.
Wholesale orders start at 20 pcs, with lower unit prices for larger quantities. Samples are available; charges and shipping are confirmed for the destination. Standard lead time is 12–18 days. OEM, ODM and private-label requirements are supported, with custom schedules and transit agreed separately.
Project documentation for the selected version
State the destination market and required technical or compliance information with SL-BM037-6000. Obtain current documents applicable to the quoted white-light configuration when approving the sample and supply specification.
1200-lumen ladder backlight purchasing questions
Which model should I use for the 950mm 12W bar?

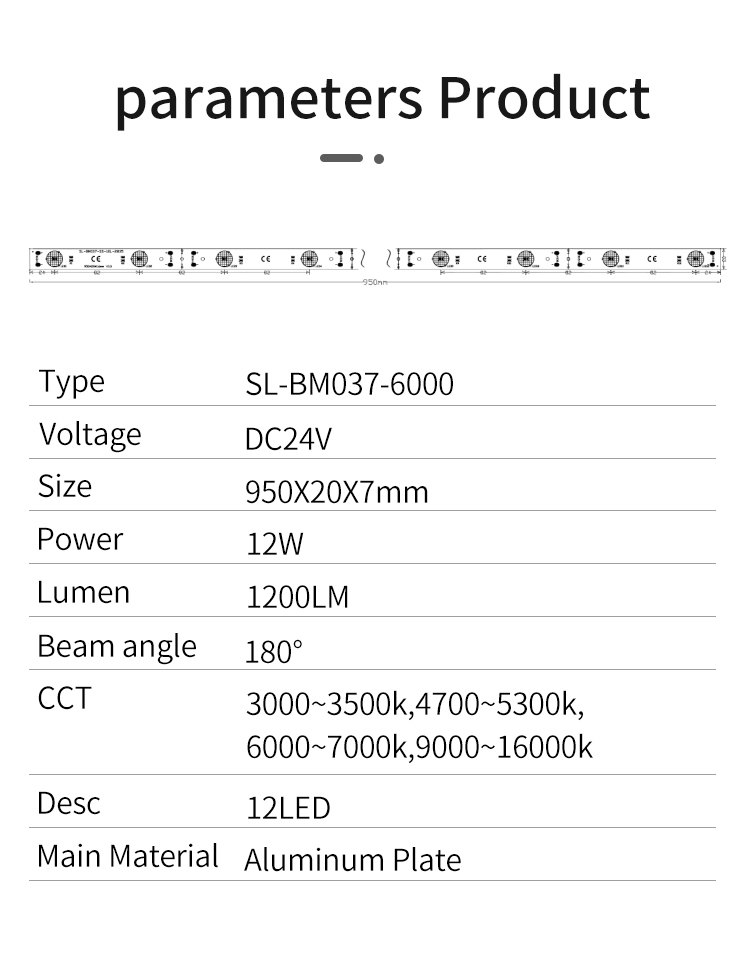

Use SL-BM037-6000, as identified in the product parameter picture. It is listed at 12W and 1200 lm with twelve LEDs and a 24V DC input.
Which dimensions apply to the complete ladder backlight?
The assembly is specified at 950 × 20 × 7mm. The separate 1.6mm value describes the aluminium substrate. Check the complete assembly drawing for the fixing and cable arrangement.
How do I select white lighting for a fabric lightbox?
Send the face material, enclosure drawing and proposed bar rows. Choose the required white-light range and CRI option, then approve a sample in the intended display before defining the production layout.
What is needed for a bulk twelve-LED backlighting quotation?
Include SL-BM037-6000, bar quantity, white-light selection, CRI requirement, mounting and cable drawings, power-unit scope and destination. Add packing, OEM marking and technical-document requirements.
