180W LED power supply for wire-lead configurations

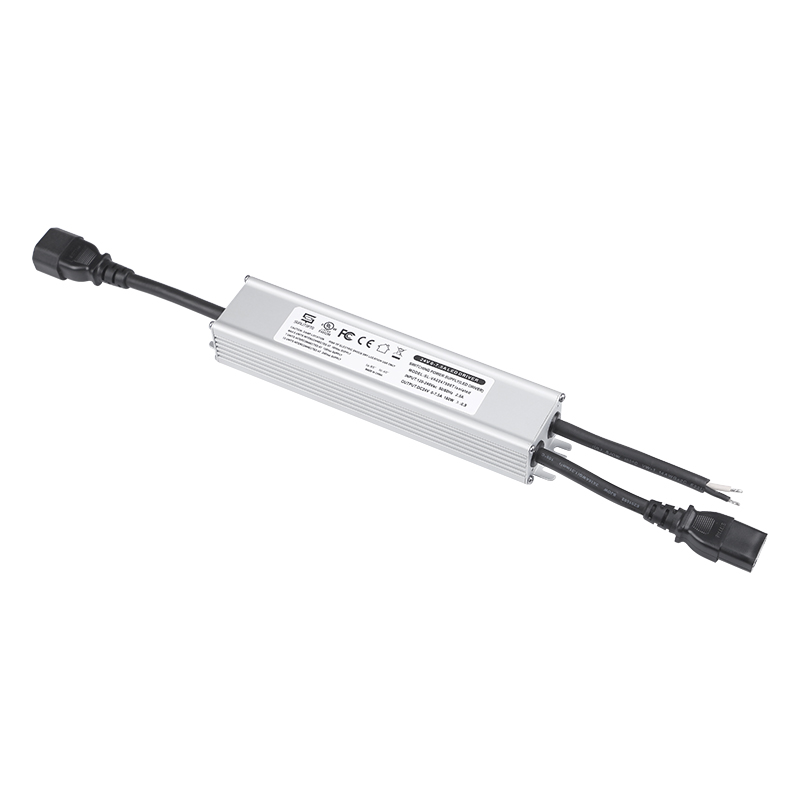

Specify the power unit together with its cable assembly. The SL-VA0247500T catalogue reference covers a 180W LED power supply labelled for 24V DC output at 0–7.5A and 100–240V AC input. This page shows a silver enclosed unit with stripped wire leads, a separate moulded female connector and a moulded male connector at the opposite end.
For display-lighting manufacturers, lightbox fabricators and electrical-component wholesalers, this wire-lead configuration supports a clearly defined harness order. Provide the lighting load, connection drawing, required cable lengths and destination country to approve the sample assembly and production specification.
180W wire-lead power supply technical data
| Specification | SL-VA0247500T |
|---|
| Catalogue ordering reference | SL-VA0247500T |
| Rated power, complete unit | 180W |
| DC output | 24V DC, 0–7.5A |
| AC input on pictured label | 100–240V AC, 50/60Hz |
| Input current on pictured label | 2.5A |
| Pictured enclosure | Silver enclosed case with mounting tabs |
| Cable version on this page | Stripped wire leads and moulded connectors |
| Cable and connector selection | Confirm drawing, lengths, connector specification and polarity with the order |
Define the harness and mounting arrangement

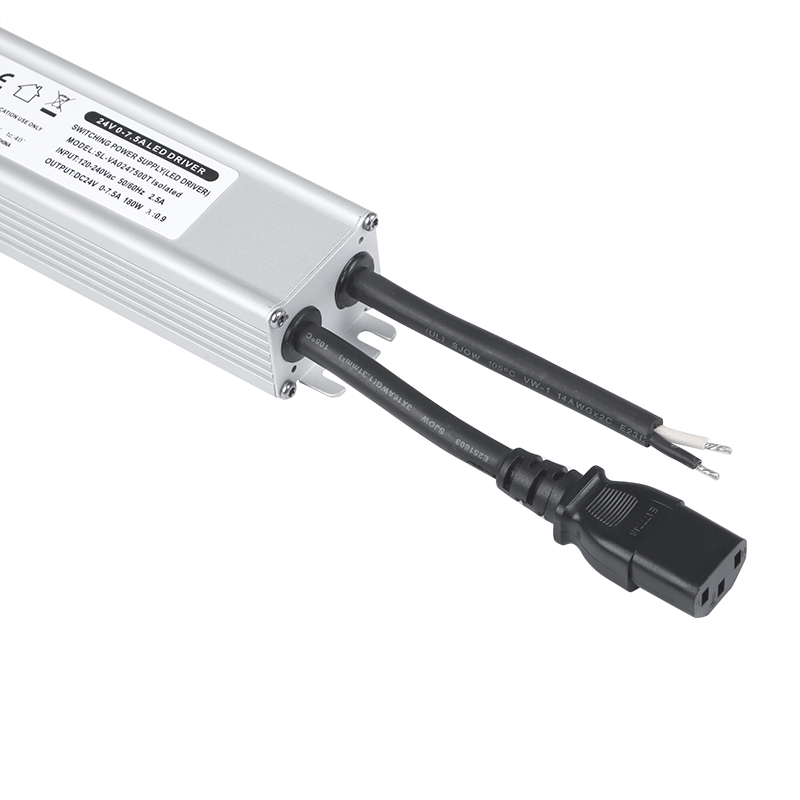

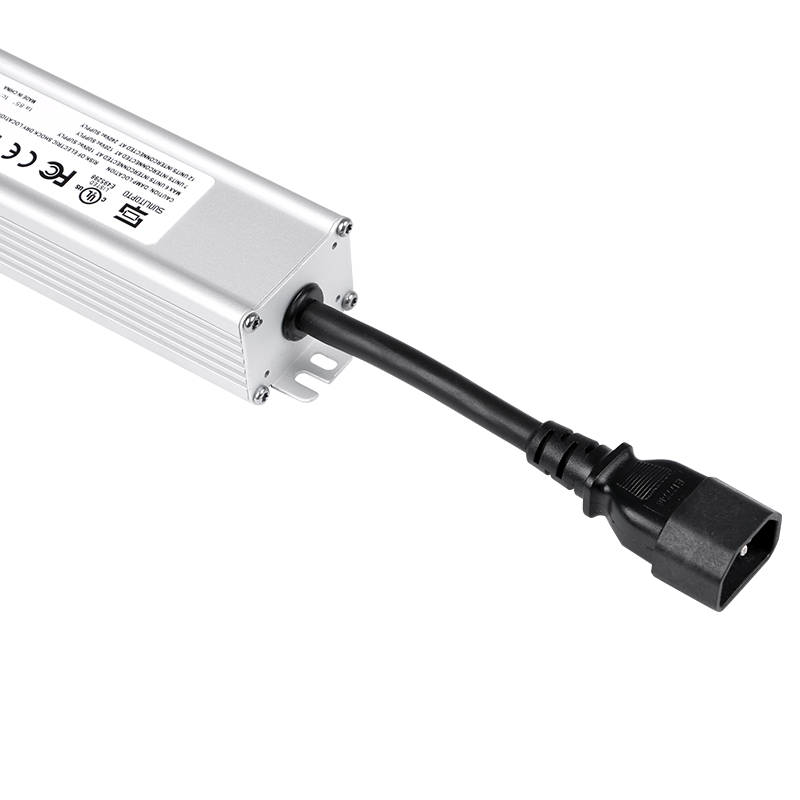

The pictures show two exposed conductors beside a separate moulded female connector, with a moulded male connector at the opposite end. Specify the cable function, conductor assignment and mating connector arrangement in the approved wiring drawing.
Confirm the required cable lengths, termination details and mounting dimensions with a sample. Identify the incoming power cord and any connection leads required in the quotation so the delivered assembly matches the project specification.
Load selection and wholesale cable supply
The 180W and 7.5A values describe the complete power unit. Provide the connected lighting models and total electrical load to confirm a suitable operating configuration and the ratings of each cable and connector. Include the installation environment and any control-system requirements for assessment.
Wholesale orders start at 20 pcs; larger quantities qualify for lower unit prices. Samples are available, with charges and destination shipping confirmed separately. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries can include cable-assembly, marking and packing requirements; custom schedules and transit are agreed separately.
For destination-market documents, request current technical and compliance information applicable to the quoted power-unit and cable configuration.
Wire-lead LED power supply purchasing questions
Does this page show the twin DC-plug version?
This page shows stripped wire leads beside a moulded connector. The separate twin DC-plug version is linked below. Include the required configuration or a connector photograph with your enquiry.
Is 180W available from each cable branch?
The 180W rating applies to the complete power unit. Confirm the total connected load, conductor assignment and permitted current for each lead and connector in the approved assembly specification.
Can I specify cable lengths and terminations for a bulk order?
Provide a harness drawing showing lead functions, lengths, termination types, polarity and mating connectors. Include quantity and destination country to confirm the sample, OEM scope and quotation.
What should I send to check this 24V power supply for display lighting?
List the lighting models, total load, installation environment and required control arrangement. Add the power-cord, harness, mounting and market-document requirements so the quoted version can be approved with a sample.
