24V 6A desktop power supplies with twin DC plugs

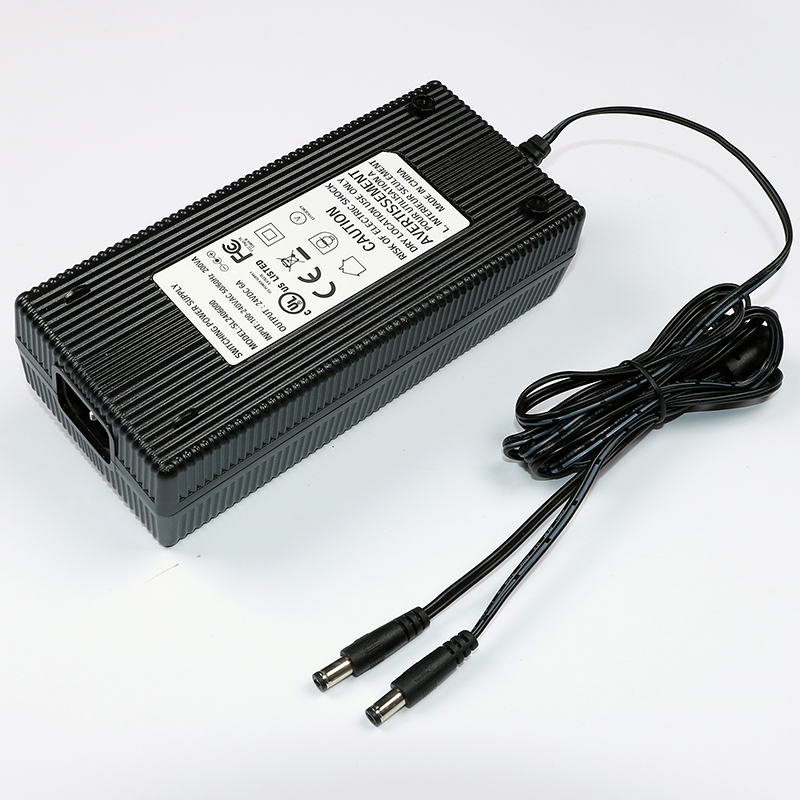

Select the two DC leads together with the total lighting load. The pictured SL2406000 switching power supply is labelled for 24V DC at 6A, with an attached cable ending in two DC barrel plugs. The nominal DC power is 144W, calculated from the label’s 24V and 6A values.
For display-system builders, sign assemblers and lighting-component distributors, the ordering specification should identify both connected loads and their mating sockets. Send the lighting models, combined load and connection drawing to define the sample configuration and wholesale quotation.
144W nominal power and twin-plug reference
| Specification | SL2406000 |
|---|
| Model on pictured label | SL2406000 |
| Labelled DC output, complete unit | 24V DC, 6A |
| Nominal DC power calculation | 144W = 24V × 6A |
| AC input on label | 100–240V AC, 50/60Hz |
| Input apparent-power marking | 200VA on pictured label |
| Output leads pictured | Attached cable ending in two DC barrel plugs |
| Enclosure pictured | Black ribbed enclosed case |
| Use restriction on label | Dry location use only |
| Connector and branch selection | Confirm mating size, polarity and permitted load on each lead |
Specify the combined load and both DC connections
The 6A label describes the complete power unit. List the lighting load connected to each lead and the combined requirement when agreeing the sample; confirm the permitted current for each cable and connector with the quoted technical data.
Send a mating-socket photograph or drawing with the required plug dimensions, polarity and cable lengths. Two visible plugs identify the pictured connection arrangement; the sample specification should also define any controller and the electrical requirements of the lighting system.
Mains input and placement in the display assembly
The label states 100–240V AC at 50/60Hz and dry-location use only. Provide the local mains supply, incoming cord requirements and installation location when requesting the production configuration.
Include the available enclosure space and access to the inlet and output leads in the assembly drawing. Request the full dimensions, installation instructions and current destination-market documents for the version being quoted.
Wholesale twin-plug supplies and project samples
Orders start at 20 pcs, with lower unit prices for larger quantities. Samples are available; sample charges and destination shipping are confirmed separately. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include lead configuration, identification and packing requirements. Share the assembly drawing, artwork and target quantity to confirm the custom scope and quotation. Custom schedules and transit are agreed separately.
24V twin-plug power supply purchasing questions
Does each DC plug have a separate 6A rating?
The pictured label specifies 6A for the complete power unit. Provide the load on each connection and request the permitted cable and connector ratings for the sample configuration.
How is the 144W nominal value determined?
It is calculated from the labelled 24V DC output and 6A current: 24 × 6 = 144W. Confirm the operating load and installation requirements with the quoted technical specification.
Which ordering model should I use for this pictured supply?
Use SL2406000, the model printed on the original label. Include the twin-DC-lead arrangement, target quantity and connector drawing in the enquiry.
What should I provide to approve both output connections?
Send the two mating-socket details, required polarity, cable lengths and lighting-model data. Add the combined load, mains-cord requirements and destination to define the sample.
Compare 24V desktop connection arrangements

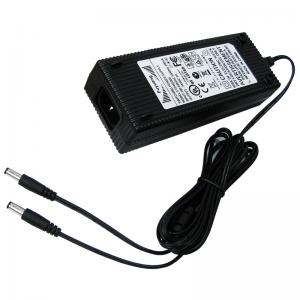

24V 5A FY2405000 power adapter with dual DC leads
