36V 1A LED drivers with a moulded two-pole output lead
Match the electrical output and connector as one assembly. The OUTPUT line on the pictured SL3601000 label lists 36V DC at 1A, giving a nominal DC power of 36W calculated from those values. The photograph shows an enclosed black driver with an attached moulded two-pole output lead and a separate mains cord.
For display-system manufacturers, lighting-component distributors and project buyers, sample selection should define the electrical requirements and mating connection together. Send the lighting-model data, load requirements and a connector photograph or drawing to confirm the driver version and cable configuration.
36V 1A driver and output-connection reference
| Specification | SL3601000 |
|---|
| Model on pictured label | SL3601000 |
| DC output in label OUTPUT line | 36V DC, 1A |
| Nominal DC power calculation | 36W = 36V × 1A |
| AC input on label | 100–240V AC, 50/60Hz |
| Input apparent-power marking | 50VA on pictured label |
| Enclosure pictured | Black rectangular enclosed case |
| Output connection pictured | Attached lead with moulded two-pole connector |
| Mains lead pictured | Separate mains cord; confirm destination plug and cable requirements |
| Load and operating configuration | Confirm connected load, operating mode and mating connector |
Approve the mating connector and electrical version
The photograph provides a reference for the two-pole moulded output connection. Send a clear photograph or drawing of the mating connector, together with the required contact arrangement and cable length, to define the sample assembly.
The label’s OUTPUT line specifies 36V DC at 1A for the complete driver. Provide the lighting model’s electrical data and load requirements to confirm the operating mode and permitted configuration for the quoted version. Agree the driver and cable specifications together when approving the sample.
Mains lead and destination-market selection
The label lists 100–240V AC input at 50/60Hz, and the photograph shows a separate mains cord. Specify the local mains supply, destination plug requirements and required incoming cable with the enquiry.
Request current model-specific technical and market documents for the selected version. Include the enclosure space and required access to the connections in the assembly drawing to confirm the installation arrangement.
Desktop driver samples and wholesale enquiries
Wholesale orders start at 20 pcs, with lower unit prices at higher quantities. Samples are available; sample charges and destination shipping are confirmed separately. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include output-lead requirements, mains-cord selection, marking and packing. Provide the assembly drawing and target quantity to confirm the sample, custom scope and quotation. Custom schedules and transit are agreed separately.
Two-pole output driver purchasing questions
Which output connector is pictured on SL3601000?
The photograph shows a moulded two-pole connector on the attached output lead. Send the mating-connector photograph or drawing to confirm the required contact arrangement and assembly dimensions.
What input range is listed on the driver label?
The label lists 100–240V AC at 50/60Hz and a 50VA input marking. Specify the local mains supply and required incoming cable with the order.
What output is listed for the SL3601000 driver?
The OUTPUT line on the pictured label lists 36V DC at 1A. These values correspond to 36W nominal DC power, calculated as 36 × 1. Confirm the lighting load and operating mode with the quoted technical data.
Can I specify the mains cord and output lead for bulk supply?
Include the destination plug, cable lengths, mating connector and marking requirements in an OEM or private-label enquiry. Samples are available; quantities start at 20 pcs, with scope and costs confirmed in the quotation.
Compare terminal-wired 12V power units

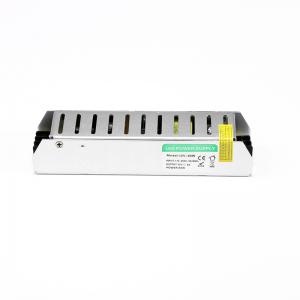

60W 12V LED driver with end screw terminals
