100W 12V power supplies for slim terminal assemblies

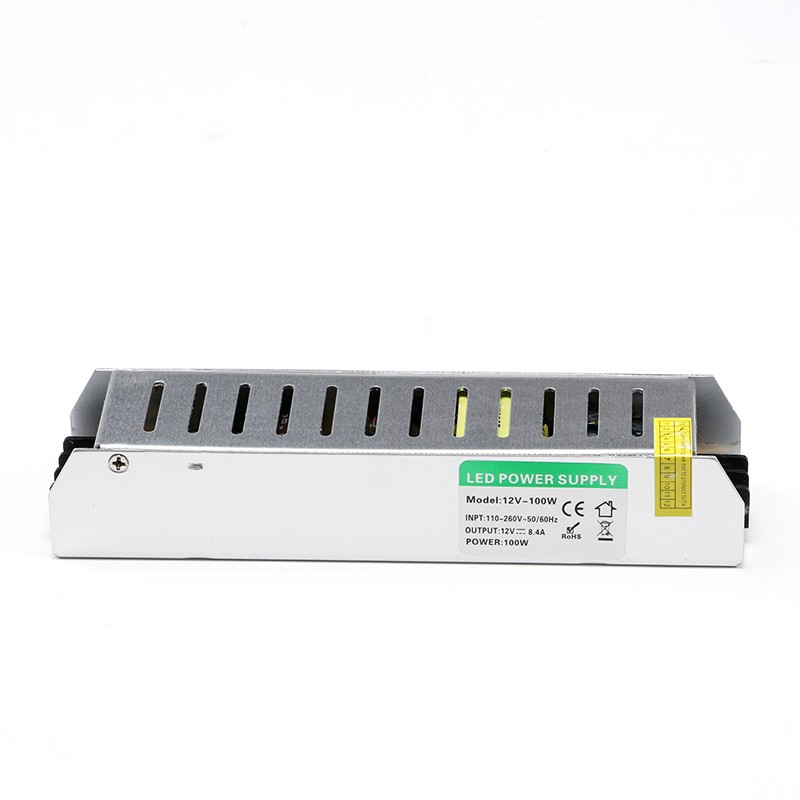

Specify the power unit together with the 12V lighting assembly. This 100W LED power supply is labelled for 12V DC output at 8.4A, with a slim metal case, ventilation slots and screw-terminal connections at the case ends. The side view shows the DC terminal markings for assembly planning.
For sign manufacturers, display builders and component distributors, a useful sample checks the terminal layout, mounting space and packing requirements together. Share your lighting load, cable drawing and target quantity to define the production configuration and volume quotation.
100W slim terminal power supply data
| Specification | SL-HT-100-12 |
|---|
| Catalogue ordering reference | SL-HT-100-12 |
| Rated type on pictured label | 12V–100W |
| Rated power, complete unit | 100W |
| DC output on label | 12V DC, 8.4A |
| AC input on label | 110–260V AC, 50/60Hz |
| Case pictured | Narrow metal enclosure with ventilation slots |
| Connections pictured | Screw terminals at case ends; DC end marked +V and −V |
| Packing photograph | White carton reference; confirm the order packing specification |
| Assembly selection | Confirm mounting dimensions, cable layout and combined load |
Define the terminal assembly and mounting space

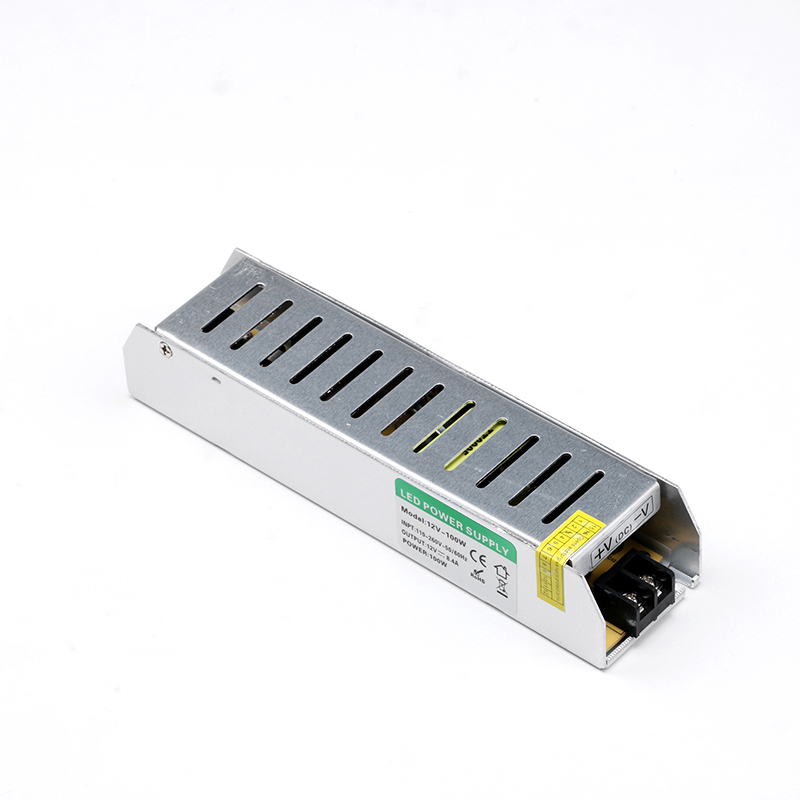

The angled view shows the metal case and DC terminal end. Request the complete dimensions and terminal information when preparing the fixing positions, incoming cable and DC connections for the display assembly.
The 100W and 8.4A ratings describe the complete power unit. Provide the connected lighting models and combined load to confirm the operating configuration and cable ratings. Include any control equipment in the project specification.
Packing reference for distributor orders

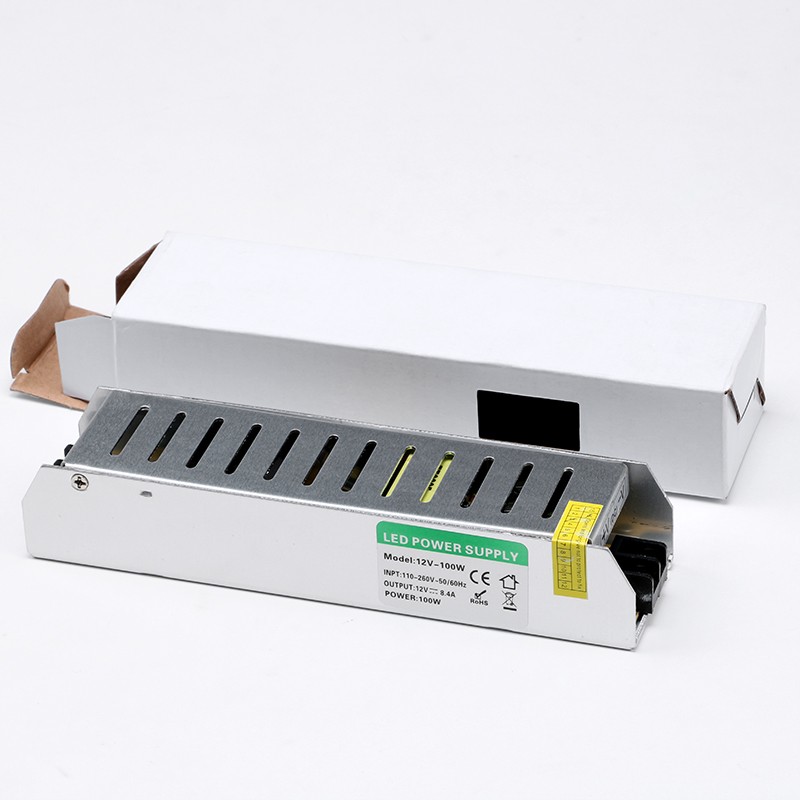

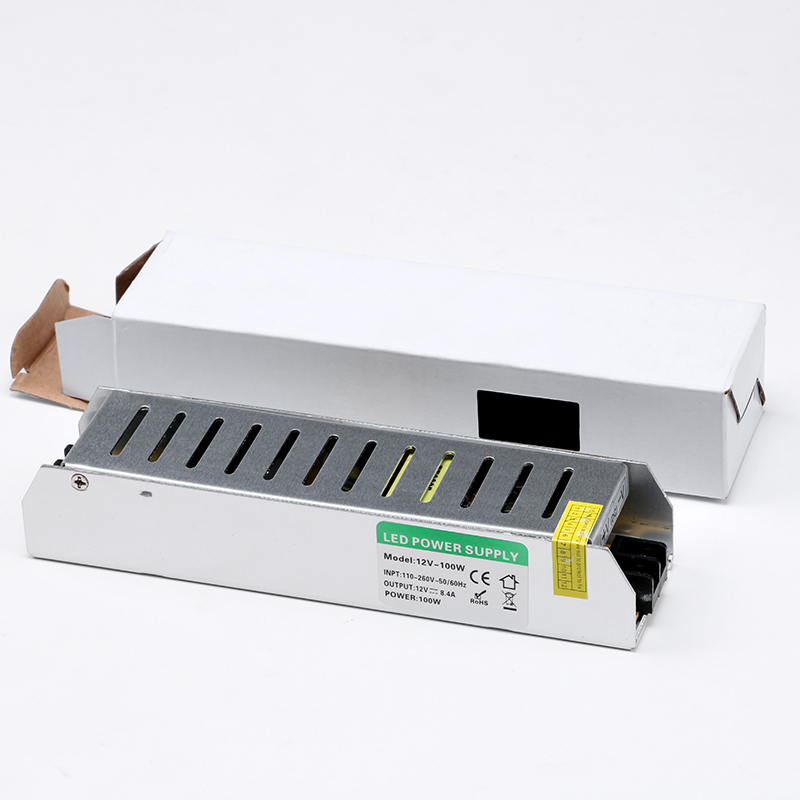

The packing photograph shows a white carton beside the power unit. Specify the required carton format, identification label and packing information when agreeing the sample and production order.
For distributor stock or project deliveries, include the required marking and shipment quantity with the enquiry. Confirm the final packing arrangement and destination-market technical documents for the quoted version.
Wholesale 12V supply, samples and OEM requirements
Wholesale orders start at 20 pcs, with lower unit prices at higher quantities. Samples are available; sample charges and destination shipping are confirmed separately. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include cable assemblies, marking and packing requirements. Send the drawing, label artwork and target quantity to confirm the custom scope and quotation. Custom schedules and transit are agreed separately.
100W 12V terminal supply purchasing questions
What output is listed for this 100W slim power supply?
The original label specifies 12V DC at 8.4A and 100W. Include the lighting models and total connected load when selecting the sample configuration.
What input range appears on the power-unit label?
The label states 110–260V AC at 50/60Hz. Provide the local mains supply and destination to confirm the incoming cable and installation requirements.
Can I specify packing for distributor stock?
Packing requirements can be included with an OEM or private-label enquiry. Provide the carton format, identification artwork and quantity to confirm the sample, custom scope and quotation.
What should I send for a screw-terminal assembly sample?
Send the mounting space, lighting load and cable drawing, including the required terminations and control equipment. Add the target quantity and destination to confirm sample charges and shipping.
