60W 12V LED drivers with terminals at the case ends

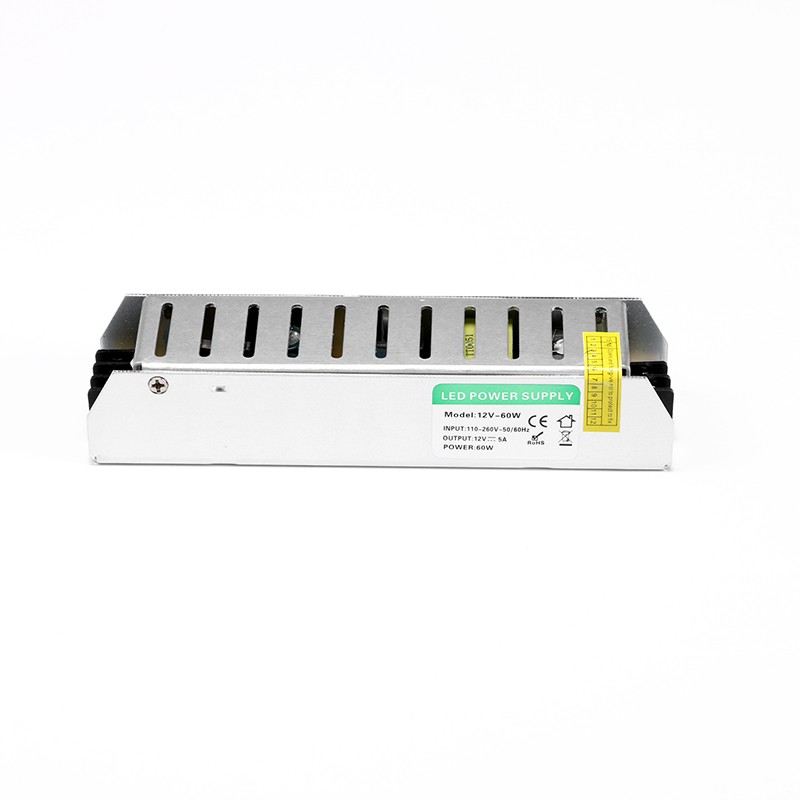

Plan a 12V lighting branch around the 60W power-unit specification. This LED driver is labelled for 12V DC output at 5A and 110–260V AC input. The photographs show a slim metal enclosure with ventilation slots and screw terminals positioned at the case ends.
For illuminated-sign fabricators, display assemblers and wholesale lighting buyers, confirm the load and cable route before approving the power-unit sample. Provide the lighting models, combined load and available mounting space to define the required terminal connections and production configuration.
60W 5A driver technical specification
| Specification | SL-HT60-W1V12 |
|---|
| Catalogue ordering reference | SL-HT60-W1V12 |
| Rated type on pictured label | 12V–60W |
| Rated power, complete unit | 60W |
| DC output on label | 12V DC, 5A |
| AC input on label | 110–260V AC, 50/60Hz |
| Enclosure pictured | Slim metal case with ventilation slots |
| DC terminals pictured | Two screw terminals marked +V and −V |
| Connection layout | Terminal blocks at both ends of the case |
| Project selection | Confirm combined load, dimensions and cable specification |
DC terminal selection for the lighting assembly

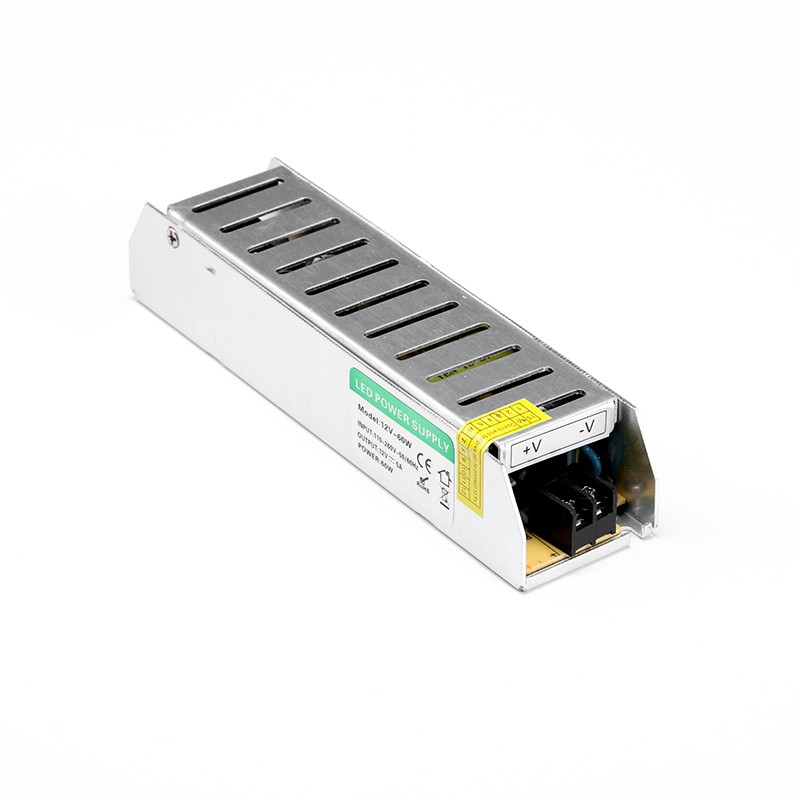

The close-up identifies the DC end with +V and −V markings on the two screw-terminal positions. Obtain the quoted version’s terminal instructions when defining the connections and cable terminations.
The 60W and 5A ratings apply to the complete driver. Include the connected lighting models and combined load so the permitted operating configuration and cable ratings can be confirmed. Specify any lighting-control equipment in the same project drawing.
End-terminal layout and enclosure planning
The top view shows the ventilated metal case and terminal blocks at its ends. Request the complete enclosure dimensions and fixing information to check the mounting position, ventilation requirements and access to the cables.
Provide the local mains supply and incoming cable requirements with the enquiry. The original label states 110–260V AC at 50/60Hz; the order specification should also identify the destination and required technical documents.
Bulk 60W drivers and sample approval
MOQ is 20 pcs, with lower unit prices for larger quantities. Samples are available; sample charges and shipping to the destination are confirmed separately. Standard lead time is 12–18 days.
OEM, ODM and private-label requests can include cable assemblies, marking and packing specifications. Send the drawing and target quantity to confirm the sample, custom scope and quotation. Custom schedules and transit are agreed separately.
60W end-terminal driver purchasing questions
Which DC connections are visible on the 60W driver?
The DC-end photograph shows two screw terminals marked +V and −V. Request the terminal instructions for the quoted version when preparing the cable assembly.
Is 5A the rating for each terminal or for the complete driver?
The label’s 12V DC and 5A values describe the complete unit. Confirm the total connected lighting load and cable requirements with the project drawing.
How can I check the end-terminal layout in my display assembly?
Provide the available mounting space and cable route. Request the complete dimensions and installation requirements, then agree a sample with the required terminal configuration.
What information is needed for a volume quotation?
Include SL-HT60-W1V12, target quantity, lighting load, cable drawing, destination and any OEM marking or packing requirements. Orders start at 20 pcs; sample cost and custom scope are confirmed separately.
