150W 24V LED drivers with a seven-terminal layout

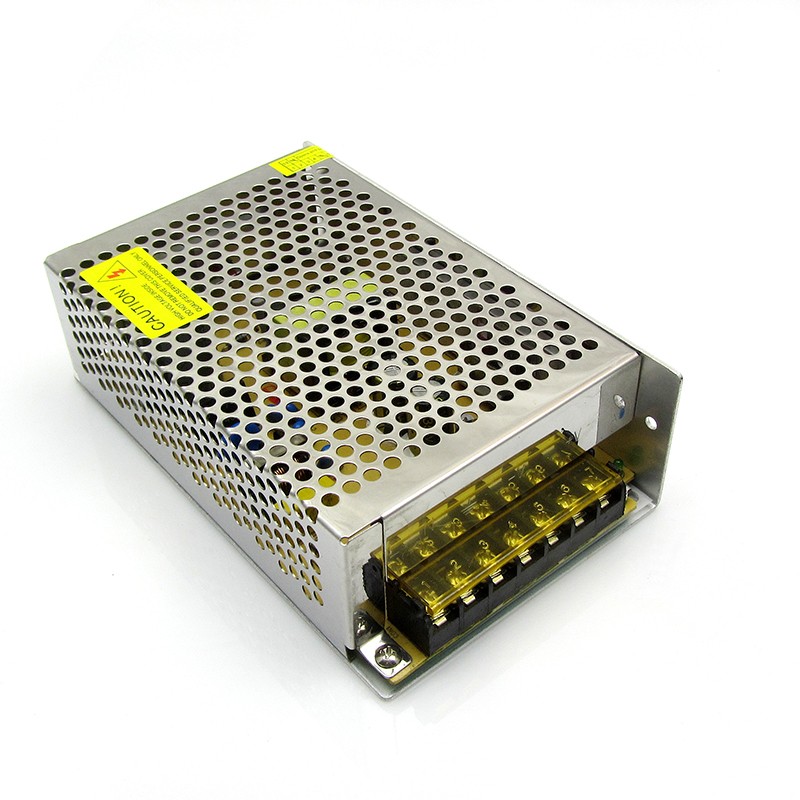

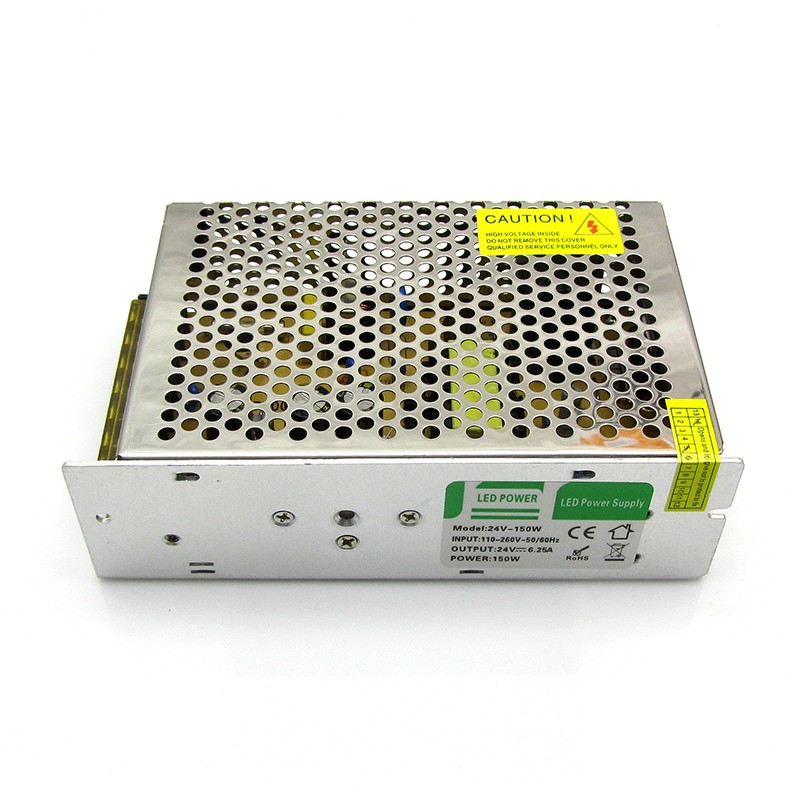

Organise the 24V power connections around a seven-position terminal block. This 150W LED driver is labelled for 24V DC output at 6.25A and 110–260V AC input. Its perforated metal case and covered terminal arrangement provide clear reference points for the mounting and cable plan.
Display-system manufacturers, sign fabricators and wholesale electrical buyers can use the front terminal view to prepare an assembly specification. Include the lighting load, mains supply and available mounting space to confirm the version, sample and production requirements.
150W seven-terminal driver specification
| Specification | SL-HT-150-24 |
|---|
| Catalogue ordering reference | SL-HT-150-24 |
| Rated type on pictured label | 24V–150W |
| Rated power, complete unit | 150W |
| DC output on label | 24V DC, 6.25A |
| AC input on label | 110–260V AC, 50/60Hz |
| Front terminal view | Seven positions: L, N, earth, 2 × −V and 2 × +V |
| Case and terminal layout | Perforated metal case; transparent terminal cover pictured |
| Adjustment marking pictured | +V ADJ; supported range confirmed with the quoted version |
| Assembly information | Confirm dimensions, mounting layout and cable requirements |
Use the front view to define the connections

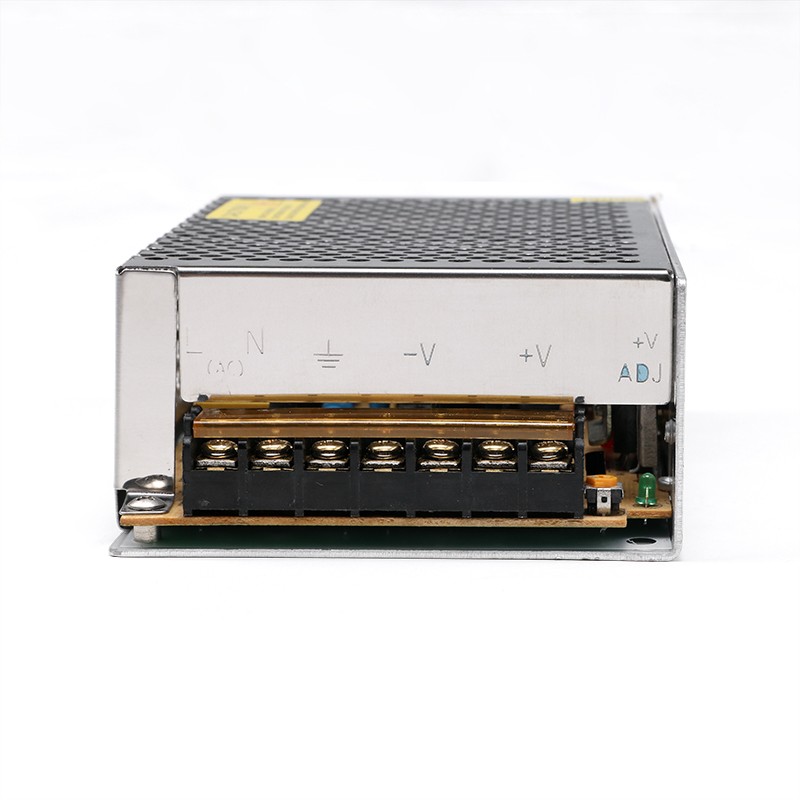

The front photograph shows L, N and earth followed by two −V and two +V positions. Use the quoted version’s terminal instructions to specify the incoming cable, DC connections and required terminations.
The 150W and 6.25A values apply to the complete unit. Include the combined lighting load and proposed branch arrangement in the project drawing so the permitted terminal loading and cable ratings can be confirmed.
Perforated case and adjustment marking
The metal enclosure has a perforated surface and fixing positions. Obtain the complete assembly dimensions and installation requirements to check the available mounting space, ventilation and access to the terminals.

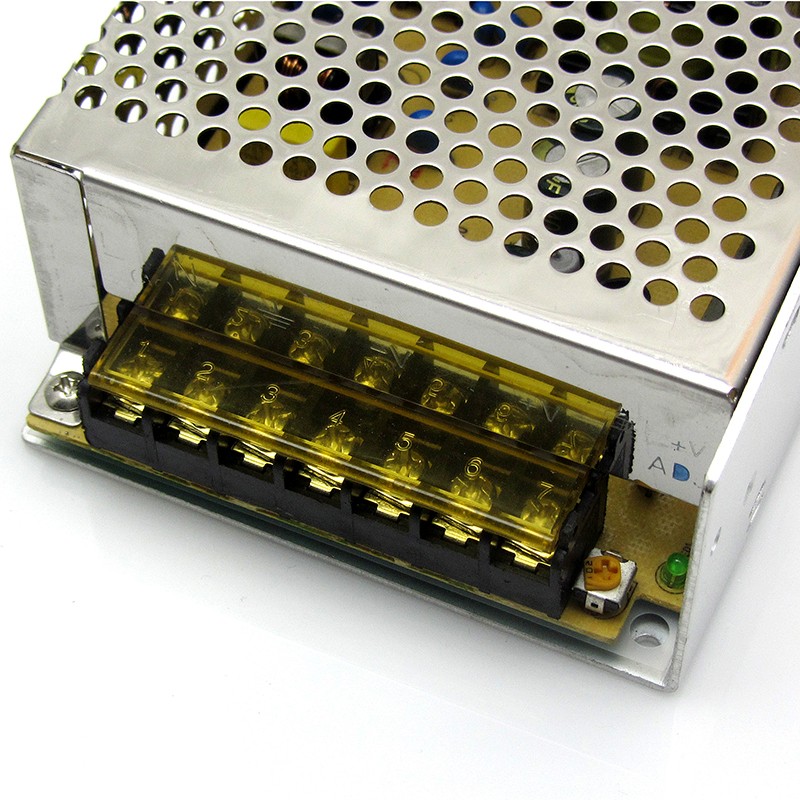

The close-up shows a +V ADJ marking beside the terminal block. Request the supported adjustment range and version-specific instructions when selecting the supply. Identify any dimming or control equipment separately in the project specification.
150W driver samples and volume supply
Wholesale orders start at 20 pcs, and unit prices decrease with higher quantities. Samples are available; charges and destination shipping are confirmed separately. The standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include marking, cable assemblies and packing requirements. Send the drawing and target quantity to confirm the sample, custom scope and quotation. Custom schedules and transit are agreed separately.
Seven-terminal LED driver purchasing questions
How is the seven-position terminal block arranged?
The front view shows L, N, earth, two −V positions and two +V positions. Obtain the wiring information for the quoted version when preparing the assembly.
What current rating is shown for the 150W driver?
The label specifies 24V DC at 6.25A. This is the complete unit rating; confirm the combined lighting load and permitted terminal loading with the project drawing.
What should I confirm before using the +V ADJ position?
Request the supported voltage-adjustment range and installation instructions for the quoted version. Include the connected lighting models and any control equipment with the enquiry.
Can I check the terminal layout with a sample before ordering in bulk?
Samples are available. Provide the required version, load, connection drawing and destination to confirm the sample cost and shipping. Bulk orders start at 20 pcs, with volume pricing for larger quantities.
