100W 24V slim LED power supplies for display-frame layouts

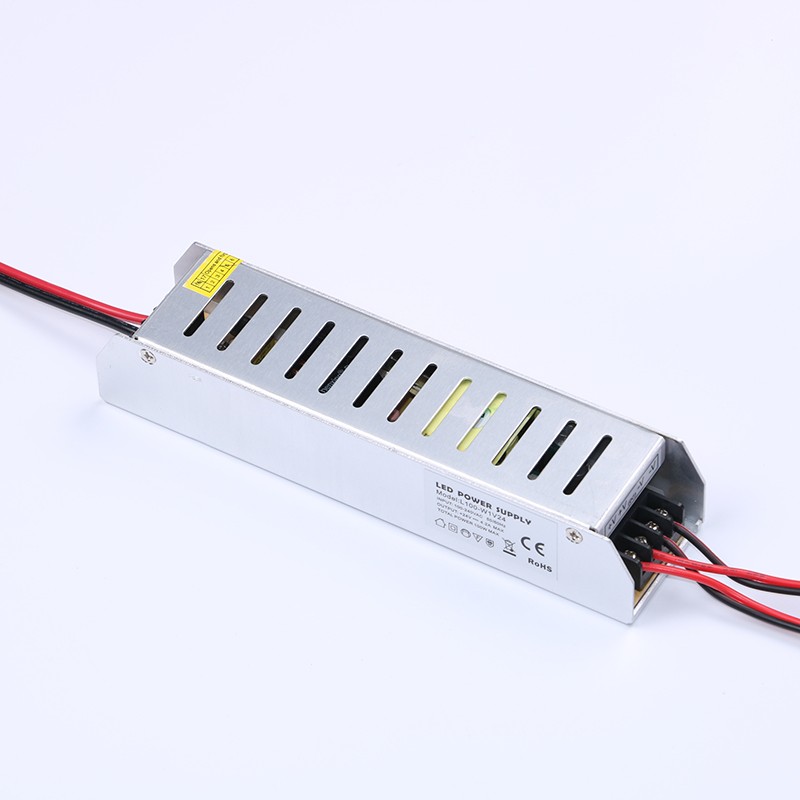

Choose a slim power-unit layout for an illuminated display assembly. The L100-W1V24 label specifies 24V DC output at 4.2A maximum, a total power of 100W maximum and 100–240V AC input. The photographs show a long, narrow metal case with ventilation slots, screw terminals and wire leads.
For lightbox builders, display-frame manufacturers and wholesale component buyers, mounting space and cable routing are central to the selection. The profile-placement photograph provides an assembly reference. Supply your frame drawing, available space and connected load to confirm the dimensions and a suitable sample configuration.
100W slim power unit specification
| Specification | L100-W1V24 |
|---|
| Model on pictured label | L100-W1V24 |
| Maximum total power on label | 100W max |
| DC output on label | 24V DC, 4.2A max |
| AC input on label | 100–240V AC, 50/60Hz |
| Enclosure pictured | Long, narrow metal case with ventilation slots |
| Connections pictured | Screw-terminal block and wire leads |
| Profile-placement picture | Assembly reference; confirm your frame dimensions and installation requirements |
| Order selection | Confirm mounting space, wire arrangement and total connected load |
Check the frame space and wire routing

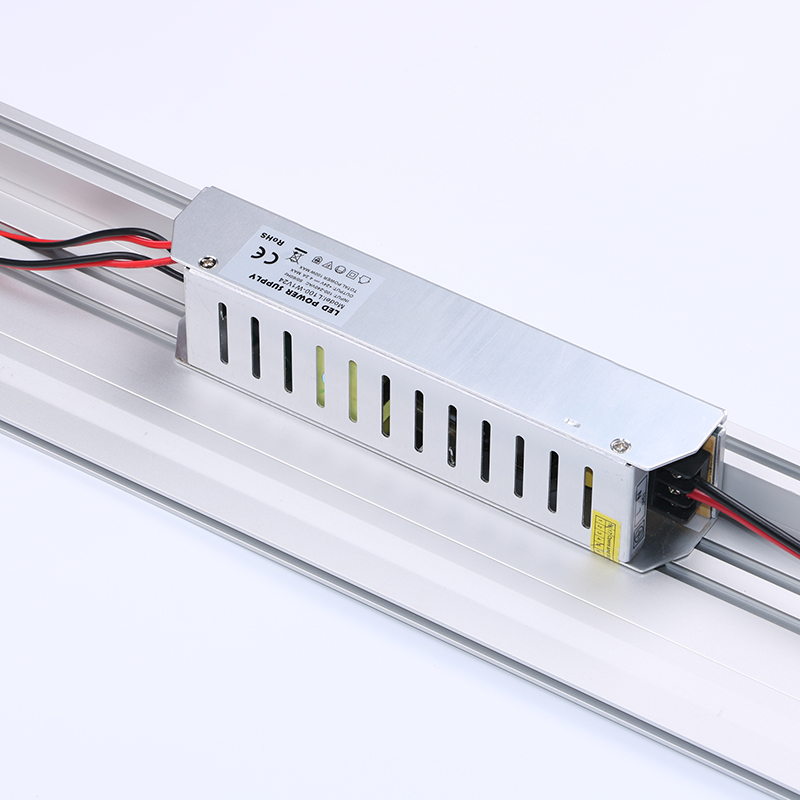

The second photograph places the power unit within an aluminium profile. Use this view as a reference when preparing the frame layout, and request the complete power-unit dimensions and fixing information to assess your own assembly.
Include the available length, width, height, cable exits and required access to the connections in the drawing. Confirm the installation and ventilation requirements for the quoted version with the sample approval.
24V load selection and input requirements
The pictured label states a 24V DC output of 4.2A maximum and total power of 100W maximum. Provide the connected lighting models and combined load to confirm the permitted operating configuration and cable ratings.
The label input range is 100–240V AC at 50/60Hz. Include the local mains supply, incoming cable requirements and destination with the enquiry. Specify any lighting controls and mating connections in the assembly drawing.
Slim driver samples, OEM and wholesale supply
MOQ is 20 pcs, with lower unit prices at higher quantities. Samples are available; sample charges and destination shipping are confirmed separately. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include lead arrangements, marking and packing requirements. Provide the frame drawing, target quantity and market documents required to confirm the sample and quotation. Custom schedules and transit time are agreed separately.
Slim power supply purchasing questions
Which model is shown on the 100W slim power supply?
The original label shows L100-W1V24, with 24V DC output at 4.2A maximum and 100W maximum total power. Use this model reference when requesting the sample and technical data.
Will the pictured power supply fit my aluminium display frame?
Provide the frame drawing and available mounting space to check the complete power-unit dimensions, wire routing and installation requirements. The profile photograph is an assembly reference for sample selection.
What input range is specified for this slim 24V driver?
The label states 100–240V AC at 50/60Hz. Include the local mains supply and required incoming cable in the order specification.
What details help define an OEM slim-driver order?
Provide the frame layout, connected lighting load, lead and termination requirements, label artwork and target quantity. Samples and volume pricing are available; custom scope, cost and schedule are confirmed with the quotation.
