250W 24V LED power supplies for terminal-wired assemblies
Build the power stage around your 24V lighting load and cable layout. This 250W LED power supply is labelled for 24V DC output at 10.1A and has a covered nine-position screw-terminal block. The metal case includes ventilation slots, a fan grille and fixing positions for assembly planning.
For sign makers, display manufacturers and component distributors, the terminal arrangement is a key part of the specification. Send the connected lighting models, total load and mounting drawing to confirm a suitable sample, cable arrangement and bulk-order configuration.
250W terminal power unit technical data
| Specification | SL-HT-250-24 |
|---|
| Catalogue ordering reference | SL-HT-250-24 |
| Rated type on pictured label | 24V–250W |
| Rated power, complete unit | 250W |

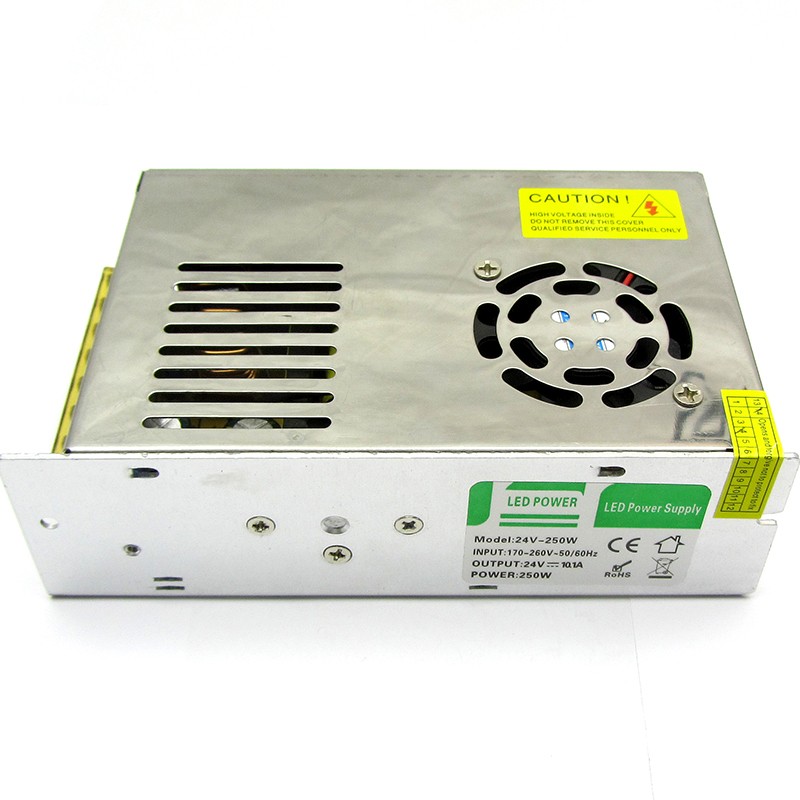

| DC output on label | 24V DC, 10.1A |
| AC input on label | 170–260V AC, 50/60Hz |
| Terminal arrangement pictured | Nine positions: 3 × +V, 3 × −V, earth, N and L |
| Terminal cover | Transparent cover pictured |
| Case layout | Metal enclosure with ventilation slots and fan grille |
| Order selection | Confirm assembly drawing, cable ratings and total connected load |
Covered screw terminals and load distribution
The connection close-up shows three +V positions, three −V positions and the earth, N and L markings under a transparent cover. Request the terminal and wiring information for the quoted version when preparing the cable assembly.
The 250W and 10.1A ratings apply to the complete power unit. Specify the combined lighting load and the proposed branch arrangement to confirm permitted loading, cable selection and the required connections.
Plan the metal-case mounting space

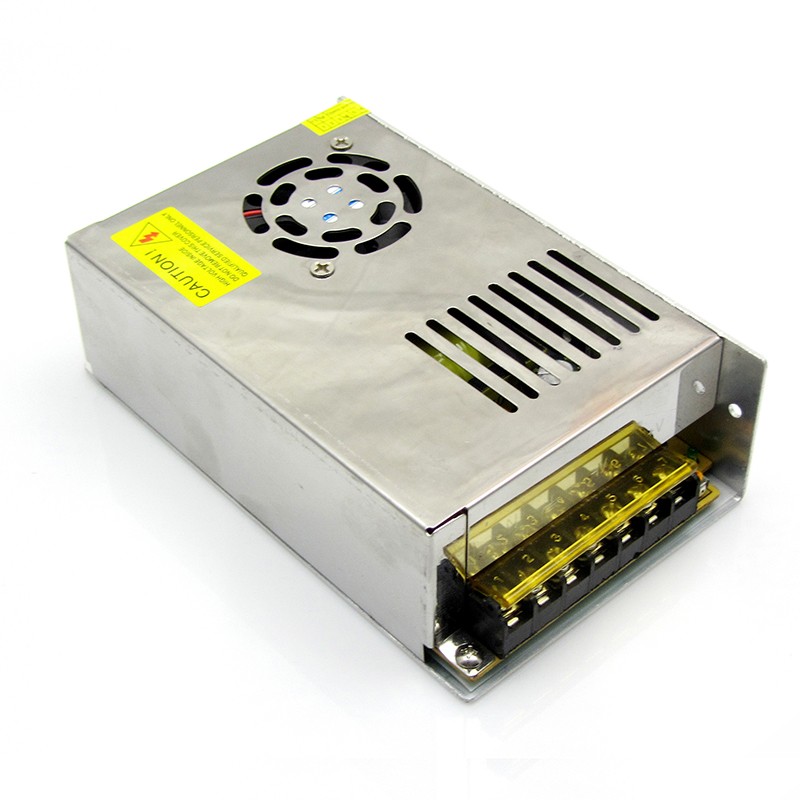

The case photographs show ventilation openings, a fan grille and fixing positions. Provide the available enclosure space and fixing layout to check the complete dimensions, ventilation requirements and access to the terminals.
The label input range is 170–260V AC at 50/60Hz. Include the local mains supply and destination with the enquiry. If the project uses lighting controls, specify the control equipment so its requirements can be assessed with the selected power unit.
Bulk terminal power supply and assembly options
Orders start at 20 pcs, with lower unit prices for higher quantities. Samples are available; sample charges and destination shipping are confirmed separately. The standard lead time is 12–18 days.
OEM, ODM and private-label requirements can cover cable assemblies, marking and packing. Supply the drawing, target quantity and market requirements to define the custom scope and quotation. Custom production schedules and transit time are agreed separately.
250W power supply purchasing questions
Which input range is listed for this 250W 24V supply?
The pictured label states 170–260V AC at 50/60Hz. Provide the local mains voltage and destination to confirm the quoted configuration and installation data.
Does each +V terminal provide the full 250W output?
The 250W and 10.1A ratings describe the complete unit. Share the combined load and wiring plan to confirm the permitted terminal loading and cable specification.
What should a terminal-wired assembly sample include?
Specify the lighting models, total load, cable layout, mounting space and required terminations. Include the target production quantity and any marking or packing requirements.
What information is needed for OEM or private-label supply?
Send the approved assembly drawing, label artwork, required technical documents and order quantity. MOQ starts at 20 pcs; sample costs, custom scope and schedule are confirmed with the quotation.
