12V 2A desktop power supplies for lighting assemblies

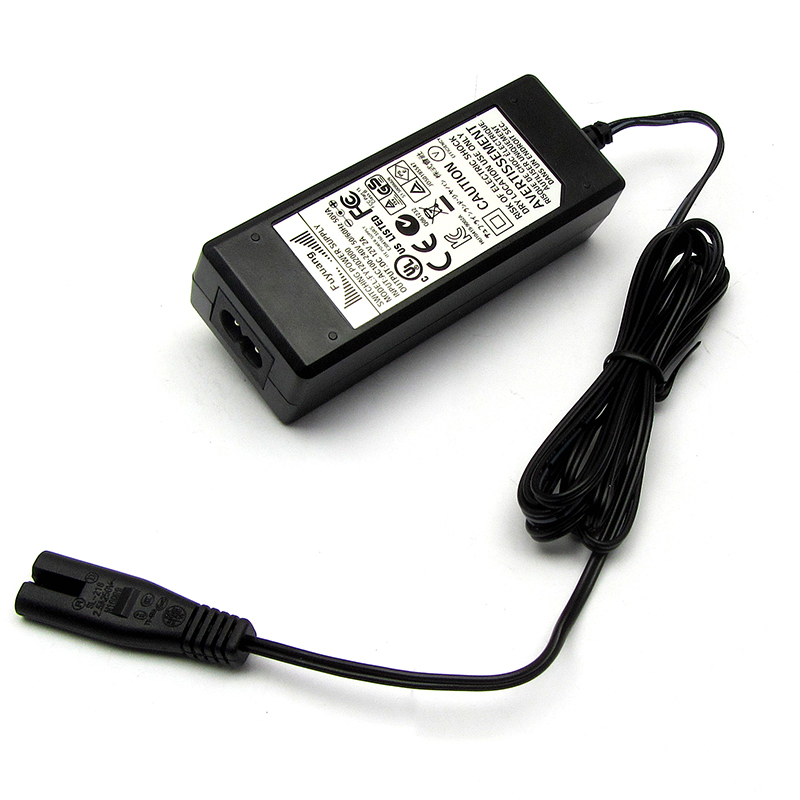

Build the order around the 12V lighting load and its mating connector. The FY1202000 original photograph shows a black enclosed switching power supply with a mains inlet and an attached output lead ending in a moulded two-pole connection. Its label states 12V DC at 2A, giving 24W nominal DC power calculated from those values.
For lighting distributors, display manufacturers and equipment assemblers, send the device specifications and a connector drawing with the target quantity. This defines the electrical and cable requirements for a sample and a comparable wholesale quotation.
FY1202000 electrical and connection reference
| Specification | FY1202000 |
|---|
| Ordering model | FY1202000 |
| DC output on pictured label | 12V DC, 2A |
| Nominal DC power calculation | 24W = 12V × 2A |
| AC input on pictured label | 100–240V AC, 50/60Hz |
| Input apparent-power marking | 50VA |
| Output connection pictured | Attached lead with moulded two-pole connection |
| Case and mains connection | Black enclosed case with mains inlet |
| Labelled location restriction | Dry location use only |
| Sample configuration to specify | Connected load, mating connector, cable and mains cord |
Match the two-pole connector to the lighting assembly
Provide a clear photograph or drawing of the mating connection, including contact layout, dimensions and required polarity. Add the output-cable length needed for the display or equipment assembly so the quoted sample can be checked against the actual installation.
Include the lighting model and its operating requirements with the connector details. Agree the complete load and any control equipment against the selected 12V 2A supply specification before approving production.
Specify the mains lead and installation space
The photograph shows an inlet on the case. Include the local mains supply, required incoming cord and destination plug in the enquiry, and confirm the supplied cord and packing contents for the order.
The original label lists 100–240V AC at 50/60Hz and dry-location use only. Provide the available assembly space and request the enclosure dimensions, installation instructions and current destination-market documents for the version quoted.
Bulk 12V adapters, samples and custom cable enquiries
Wholesale orders start at 20 pcs, with lower unit prices at higher quantities. Samples are available; sample charges and shipping are confirmed for the destination. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include cable arrangements, product marking and packing. Send the connector drawing, artwork and quantity to confirm the custom scope and quotation. Custom schedules and transit time are agreed separately.
12V desktop power supply purchasing questions
What output is printed on FY1202000?
The original label states 12V DC at 2A. The corresponding nominal DC power is 24W, calculated as 12V × 2A.
What connection details are needed for a sample?
Send the mating connector photograph or drawing, contact dimensions, required polarity and cable length. Include the lighting-model data and destination mains-cord requirements.
Is the incoming mains cord shown in this photograph?
The case inlet and attached output lead are visible. Specify the required mains cord and destination plug with the quotation, and confirm the final supply contents.
How can I obtain volume pricing for 12V lighting supplies?
Provide FY1202000, target quantity, connected-load data, connector requirements and destination. Orders start at 20 pcs; larger quantities qualify for lower unit prices.
Compare a different desktop output voltage
Select the output voltage and connection arrangement from the lighting system specification when comparing these models.
FY2402000 24V 2A supply with one DC barrel plug
