350W 24V power supplies with screw terminals

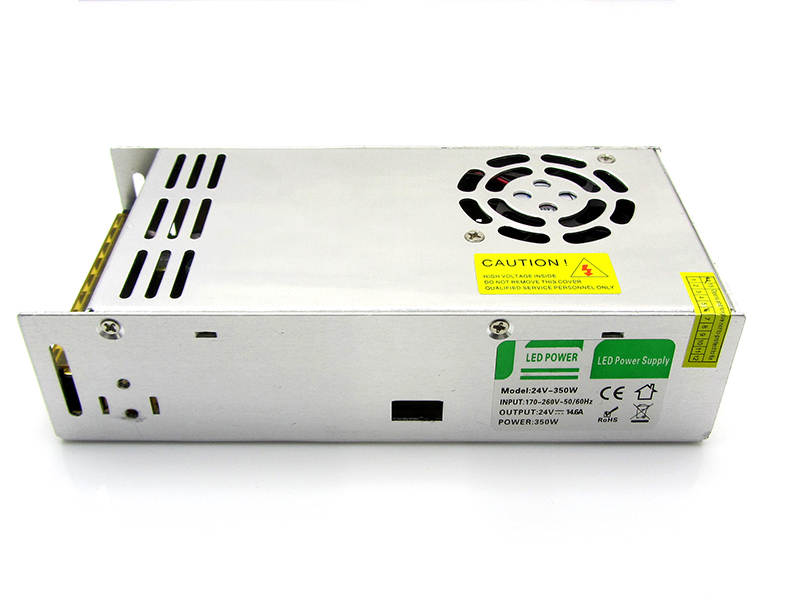

Plan the terminal connections together with the lighting assembly. The SL-HT-350-24 catalogue reference identifies a 350W LED power supply labelled for 24V DC output at 14.6A and 170–260V AC input. The original pictures show a ventilated metal case, fan grille and a covered screw-terminal block.
For lighting-project integrators, display manufacturers and electrical-component wholesalers, confirm the terminal layout, mounting space and connected load with the project drawing. Provide the local supply voltage and required cable arrangement to approve a matching sample and production configuration.
350W terminal power supply specification
| Specification | SL-HT-350-24 |
|---|
| Catalogue ordering reference | SL-HT-350-24 |
| Rated type on pictured label | 24V–350W |
| Rated power, complete unit | 350W |
| DC output | 24V DC, 14.6A |
| Input on pictured label | 170–260V AC, 50/60Hz |
| Terminal block pictured | Nine positions: 3 × +V, 3 × −V, earth, N and L |
| Terminal cover pictured | Transparent cover |
| Enclosure pictured | Ventilated metal case with fan grille |
| Assembly selection | Confirm mounting drawing, cable specification and connected load |
Covered terminal block and cable arrangement

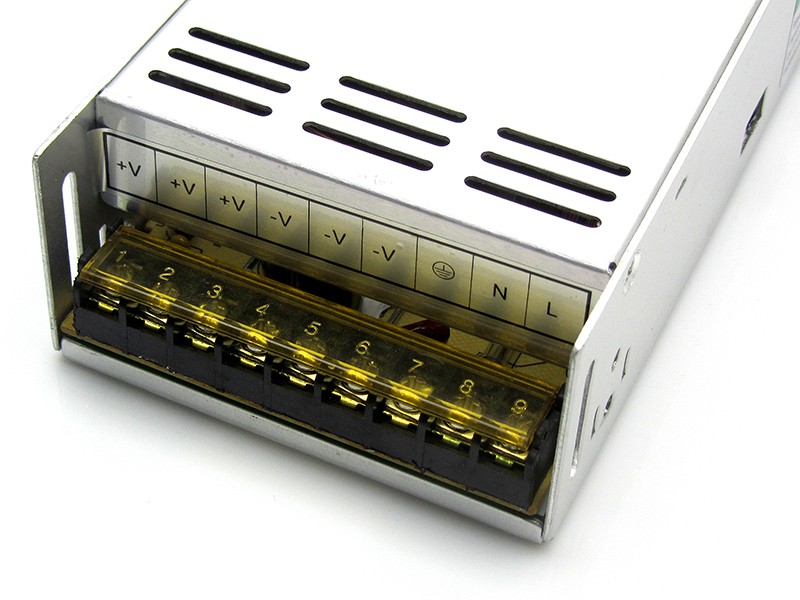

The close-up shows nine screw-terminal positions labelled +V, +V, +V, −V, −V, −V, earth, N and L, with a transparent cover. Obtain the version-specific terminal and wiring information when defining the cable assembly.
The 350W and 14.6A values apply to the complete unit. Provide the combined lighting load and connection drawing to confirm the operating configuration and permitted terminal loading. Define any control equipment and cable requirements with the sample request.
Mounting space and ventilated enclosure

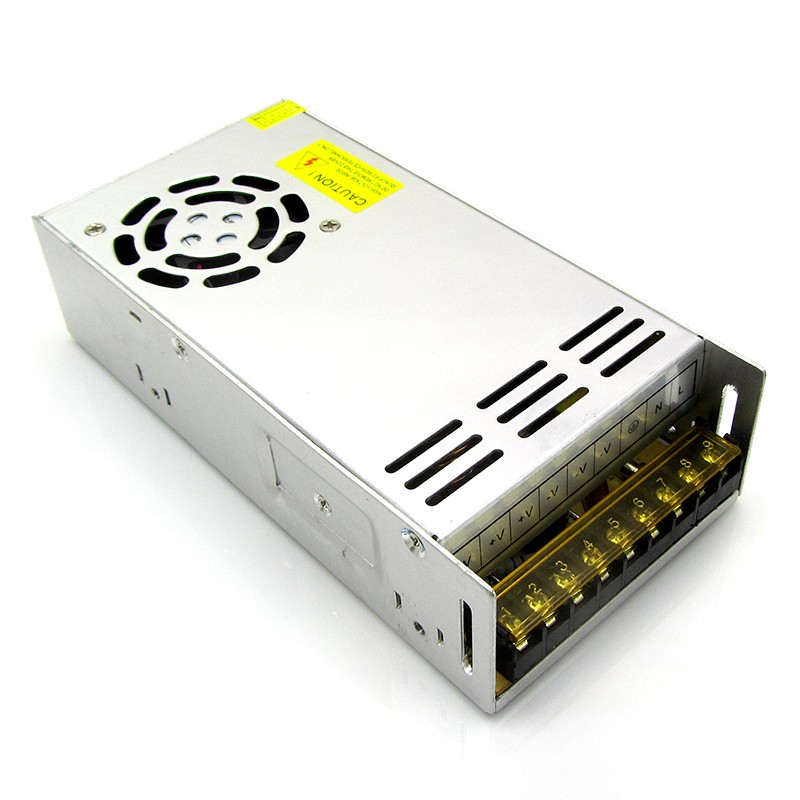

The case pictures show ventilation slots, a fan grille and end mounting features. Request the complete dimensions and installation data to assess mounting space, ventilation and cable access within the project assembly.
The pictured input range is 170–260V AC at 50/60Hz. Include the local supply voltage, installation environment and destination country to confirm the selected configuration and required technical documents.
Wholesale project power and OEM supply
Orders start at 20 pcs, with lower unit prices at higher quantities. Samples are available; charges and destination shipping are confirmed separately. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include marking, assembly and packing requirements. Send the wiring drawing and target quantity to define the sample and production scope. Custom schedules and transit are agreed separately. Request current model-specific technical and compliance information for the destination market.
350W screw-terminal supply purchasing questions
Which input range is shown on the 350W label?
The original label specifies 170–260V AC at 50/60Hz. Include the local supply voltage with SL-HT-350-24 to confirm the selected project configuration.
What output capacity is listed for the complete unit?
The label gives 24V DC at 14.6A and 350W. Provide the total connected load and cable arrangement to agree the permitted operating configuration.
Do the repeated +V and −V terminals indicate three independent 350W supplies?
The 350W rating describes the complete unit. Obtain the approved terminal and wiring information to confirm the output arrangement and permitted loading for the connected lighting branches.
What should I include in a screw-terminal power supply enquiry?
Send the lighting models and loads, wiring drawing, local mains voltage, mounting space, environment, quantity and destination. Include any OEM marking, packing and market-document requirements for the sample quotation.
