20W lens light bars for lightbox manufacturers
Choose the SL-BL008-200 rigid LED bar for advertising-lightbox lighting projects. Its 470mm body combines 3535 LEDs, optical lenses and an aluminium substrate. The 20W version is specified at 2000 lm, DC 12–24V and 6000–7000K cold white, with a 10 × 40° light angle.
For display manufacturers and sign-box assemblers, select the fixing-hole version and connection kit alongside the light bar. Include the enclosure dimensions, aluminium-profile drawing, bar count and intended control method in the enquiry so the quotation covers the complete installation configuration.

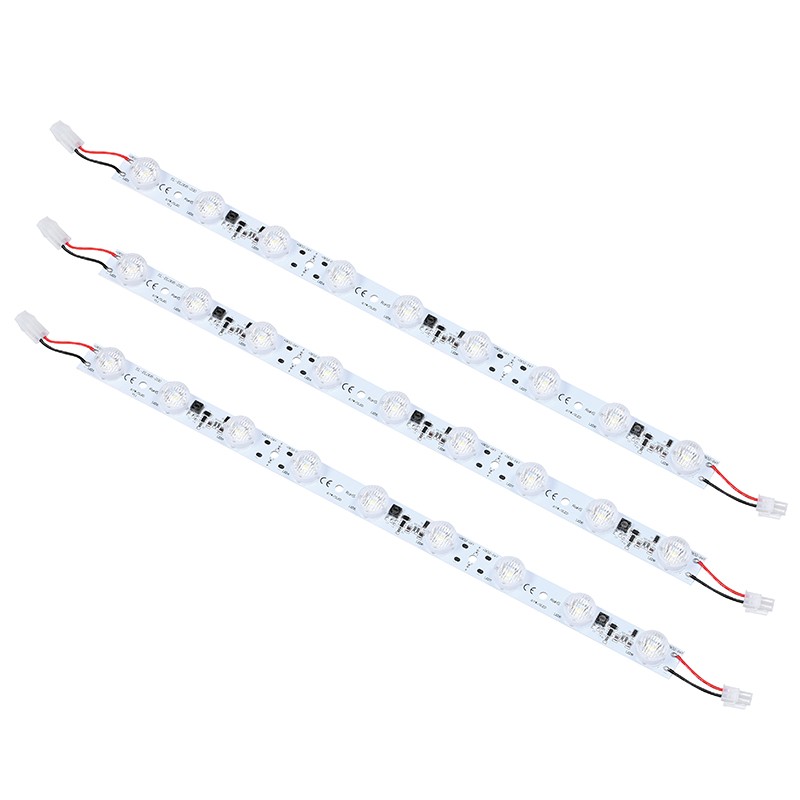

20W model specifications and version selection
The source sheet compares two models. This page focuses on the 20W SL-BL008-200; the SL-BL008-170 is a separate 17W alternative. Confirm the model on the quotation so power, light output and lead length match the selected bar.

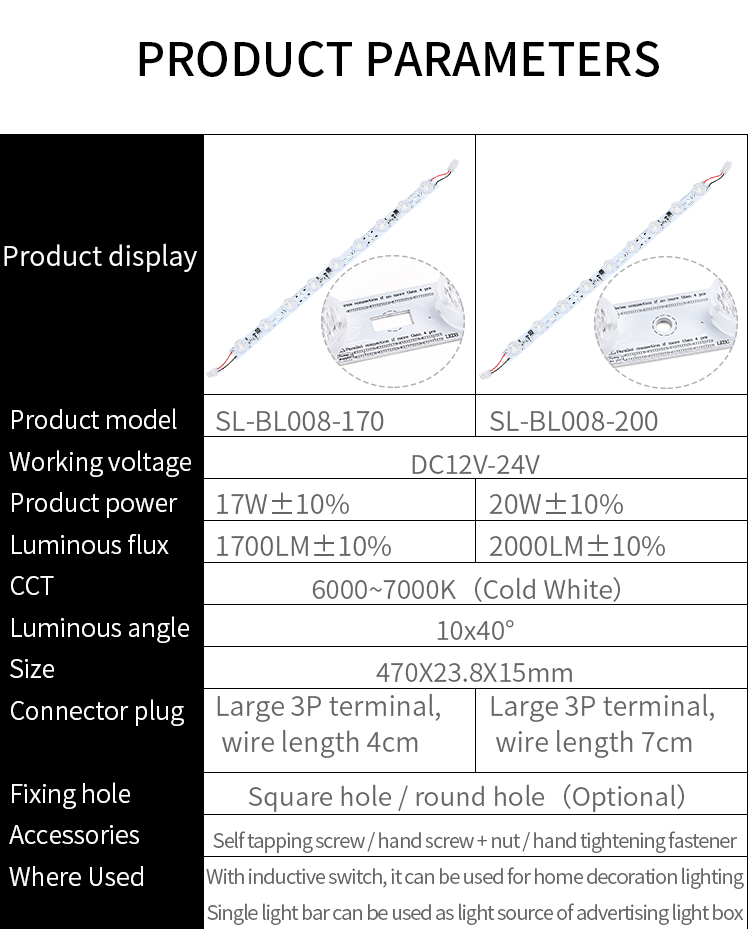

| Specification | SL-BL008-200 |
|---|
| Primary model | SL-BL008-200 |
| Power | 20W ±10% |
| Specified luminous flux | 2000 lm ±10% |
| Input voltage | DC 12–24V |
| Colour temperature | 6000–7000K, cold white |
| Light angle | 10 × 40° |
| Bar dimensions | 470 × 23.8 × 15 mm |
| Connector / lead listed | Large 3P terminal / 7cm lead for the 20W version |
| Fixing-hole options | Round hole or square hole |
| Separate family alternative | SL-BL008-170: 17W ±10%, 1700 lm ±10%, 4cm lead |

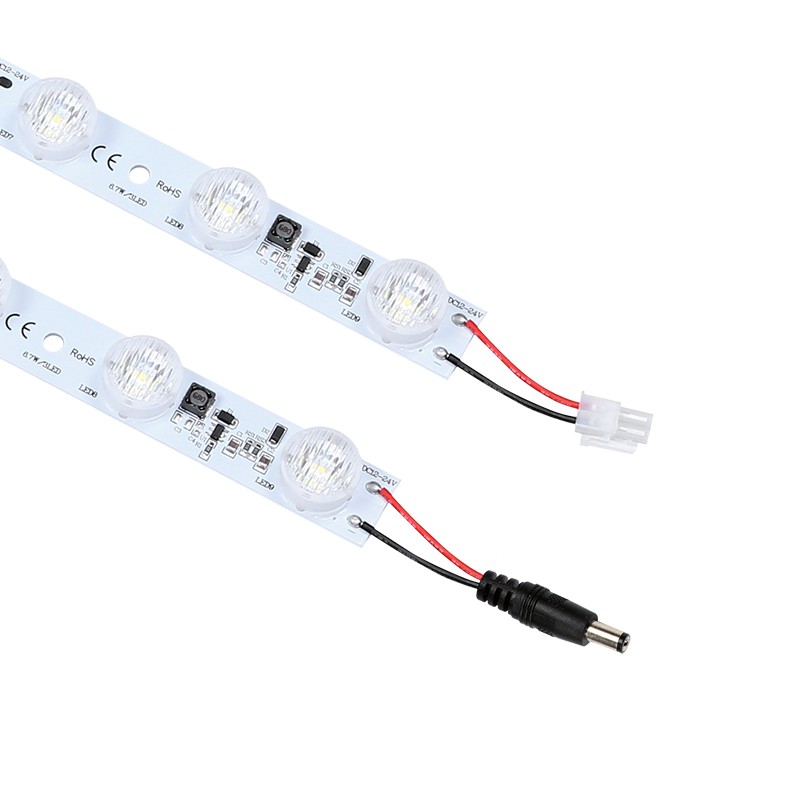

Optical lens and aluminium-board construction

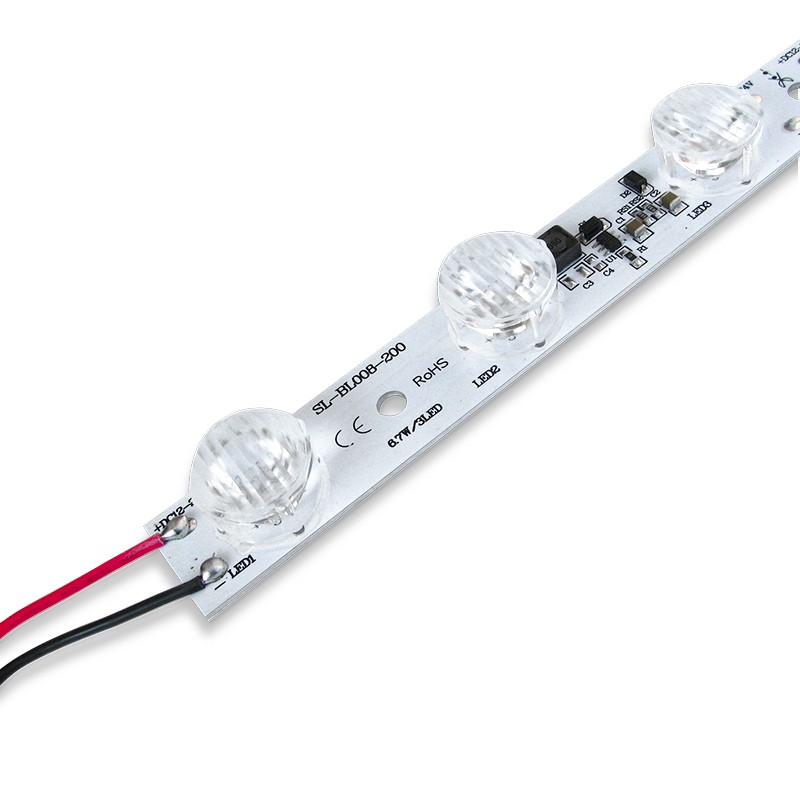

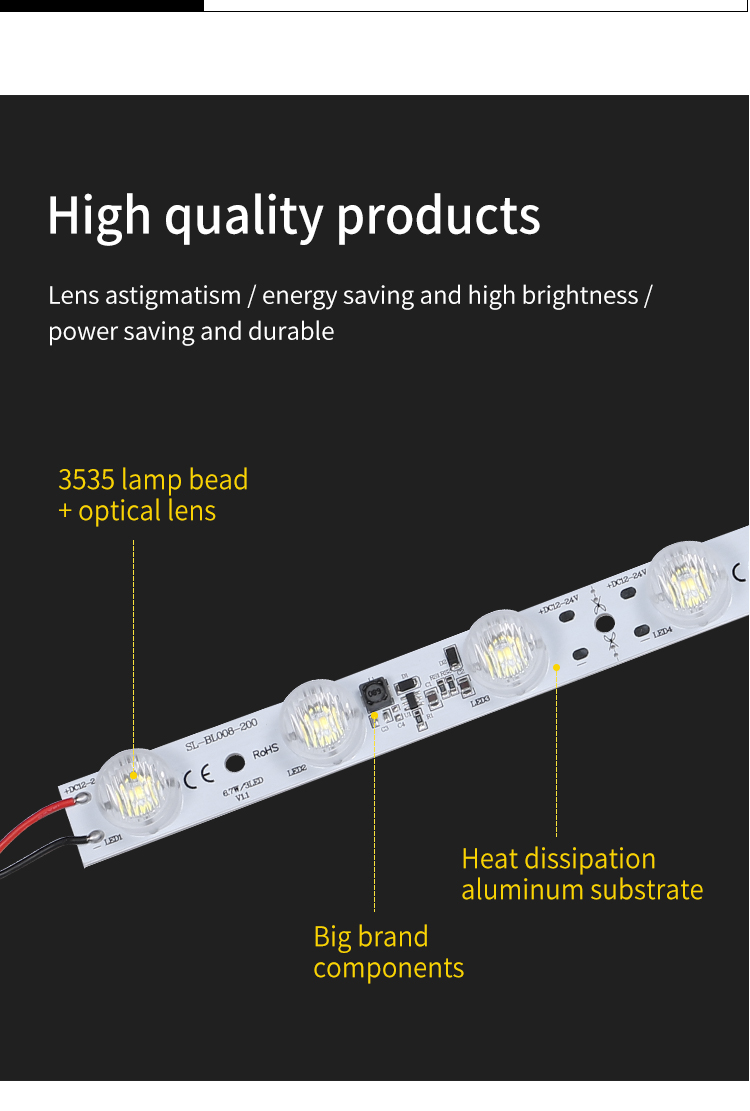

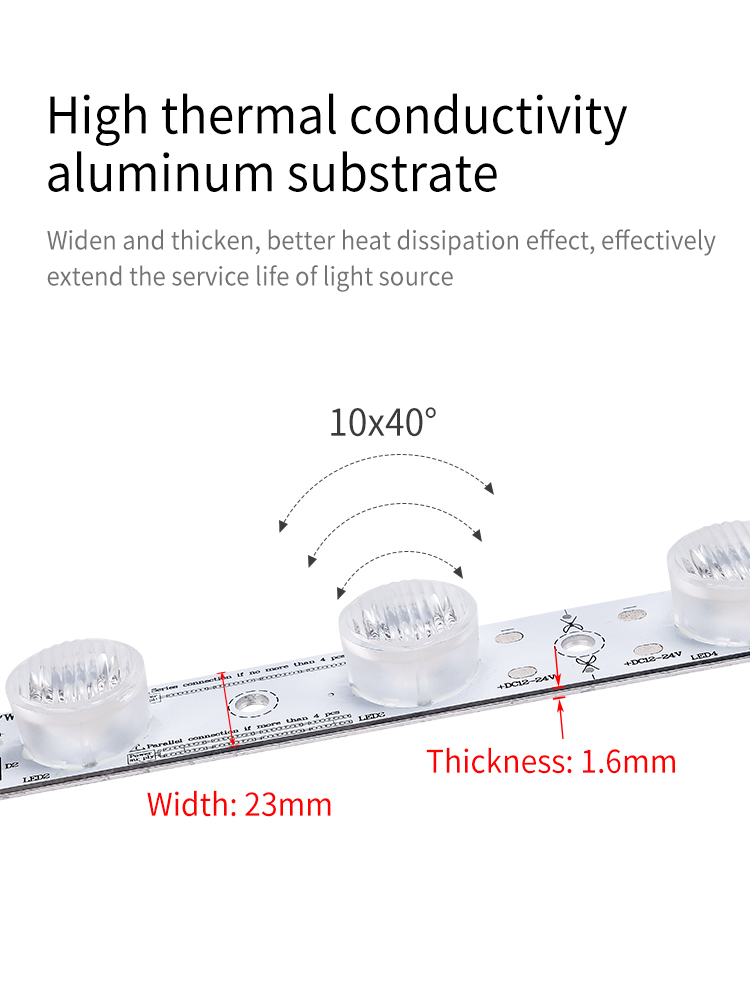

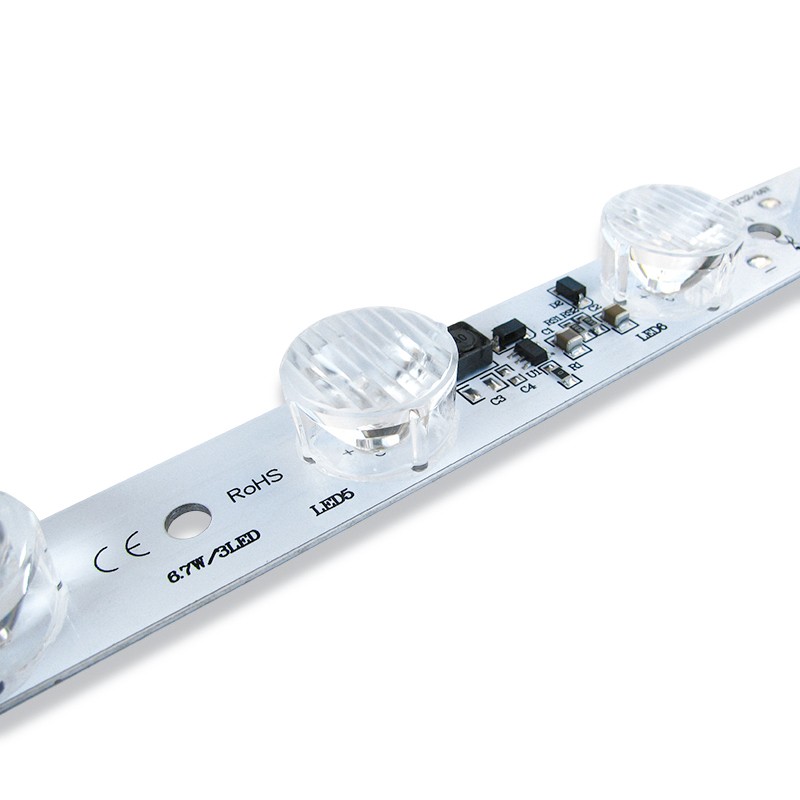

Each pictured LED has an optical lens, and the source specifies a 10 × 40° light angle. The aluminium-substrate detail labels a 23mm board width and 1.6mm substrate thickness; the complete assembled bar dimensions are listed separately above. Review lens orientation and bar placement against the lightbox drawing.
Choose the mounting arrangement for your profile

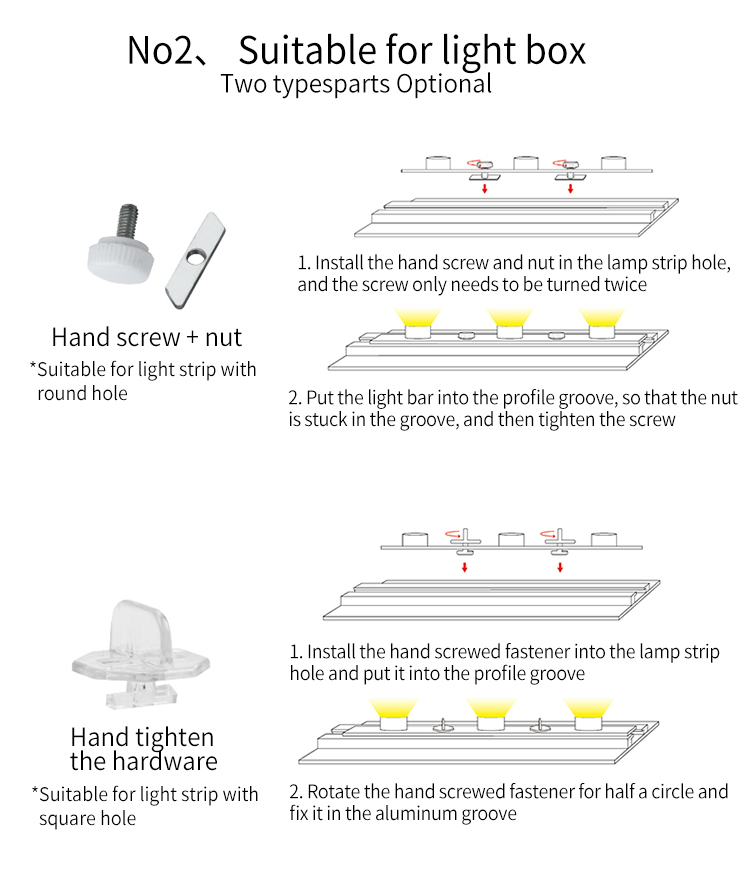

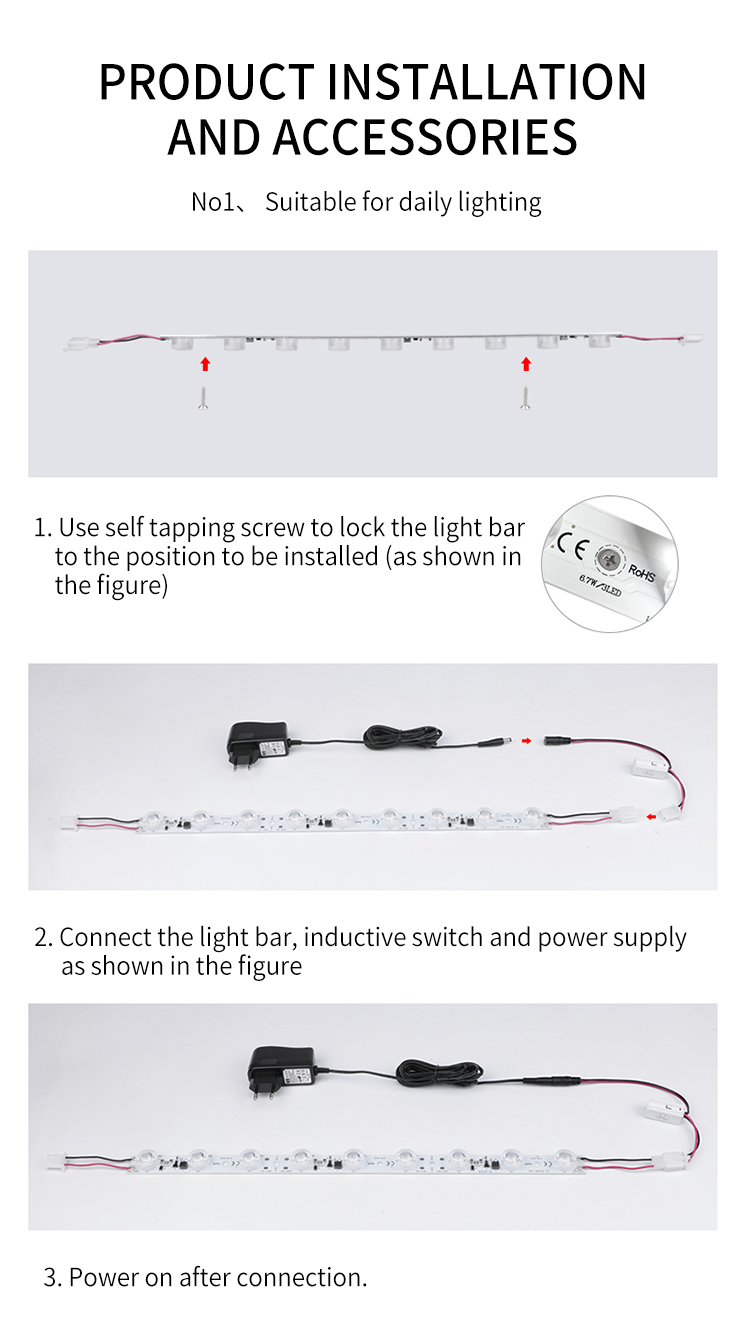

For surface mounting, the illustration shows self-tapping screws through the bar fixing points. For a lightbox groove, the round-hole version uses a hand screw and nut; the square-hole version uses a hand-tightening fastener rotated half a turn within the aluminium groove. Send the profile section and choose the corresponding hole version before confirming hardware.

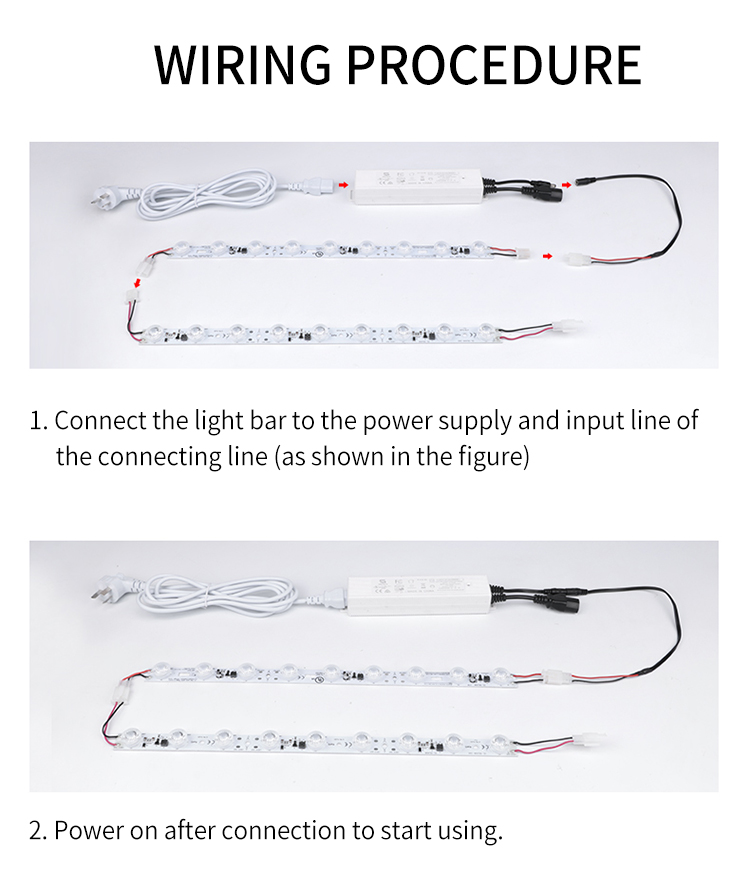

The wiring illustration shows bar connections with an external power unit. Specify supply voltage, the number of bars, feed arrangement and connecting leads for the complete kit. Confirm the permitted circuit grouping and connector configuration for the order.
Lightbox applications and external sensor options

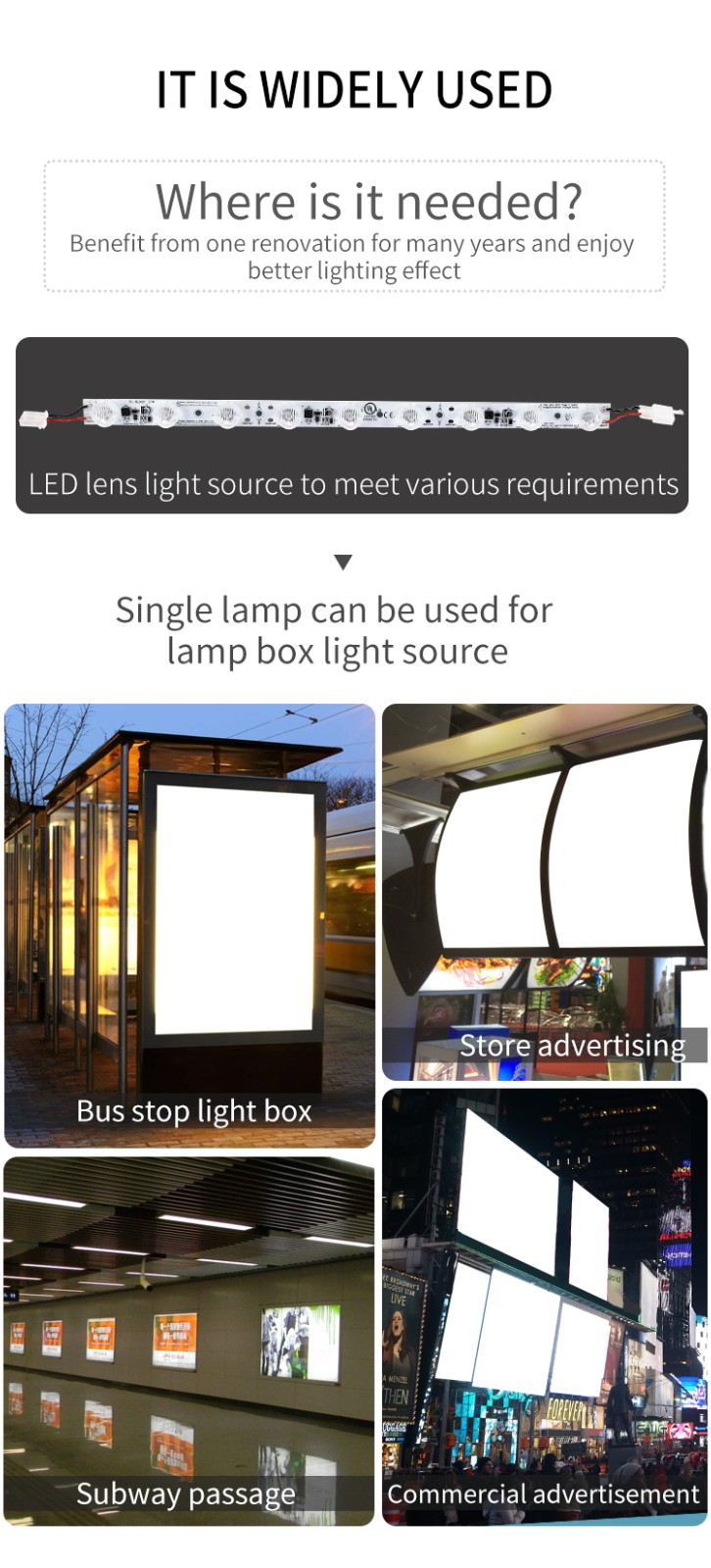

The application images include advertising lightboxes, retail signs and cabinet or interior lighting with an external switch. Select the enclosure and electrical configuration for the intended installation.

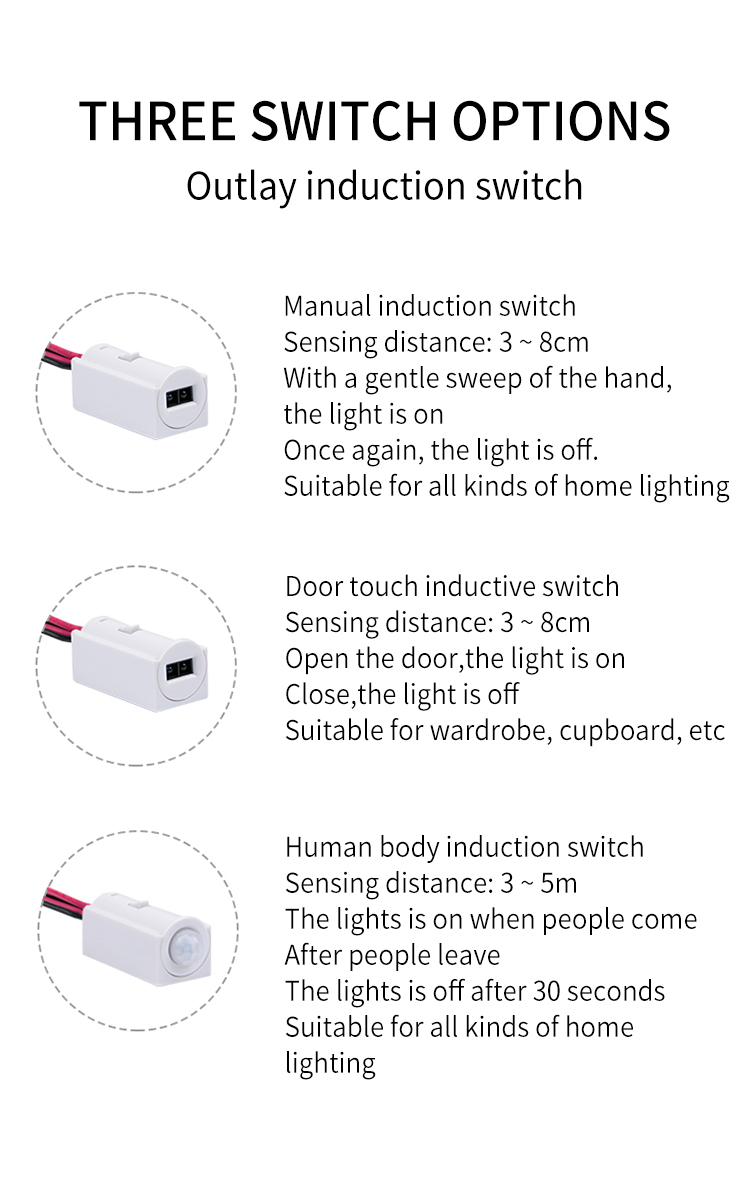

Three external sensor options are illustrated: a hand-wave switch with a 3–8cm sensing distance, a door switch with a 3–8cm sensing distance, and a body sensor with a 3–5m sensing distance and a 30-second switch-off delay after people leave. Identify the required switch in the enquiry so its electrical compatibility and supply arrangement can be confirmed.
Rigid light-bar ordering questions
Which model should I specify for the 2000 lm version?
Request SL-BL008-200, rated at 20W ±10% and 2000 lm ±10%, with the listed 7cm lead. The 17W SL-BL008-170 is a separate model with 1700 lm ±10% and a 4cm lead.
Are the sensor and fixing parts included?
Sensor switches, screw-and-nut fittings, square-hole fasteners, leads and the external power unit should be itemised in the quotation. State the required installation configuration and bar quantity.
Can the bar fit my lightbox extrusion?
Provide the profile cross-section, usable groove dimensions and fixing positions. Select the round-hole or square-hole bar version against the matching hardware before confirming the order.
Can I evaluate a sample before a production run?
Samples are available. Include the required model, supply voltage, mounting version and destination so the sample configuration, cost and shipping can be confirmed.
What are the volume-order and custom-branding terms?
Wholesale orders start at 20 pcs, with lower unit prices for larger quantities. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; custom work and transit time are confirmed separately.
