High-output arm lighting in a cool-white configuration

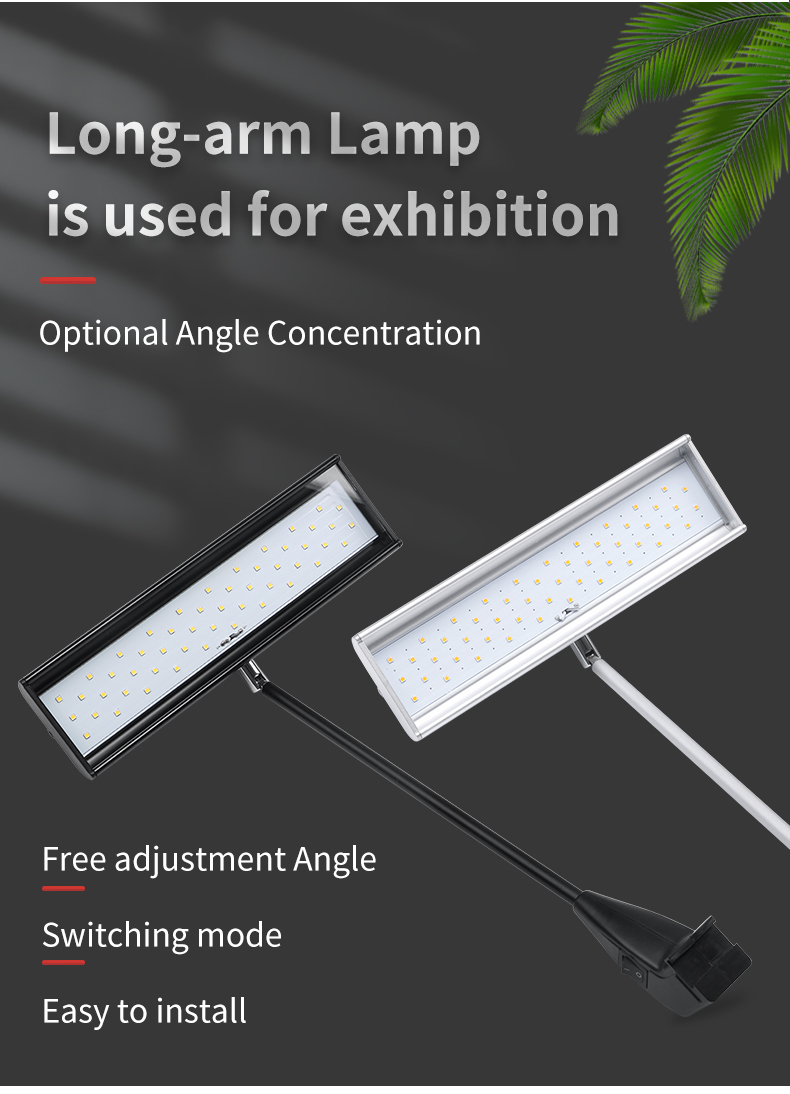

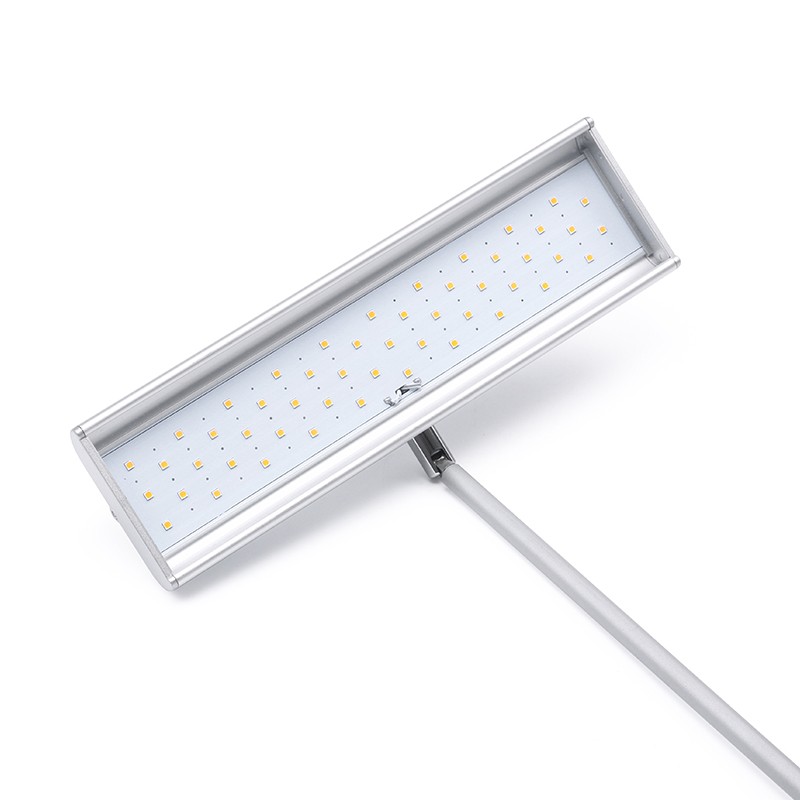

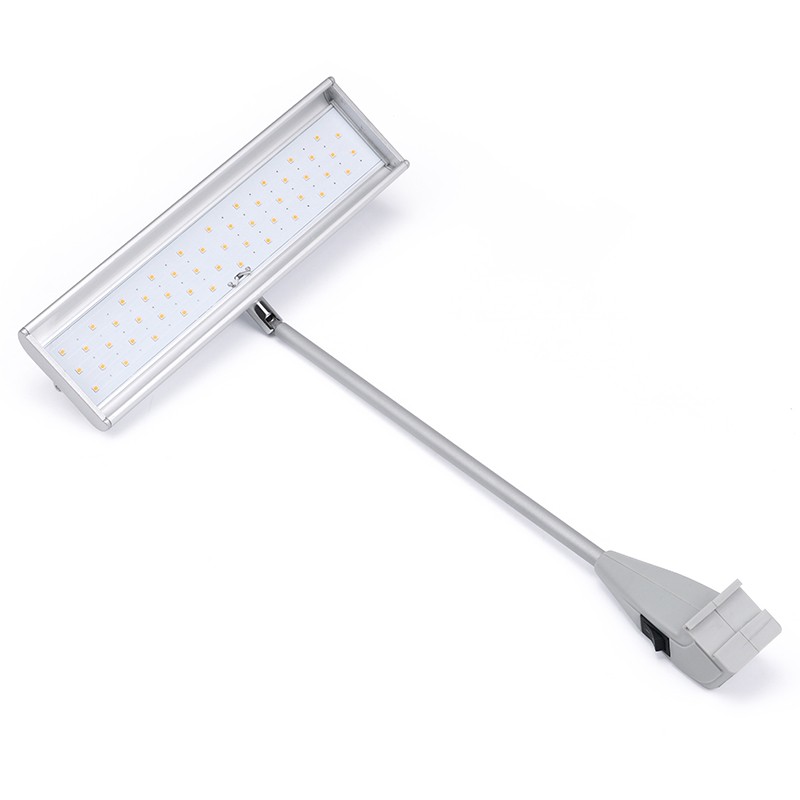

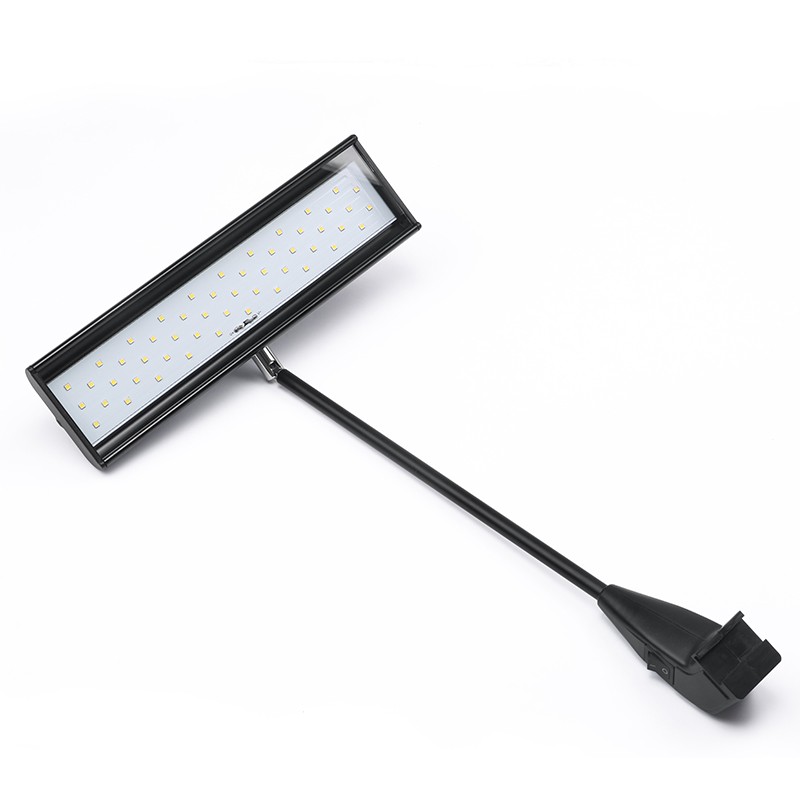

The SL-2056-050L is a 43.2W LED display arm light with specified 3800 lm ±10% output and a 120° beam. The technical sheet lists a 6000–7000K white-light range, dimensions of 465 × 256 × 46.5 mm and a B-shaped connector. Black and silvery-white lamp bodies are pictured as finish options.
For exhibition contractors and display-light distributors, select the lamp finish, frame fitting and matching supply together. The sheet lists AC 100–240V for the input configuration, while the packing illustration includes an external power supply. Send the frame profile, graphic dimensions, lamp count and destination mains plug so the complete kit can be confirmed for the order.

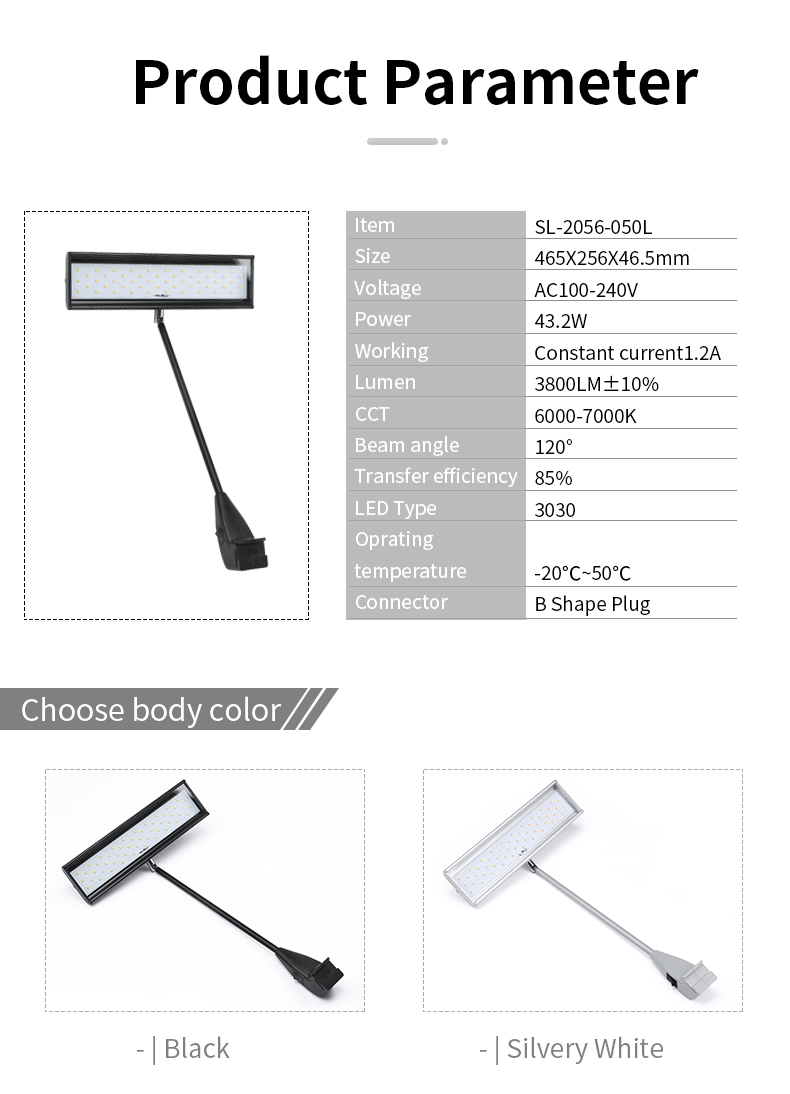

43.2W cool-white display-light technical data
| Specification | SL-2056-050L |
|---|
| Model | SL-2056-050L |
| Power | 43.2W |
| Light output | 3800 lm ±10% |
| Beam angle | 120° |
| White-light order range | 6000–7000K |

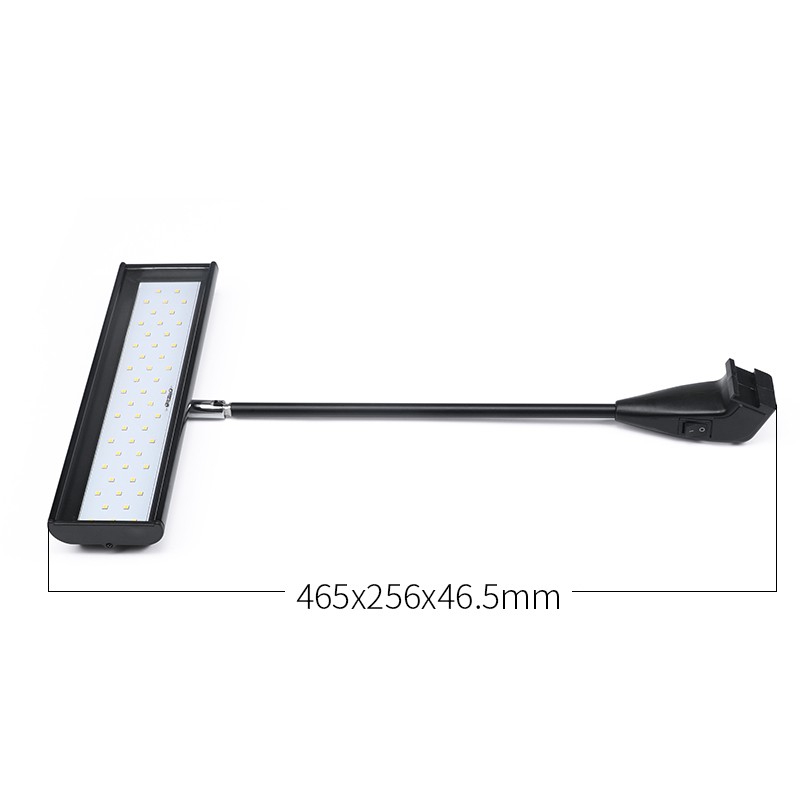

| Dimensions | 465 × 256 × 46.5 mm |
| LED type | 3030 |
| Input configuration | AC 100–240V; matching supply to be confirmed |
| Connector | B-shape plug |
| Driver operating mode | Constant current, 1.2 A as listed |
| Control | Base on/off switch pictured |
| Body finish options | Black / Silvery white |
| Optional frame fittings | Forward slider / reverse slider / 0505 or 0509 aluminium clamp |
| Operating-temperature range | -20°C to +50°C |
Select the finish and frame fixing

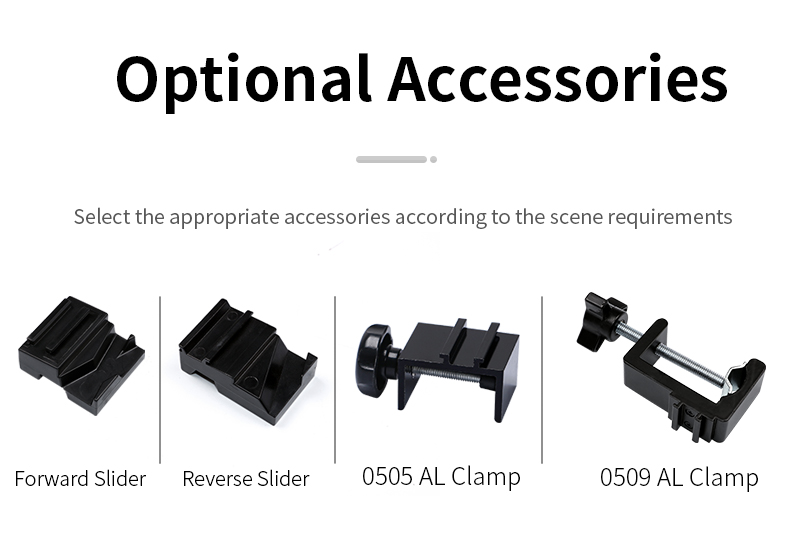

Choose the pictured black or silvery-white body finish to suit the stand hardware. The fitting illustration includes forward and reverse sliders and 0505 or 0509 aluminium clamps. Provide the frame section and mounting location so the mechanical fit can be checked.

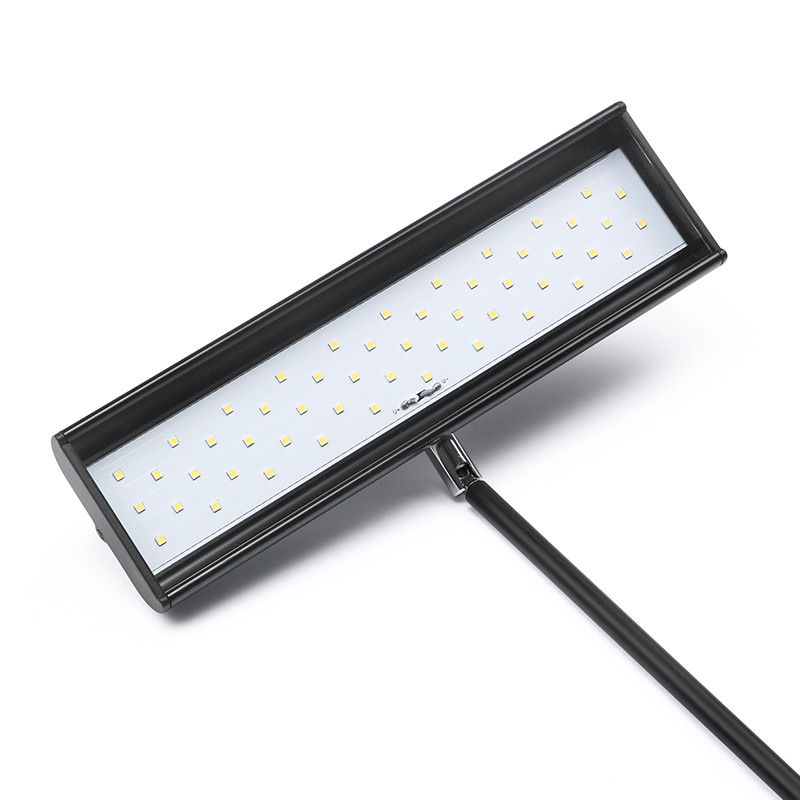

The head can be aimed from the intended fixing position. Evaluate the 120° beam and listed 3800 lm output against the actual graphic dimensions and surrounding stand lighting.
Match the B-shaped connection and power supply

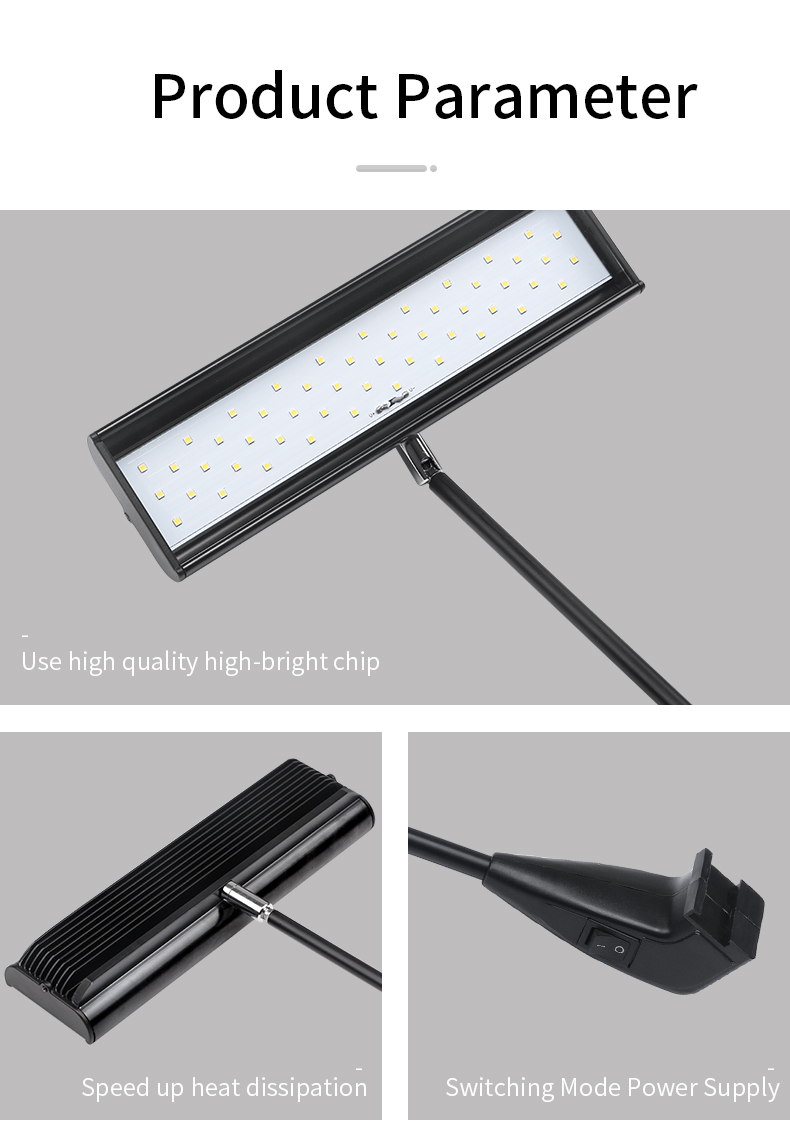

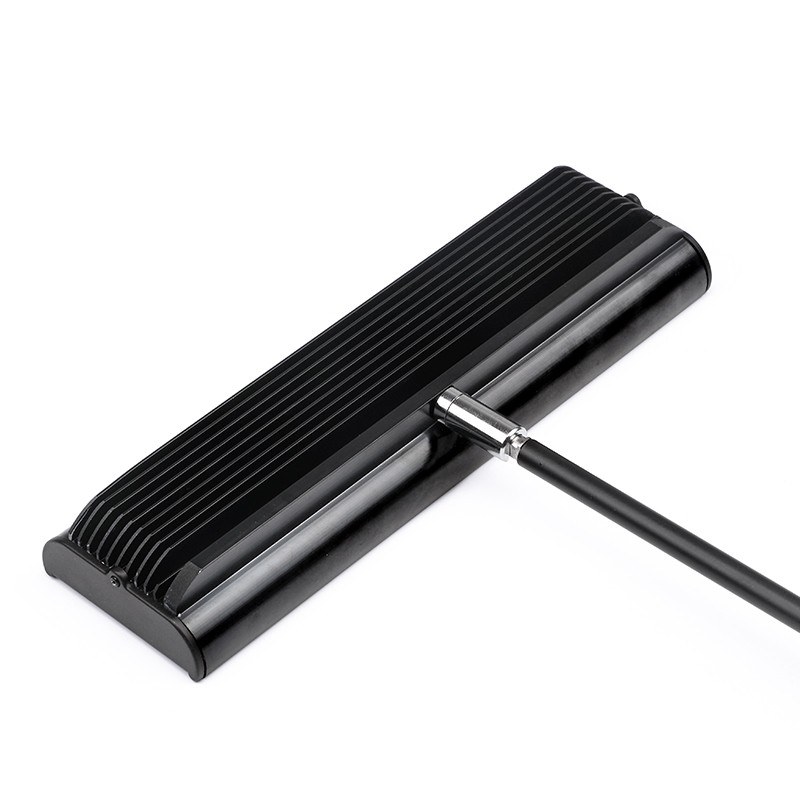

The source sheet lists a B-shape plug and constant-current operating mode. The product close-up shows the base on/off switch and rear heat-dissipation ribs. Request the lamp and matching supply as a confirmed electrical kit, including the required mains plug and lead arrangement.
Specify the required white-light appearance within the listed 6000–7000K range. If the project needs a different colour temperature, include that requirement when comparing model configurations.
Quote the complete lighting kit and carton contents

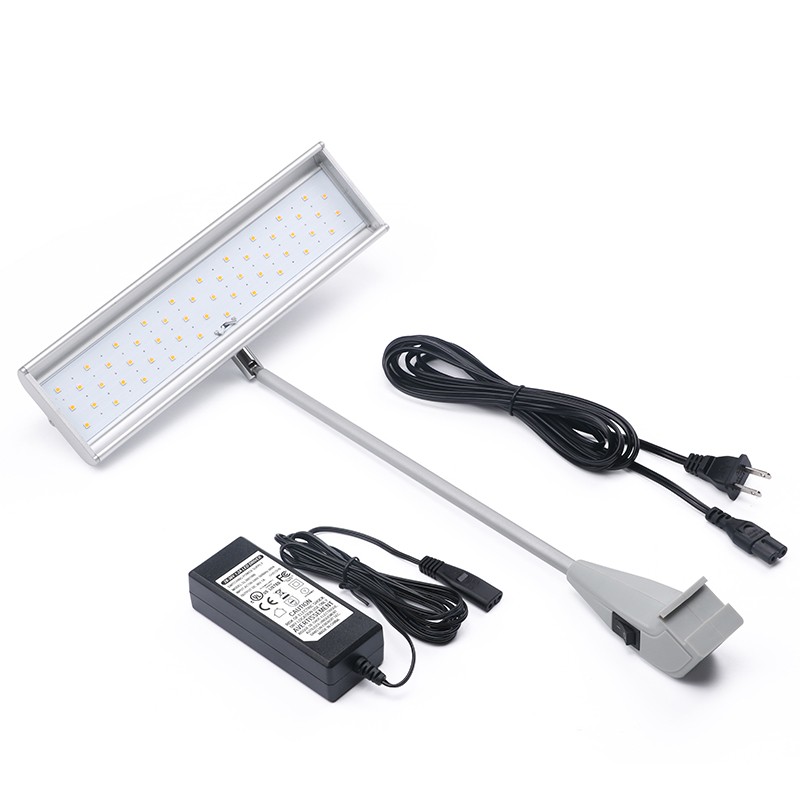

The packing example shows a lamp, external supply and leads in an individual cardboard carton, followed by outer cartons. Confirm the components per kit, lead lengths, carton quantities and any private-label packing requirements with the quotation.
Questions for cool-white display-light orders
Which white-light range is listed for this model?
The parameter picture specifies 6000–7000K. Include the required appearance with the sample or bulk enquiry so the configuration can be confirmed.
Can I use an existing B-shaped lead or power supply?
Provide the connector details, supply specification and proposed lead route for compatibility confirmation. Order the electrical configuration as a complete kit matched to SL-2056-050L.
What information helps prepare a wholesale quotation?
Send the model, quantity, body finish, required frame fitting, graphic dimensions, destination plug and packing requirements. Wholesale orders start from 20 pcs, with lower unit prices at larger quantities.
Sample evaluation and factory customisation
Samples are available to assess the fitting, beam coverage, finish and connection kit. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; sample cost, shipping, custom schedules and transit time are confirmed separately.
