24V 5A LED power adapters for dual-lead assemblies

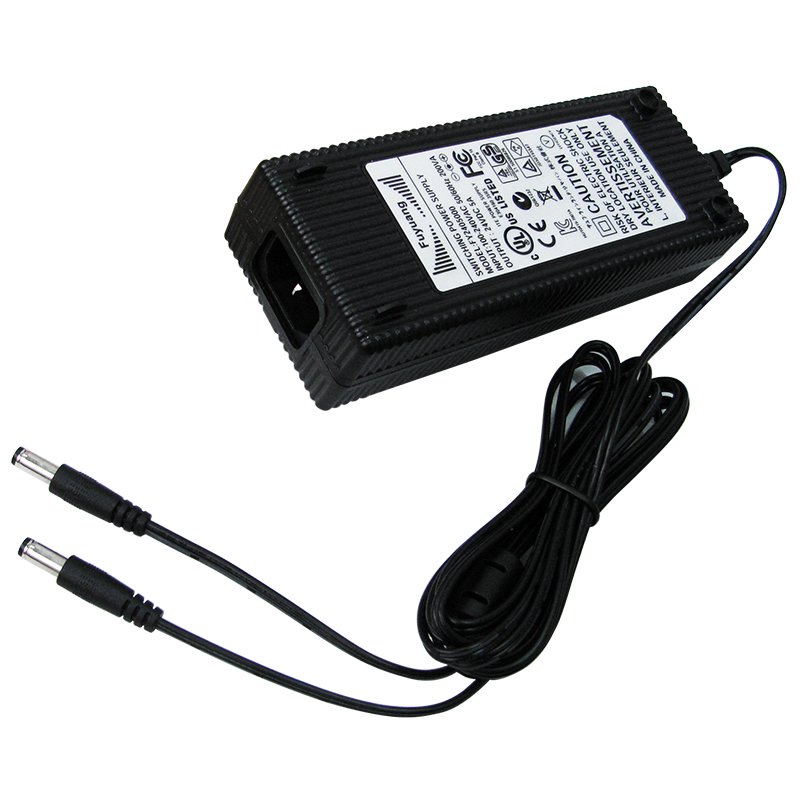

Approve the power adapter and both mating sockets together. The FY2405000 photograph shows an enclosed switching power supply with an attached output cable and two DC barrel plugs. Its label specifies 24V DC at 5A; these values give a nominal DC power of 120W.
For lighting-kit suppliers, display assemblers and wholesale component buyers, a useful sample includes the required output-lead arrangement and a defined combined load. Provide the lighting models and socket details to confirm the adapter configuration before planning the production quantity.
FY2405000 adapter and dual-lead specification
| Specification | FY2405000 |
|---|
| Model on pictured label | FY2405000 |
| DC output, complete adapter | 24V DC, 5A |
| Nominal DC power calculation | 120W = 24V × 5A |
| AC input on label | 100–240V AC, 50/60Hz |
| Input apparent-power marking | 200VA on pictured label |
| Output connection pictured | Two DC barrel plugs on the attached output cable |
| Case and incoming connection | Black ribbed enclosed case with a mains inlet |
| Use restriction on label | Dry location use only |
| Sample approval information | Mating sockets, combined load and required cable arrangement |
Match the two sockets before sample approval
The two DC plugs are visible in the original photograph. Define both mating sockets by drawing or clear photographs, including the required contact dimensions, polarity and cable arrangement. Confirm these details for the version quoted.
The label’s 5A current applies to the complete adapter. Identify the load connected to each lead and the combined requirement; request the permitted cable and connector ratings rather than assuming an equal current allocation.
Plan the mains cord and adapter position
The photograph shows a mains inlet on the case. Specify the required incoming cord and destination plug, together with the local mains supply, when preparing the enquiry.
The original label lists 100–240V AC at 50/60Hz and dry-location use only. Provide the assembly space and installation arrangement to obtain the dimensions, installation instructions and current market documents for the selected version.
Bulk dual-lead adapters and OEM enquiries
Wholesale supply starts at 20 pcs. Higher quantities qualify for lower unit prices, and samples are available with charges and shipping confirmed for the destination. Standard lead time is 12–18 days.
OEM, ODM and private-label requests can include lead assemblies, marking and packing. Send the socket drawing, artwork and target quantity to confirm the sample and custom quotation. Custom schedules and transit are agreed separately.
Dual-lead LED adapter purchasing questions
What information confirms the two mating sockets?
Provide the socket drawings or photographs, contact dimensions, required polarity and lead lengths. Agree the full connection arrangement with the sample specification.
What DC rating is stated for FY2405000?
The label states 24V DC at 5A for the complete adapter. The corresponding nominal power is 120W, calculated as 24V × 5A.
Is a mains cord shown with this adapter?
The photograph shows the case inlet and attached DC leads. Specify the required incoming cord and destination plug in the quotation; confirm the final supply contents.
What should be included in a bulk adapter enquiry?
Include FY2405000, target quantity, both socket details, connected loads, mains-cord requirements and destination. Add any OEM marking or packing requirements to define the sample and production scope.
