24V LED power supplies with a two-branch Y cable

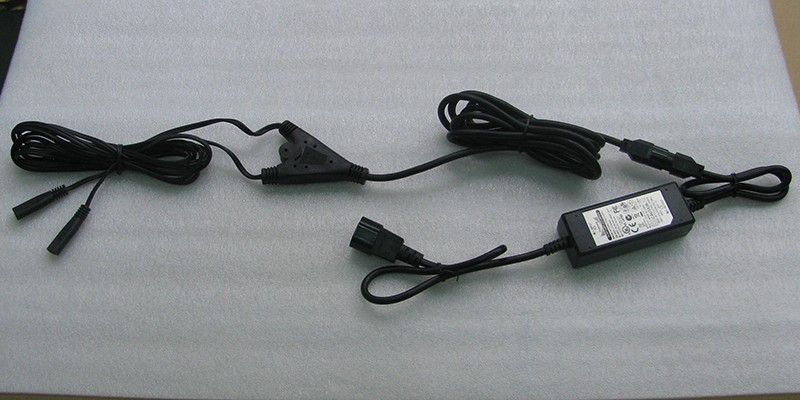

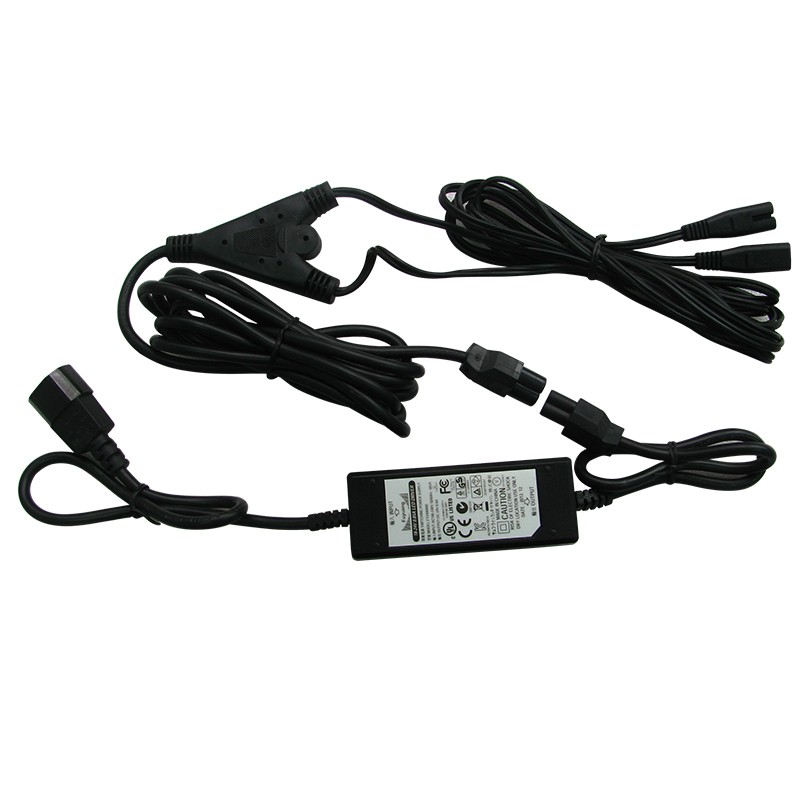

Specify the power supply and cable layout together for a two-branch lighting assembly. The FY2400800 photographs show a black enclosed supply, an attached output connection and a separate Y-shaped lead with two branches. The dedicated OUTPUT line states 24V DC at 0.8A, equivalent to 19.2W nominal DC power calculated from the label values.
For display manufacturers, lighting distributors and equipment assemblers, send the combined lighting-load data and a drawing of each mating connector. Add the required branch lengths and destination mains-cord details to define a sample and a comparable bulk quotation.
FY2400800 power and cable reference
| Specification | FY2400800 |
|---|
| Ordering model | FY2400800 |
| Dedicated OUTPUT marking | 24V DC, 0.8A |
| Nominal DC power calculation | 19.2W = 24V × 0.8A |
| AC input on pictured label | 100–240V AC, 50/60Hz |

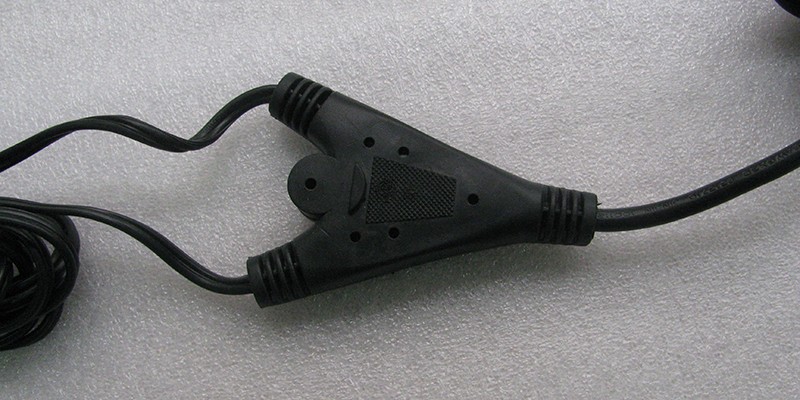

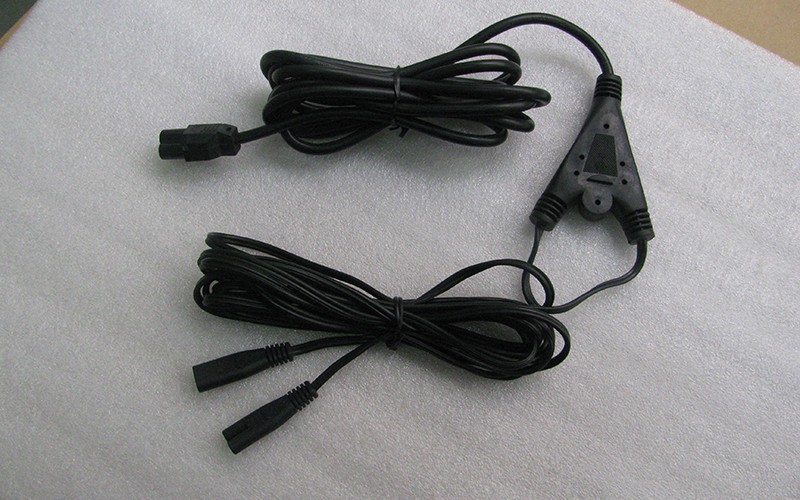

| Cable layout pictured | Separate Y lead with two output branches |
| Output connection pictured | Moulded two-pole connections |

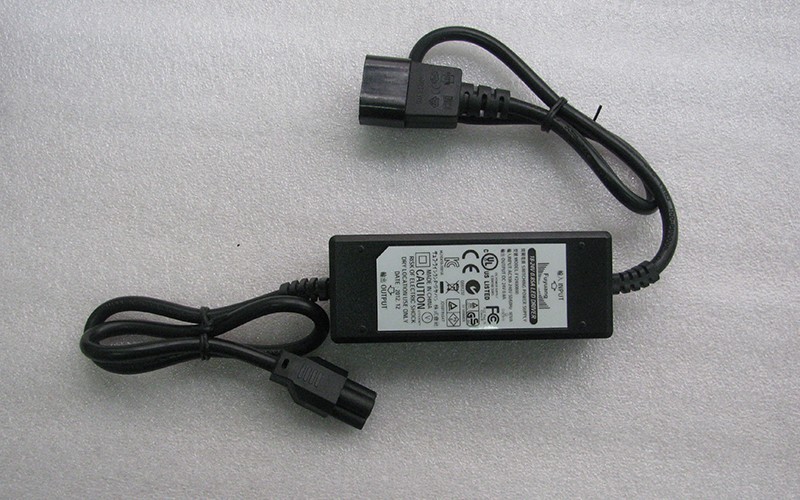

| Supply enclosure | Black enclosed case with mains inlet |
| Use restriction on label | Dry location use only |
| Order configuration | Combined load, branch lengths, mating connectors and incoming cord |
Plan the two branches around the combined lighting load
Send the voltage, current and operating requirements of the lights connected to both branches. The supply rating applies to the complete assembly; agree the combined load and cable arrangement for the quoted configuration.
Include a sketch of the lighting positions and the distance from the supply to each connection. Specify the incoming lead length, both branch lengths and any control equipment to be used with the lights.
Confirm the mating connections before ordering
Provide photographs or drawings of the lighting-side connectors, including contact layout, dimensions and required polarity. Use these details to approve the Y cable against the actual assembly during sample evaluation.
Specify the destination mains plug and incoming cord, available enclosure space and local supply. The pictured label lists 100–240V AC at 50/60Hz and dry-location use only. Confirm the final supplied cable set, installation instructions and model-specific market documents with the quotation.
Y-cable supply samples and wholesale production
Wholesale orders start at 20 pcs. Higher quantities qualify for lower unit prices. Samples are available, with sample charges and shipping confirmed for the destination. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include cable layouts, marking and packing. Provide the lighting data, connector drawings, target quantity and artwork to confirm the custom scope. Custom schedules and transit time are agreed separately.
24V Y-splitter power supply purchasing questions
What output is printed on FY2400800?
The dedicated OUTPUT line states 24V DC at 0.8A. This corresponds to 19.2W nominal DC power calculated as 24V × 0.8A.
Does the Y cable give each branch a separate 0.8A rating?
The 0.8A marking is the supply rating for the complete assembly. Provide the load on both branches so the combined requirement and cable configuration can be confirmed.
What information defines the Y cable sample?
Send the mating connector drawings, contact dimensions, polarity, branch lengths and lighting-load data. Include the incoming cord and destination plug requirements.
How can I request bulk pricing for the supply and splitter lead?
Include FY2400800, quantity, combined load, cable layout, destination and packing requirements. MOQ is 20 pcs, with lower unit prices at larger quantities.
Compare a different 24V connection arrangement
Choose the output rating and connector arrangement from the lighting-system specification when comparing these models.
