12V 1.5A desktop LED power supplies with a DC plug

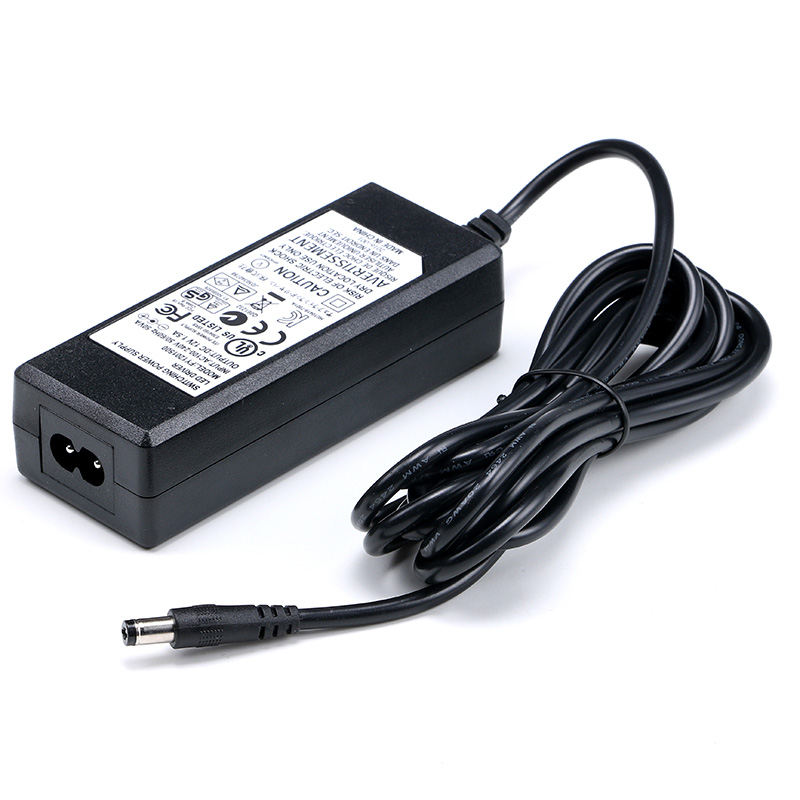

Match the DC plug and incoming mains cord when specifying FY1201500 for a lighting assembly. The reference photographs show a black enclosed desktop power supply with an attached lead ending in a DC barrel plug. The first pictured label states 12V DC at 1.5A, giving 18W nominal DC power calculated from those values.
For lighting component buyers, display manufacturers and distributors, include the lighting model, connected load and DC socket drawing with the enquiry. Confirm the enclosure-inlet and mains-cord combination during sample approval, then use that configuration for the production quotation.
FY1201500 output and connection reference
| Specification | FY1201500 |
|---|
| Ordering model | FY1201500 |
| Output on first pictured label | 12V DC, 1.5A |
| Nominal DC power calculation | 18W = 12V × 1.5A |
| AC input on first pictured label | 100–240V AC, 50/60Hz |
| Output lead pictured | Attached cable with DC barrel plug |
| Enclosure format | Black enclosed desktop case |
| Mains cords pictured | EU-style two-round-pin and UK-style three-pin references |
| Enclosure inlet and cord | Confirm the combination for the quoted version |
| Labelled location restriction | Dry location use only |
| Packing configuration | Confirm the cord, box and supply contents with the order |
Select the DC plug for the lighting-side socket
Provide the mating socket drawing, plug outer and inner diameters, insertion length and required polarity. Add the output-cable length and connected-lighting data so the sample can be approved against the equipment.
The quoted supply specification should match the 12V lighting requirements, total connected load and any control equipment. Include the lighting model and operating conditions with the sample enquiry.
Agree the mains cord and enclosure inlet together

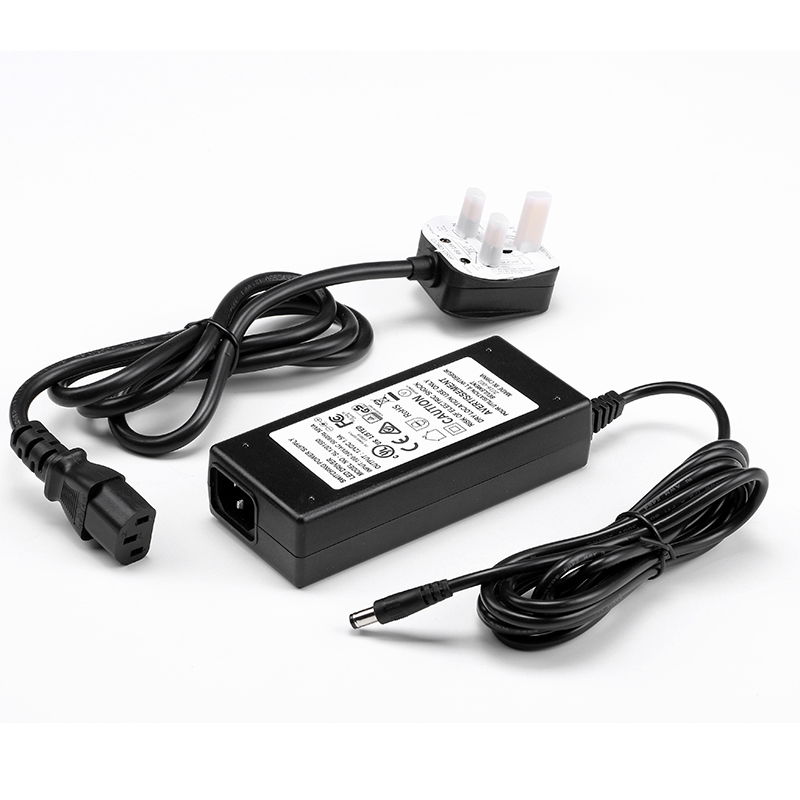

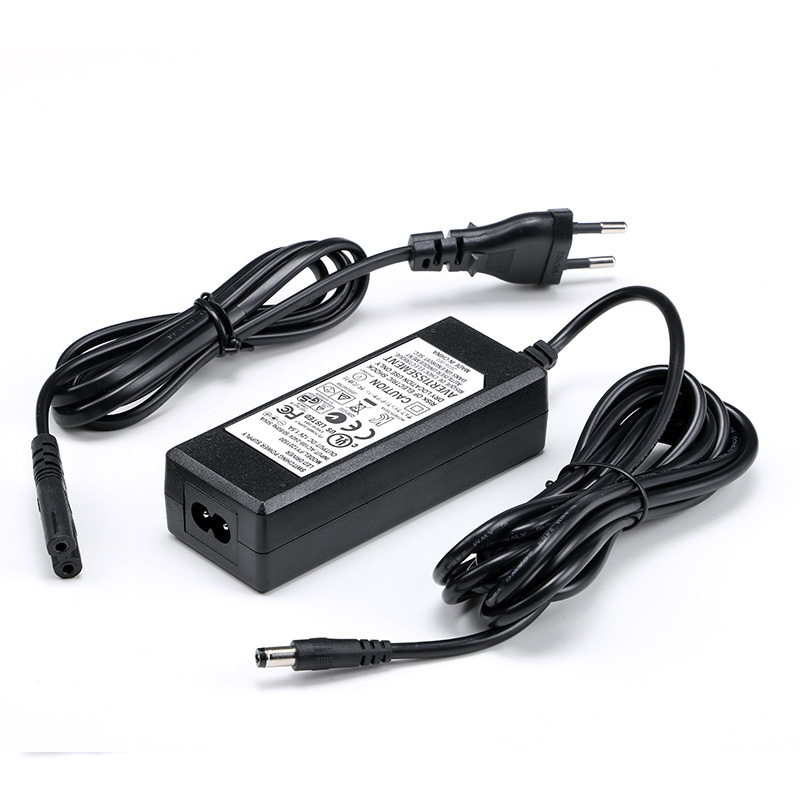

The reference photographs include EU-style two-round-pin and UK-style three-pin incoming cords. The enclosure inlet appearance also varies between photographs; specify the required case and cord combination for sample approval.
Include the destination market, local mains supply and installation space. Confirm the supplied cord, enclosure dimensions, installation instructions and current model-specific documents with the quotation.
Packing, samples and bulk 12V adapters

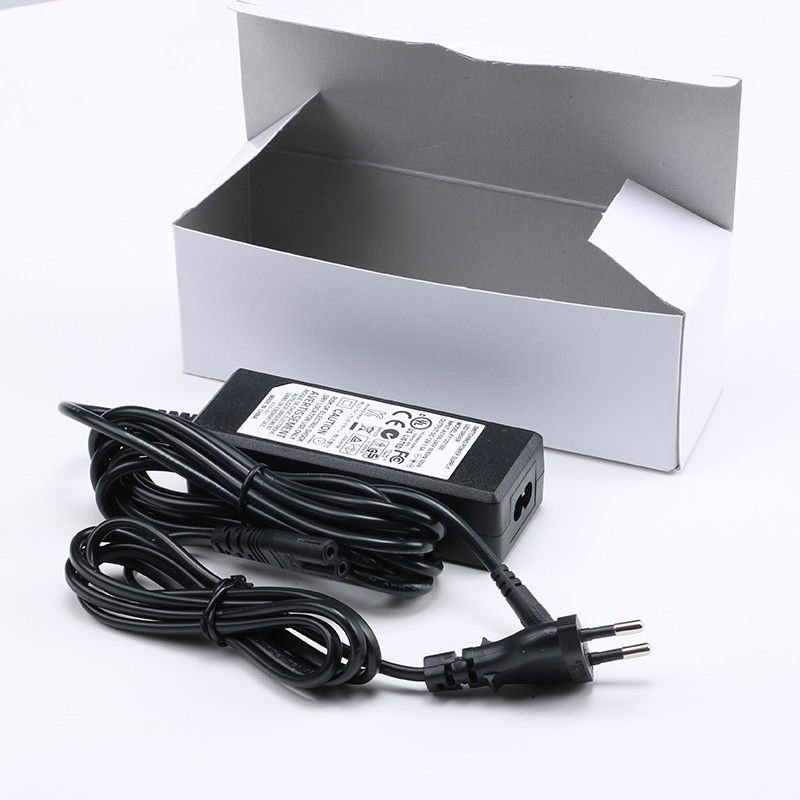

Use the packing photograph as a reference when discussing the shipment. Confirm the final box, included mains cord, product marking and packing quantity for the order.
MOQ is 20 pcs, and larger quantities qualify for lower unit prices. Samples are available; sample charges and shipping are confirmed separately. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include connector and cable requirements, marking and packing. Provide the drawings, artwork and target quantity to confirm the custom scope and quotation. Custom schedules and transit time are agreed separately.
18W desktop power supply purchasing questions
How is the 18W nominal rating established?
The first label states 12V DC at 1.5A. Multiplying these values gives 18W nominal DC power. Include the actual lighting-load data with the enquiry.
Which DC plug dimensions should I send?
Send the outer diameter, inner diameter, insertion length and polarity required by the lighting-side socket. A clear socket drawing or photograph helps define the sample.
Can I use the EU or UK cord photographs to specify an order?
Use the photographs as cord references, then confirm the required plug, enclosure inlet and incoming lead together. The final supplied configuration is agreed with the quotation and sample.
What should a wholesale FY1201500 enquiry include?
Provide quantity, lighting model and load, DC socket details, cable length, destination mains cord, and packing requirements. Orders start at 20 pcs and volume pricing is available.
Compare the 12V output connection
Check both the lighting load and the mating connector when selecting a desktop supply.
