US wall plug LED power adapters

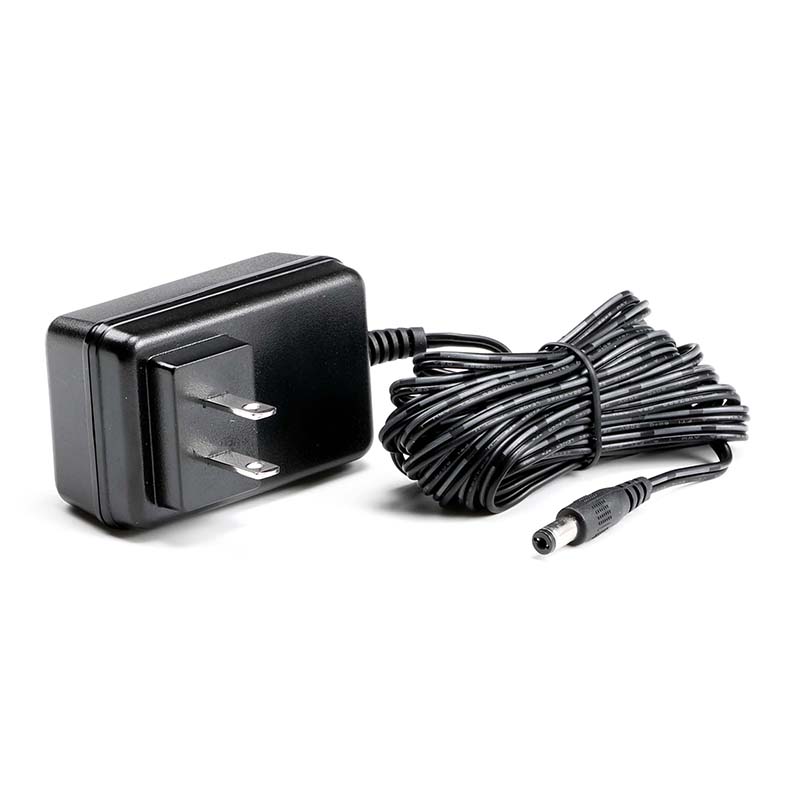

Specify a plug-in adapter by its lighting requirements and connection details. The reference photograph shows a black wall-plug enclosure with two fixed US-style flat pins and an attached lead ending in a DC barrel plug. This format places the adapter at the wall outlet, with the output cable routed to the lighting assembly.
For lighting distributors, display-component buyers and OEM assemblers, include the required input supply, DC output and connected-load data in the enquiry. Add the lighting-side socket drawing and cable length to define the sample and the production configuration.
Wall plug and DC connection reference
| Specification | SL-FY-1201500-DC-US |
|---|
| Directory ordering reference | SL-FY-1201500-DC-US |
| Enclosure pictured | Black wall-plug case |
| Mains connection pictured | Two fixed US-style flat pins |
| Output connection pictured | Attached lead with DC barrel plug |
| Electrical configuration to specify | Input supply, DC output voltage and required current |
| Connector details to specify | Outer and inner diameters, insertion length and polarity |
| Cable and installation details | Required lead length, outlet space and lighting location |
| Sample and production configuration | Confirm the complete specification with the quotation |
Define the electrical configuration for the lighting load
Provide the lighting model and its operating voltage, current and total load. Include any controller or accessory between the adapter and the lights, together with the local mains supply and intended installation conditions.
Agree the adapter input and DC output specification for the quoted version before approving a sample. Request the current technical data and installation instructions for the selected configuration.
Approve the DC barrel plug and cable arrangement
Send a drawing or clear photograph of the lighting-side socket. Specify the plug outer and inner diameters, insertion length, polarity and cable length needed to reach the lights.
Include a sketch of the outlet position and cable route so the case and lead arrangement can be checked in the actual display or equipment assembly. Confirm the sample connection against the mating socket.
US plug adapter samples and wholesale orders
Orders start at 20 pcs, with lower unit prices at higher quantities. Samples are available; sample charges and shipping are confirmed for the destination. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include connector and cable requirements, product marking and packing artwork. Provide the complete specification, target quantity and destination to confirm the custom scope and quotation. Custom schedules and transit time are agreed separately.
Plug-in lighting adapter purchasing questions
Which plug and output connection are shown?
The photograph shows two fixed US-style flat mains pins and an attached lead with a DC barrel plug. Include the required mating socket and destination details in the enquiry.
What electrical information is needed for a sample?
Send the local input supply, lighting operating voltage, required current, total connected load and controller details. The adapter specification is confirmed for the quoted configuration.
What details define the DC barrel connector?
Specify the outer diameter, inner diameter, insertion length and polarity required by the lighting-side socket. Add the cable length and a socket drawing or photograph.
How do I request OEM or bulk adapter pricing?
Include the ordering reference SL-FY-1201500-DC-US, quantity, electrical requirements, connector drawing, cable length, destination and artwork. MOQ is 20 pcs, and higher quantities qualify for lower unit prices.
Compare a desktop supply format
Choose the enclosure format, electrical output and connector from the lighting assembly requirements.
