Wall plug LED adapters with DC leads

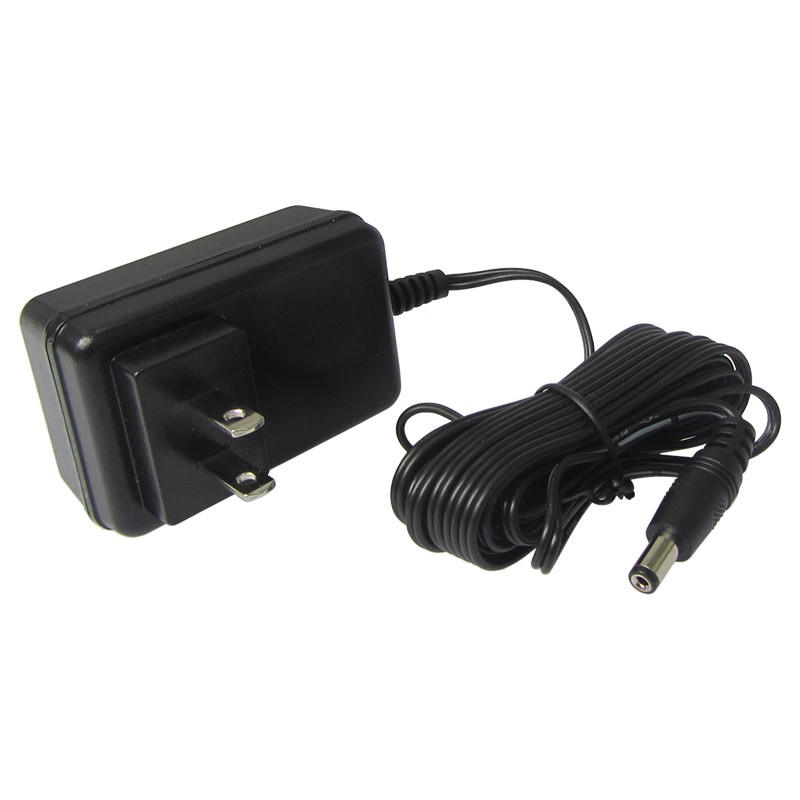

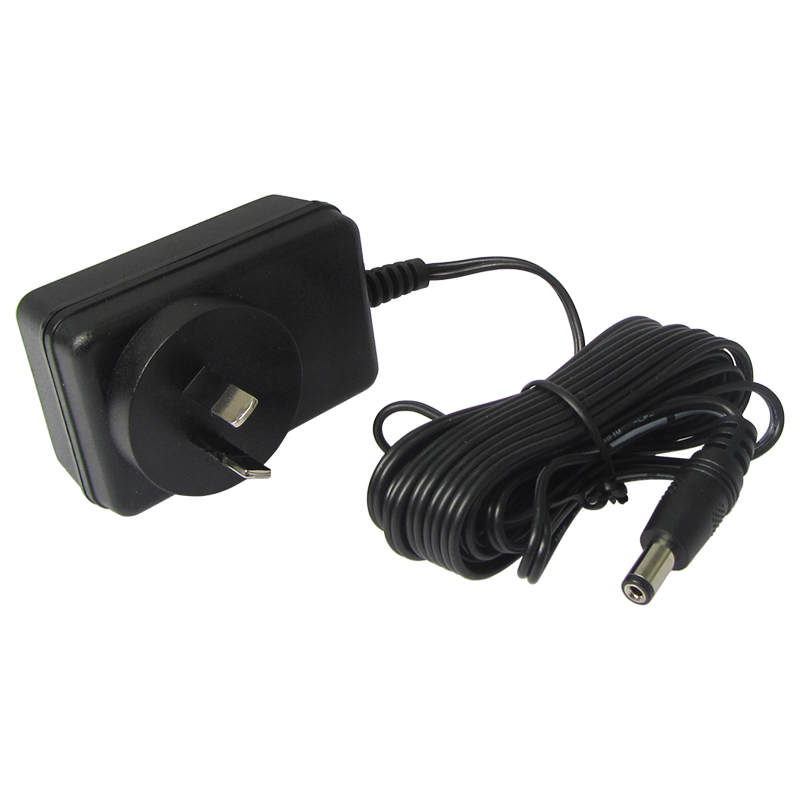

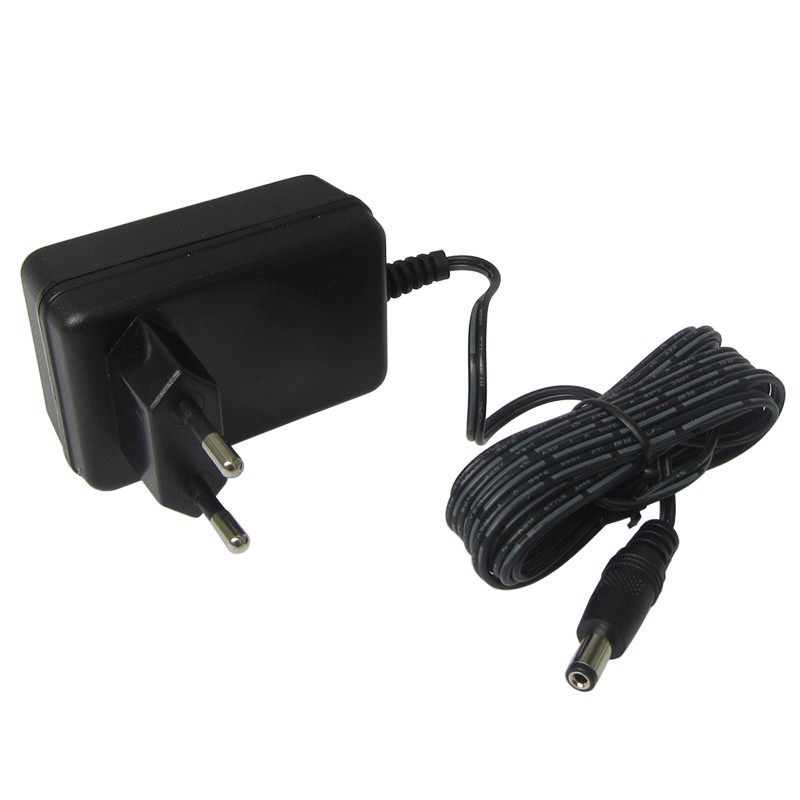

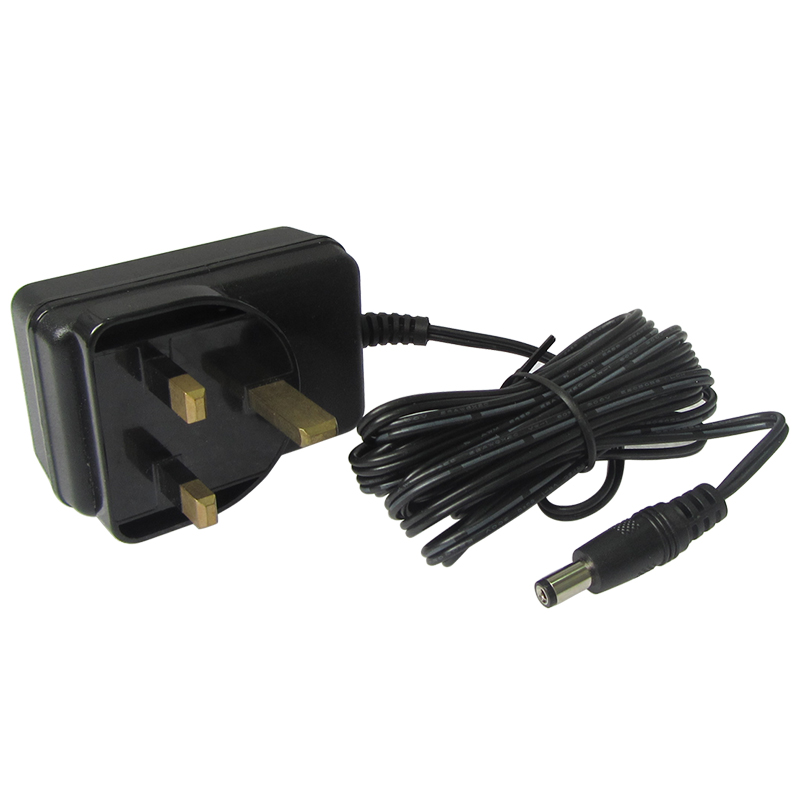

Match the wall plug and DC connector to the lighting installation. These reference photographs show black plug-in power adapters with attached leads ending in a single DC barrel plug. Separate photographs illustrate AU-style angled flat pins, US-style parallel flat pins, EU-style round pins and a UK-style three-pin arrangement.
For lighting distributors and display equipment manufacturers, specify the destination plug, connected lighting load and mating DC socket together. Include the output-cable length and product-marking requirements to define a sample and a comparable production quotation.
DC connector adapter reference
| Specification | FY - DC Connector |
|---|
| Catalogue connection reference | FY - DC Connector |
| Enclosure pictured | Black wall-plug case |
| Output lead pictured | Attached lead with a single DC barrel plug |
| Separate mains-plug references | AU, US, EU and UK styles |
| Electrical data for the enquiry | Input supply, required DC voltage and current, total load |
| DC socket matching details | Outer and inner diameters, insertion length and polarity |
| Cable and product marking | Specify the required lead length and marking |
| Quoted configuration | Confirm the complete adapter and plug version with the sample |
Choose the destination wall-plug version
Use the four photographs to identify the mains-pin arrangement required for the destination. Specify one plug version for each order line, together with the local input supply and installation conditions.
Confirm the selected enclosure, wall-plug version and cable with the quotation. Include the outlet position and available clearance so the sample can be checked in the intended equipment or display.
Match the DC barrel lead to the lighting socket
Send the mating socket drawing or a clear photograph, with plug outer and inner diameters, insertion length and polarity. Specify the cable length from the wall outlet to the lighting connection.
Add the lighting model, operating voltage, current and combined load, including any controller. Agree the electrical output and connector configuration for the quoted version before sample approval. Request the current technical data and destination-market documents for that version.
Bulk plug-in adapters and OEM supply
Wholesale orders start at 20 pcs, and higher quantities qualify for lower unit prices. Samples are available; sample charges and shipping are confirmed for the destination. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include plug selection, output cable, marking and packing. Send the complete specification, target quantity and artwork to confirm the custom scope and quotation. Custom schedules and transit time are agreed separately.
DC wall plug adapter purchasing questions
Which mains plugs appear in the reference photographs?
The separate photographs show AU-style angled flat pins, US-style parallel flat pins, EU-style round pins and a UK-style three-pin arrangement. Identify the version required for each order line and confirm it with the sample.
What details are needed to match the DC plug?
Provide the socket drawing, plug outer and inner diameters, insertion length, polarity and cable length. Include the lighting model and operating requirements.
How is the electrical specification agreed?
Send the destination input supply, required DC output voltage and current, total lighting load and any controller details. The complete specification is confirmed for the quoted adapter version.
What should a wholesale adapter enquiry include?
Include the catalogue connection reference FY - DC Connector, plug version, quantity, lighting-load data, socket drawing, lead length and marking requirements. MOQ is 20 pcs, with volume pricing for larger quantities.
Compare the output connector format
Use the lighting-side connector and destination plug requirements to select the appropriate reference page.
