Wall plug adaptors with two-pole leads
Specify the lighting-side connection as part of the adaptor assembly. The reference photographs show black wall-plug cases with attached cables ending in moulded two-hole output connections. The catalogue uses B Shape to distinguish this lead from the DC barrel-plug version.
For lighting component buyers, display manufacturers and OEM assemblers, provide the mating connector drawing and lighting requirements first. Add the destination mains plug, cable route and marking to define the complete sample and production configuration.
B Shape lighting connection reference
| Specification | FY - B Shape |
|---|
| Catalogue connection reference | FY - B Shape |
| Case format pictured | Black wall-plug enclosure |
| Output connection pictured | Moulded two-hole connection on an attached lead |
| Mains-pin references pictured | Separate AU, US, EU and UK styles |
| Mating connector details | Contact layout, spacing, dimensions and polarity |
| Lighting specification to provide | Operating voltage, required current and total load |
| Incoming supply to specify | Destination mains supply and wall-plug version |
| Cable arrangement | Confirm lead length and connector configuration with the sample |
Approve the two-pole connection against the equipment
Provide a clear drawing or photograph of the lighting-side mating connector. Include the contact positions, spacing, dimensions, polarity and required engagement so the quoted connection can be checked against the equipment.
Add a layout showing the wall outlet, lighting position and cable route. Agree the lead length and final connection details during sample evaluation before defining the production order.
Select the mains plug for the destination

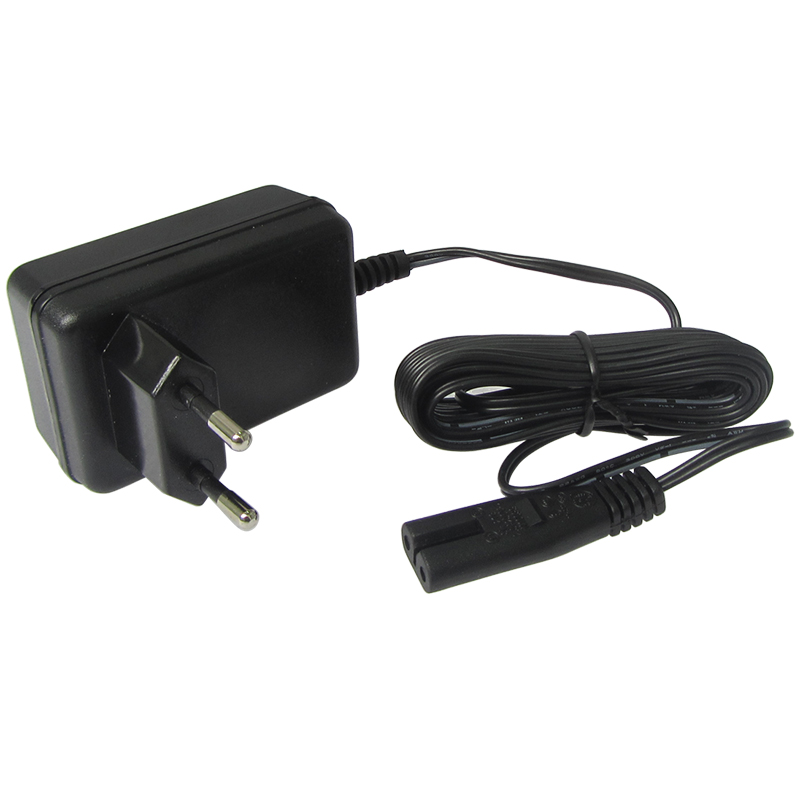

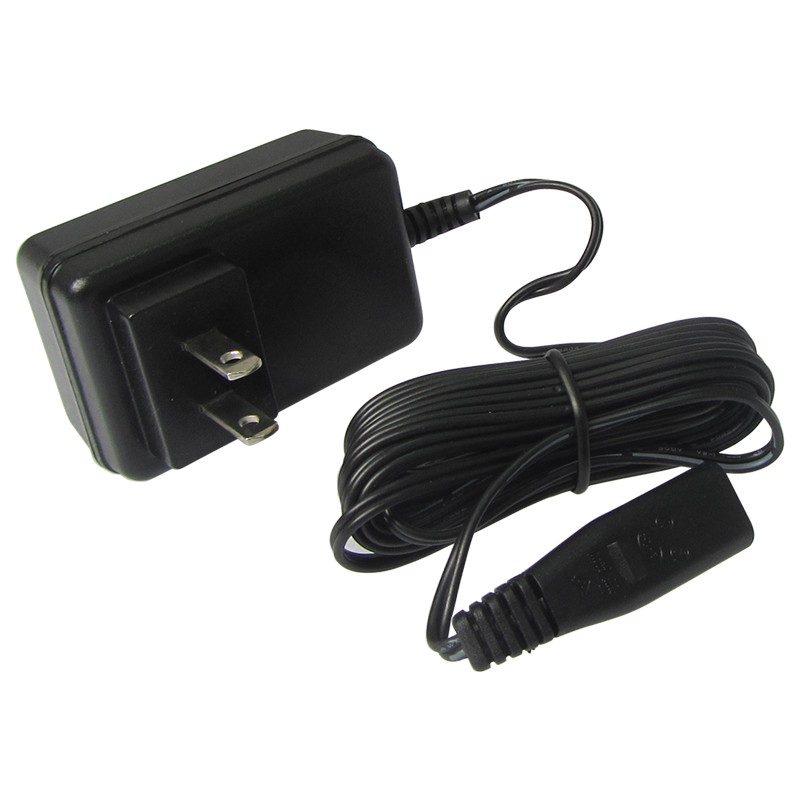

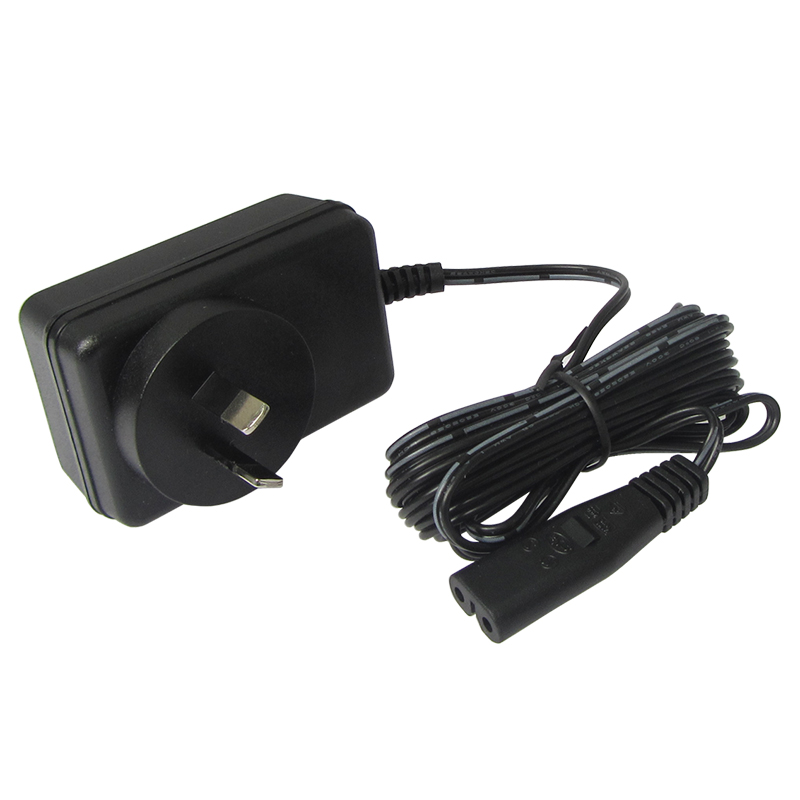

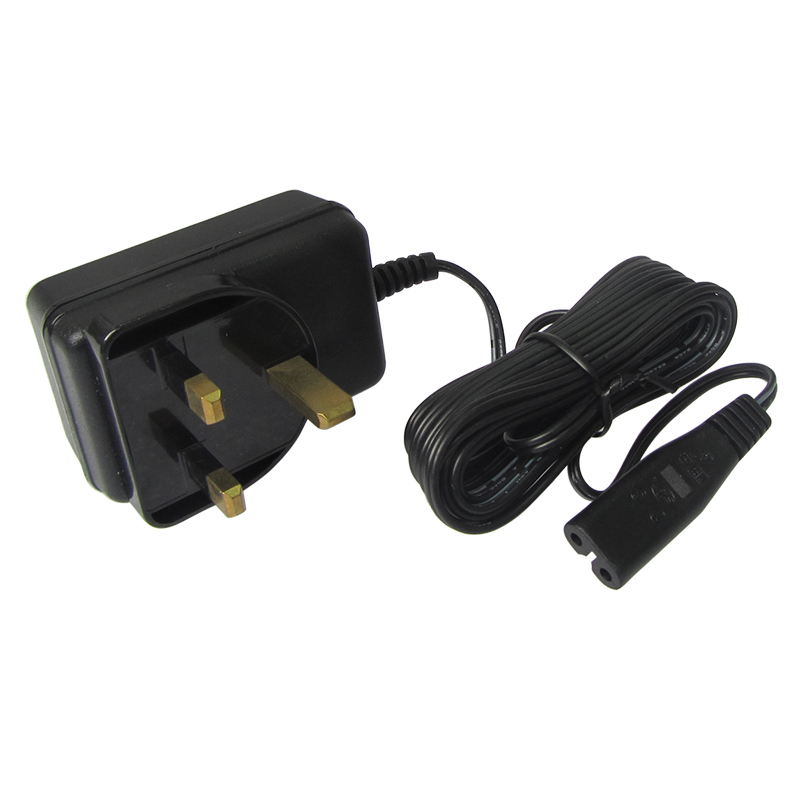

The four photographs show separate AU-style angled flat-pin, US-style parallel flat-pin, EU-style round-pin and UK-style three-pin references. Specify the required version for each order line.
Send the local input supply, lighting model, operating voltage, current, total load and controller details. Confirm the electrical specification, selected plug and output connection for the quoted version. Request current technical and destination-market documents with the enquiry.
Two-pole adaptor samples and volume orders
MOQ is 20 pcs, with lower unit prices at higher quantities. Samples are available; sample charges and shipping are confirmed separately. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can include cable layout, product marking and packing. Provide the mating connector drawing, complete electrical requirements, target quantity and artwork to confirm the custom scope. Custom schedules and transit time are agreed separately.
Two-pole lighting adaptor purchasing questions
What does B Shape refer to on this page?
B Shape is the catalogue connection reference for the moulded two-hole output lead shown in the photographs. Send the mating connector drawing to confirm the quoted connection.
How can I check the output lead before a bulk order?
Specify the contact layout, spacing, dimensions, polarity and cable length, then check the sample against the actual lighting-side connector.
What lighting data is needed for adaptor selection?
Provide the required operating voltage, current and combined lighting load, together with any controller and the destination mains supply. These details define the quoted electrical configuration.
Can I request a private-label two-pole adaptor?
OEM, ODM and private-label enquiries are supported. Include the complete specification, connector drawing, marking artwork and target quantity; orders start at 20 pcs and volume pricing is available.
Compare a DC barrel output lead
Compare the lighting-side connector drawings when choosing between the two output-lead formats.
