36V 1.5A LED drivers with a two-pole output lead

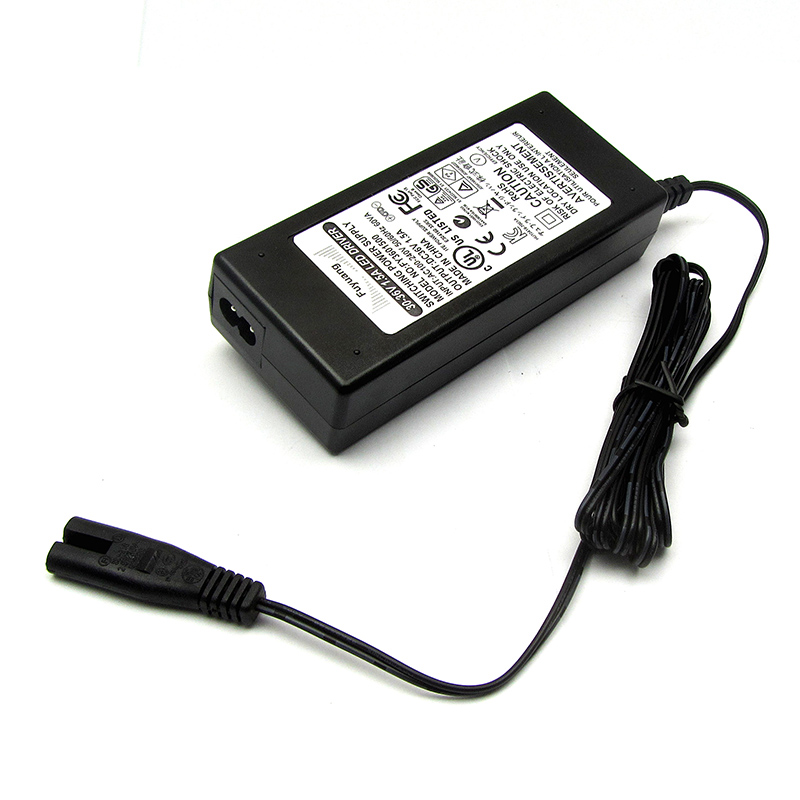

Define the lighting and connection requirements together when ordering FY3601500. The pictured switching power supply has a black enclosed case, a mains inlet and an attached lead with a moulded two-pole output connection. Its dedicated OUTPUT line states 36V DC at 1.5A, equivalent to 54W nominal DC power calculated from the label values.
For luminaire assemblers, display-lighting suppliers and component buyers, include the lighting-model data and mating connector in the enquiry. Agree the driver’s operating specification and cable arrangement with the sample before ordering the production quantity.
FY3601500 label and cable configuration
| Specification | FY3601500 |
|---|
| Model on pictured label | FY3601500 |
| Dedicated OUTPUT marking | 36V DC, 1.5A |
| Nominal DC power calculation | 54W = 36V × 1.5A |
| AC input on pictured label | 100–240V AC, 50/60Hz |
| Input apparent-power marking | 60VA |
| Output lead pictured | Attached cable with moulded two-pole connection |
| Enclosure and incoming connection | Black enclosed case with mains inlet |
| Use restriction on label | Dry location use only |
| Selection data required | Lighting operating requirements, mating connector and installation details |
Specify the lighting load and driver operating requirements
Send the lighting model’s technical data, required operating voltage and current, and any controller details. Include the intended installation arrangement so the driver specification and connected load can be confirmed for the quoted version.
The reference above follows the dedicated OUTPUT line on the original label. Request the complete operating specification and installation instructions with the sample enquiry, including any control requirements for the lighting assembly.
Approve the two-pole lead and incoming mains cord
Provide the mating connector drawing or clear photographs, contact dimensions, required polarity and output-cable length. Agree the cable assembly with the actual lighting connection during sample approval.
The case inlet is visible in the original photograph. Specify the destination mains plug and incoming cord, local supply and available enclosure space. The label states 100–240V AC at 50/60Hz and dry-location use only; current model-specific documents can be requested for the destination market.
36V driver samples and wholesale production
MOQ is 20 pcs. Larger orders receive lower unit prices, and samples are available with charges and shipping confirmed separately. Standard lead time is 12–18 days.
OEM, ODM and private-label enquiries can cover lead arrangements, identification and packing. Include the lighting data, connector drawing, artwork and target quantity to confirm the custom quotation. Custom schedules and transit are agreed separately.
36V 1500mA driver purchasing questions
Which output rating should be used in the FY3601500 enquiry?
Use the dedicated OUTPUT line: 36V DC, 1.5A. Include the lighting-model data to confirm the full operating specification for the quoted version.
How is the 54W nominal value calculated?
Multiply the label’s 36V output by 1.5A: 36 × 1.5 = 54W. Confirm the intended connected load and operating conditions during sample selection.
What details define the two-pole output lead?
Provide the mating connection drawing, contact dimensions, polarity and required cable length. Add the lighting model and installation layout for sample approval.
What is needed for an OEM driver quotation?
Send FY3601500, target quantity, lighting requirements, cable and mains-cord details, destination, and any product-marking or packing artwork. The custom scope, sample and schedule are confirmed with the quotation.
Compare the 36V driver current ratings
Match the lighting system’s operating requirements and connection details when selecting between the 1A and 1.5A reference models.
SL3601000 LED driver with 36V 1A OUTPUT marking
