200mm LED light bars with three connector options
Select the connection and optical version together for a short lens-equipped lighting assembly. SL-BL015-070 is the catalogue ordering reference; the product sheet identifies the illustrated type as SL-BL015. The bar measures 200 × 23 × 16mm and is specified at 7W ±10%, 700 lm ±10% and 24V DC ±0.5V.
For display manufacturers, sign-component buyers and furniture-lighting integrators, choose the plug type, lens angle and mounting method before sampling. The original artwork also shows optional external sensors, allowing a project quotation to include the control and installation parts required.

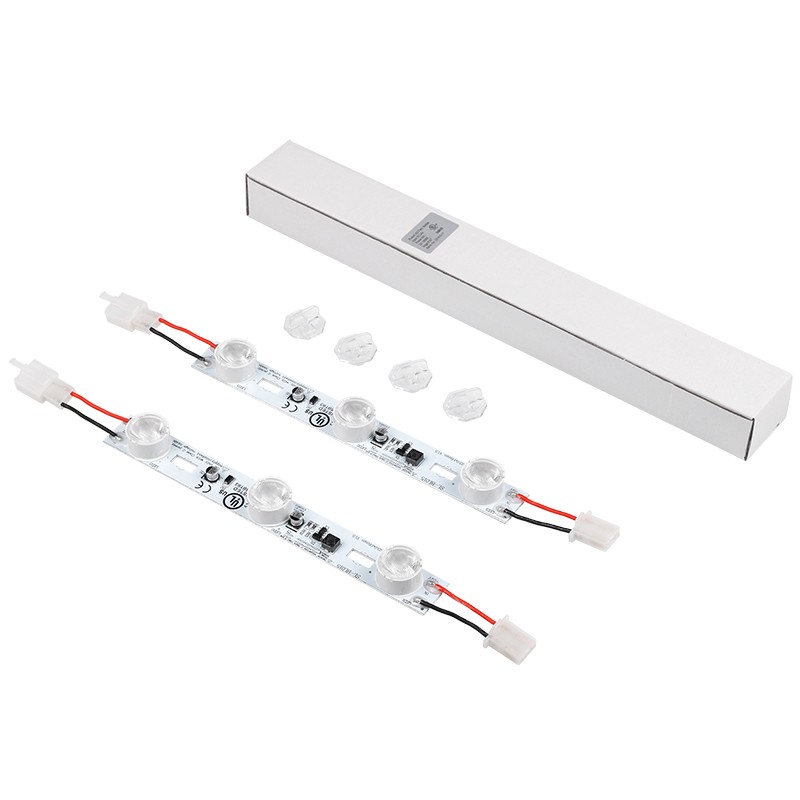

7W lens light bar technical specification

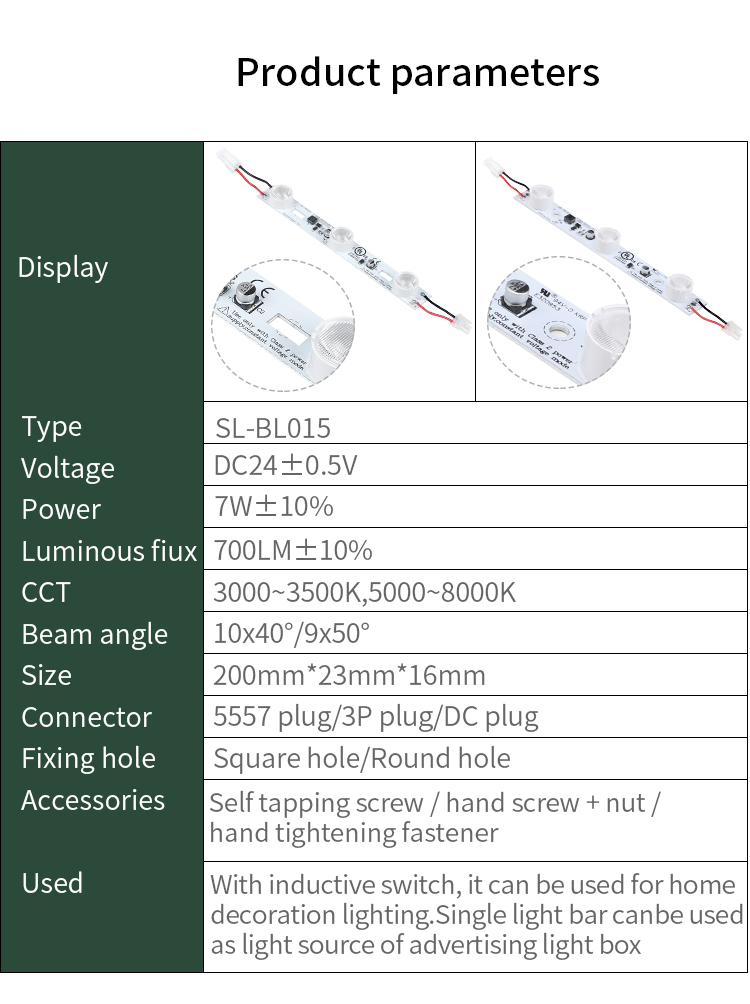

| Specification | SL-BL015-070 |
|---|
| Catalogue ordering reference | SL-BL015-070 |
| Illustrated type | SL-BL015 |
| Complete dimensions | 200 × 23 × 16mm |
| Power | 7W ±10% |
| Input | 24V DC ±0.5V |
| Luminous flux | 700 lm ±10% |
| White-light order ranges | 3000–3500K / 5000–8000K |

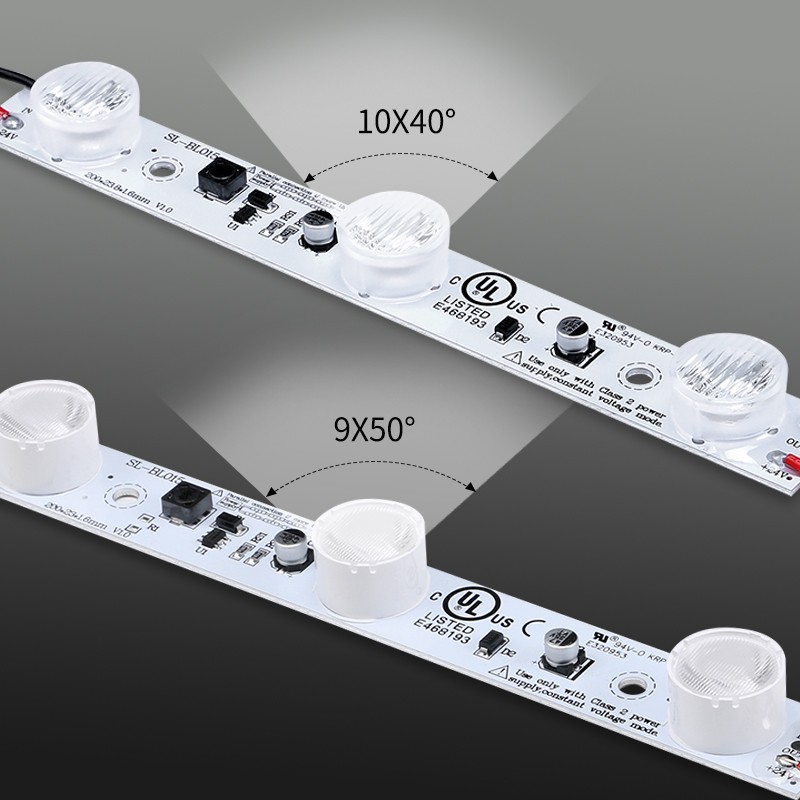

| Lens choices | 10 × 40° / 9 × 50° |
| LED package illustrated | 3535 |
| Aluminium substrate thickness | 1.6mm |
| Connector choices | 5557 plug / 3P plug / DC plug |
| Colour-rendering order option | CRI 90+ available; specify with the order |

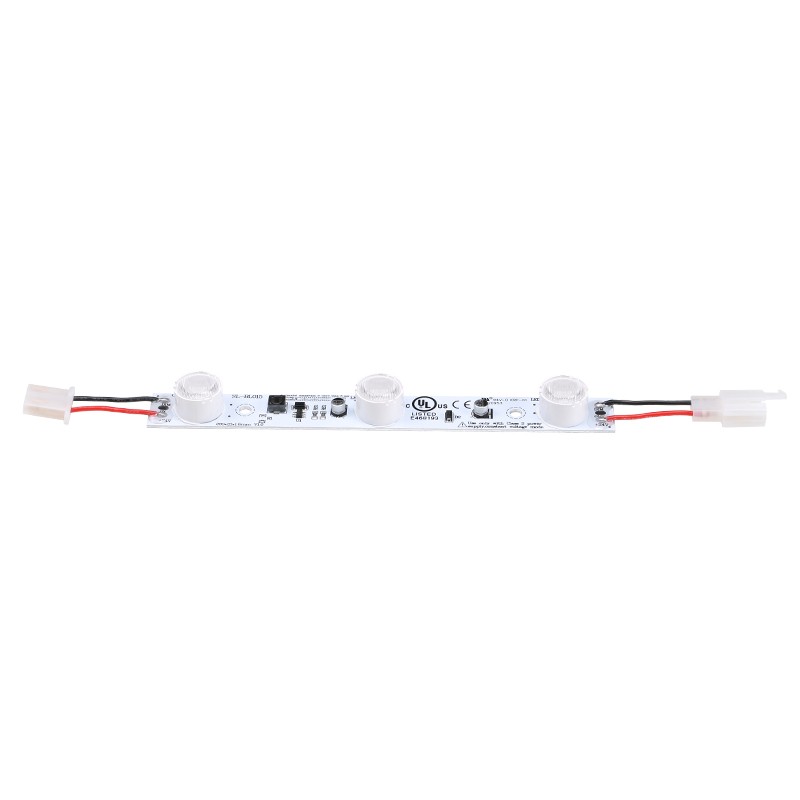

Choose the connector and lens version

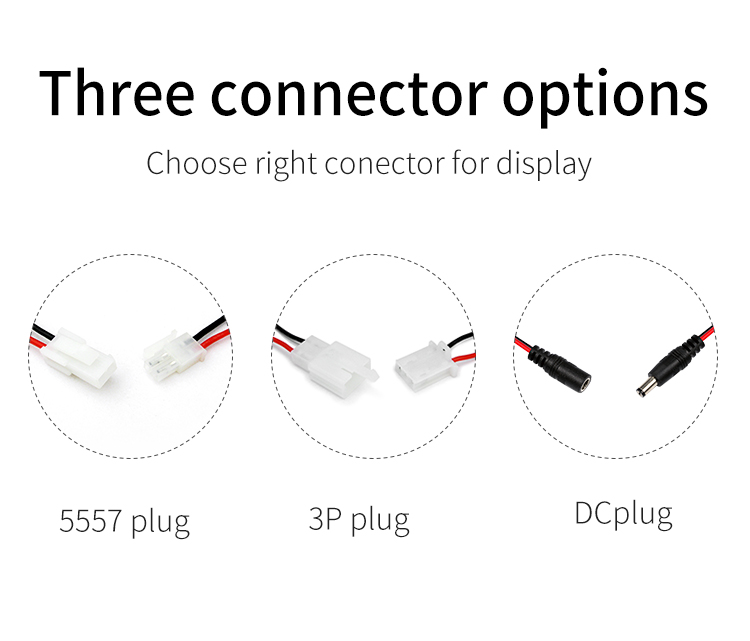

The original connector illustration lists 5557, 3P and DC plug versions. Identify the required version with the model number and provide the mating connection details or photographs for the sample specification.
The product table lists 10 × 40° and 9 × 50° lens choices, plus white-light ranges of 3000–3500K and 5000–8000K. Select the lens and white-light version for the intended graphic, cabinet or display face. CRI 90+ white LEDs are available to order.

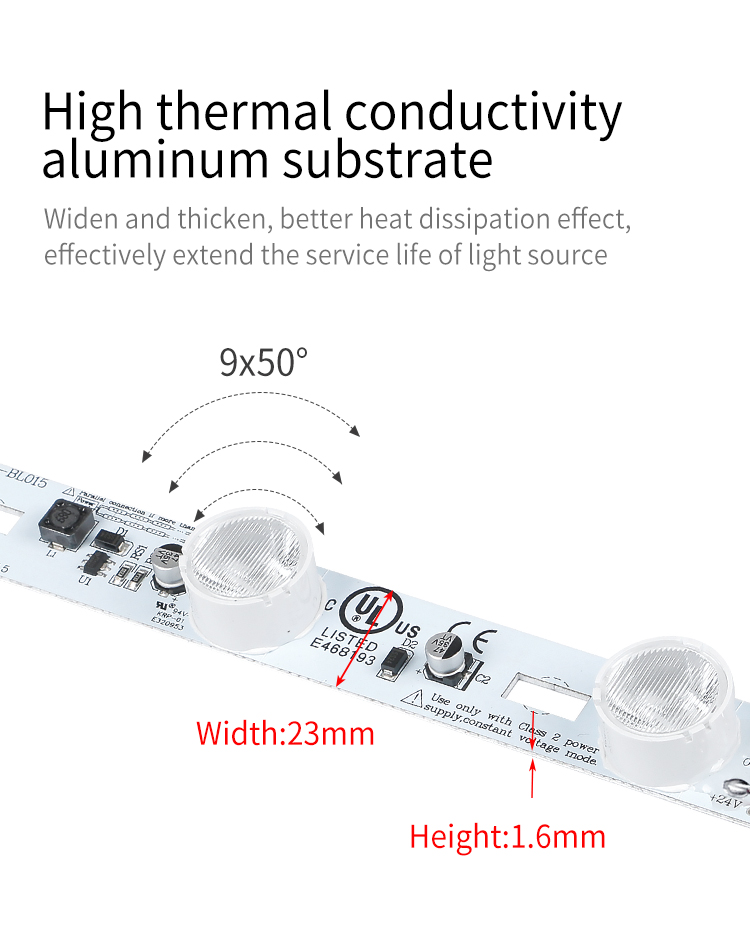

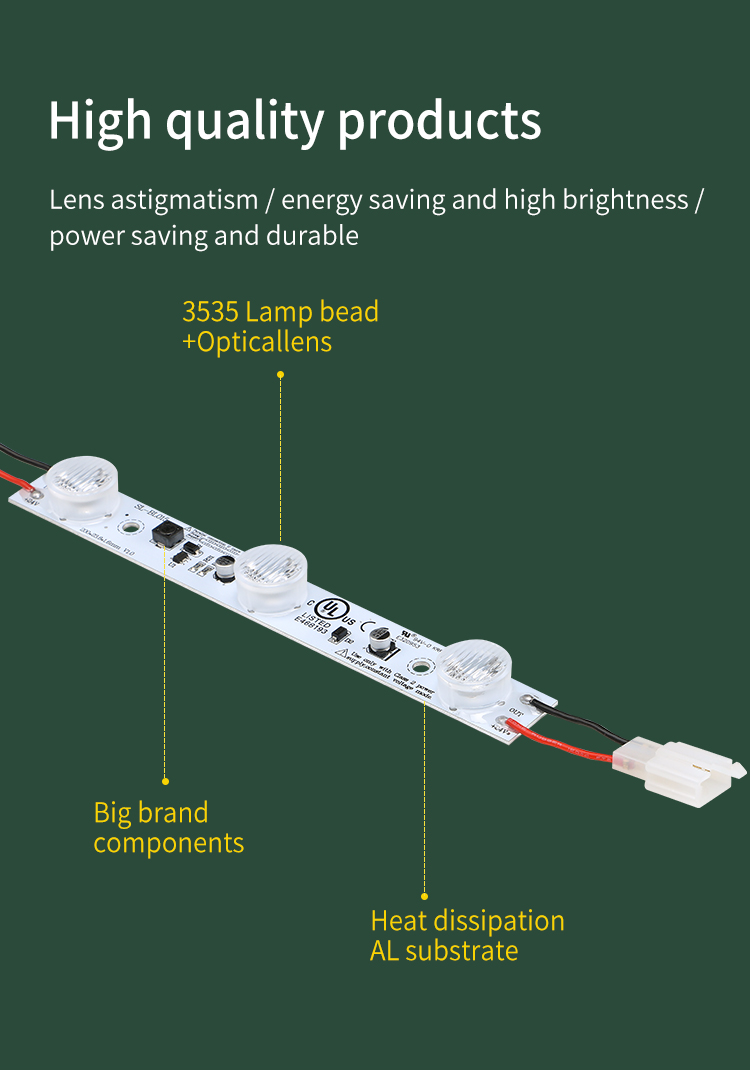

The construction illustration identifies 3535 LEDs and a 1.6mm aluminium substrate. The complete lens assembly is 16mm high; use the full assembly dimensions when planning the enclosure.

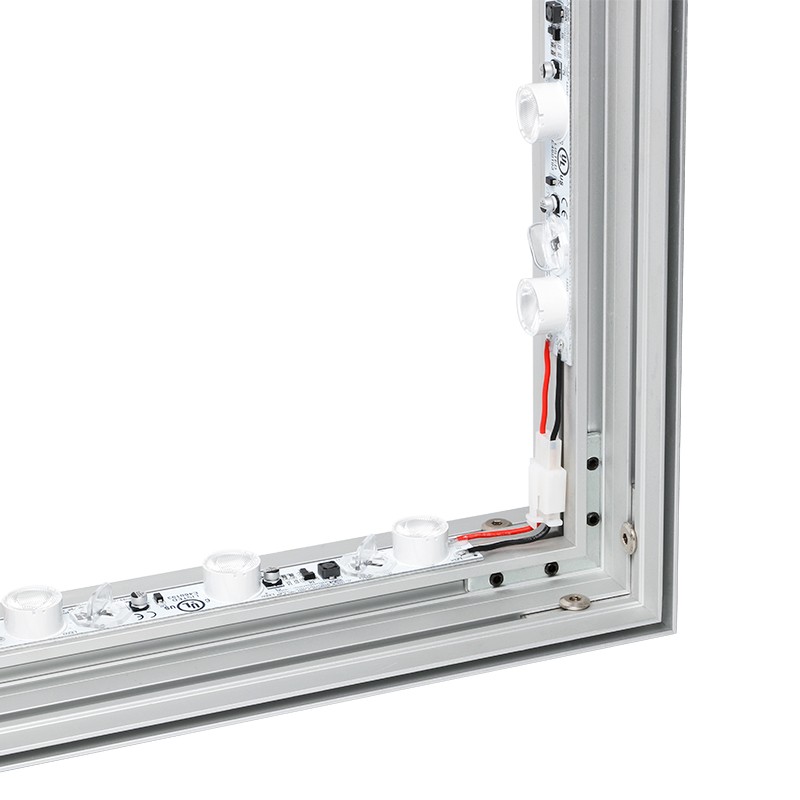

Profile mounting or direct surface fixing

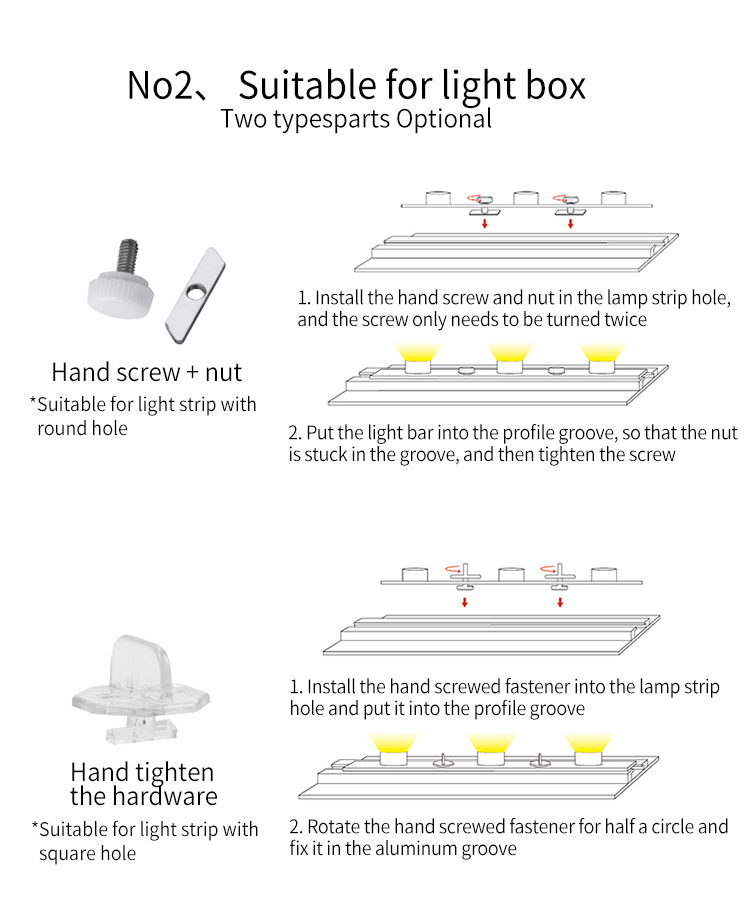

The lightbox instructions illustrate a hand screw and nut for a board with round holes, and a hand-tightened fastener for a board with square holes. Match the supplied board-hole version and hardware to the frame groove.

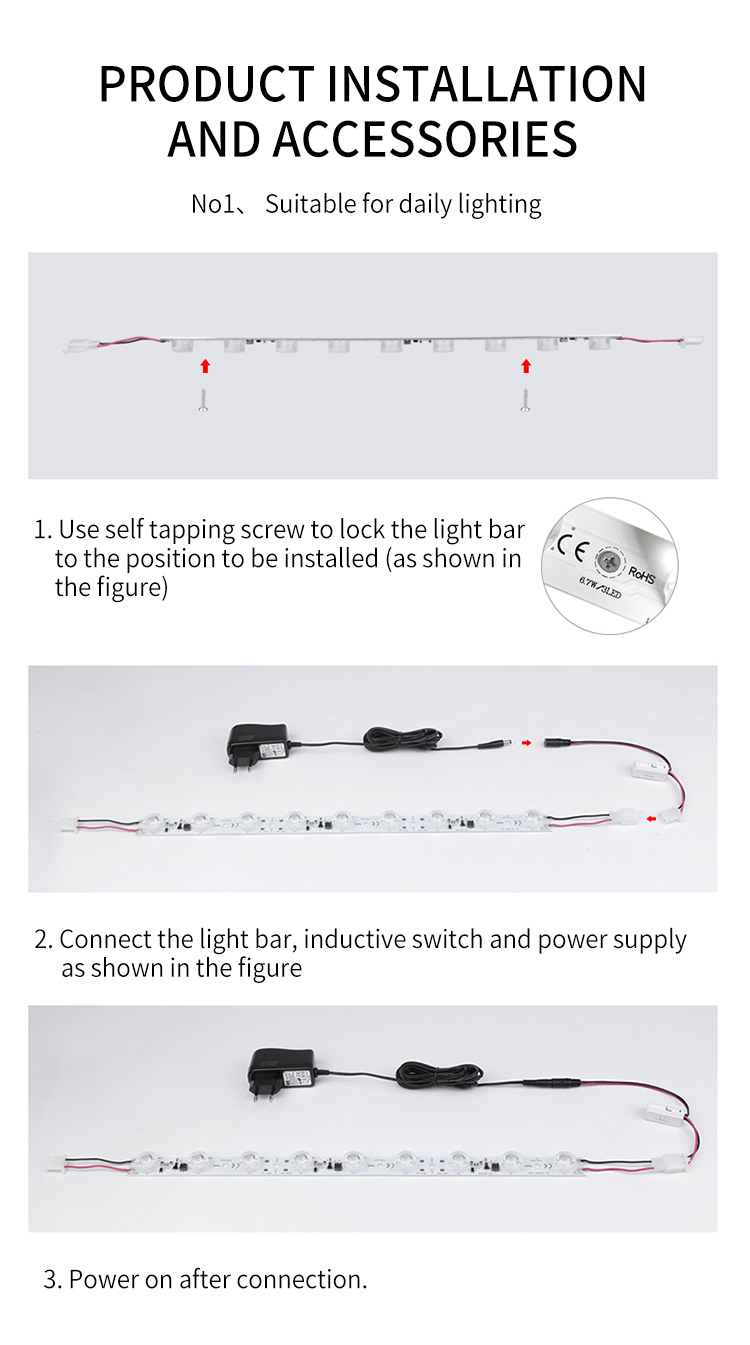

A separate illustration shows direct mounting with self-tapping screws, followed by connection of the light bar, external sensor and power unit. Provide the mounting surface, fixing positions and connection requirements to agree the delivered parts and installation layout.
External sensor options for cabinet and interior projects

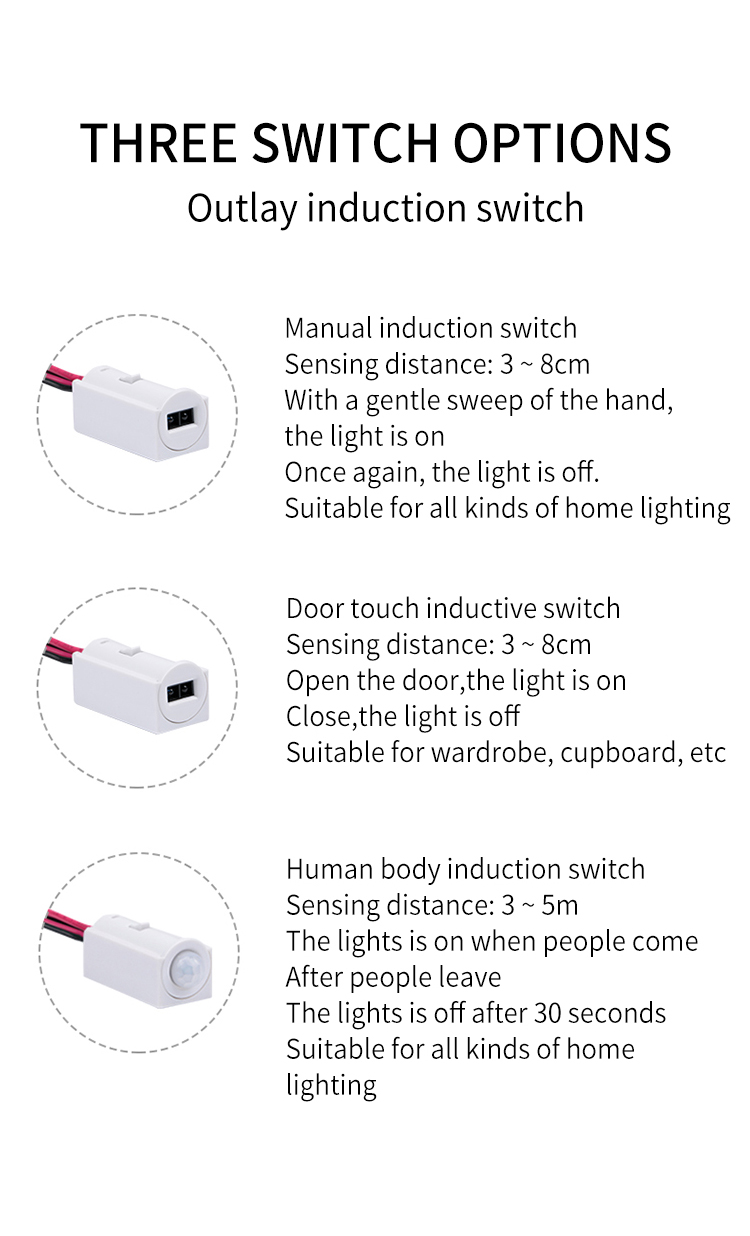

Three external switch options are pictured: a hand-sweep sensor, a door sensor and a motion sensor. The hand-sweep and door illustrations list 3–8cm sensing distance; the motion illustration lists 3–5m and a 30-second switch-off delay after departure.
Specify the preferred switching behaviour and mounting position with the enquiry. Confirm the selected sensor, matching electrical configuration, power unit and lead arrangement as separate items in the supply scope.
Lightbox project supply and technical documents

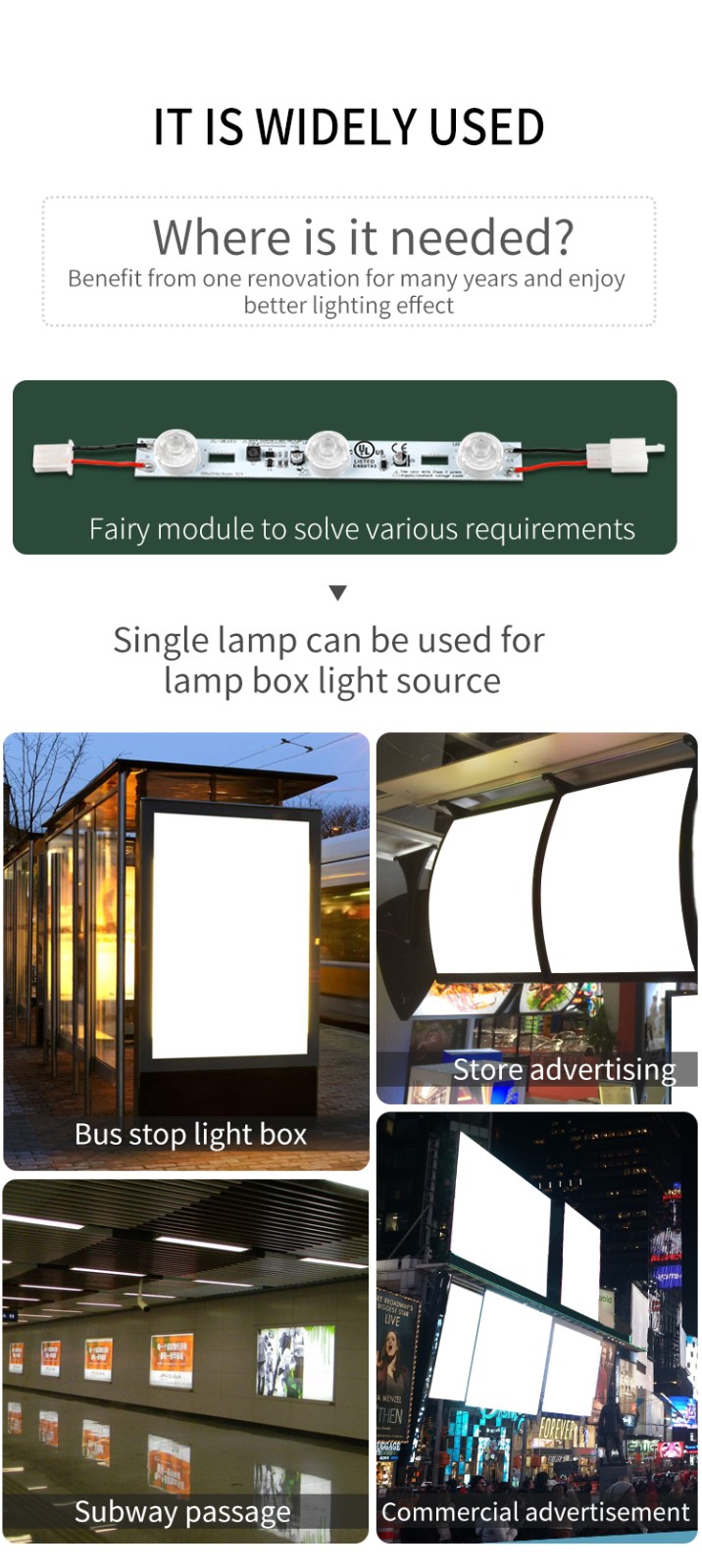

Application examples show bus-stop, store, passage and commercial advertising displays. Send the enclosure drawing, face material and proposed bar layout when requesting a project sample.

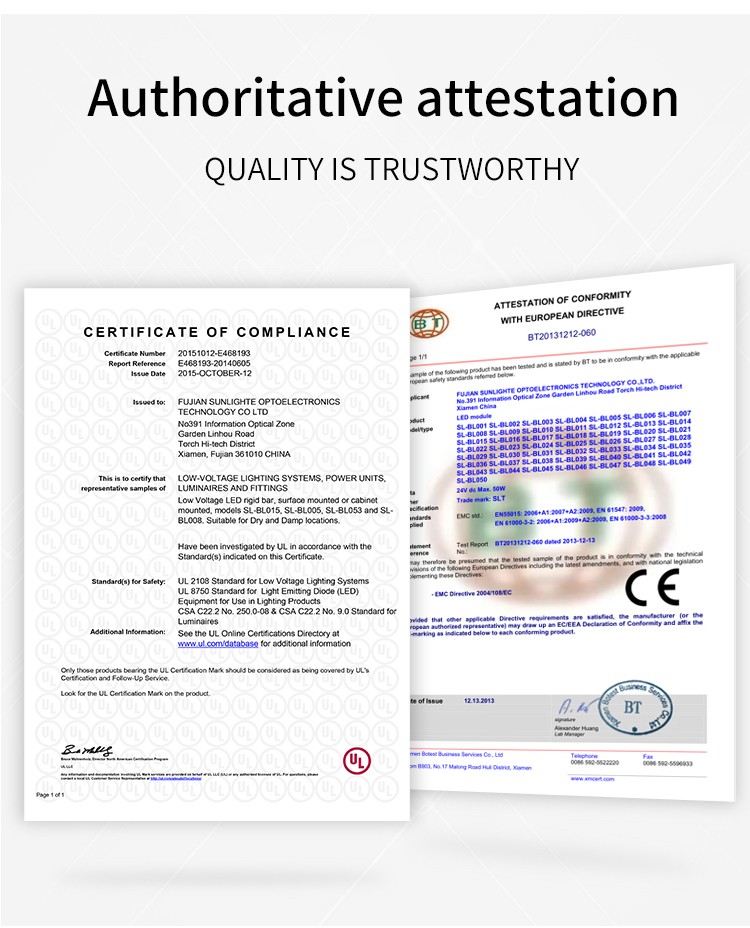

For approval and bulk purchasing, request current model-specific technical and compliance documents for the destination market. Confirm the certificate holder, model scope and applicable standards, together with the required packing and marking. OEM, ODM and private-label enquiries are supported.
Connector-option LED bar purchasing questions
Can I order the 200mm light bar with a DC plug?
Yes, the original artwork lists a DC plug alongside 5557 and 3P connector options. Specify the required connection and provide mating-part details so the delivered sample uses the agreed version.
Which mounting method should I choose for a lightbox profile?
Match the fixing parts to the board-hole version and frame groove. The artwork illustrates screw-and-nut fixing for round holes and a hand fastener for square holes; send the profile section to select the applicable arrangement.
Can I include a hand-sweep or door sensor in the quotation?
The original pictures show optional external hand-sweep, door and motion sensors. State the required switching behaviour, installation position and connection format so the sensor, supply and leads can be itemised for the project.
What are the sampling and wholesale supply terms?
Samples are available; cost and destination shipping are confirmed separately. Wholesale orders start at 20 pcs, with lower unit prices at larger quantities. Standard lead time is 12–18 days, subject to the selected connectors, optics and custom requirements; transit is separate.
Compare another short bar or a longer cabinet source
200mm 7W bar with 20 × 60° or 10 × 45° lens choices
470mm 12W lighting bar with external sensor options
