12W LED replacement light sources for lighting refurbishment

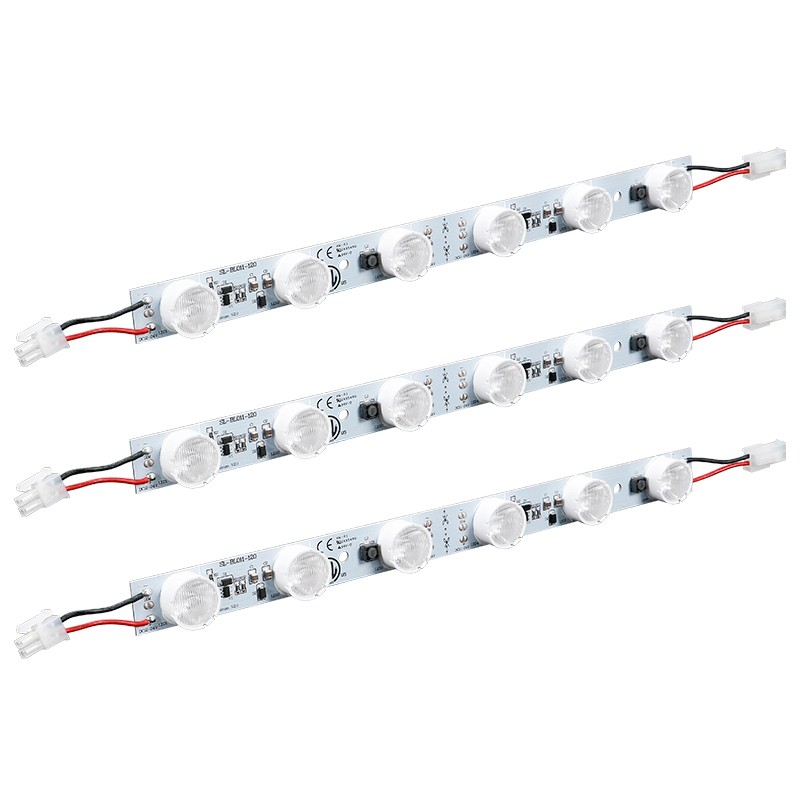

Assess a lens-equipped LED source for an existing display or interior-lighting assembly. SL-BL011-120 is the catalogue ordering reference for this 12W source, with 1000 lm ±10% output and three white-light order ranges. The parameter table lists a 23mm width and 16mm complete height.
For maintenance contractors, sign-refurbishment businesses and OEM lighting integrators, replacement selection begins with the existing enclosure, fixing points and power arrangement. Send the current source measurements, supply label and wiring photographs to define a matching sample and production configuration.
12W replacement source and white-light specification
| Specification | SL-BL011-120 |
|---|
| Catalogue ordering reference | SL-BL011-120 |
| Power | 12W |
| Luminous flux | 1000 lm ±10% |
| Cross section in table | 23mm wide × 16mm complete height |
| Warm-white order range | 3000–3500K |
| Neutral-white order range | 4700–5300K |
| Cool-white order range | 6000–7000K |
| Colour-rendering order option | CRI 90+ available; specify with the order |

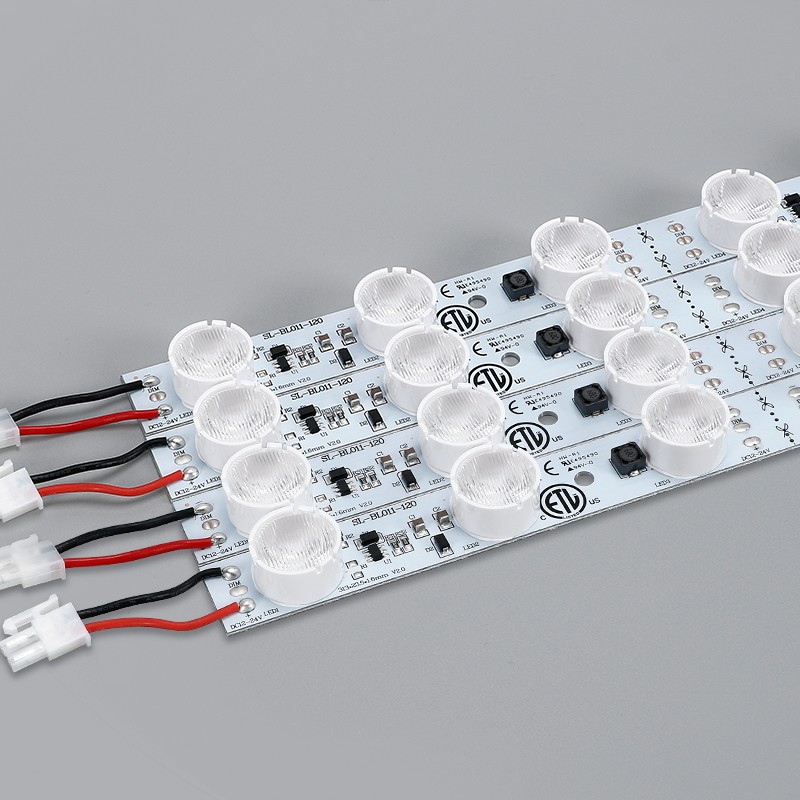

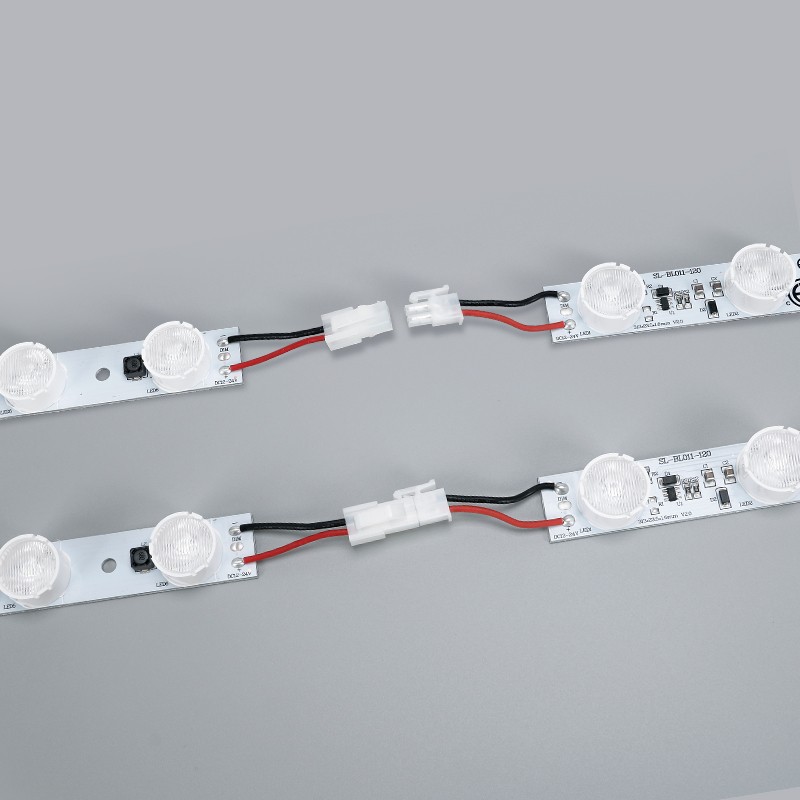

| Connection appearance | Red and black leads with white end plugs |
| Warranty | 2 years; confirm coverage with the quotation |
Evaluate the existing light source and enclosure
The replacement illustration compares the lens bar with an ordinary LED panel and an H-type tube. For a refurbishment project, provide the existing source dimensions, enclosure clearance, fixing positions and power-unit label.
Agree the delivered bar dimensions, input requirement, wiring and mounting arrangement with the sample specification. Assess the lighting in the actual enclosure and face material before placing the production order.
Choose white-light appearance and colour rendering
The three listed ranges are separate ordering choices: 3000–3500K warm white, 4700–5300K neutral white and 6000–7000K cool white. Select the version that matches the display appearance required for the refurbishment.
The lens-comparison artwork illustrates the proposed light-source format. Review a sample with the actual graphic or diffuser. CRI 90+ white LEDs can be specified for the order; request matching technical information for the selected configuration.
External controls, warranty and OEM supply scope
The application examples show interior lighting with an external sensor, as well as advertising lightboxes and retail displays. If the refurbishment needs a sensor or other switching arrangement, include its operation and location with the project enquiry.
The original quality graphic states a two-year warranty. Confirm the covered configuration and warranty terms with the quotation. Agree the power unit, leads, mounting components, packing and marking to be supplied; OEM, ODM and private-label enquiries are supported.
LED replacement-source project questions
Can the lens source replace my existing H-type tube or LED panel?
The artwork illustrates these replacement concepts. Send the existing source measurements, enclosure dimensions, supply label, fixing positions and wiring photographs so the proposed replacement configuration can be checked for the actual assembly.
Which white-light version should I order for a refurbished display?
Choose from 3000–3500K, 4700–5300K or 6000–7000K and review the sample with the actual graphic or diffuser. Include CRI 90+ if the project requires the available high-colour-rendering LED option.
What needs to be agreed for the replacement kit?
Specify the delivered dimensions, electrical input, connection format, fixing parts and any external controls. Request an itemised quotation so the light source and supporting components match the intended refurbishment scope.
Can I test a sample before ordering replacement sources in bulk?
Samples are available, with cost and shipping confirmed for the destination. Bulk orders start at 20 pcs and higher quantities qualify for lower unit prices. Standard lead time is 12–18 days; confirm custom requirements and transit separately.
