24-LED boards for manufactured display lightboxes
Specify a rectangular lightbox backlight module with 24 SMD2835 LEDs, a 300 × 75 × 10mm board and listed 200–250 lm output. The board operates on the DC 24V input shown in its parameter table and is rated at 2.4W. Use SL-BL007-C020 as the catalogue reference for this version.
For display-lightbox producers, select the component against the enclosure and face construction. Include internal dimensions, diffuser type, graphic material, target white-light appearance and planned quantity in the enquiry so the sample board and connection requirements match the product you are manufacturing.

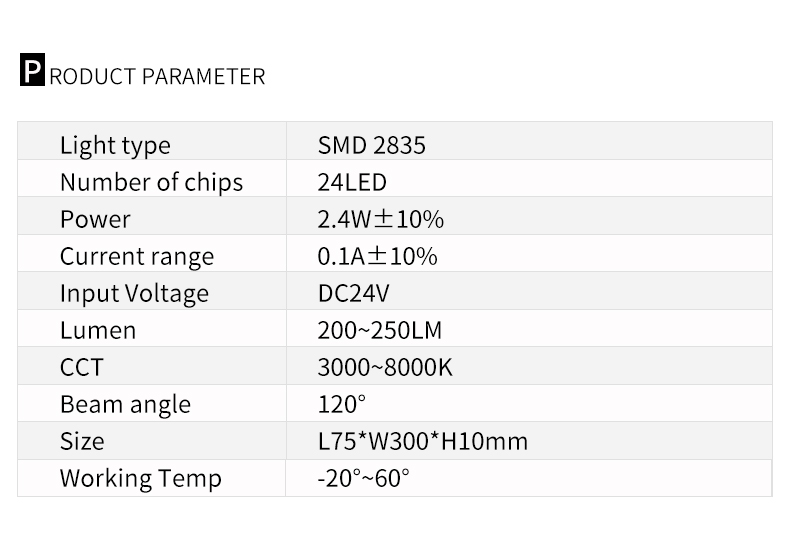

Lightbox component data
| Specification | SL-BL007-C020 |
|---|
| Catalogue ordering reference | SL-BL007-C020 |
| LED package / quantity | SMD2835 / 24 |
| Dimensions listed | 75 × 300 × 10 mm; long edge 300 mm |
| Board power | 2.4W ±10% |
| Input specified in parameter table | DC 24V |
| Current listed | 0.1A ±10% |
| Specified output per board | 200–250 lm |
| Beam angle | 120° |
| White-light order range listed | 3000–8000K |
| Working temperature listed | −20 to +60°C |
| Joint construction pictured | Metal bridge pieces fastened by screws |
Select the module against the box and diffuser
The illustrations place the rectangular LED board behind an illuminated display face. Check the usable area inside the frame, board-to-face distance and access for connection work. Use the intended diffuser and graphic material in the sample build so the board selection is assessed on the finished display.
Board dimensions and assembly details

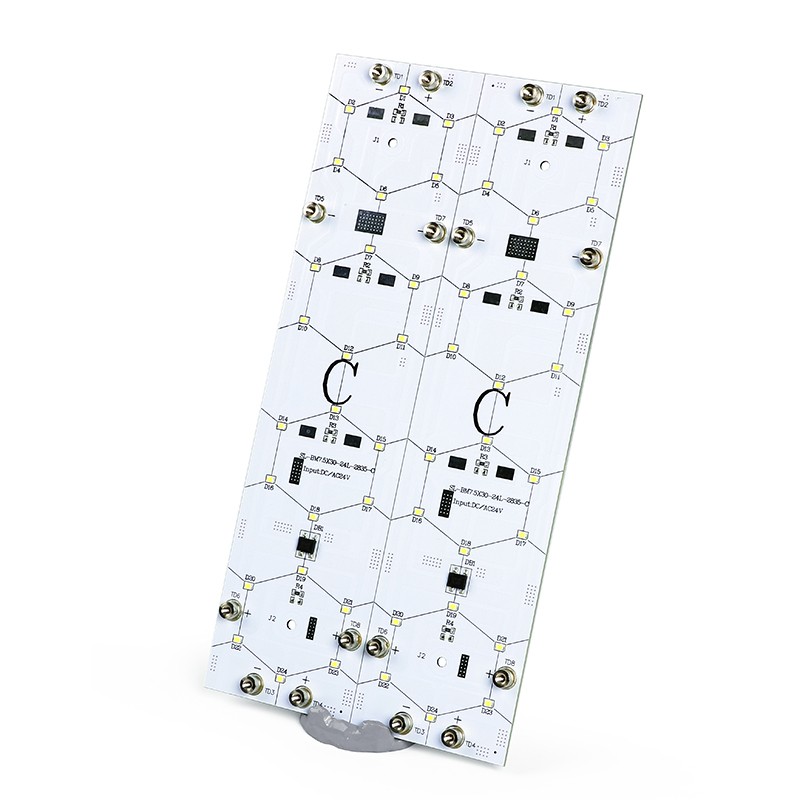

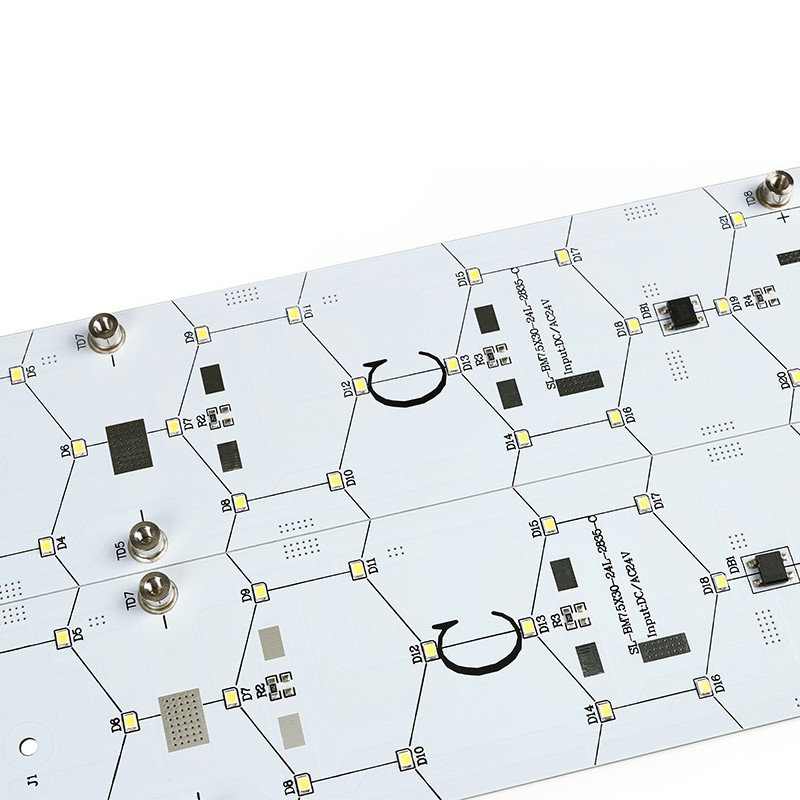

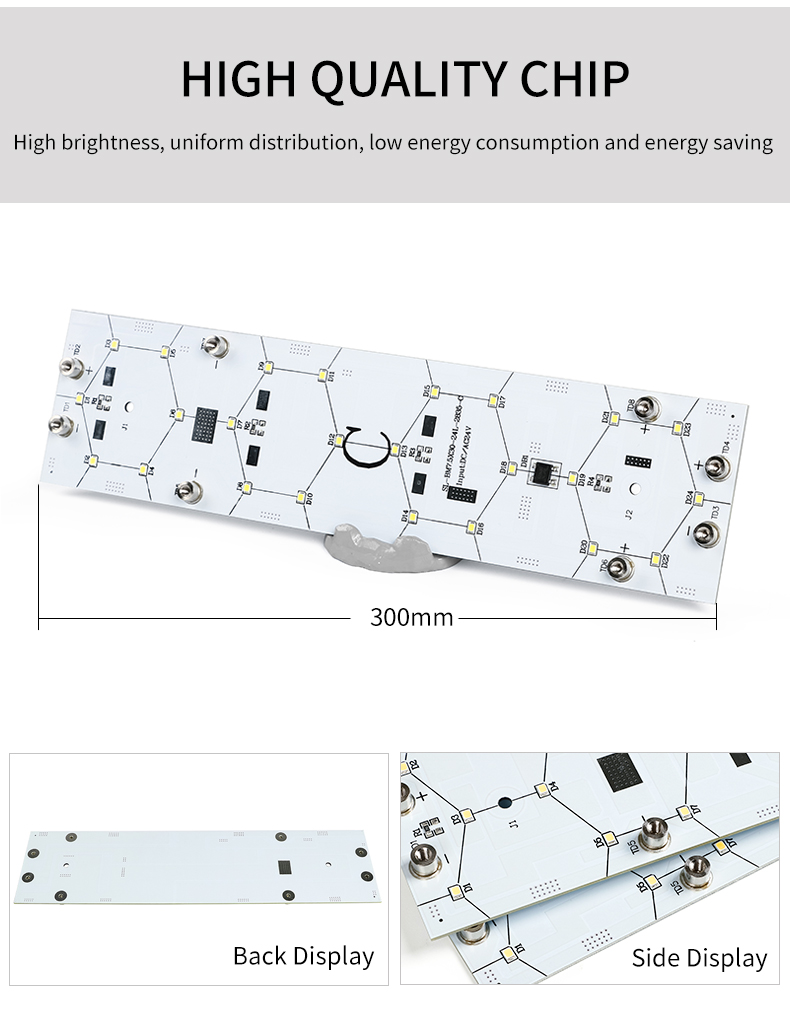

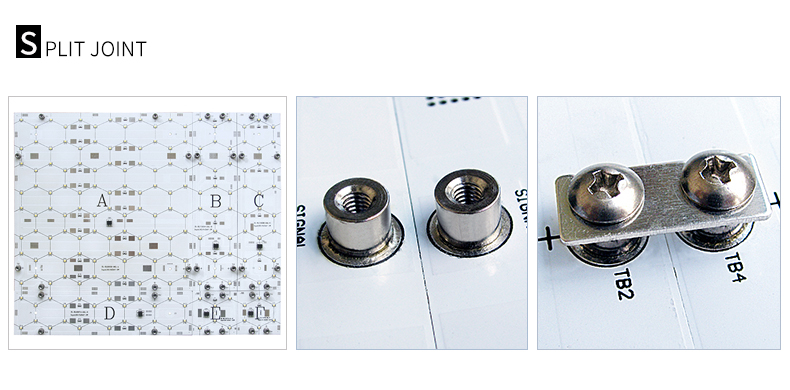

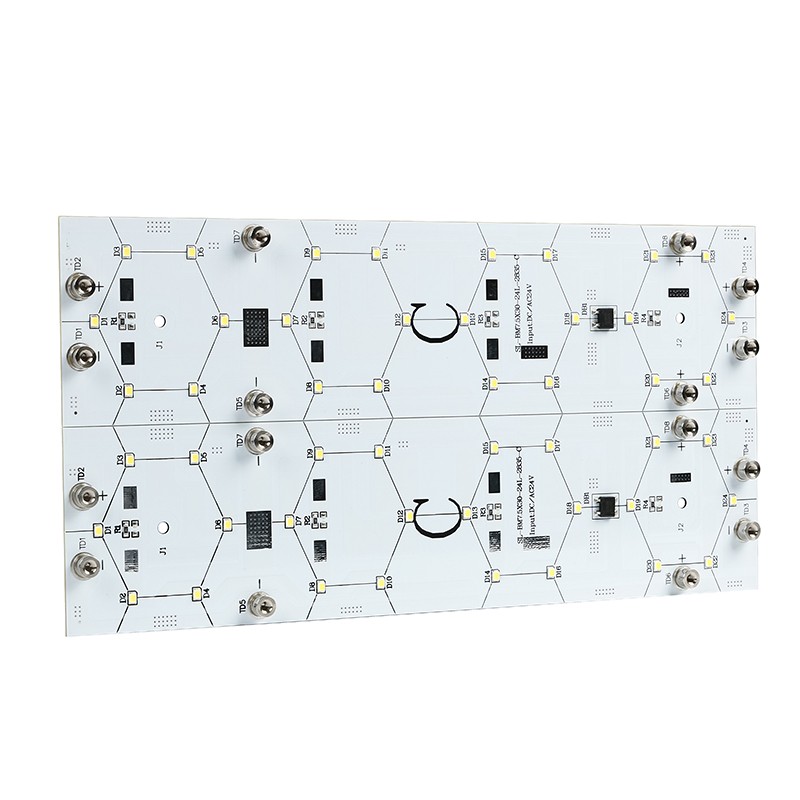

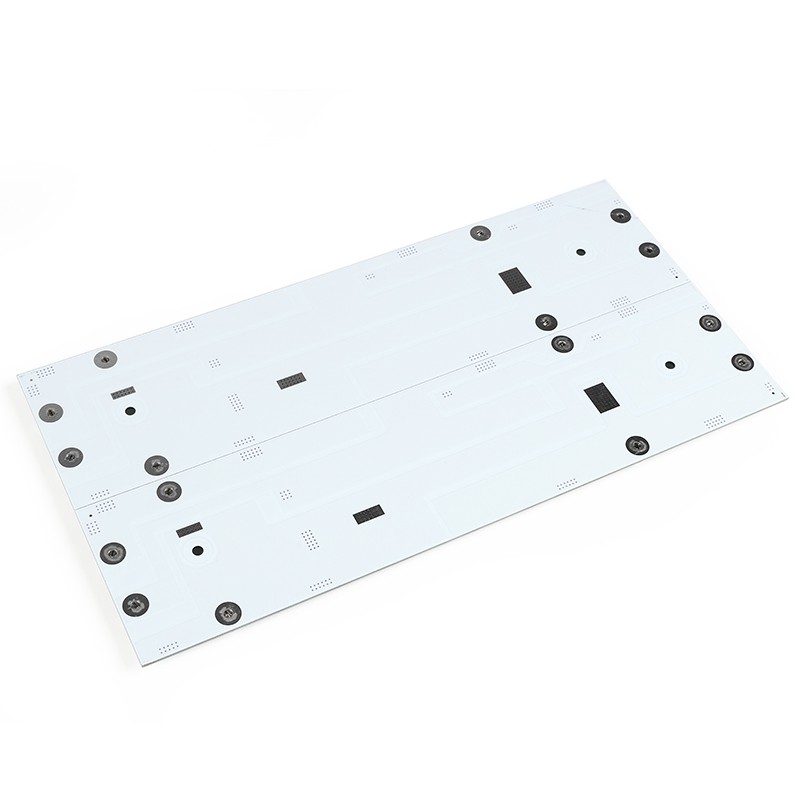

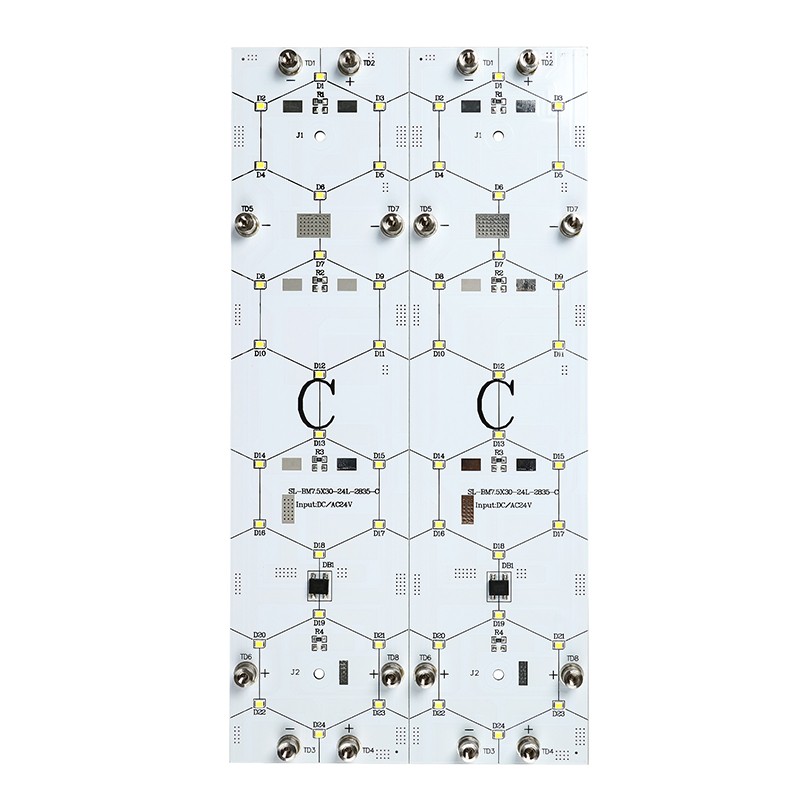

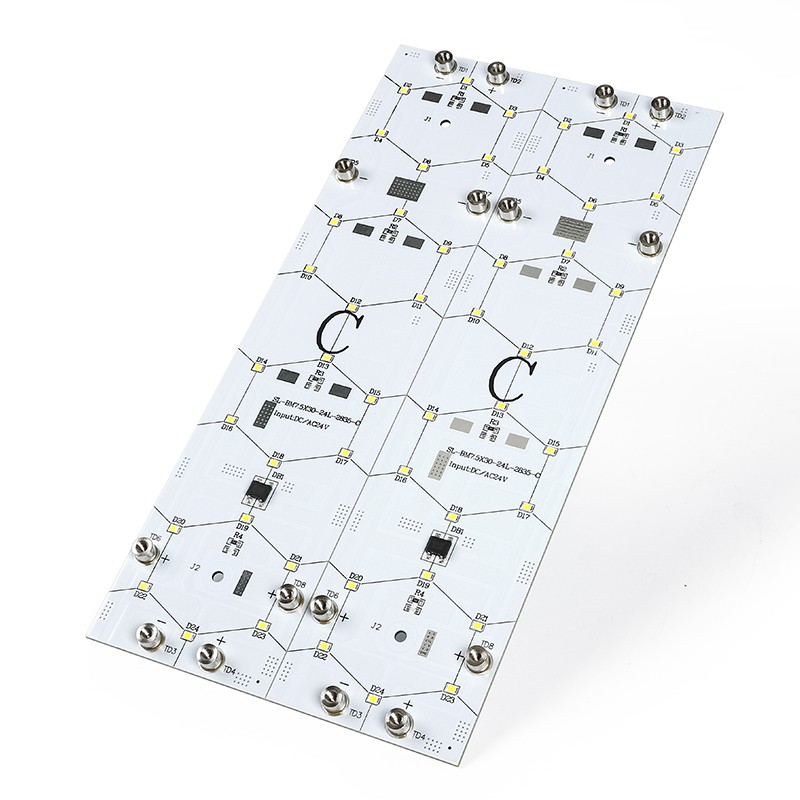

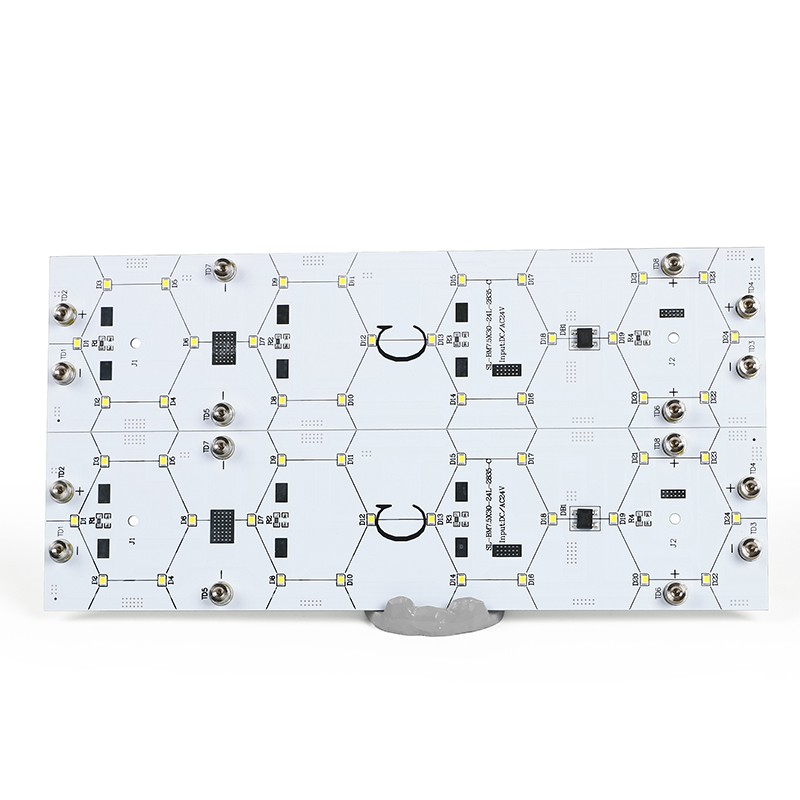

The 300mm dimension is labelled on the long edge, with a 75mm width and 10mm height listed in the parameter table. Front, back and terminal views show the component construction. The joint illustration uses metal bridges fixed by screws; specify the required joint parts and layout alongside the boards.
Prepare a repeatable production specification
Record the catalogue reference, white-light version, board positions and DC 24V supply arrangement in the project specification. Confirm sample approval, connection components and the final bill of materials before increasing the order quantity. This gives the quotation a clear basis for repeat orders of the same lightbox design.
Lightbox-manufacturer purchasing questions
How many LEDs are specified for this C020 listing?
The parameter image lists 24 SMD2835 LEDs per board. Use that quantity with the catalogue reference SL-BL007-C020 when comparing the component or requesting a sample.
What information helps select the board for a new lightbox?
Supply the internal box dimensions, depth, diffuser and graphic material, preferred colour temperature and quantity. The board layout and power-unit configuration should be checked against that construction.
Are different white-light versions available to order?
The listed range is 3000–8000K. Specify the required version in the enquiry so the sample and bulk quotation refer to the same white-light appearance.
Can I order boards and joint components in a sample kit?
Samples are available. Identify the board quantity and connection parts needed for the test layout; the sample configuration, cost and shipping are confirmed separately.
How are volume pricing, delivery and private label handled?
Wholesale orders start at 20 pcs, with lower unit prices for higher quantities. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; agree custom scope and schedule with the order, with transit time confirmed separately.
