Black exhibition spotlights with base-mounted control

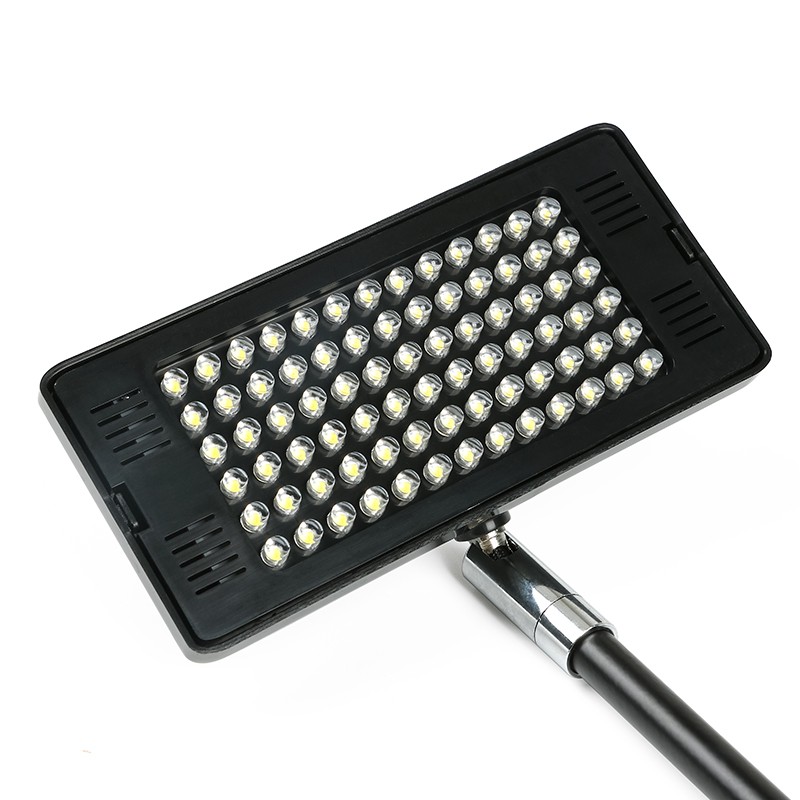

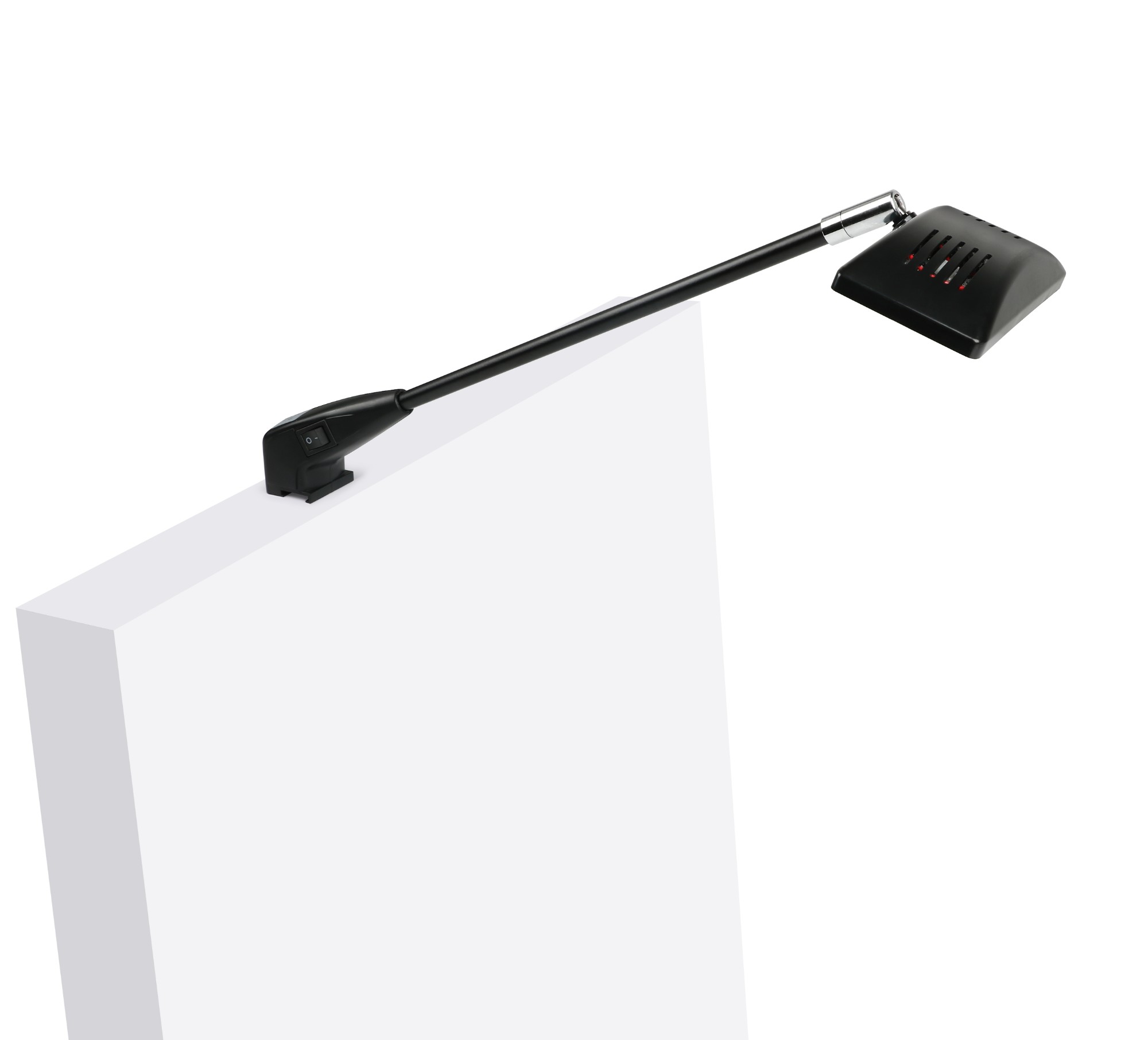

The SL-002-78L is a black 7W LED exhibition spotlight with 78 LEDs, specified 450 lm output and a 60° beam. Its 468 × 140 × 46 mm arm-light format includes an adjustable head, B-shape connection and a base-mounted on/off switch. The listed lamp input is DC 12V.
For graphic-wall projects, select the frame fitting and power kit with the lamp. Send the display profile, panel dimensions, preferred white-light version and quantity so the complete configuration can be quoted for sample testing or bulk supply.

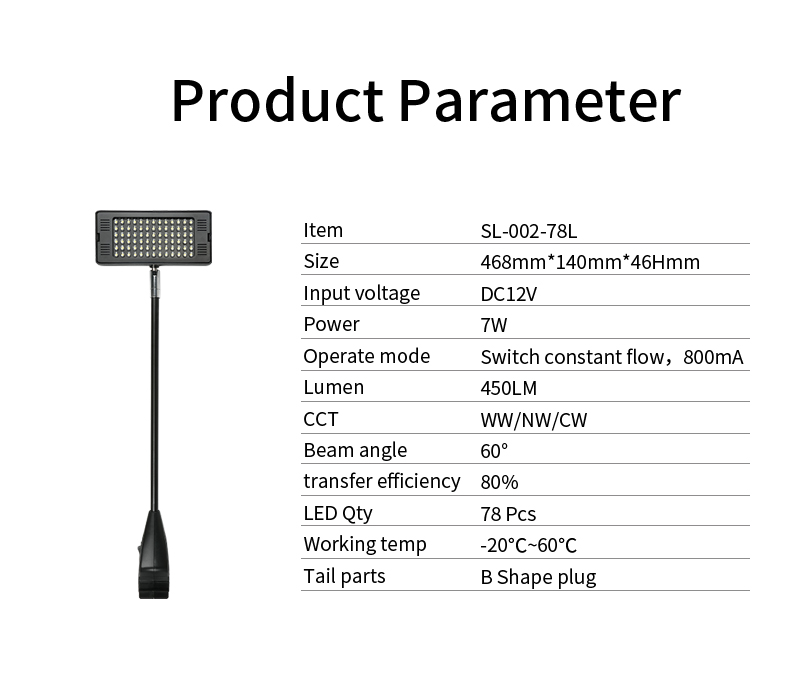

7W black spotlight technical data
| Specification | SL-002-78L |
|---|
| Model | SL-002-78L |
| Power | 7W |
| LED quantity | 78 |
| Specified light output | 450 lm |
| Beam angle | 60° |
| Lamp input | DC 12V |
| Operating current listed | 800 mA |
| Dimensions | 468 × 140 × 46 mm |
| White-light order versions | Warm white / Neutral white / Cool white |

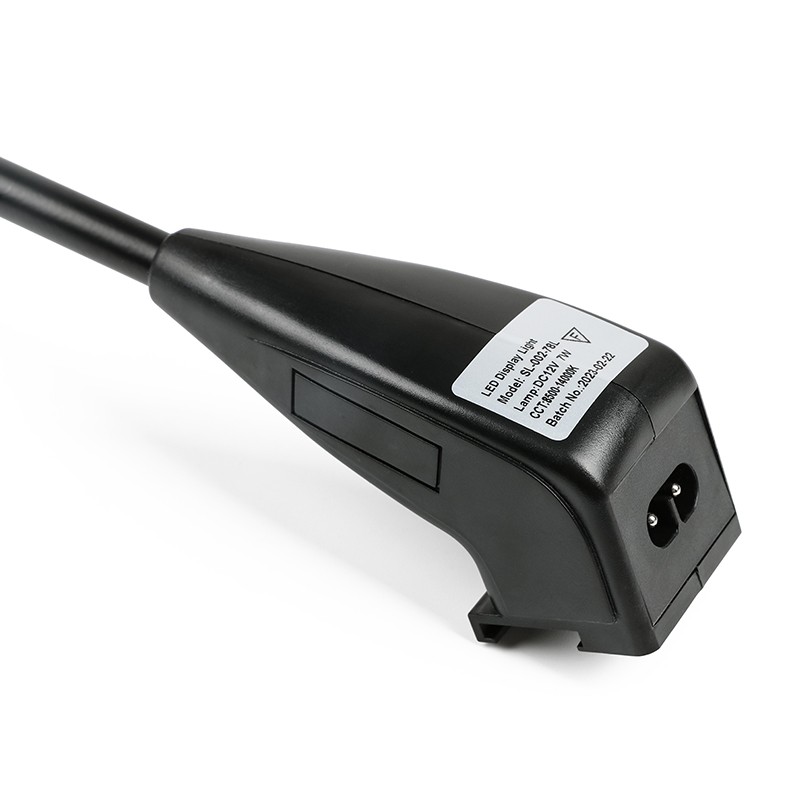

| Connection | B-shape plug |
| Control shown | Base-mounted on/off switch |
| Optional fittings | Forward/reverse slider; 0505/0509 aluminium clamp |
| Operating temperature | -20°C to +60°C |
Select the frame fitting and use the base switch

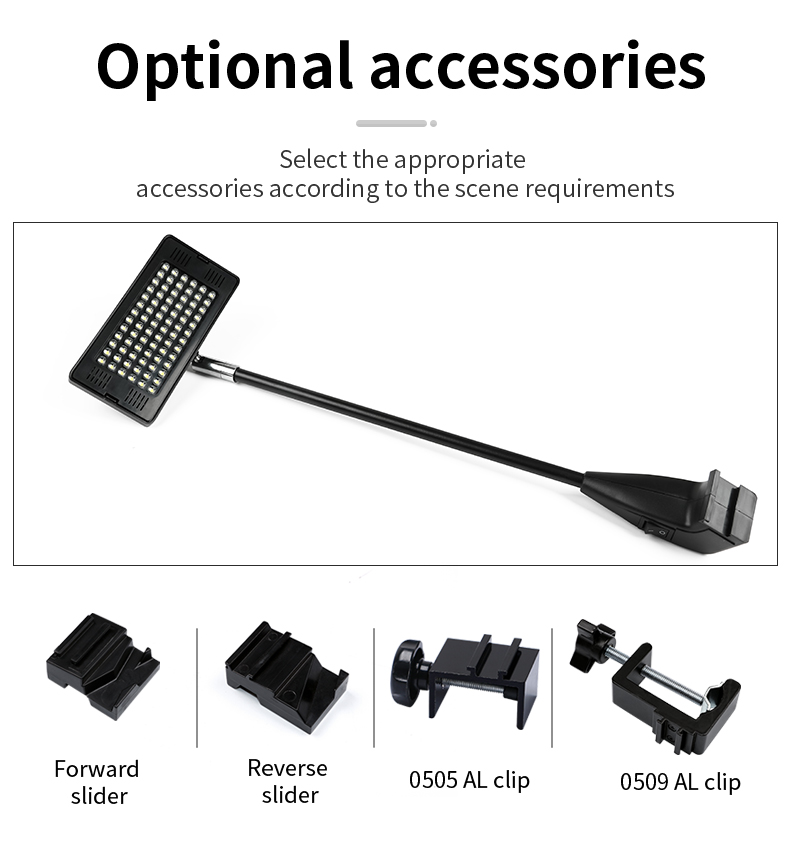

The accessory guide shows forward and reverse sliders and 0505 or 0509 aluminium clamps. Match the fixing to the frame profile and the mounting dimensions required by your stand.

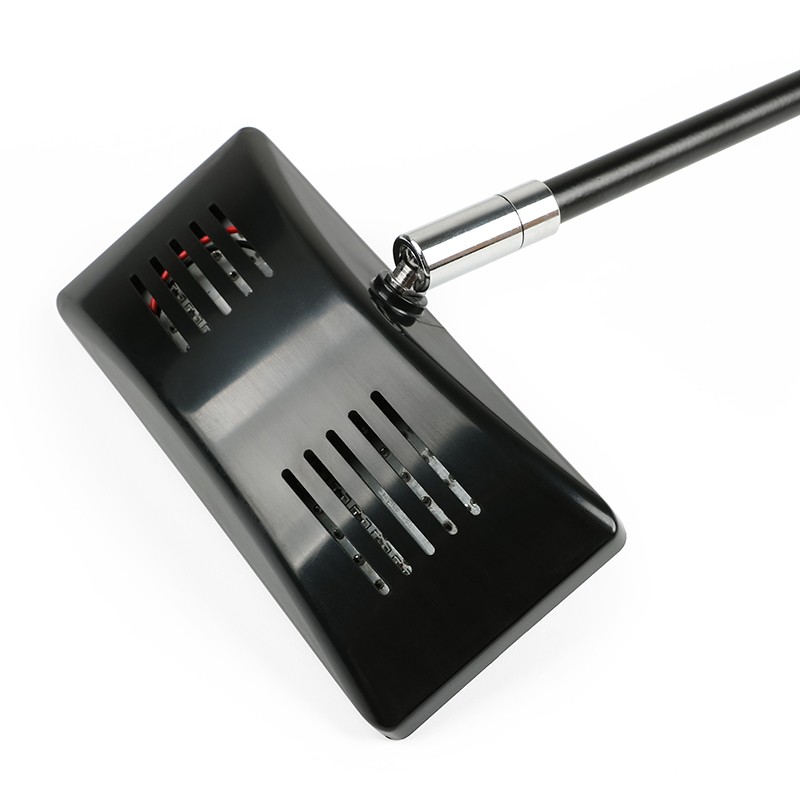

The pictured I/O switch provides on/off control at the base. Position the adjustable head towards the graphic face, and include access to the switch and connection in the installation layout.
Choose the white-light version for exhibit graphics

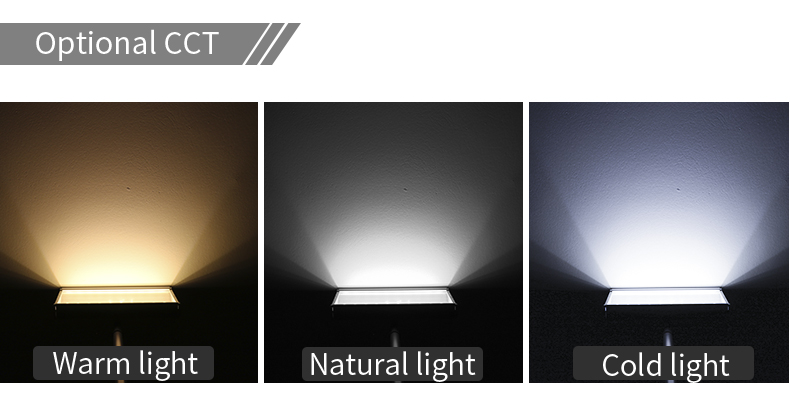

Warm, neutral and cool white appearances are available as order choices. Confirm the exact colour-temperature range for the required version with the sample quotation.

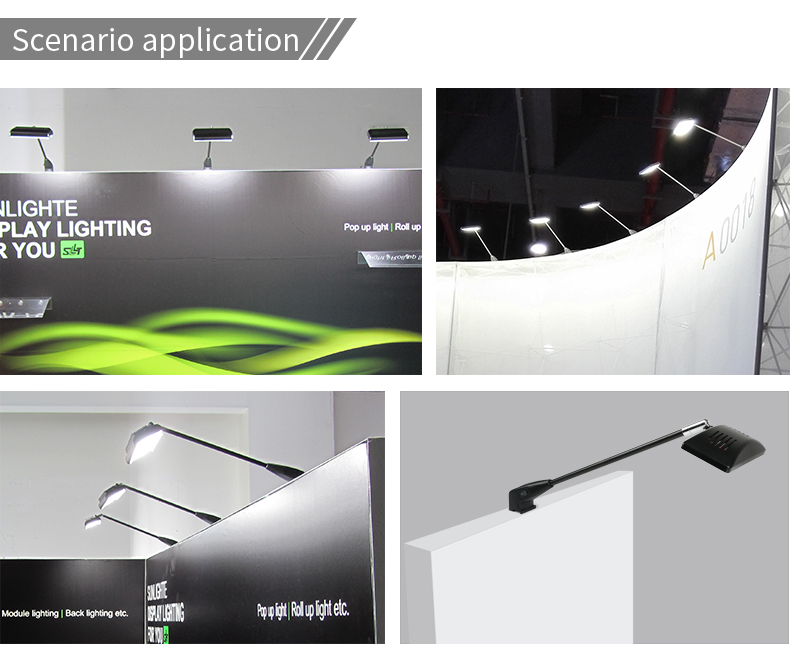

The examples show the light above display panels and along backwalls. Evaluate the 60° beam against the graphic size, mounting distance and ambient hall lighting before finalising quantity.
Confirm the DC kit and carton contents

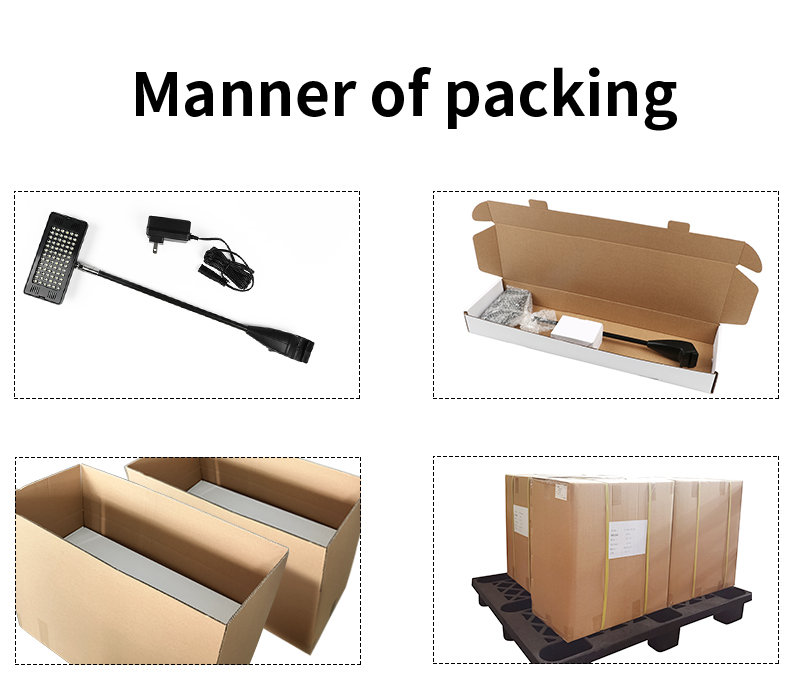

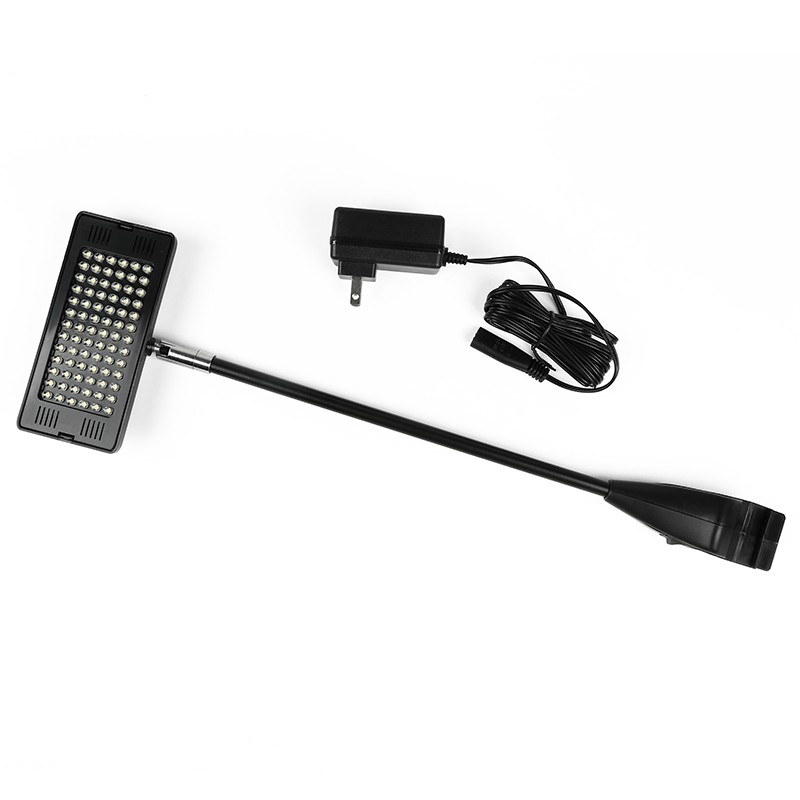

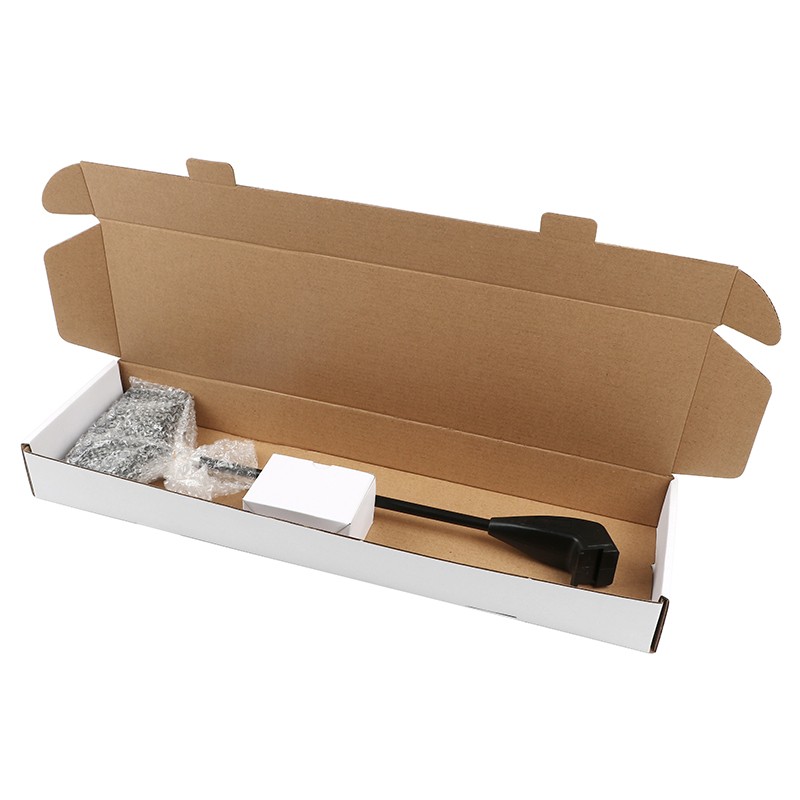

Specify the matching supply using the lamp's DC 12V rating, B-shape connection and listed 800 mA operating information. The packing illustration includes a separate power unit and leads.
Confirm the actual destination plug, components, lead lengths and fitting parts with the order. The illustrated individual and outer cartons provide a packing reference; carton quantities and branding are quoted for the batch.
Purchasing questions for switched display spotlights
Does the light have its own on/off control?

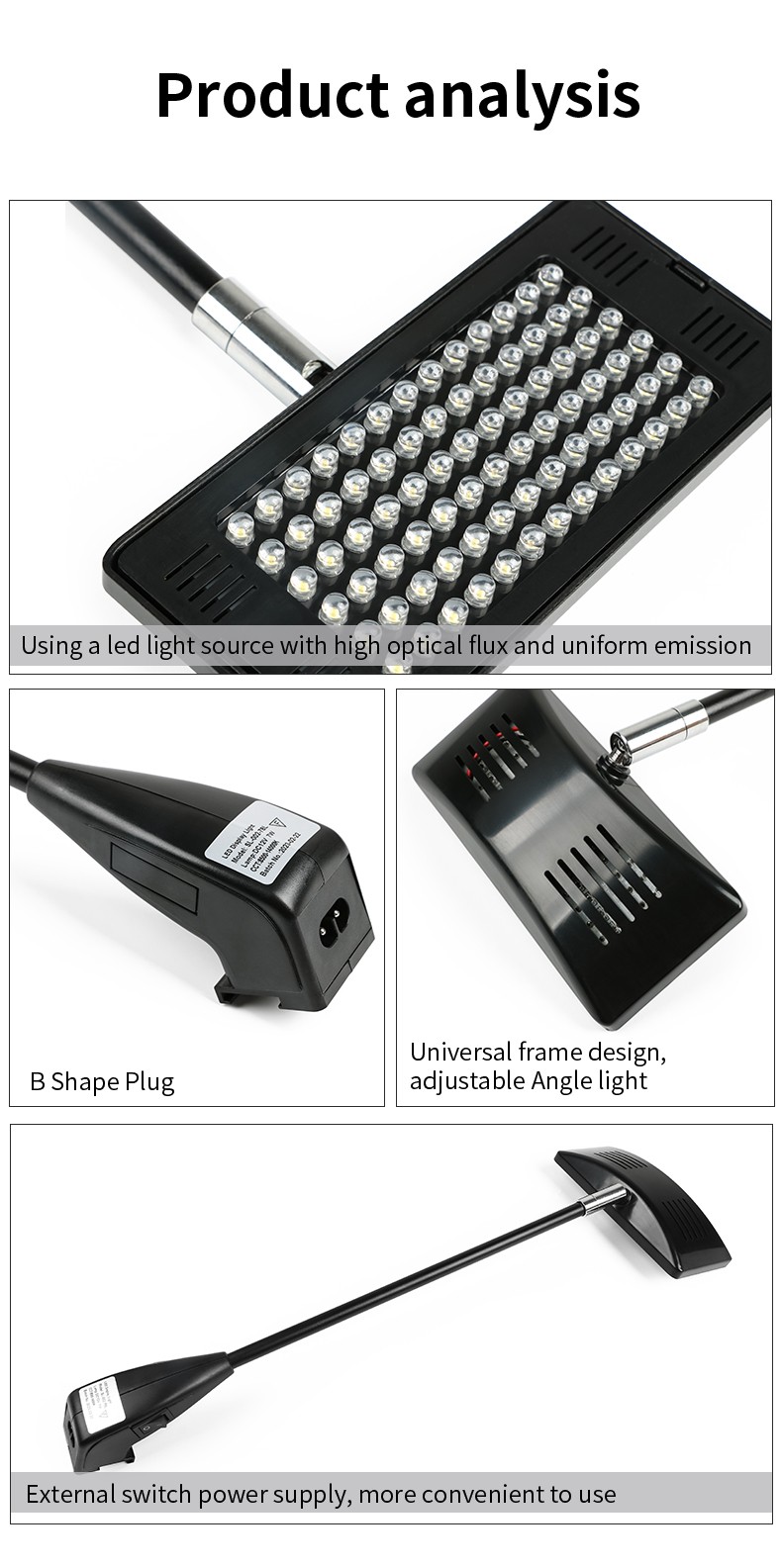

Yes. The product analysis picture shows an I/O rocker at the base. Include the required mounting and access position when specifying the kit.
What power configuration should I request?
Request the matching kit for DC 12V and the B-shape connection. Send existing power-unit and connector details if ordering replacement parts.
Can I order samples or an OEM batch?
Samples, OEM, ODM and private-label enquiries are supported. Wholesale supply starts from 20 pcs, and larger quantities receive lower unit prices; include the fitting, light version, power kit and destination.
Lead time and delivery configuration
Standard lead time is 12–18 days. Sample cost, shipping, custom schedules, transit and required model-specific documents are confirmed with the quotation.
