360mm LED sign lighting bars with mounting-part options
Specify a five-LED light source for an illuminated sign or advertising lightbox frame. SL-BL055-130-G measures 360 × 23 × 16mm and is listed at 13W ±10% with 850–950 lm output. Its aluminium plate carries individual 15 × 60° lenses and uses a 24V DC input.
For sign makers and display-component distributors, the ordering decisions include frame fixing, white-light appearance and connection parts. Share the enclosure drawing, mounting profile and planned bar quantity so the required hardware, wiring and sample configuration can be quoted together.
13W five-LED sign bar technical data

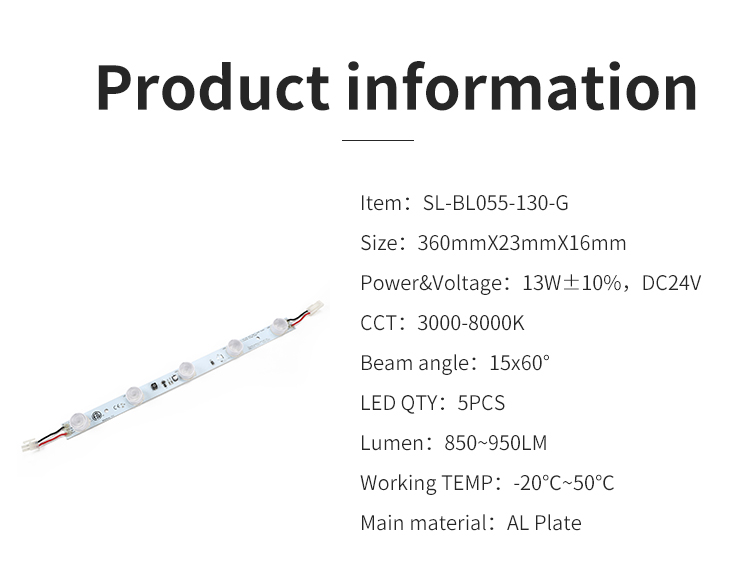

| Specification | SL-BL055-130-G |
|---|
| Model | SL-BL055-130-G |
| Dimensions | 360 × 23 × 16mm |
| Power | 13W ±10% |
| Input voltage | 24V DC |
| Specified luminous flux | 850–950 lm |
| LED quantity | 5 LEDs |
| Lens angle | 15 × 60° |
| CCT range listed | 3000–8000K; confirm the required order version |
| Main material | Aluminium plate |
| Operating temperature | −20 to +50°C |
Choose the fixing arrangement for the frame
Use the full 360 × 23 × 16mm envelope to check the usable enclosure space. The installation picture shows bars positioned inside a lightbox frame.

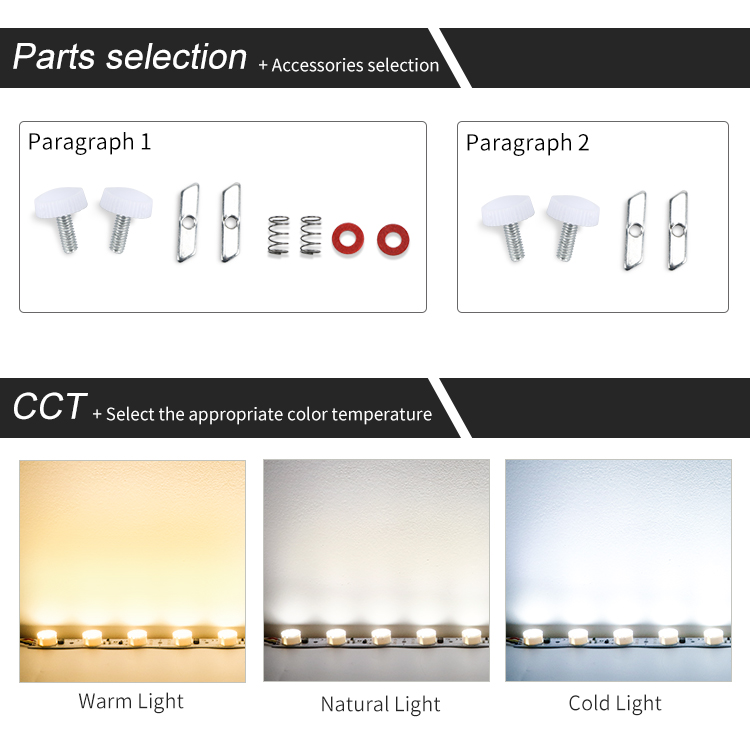

The accessory illustration presents two fixing sets with threaded knobs and metal fixing pieces; one set also shows springs and washers. Send the frame profile and fixing positions to confirm the appropriate hardware and the items supplied with the order.
Plan the 24V connections and lens direction

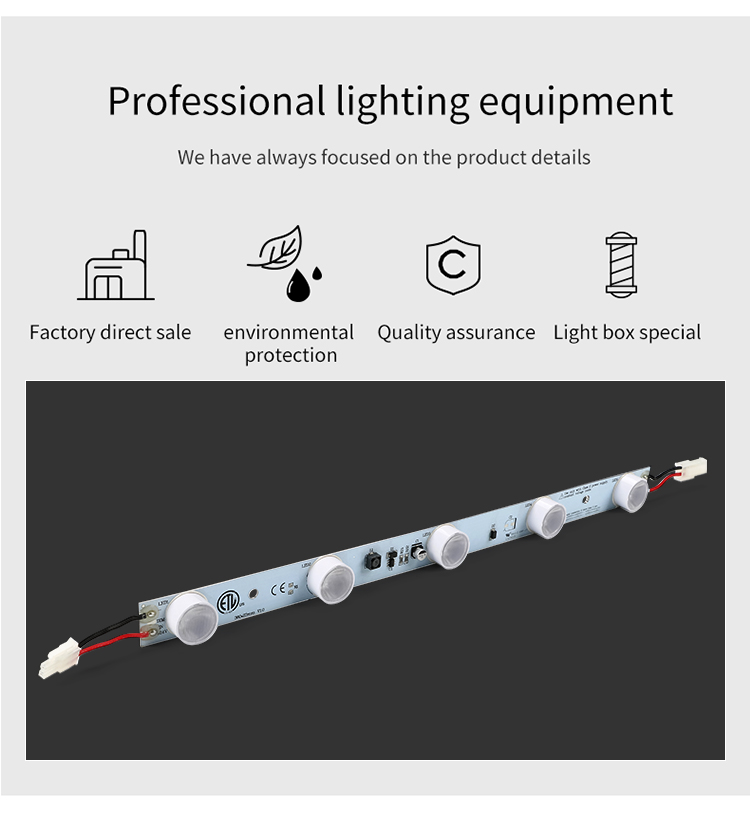

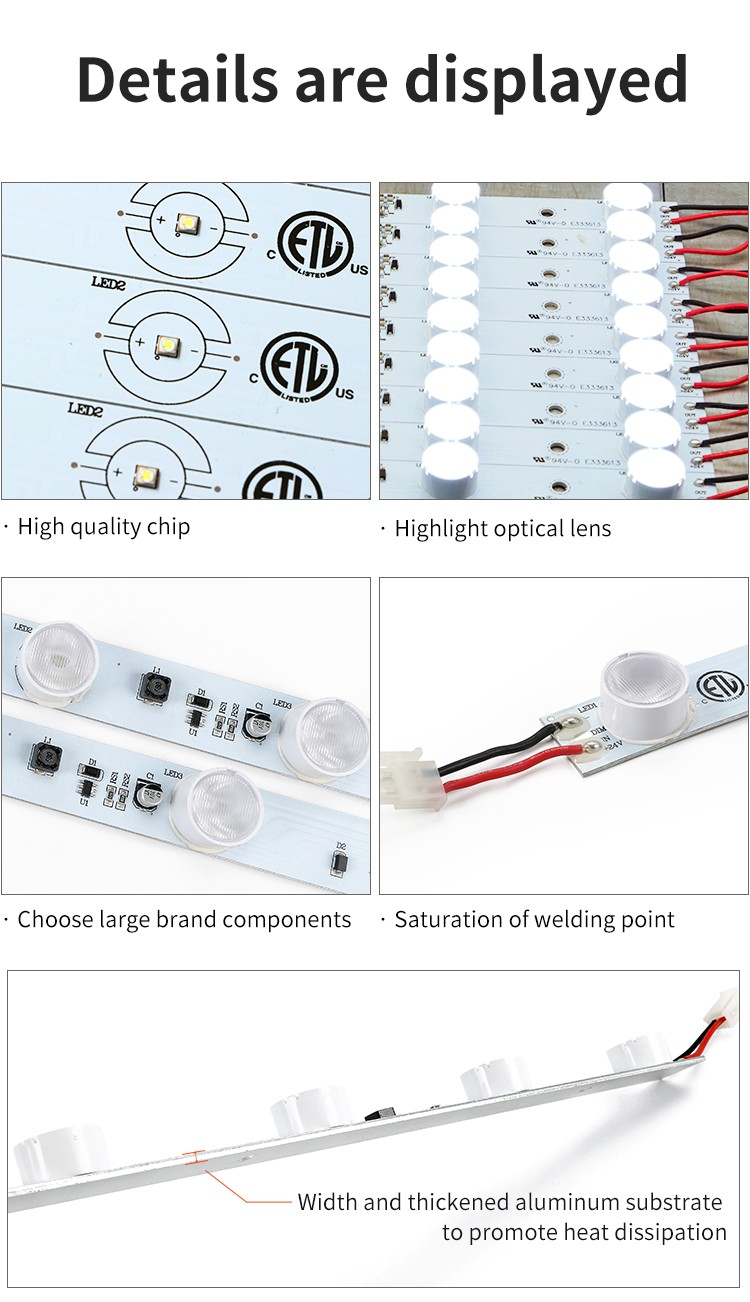

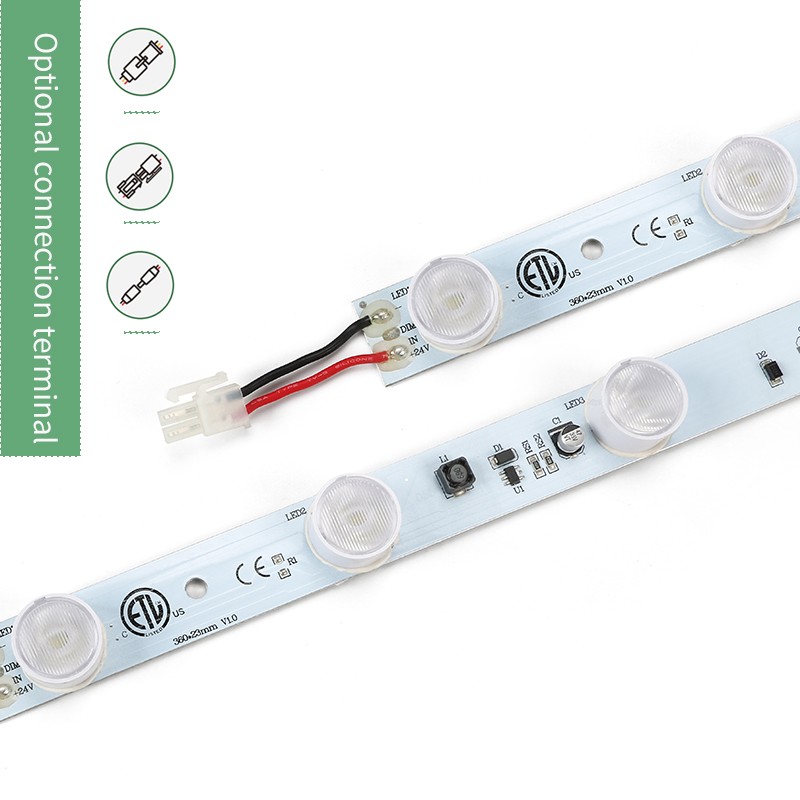

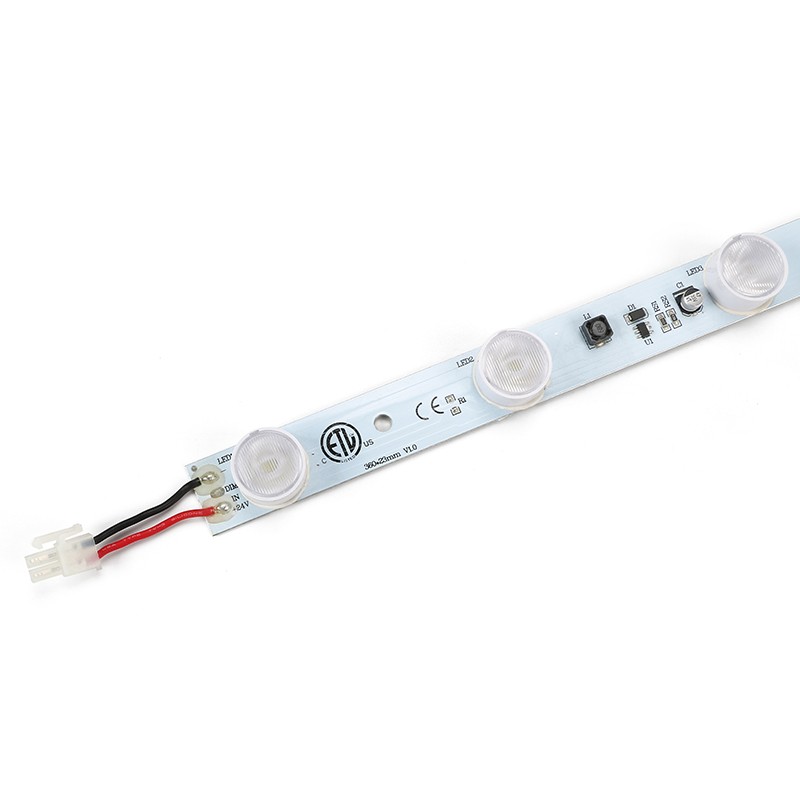

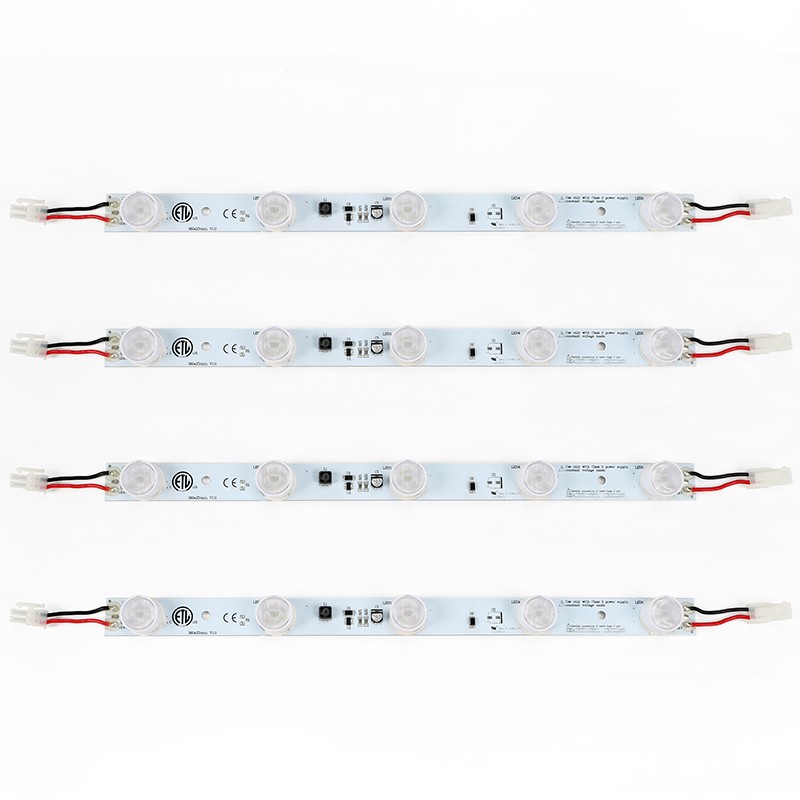

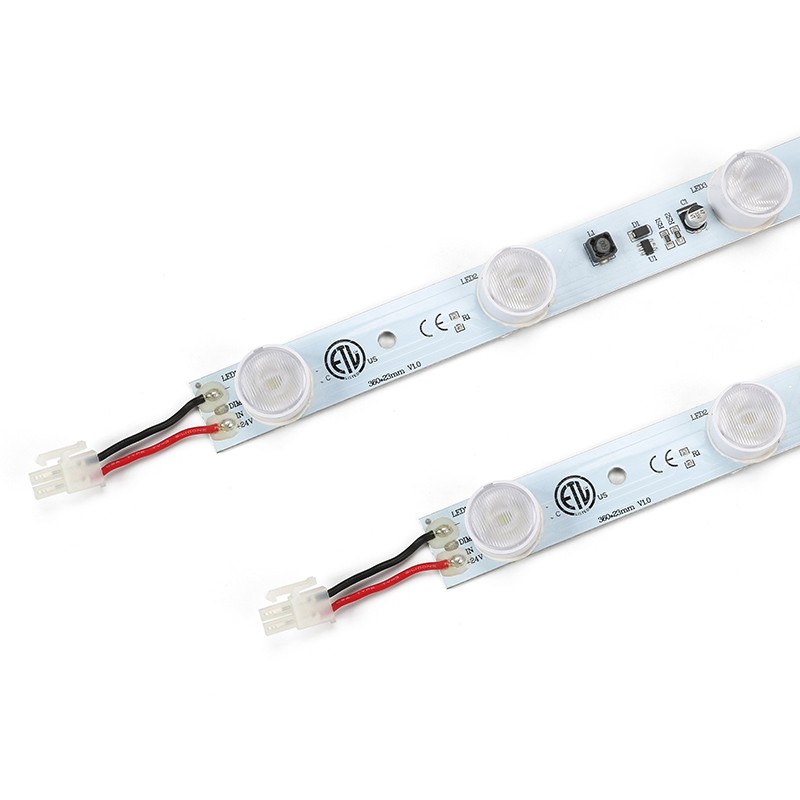

The construction close-up shows an aluminium plate, individual lenses and red-and-black leads with a white plug. Provide the number of bars, cable route and required connecting parts to confirm the electrical supply scope.

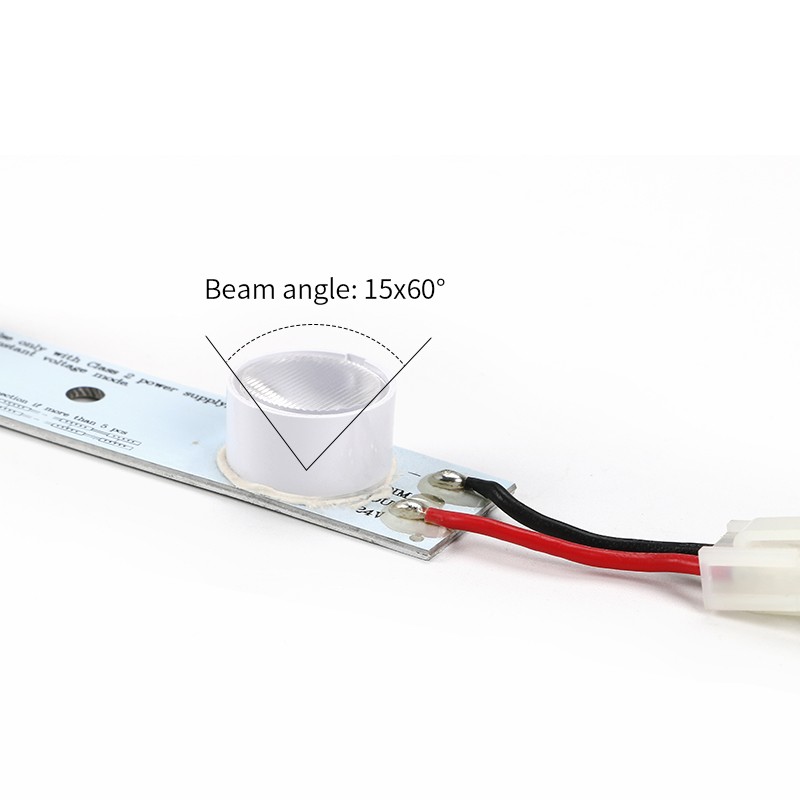

The source specification gives a 15 × 60° lens angle. Set out the proposed bar positions and lens orientation on the drawing, then evaluate a sample with the actual graphic or diffuser.
Select the white-light version for the display
The parameter range is 3000–8000K, and the source illustration shows warm, natural and cold-white appearances. State the required colour temperature and confirm the available sample and production version.

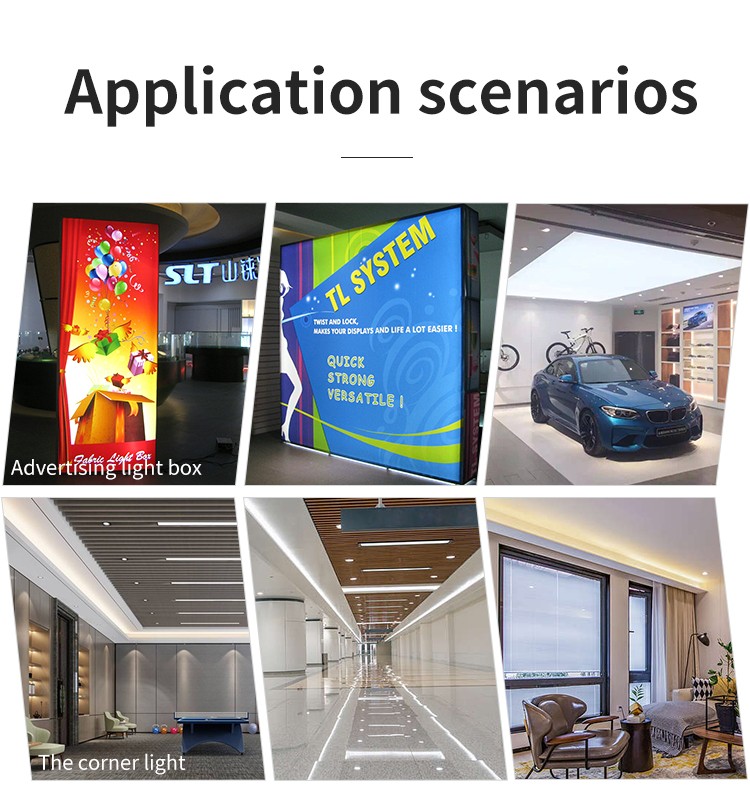

Original project photographs illustrate advertising lightboxes, exhibition displays and decorative lighting applications. Provide the actual enclosure and face-material details so the sample configuration can be aligned with the project.
Packing and bulk-order configuration
The packing picture shows individual white protective boxes inside outer cartons. Confirm the agreed bar quantity, included hardware and connecting parts, packing count and carton dimensions for the shipment.
Wholesale orders start from 20 pcs, with lower unit prices at larger quantities. Samples are available, with sample cost and shipping confirmed separately. Standard lead time is 12–18 days. OEM, ODM and private-label requirements are supported; custom schedules and transit time are confirmed with the quotation.
Questions for buying five-LED sign lighting bars
Which lens angle should the specification use?
Use 15 × 60° for SL-BL055-130-G, as listed on its original parameter image. The bar has five LEDs, a 24V DC input and 13W ±10% power.
How do I select the mounting-part set?
Send the frame profile, fixing positions and installation drawing. The original illustration shows two hardware arrangements; confirm the appropriate set and included parts with the quotation.
What white-light output is listed?
The luminous flux is specified as 850–950 lm, with a 3000–8000K CCT range. State the required colour temperature to confirm the sample and production version.
Can I request sample bars and a custom bulk order?
Samples are available with cost and shipping confirmed separately. Production orders start from 20 pcs, with volume pricing, a standard lead time of 12–18 days and OEM, ODM or private-label enquiries supported.
