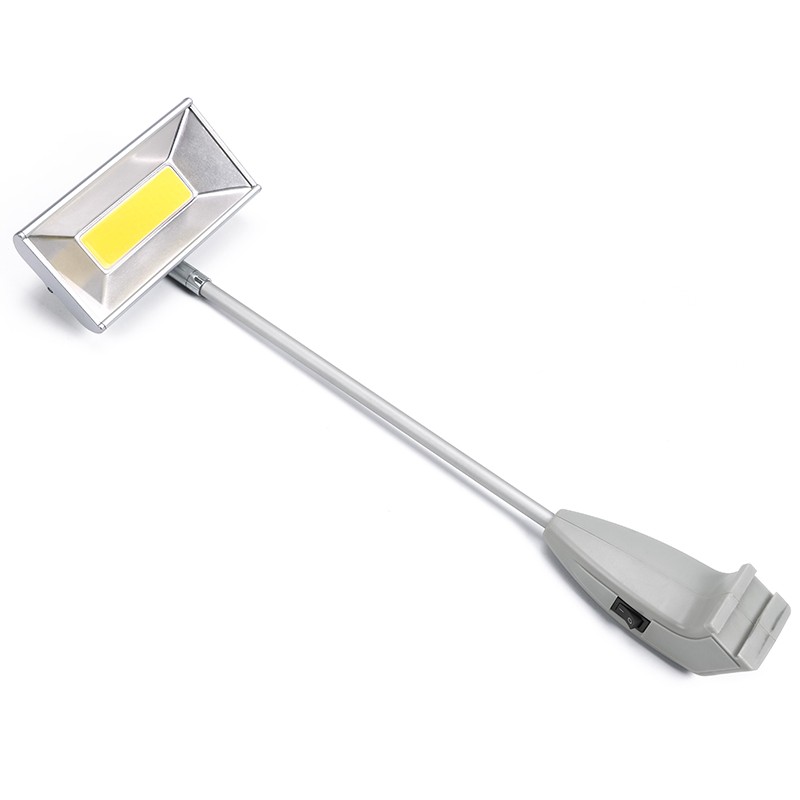

20W COB lighting for exhibition graphics
The SL-2067-COB200 is a COB display arm light for exhibition panels, trade show graphics and display walls. The specification lists 20W power, 1800 lm output ±10% and a 120° beam. An adjustable head lets you aim the light at the graphic, while the base-mounted switch provides on/off control.
For stand builders, display distributors and project buyers, the key choices are the frame mounting, white-light colour and power connection. This model provides a 20W COB option for front lighting exhibition graphics; share your panel dimensions and fitting requirements so the quotation can identify the correct configuration.
Adjustable head and local on/off control

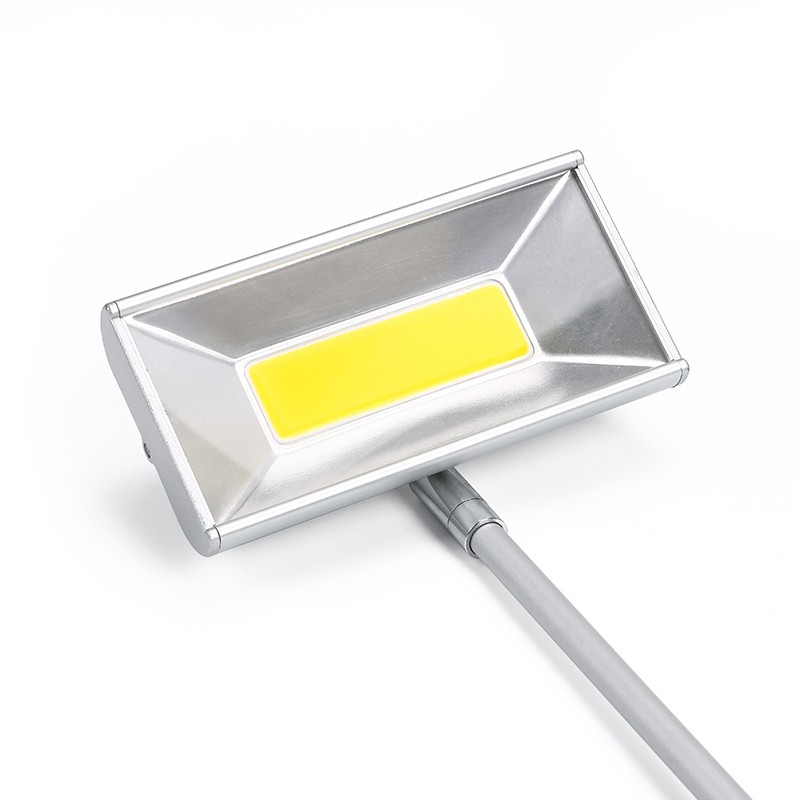

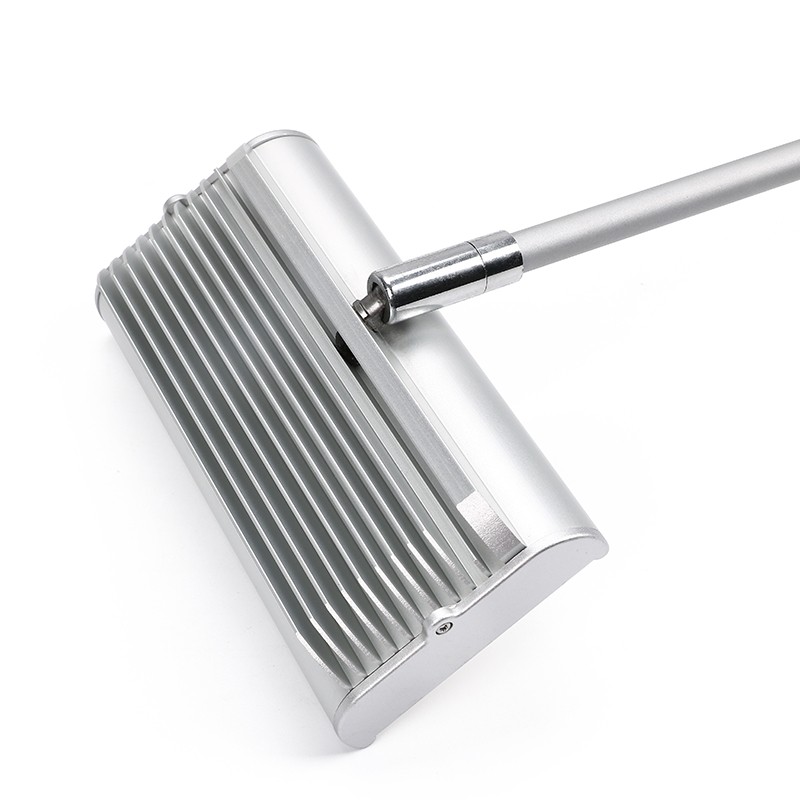

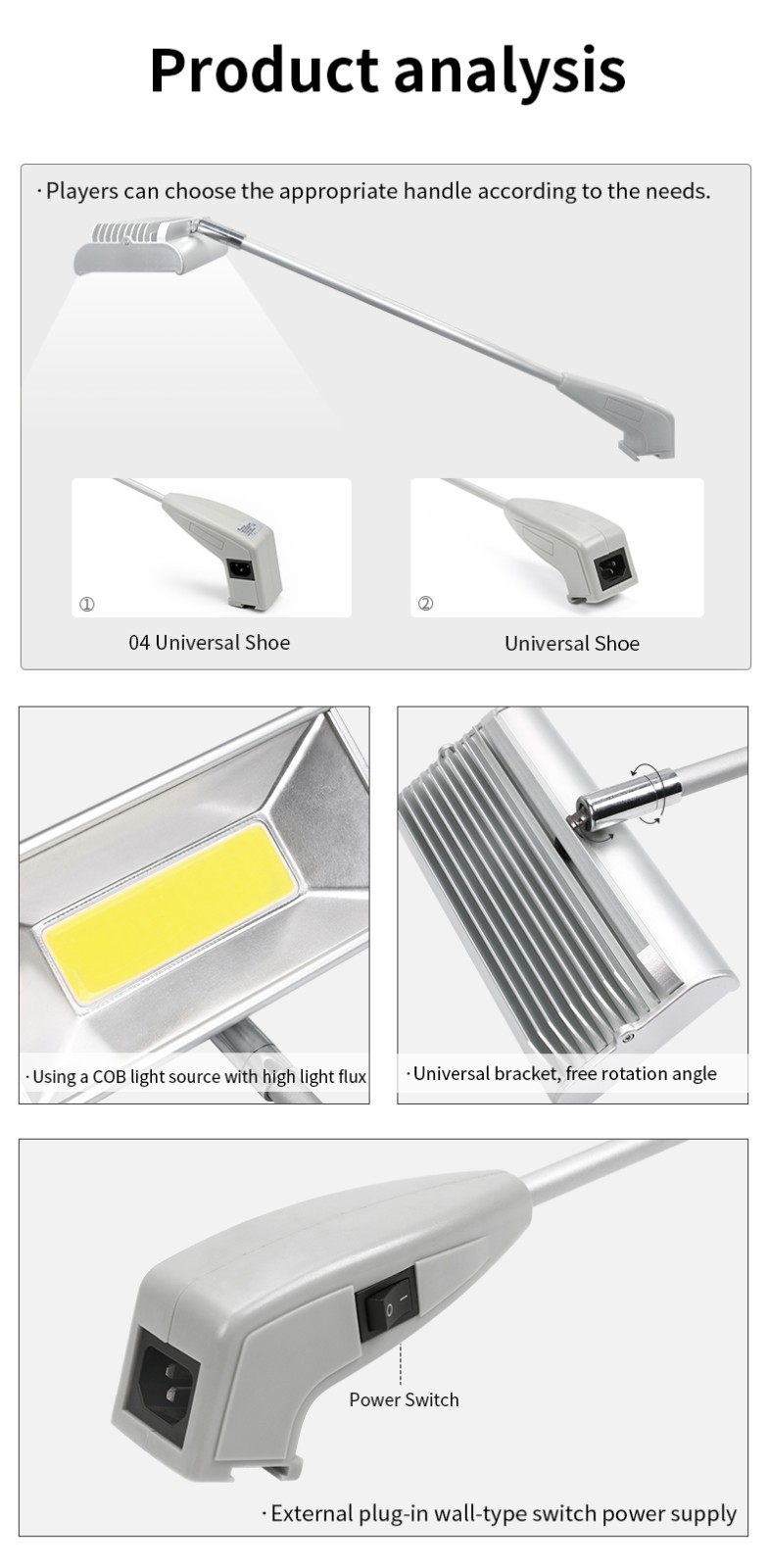

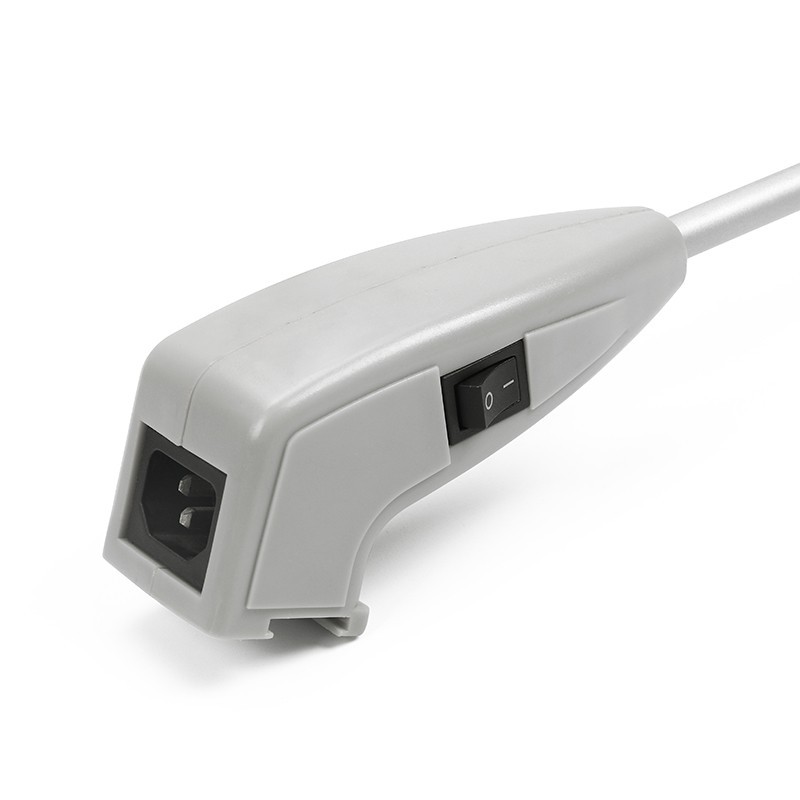

Position the lamp above the panel and adjust the head toward the display face. The construction image shows a COB light source, a finned rear housing and a power switch on the base. The listed 120° figure describes the beam angle; it does not specify the head's mechanical rotation range.
The power arrangement illustration includes an external plug-in supply. Confirm the supply, regional mains lead, 3-pin connections and any linking leads with the order. The quotation should identify the complete electrical set.

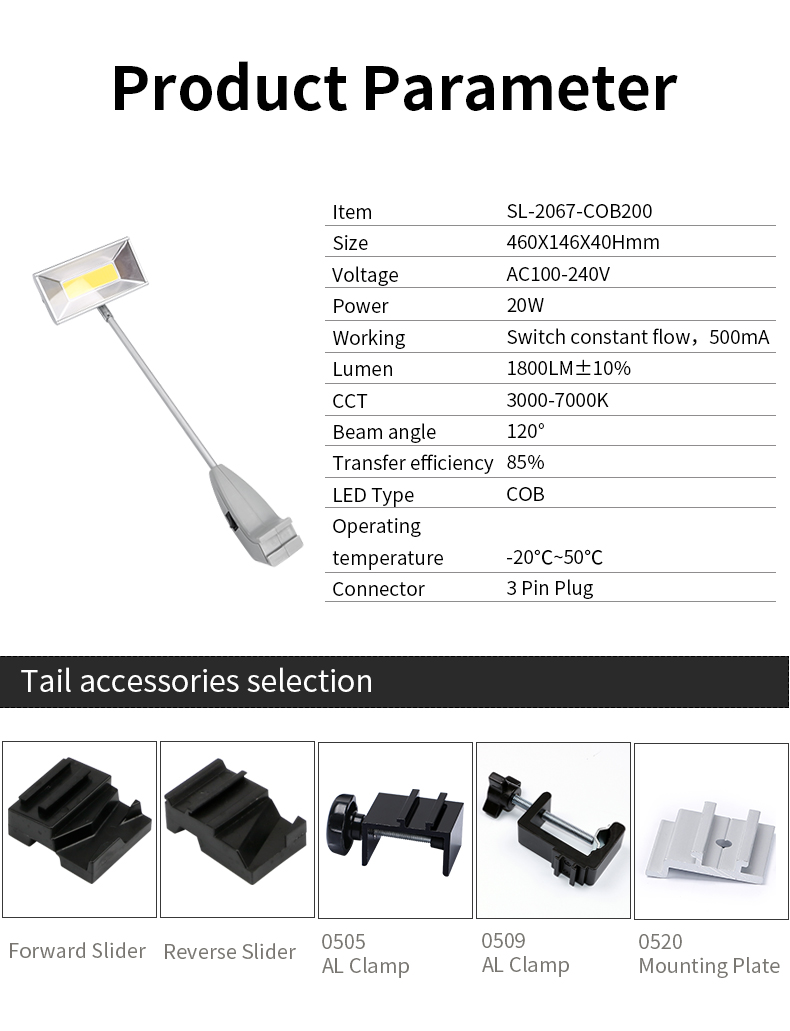

Technical specifications
| Specification | SL-2067-COB200 |
|---|
| Model | SL-2067-COB200 |
| Power | 20W |
| Luminous flux | 1800 lm ±10% |
| Beam angle | 120° |
| LED light source | COB |
| Dimensions | 460 × 146 × 40 mm |
| Input voltage listed | AC 100–240V |
| Constant-current operating value | 500 mA |
| Colour temperature range | 3000–7000K; specify the required order version |
| Working temperature | −20°C to 50°C |

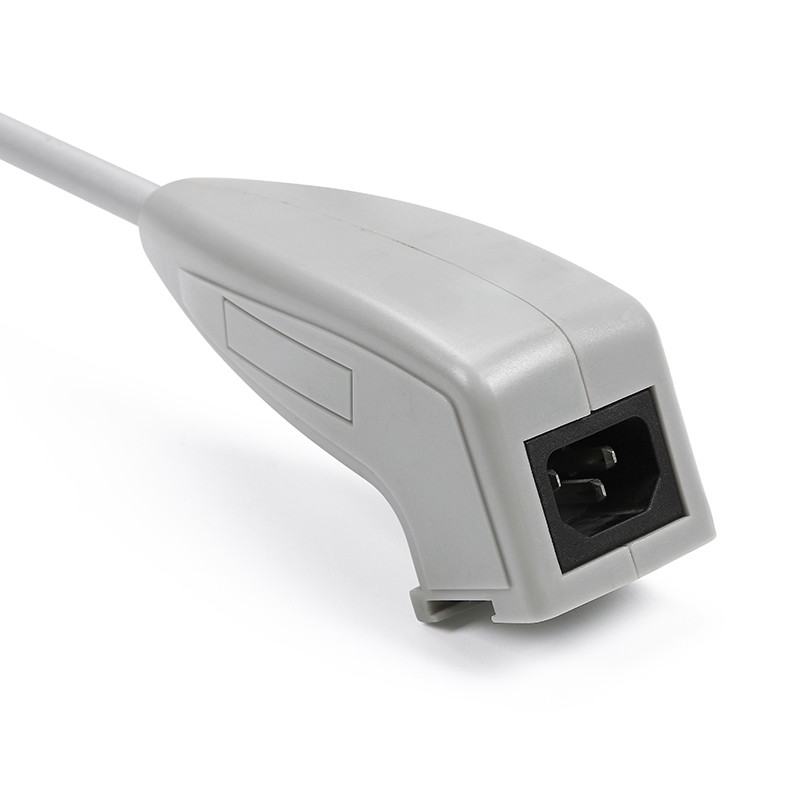

| Connector listed | 3-pin plug |
| Control | Base-mounted on/off switch; adjustable head |
| Mounting options illustrated | Forward/reverse sliders; 0505 AL clamp, 0509 AL clamp and 0520 mounting plate |
Exhibition panel and graphic-wall applications

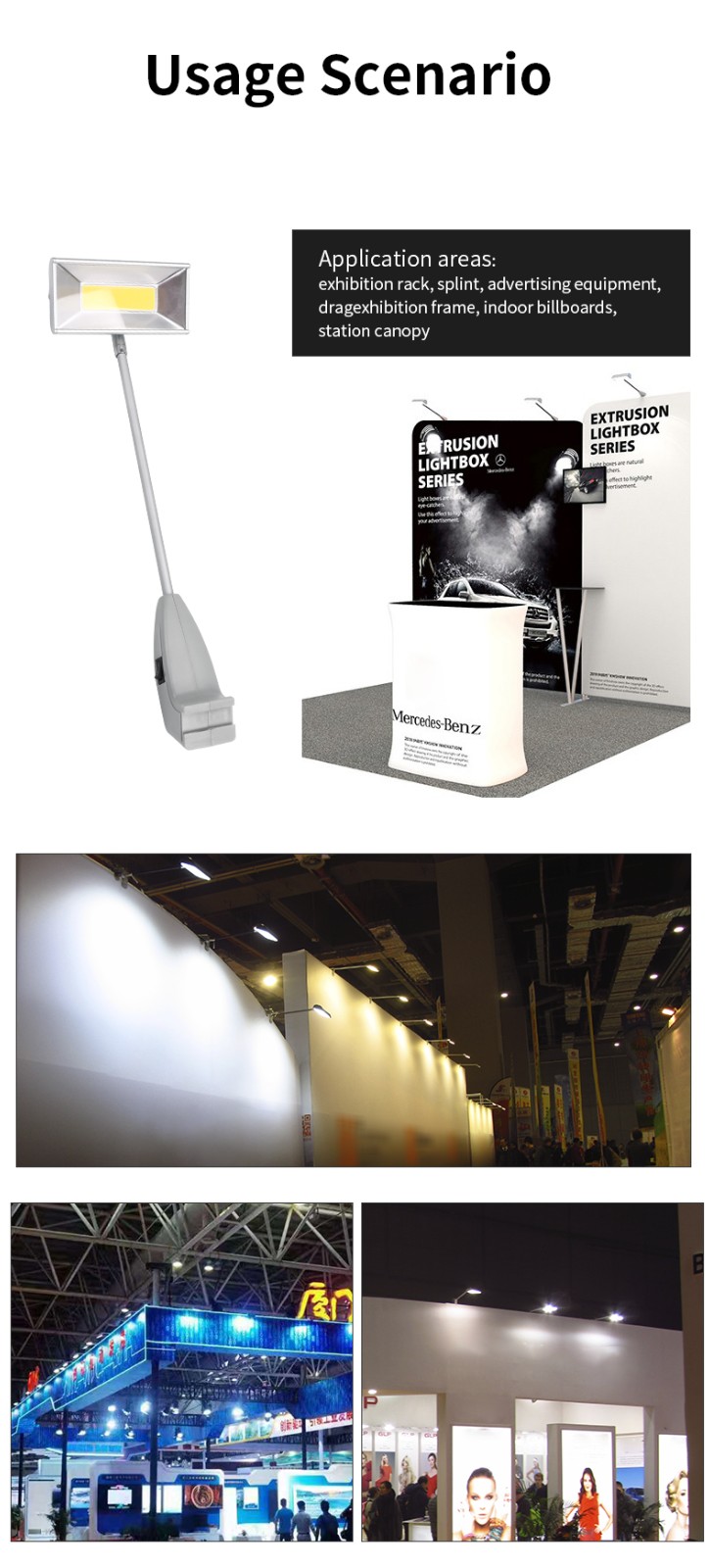

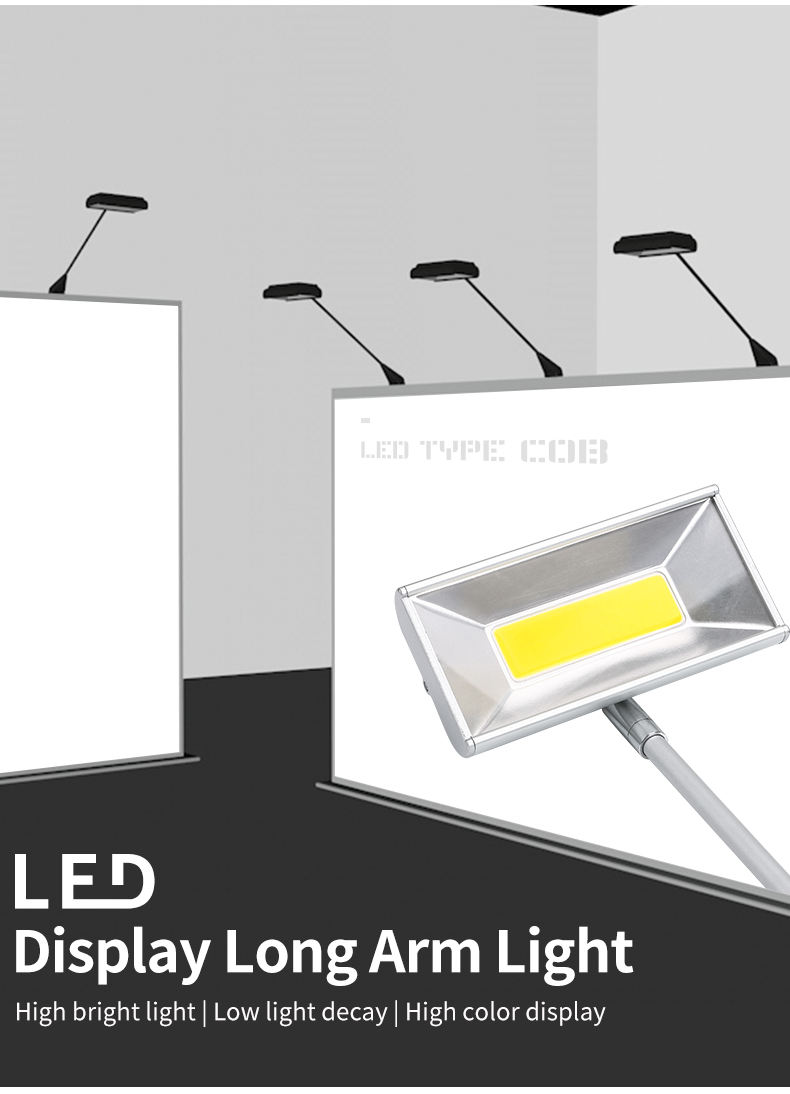

The application images show arm lights positioned above graphic panels and display structures. When planning trade show booth lighting, provide the panel width and height, arm position and expected viewing distance. A sample on your actual graphic helps assess the light distribution and preferred white-light colour.
White-light choices, mounting and packing

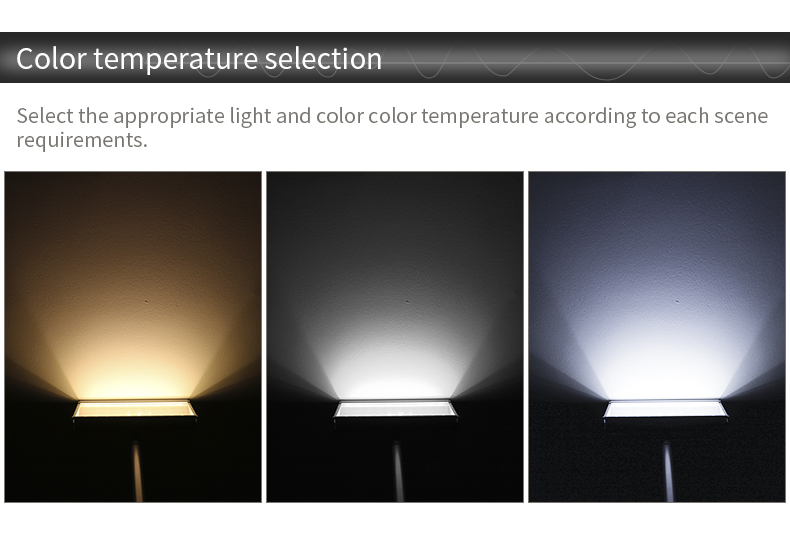

The specification lists a 3000–7000K colour-temperature range and the images illustrate warm, neutral and cool white appearances. Choose the required CCT version for the order; a colour-temperature switching function is not documented.

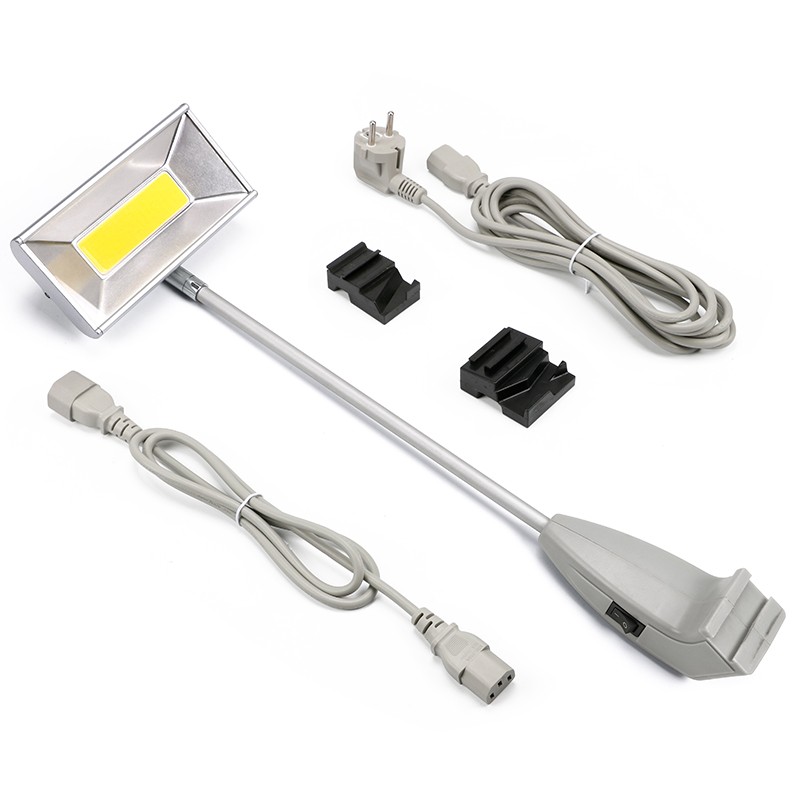

Available mounting references include forward and reverse sliders, 0505 AL and 0509 AL clamps, and a 0520 mounting plate. Confirm the exhibition frame profile and fixing dimensions before selecting a fitting. Packing photographs are a reference; request an itemised set showing the lamp, supply, leads and selected mounting components.
COB display light selection questions
Does the base switch adjust brightness or colour temperature?
The images identify the base control as a power switch for on/off operation. They do not document dimming or a CCT selection function. Specify the required white-light version when ordering.
How does the 20W COB lamp compare with the 45W model?
This model lists 1800 lm ±10% and a 120° beam. The separate 45W COB exhibition spotlight lists 5000 lm and a 90° beam. Compare the light output, physical dimensions and mounting options against the display layout before choosing.
Which clamp should I order for my exhibition frame?
The listed options are 0505 AL, 0509 AL and the 0520 mounting plate, together with slider options. Send the light model and frame-profile dimensions or photographs so the fitting can be matched.
Can I evaluate a sample before ordering display lights in bulk?
Samples are available. Include model SL-2067-COB200, preferred CCT, required mounting and destination country to confirm the sample set, cost and shipping.
Wholesale supply for display projects
Minimum order quantity is 20 pcs, with lower unit prices for larger orders. Standard lead time is 12–18 days; the schedule for customised configurations and shipping time is confirmed separately. OEM, ODM and private-label requirements can be included in the quotation.
Send the model, target quantity, required CCT, panel dimensions, frame profile, supply and lead requirements, destination market and any branding details. This information allows the quote to specify a complete, matching display-light configuration.
