Linkable 18W arm lighting with selectable frame fittings
The SL-2081-12-N24L is an 18W linkable display arm light with three-pin input and output connections, a 60° beam and specified 1800 lm output. The technical sheet lists ±10% tolerances for power and light output, AC 100–240V input and dimensions of 515.5 × 137.5 × 56.9 mm.
Select the fixing and connection-lead layout together when ordering lights for a display wall. Forward and reverse sliders, two aluminium clamps and a mounting plate are pictured as options. Provide the frame profile, lamp count, spacing and destination mains plug for a quotation matched to the installation.

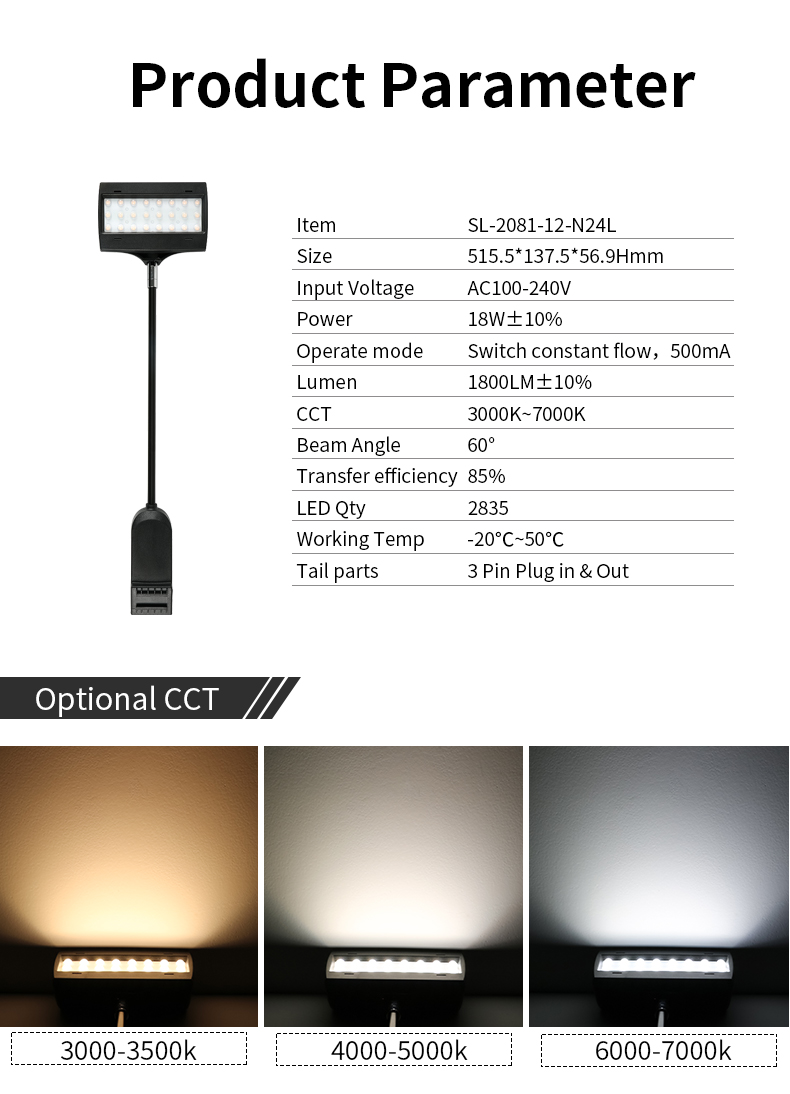

18W linkable arm-light technical data
| Specification | SL-2081-12-N24L |
|---|
| Model | SL-2081-12-N24L |
| Power | 18W ±10% |
| Light output | 1800 lm ±10% |
| Input voltage | AC 100–240V |
| Beam angle | 60° |
| Dimensions | 515.5 × 137.5 × 56.9 mm |
| White-light order ranges | 3000–3500K / 4000–5000K / 6000–7000K |
| Connections | Three-pin input and output |
| Optional frame fittings | Forward slider / reverse slider / 0505 or 0509 aluminium clamp / 0520 mounting plate |
| Working-temperature range | -20°C to +50°C |
Match slider, clamp or plate to the frame

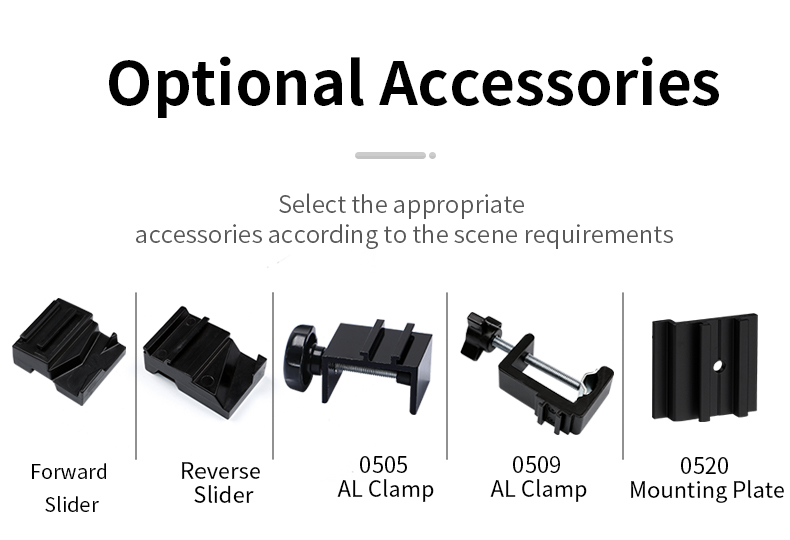

The fitting illustration shows forward and reverse sliders, 0505 and 0509 aluminium clamps and a 0520 mounting plate. Choose against the frame section and available fixing space. Share the frame drawing and mounting position so the fit can be checked before a bulk order.
Configure three-pin connections and lamp spacing

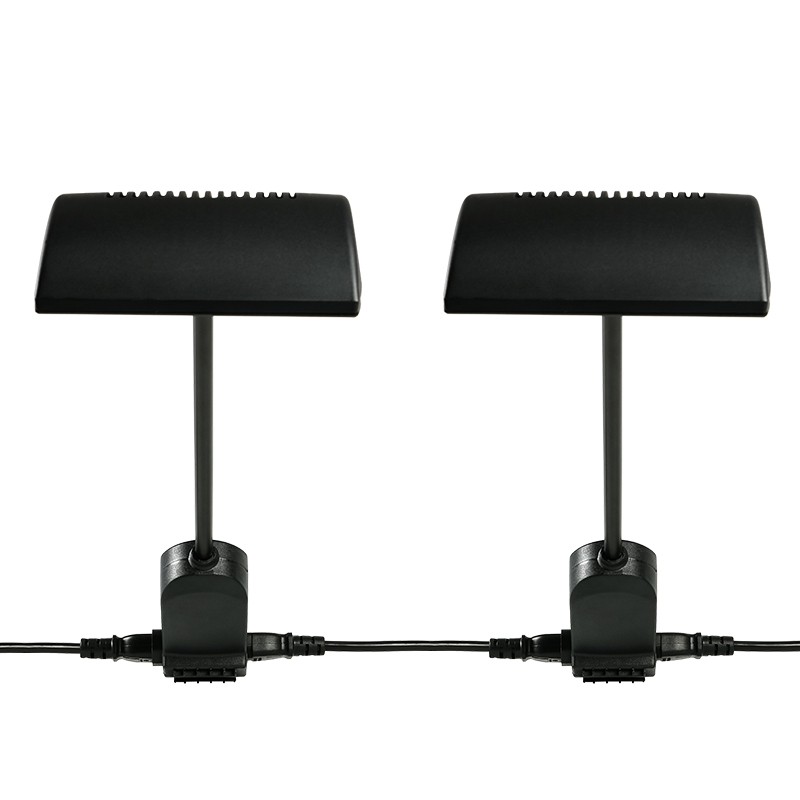

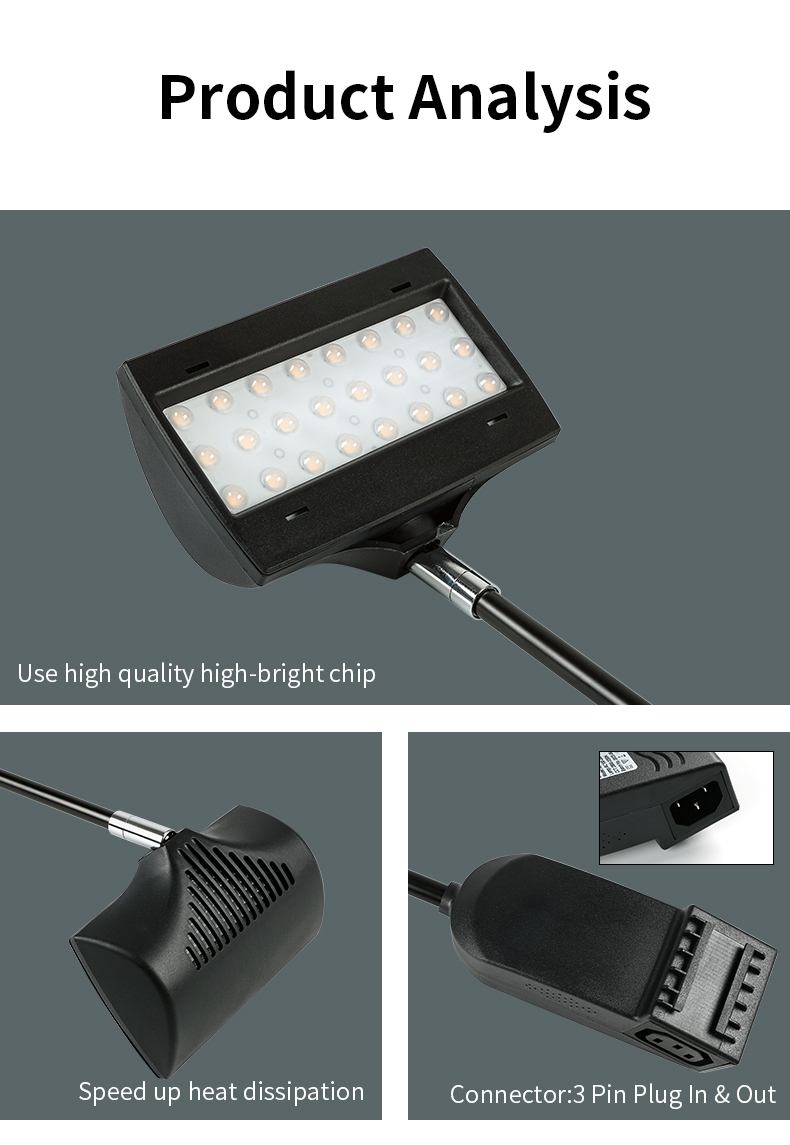

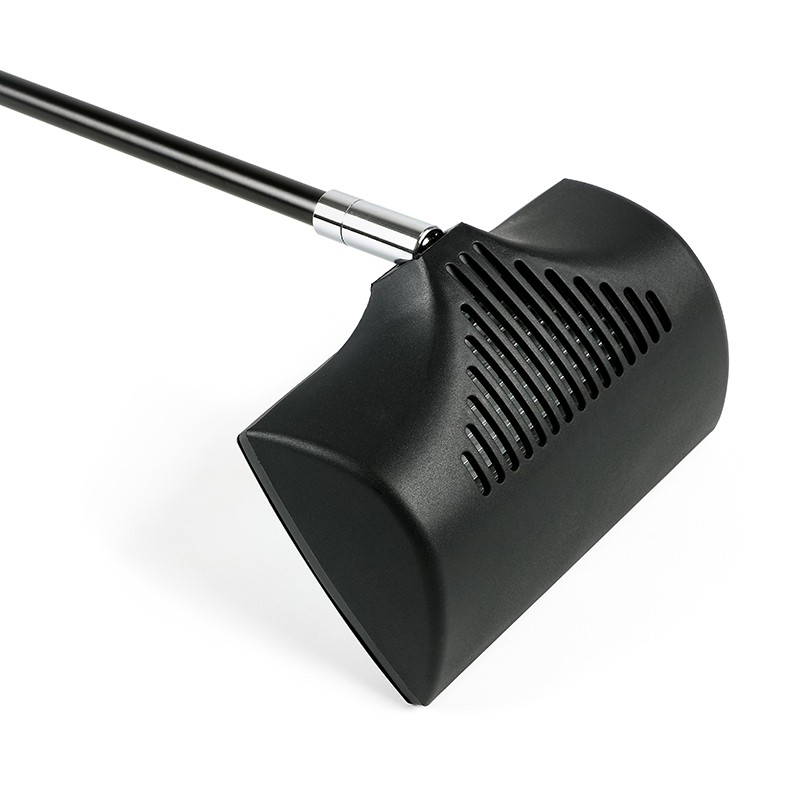

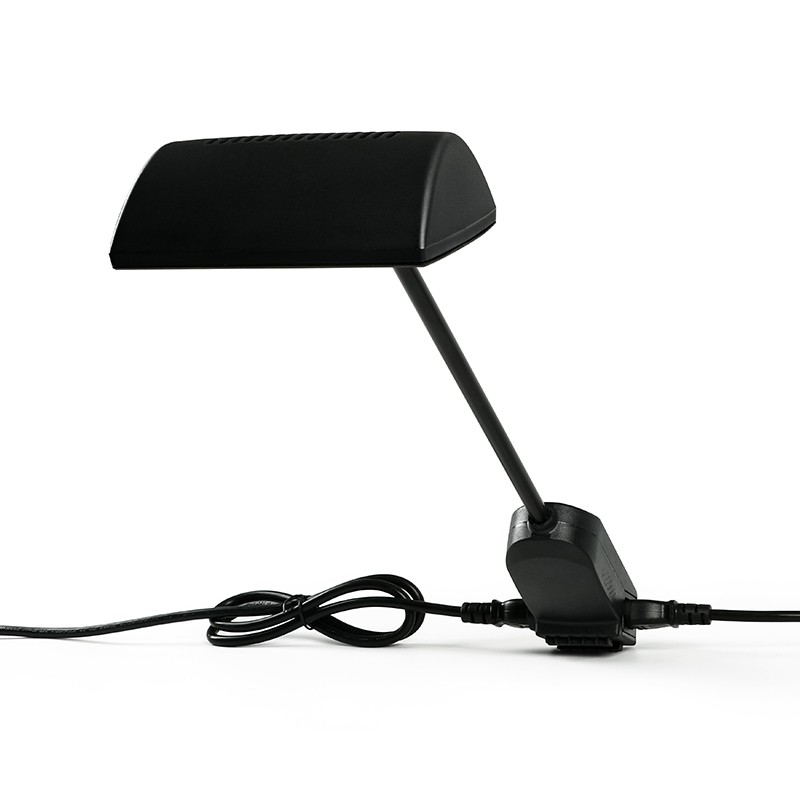

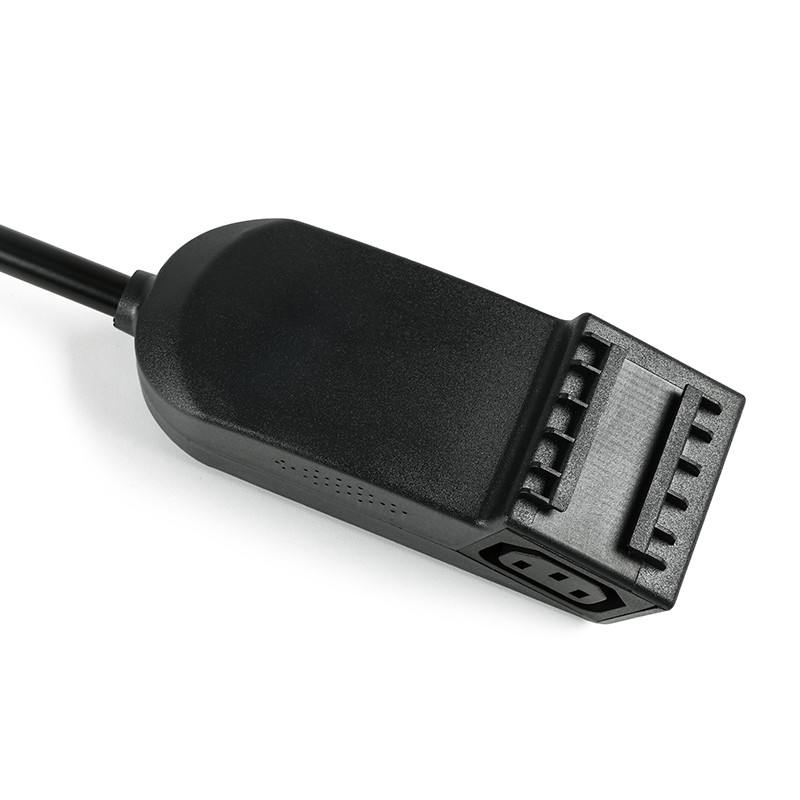

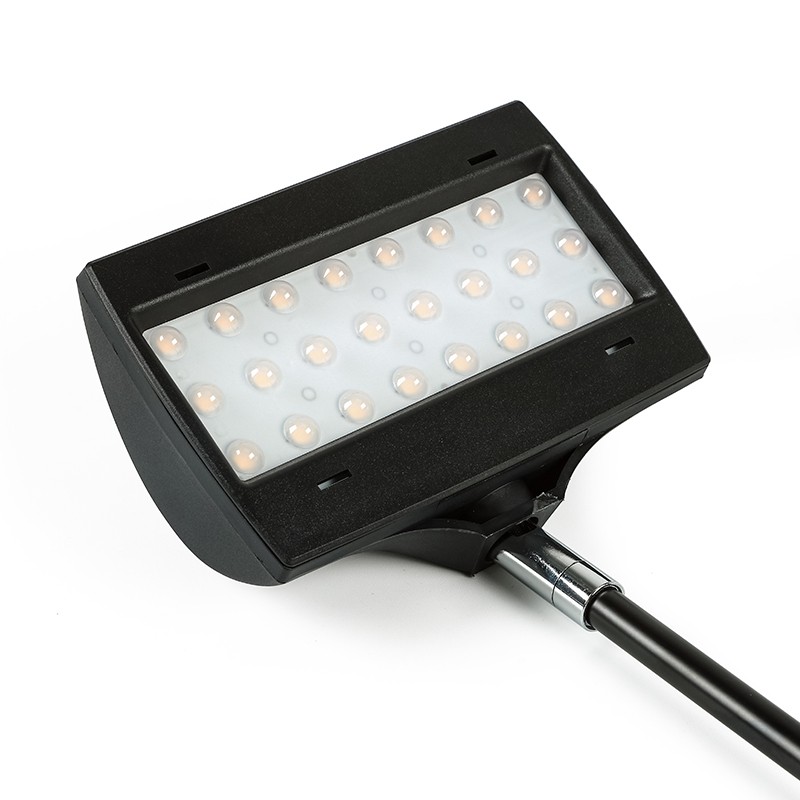

The base connection arrangement and packing example show three-pin input/output and matching leads. Send the lamp count, cable lengths and desired layout to confirm the permitted arrangement for the complete kit. Rear ventilation is pictured behind the rectangular LED head.

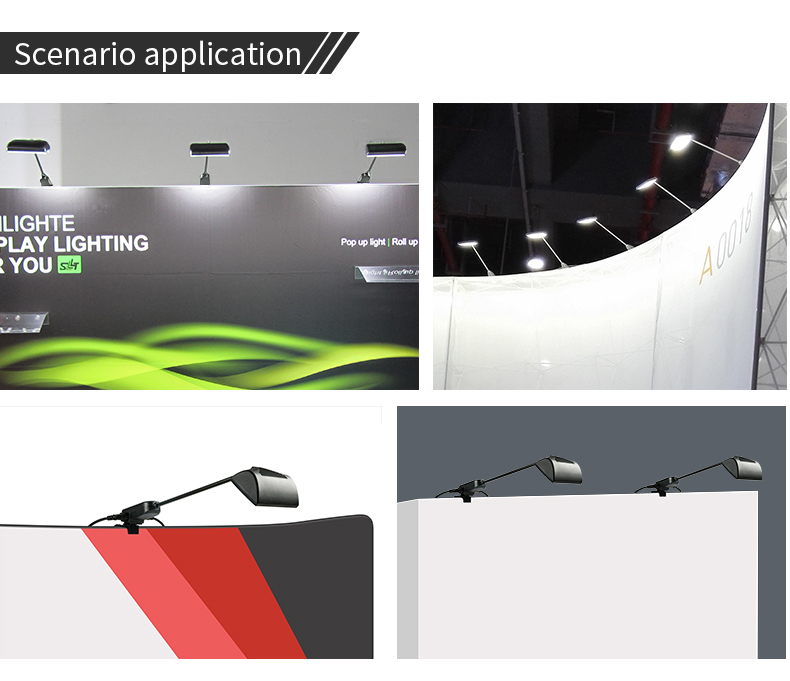

Application images show arm lights aimed at exhibition panels and larger graphics. Select the white-light order range and evaluate coverage from the intended mounting position; the colour-temperature choices are order configurations.
Specify leads and protective packing

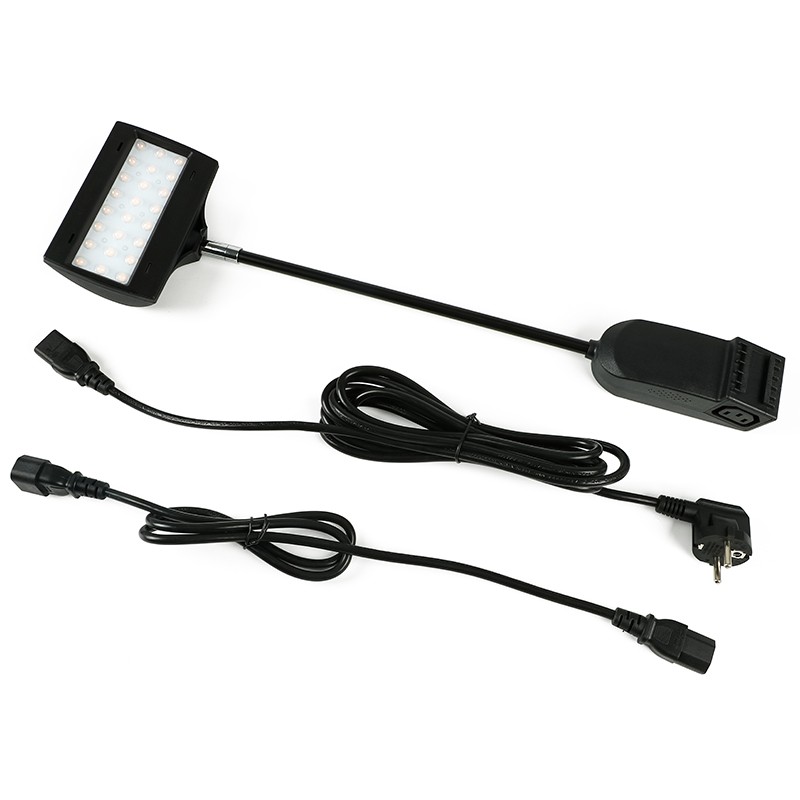

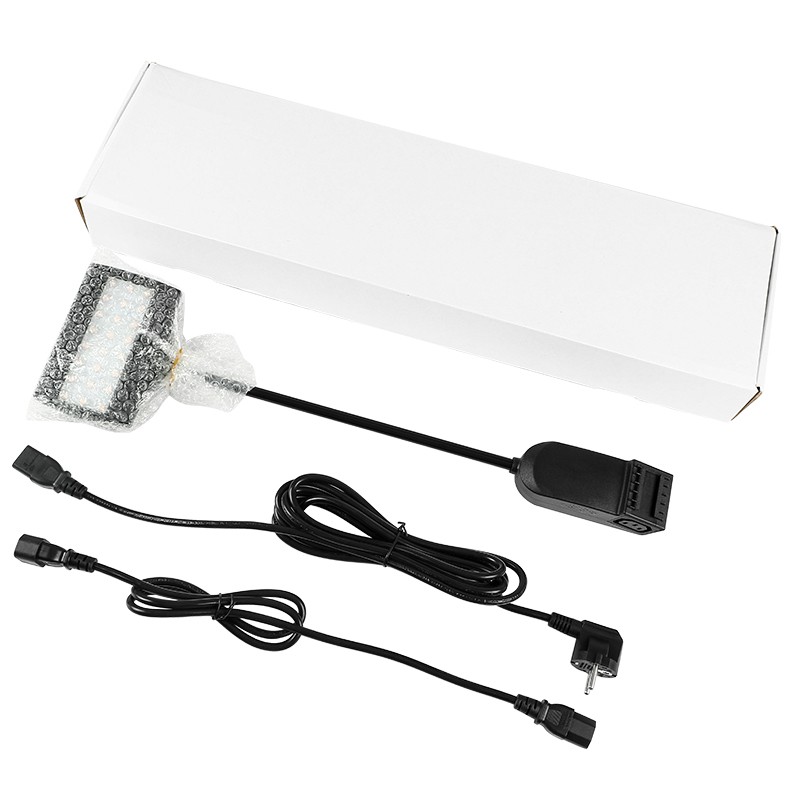

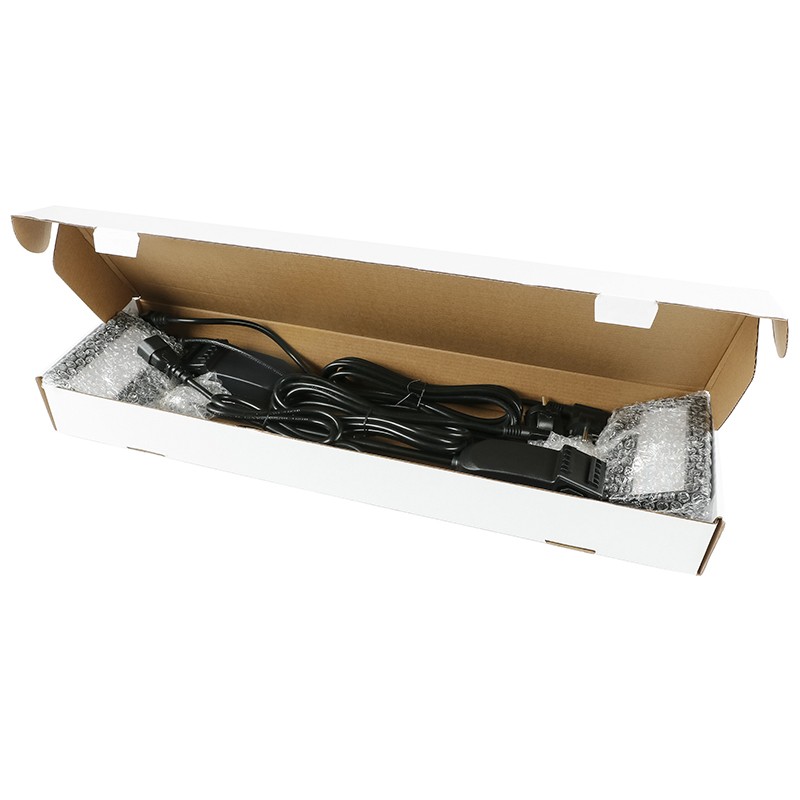

The carton example shows an arm lamp with mains and connection leads. Confirm the required components per kit, lead lengths, lamps per carton and branding with the quotation. The illustration does not set a fixed packing quantity for every order.
Questions for linkable exhibition-light orders
How many 18W lamps can I connect together?
Provide the lamp quantity and lead layout so the permitted connection arrangement can be confirmed. This model has three-pin input and output, but a maximum connected lamp count is not stated in its parameter sheet.
Which white-light versions are pictured?
The order ranges shown are 3000–3500K, 4000–5000K and 6000–7000K. Specify the required version and evaluate a sample on the intended display graphic.
Can you supply lights with branded packing?
OEM, ODM and private-label enquiries are supported. Orders start from 20 pcs, with lower unit prices at larger quantities. Include the model, fixing, connection layout, destination plug, quantity and packing requirements for a matching quotation.
Samples and production scheduling
Samples are available to check the fixing, connection arrangement and lighting appearance. Standard lead time is 12–18 days. Confirm sample cost, shipping, custom production schedules and transit separately, and share the required project date with the enquiry.
Other arm-light configurations

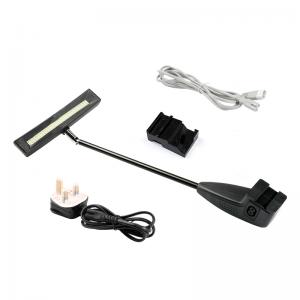

18W 24-LED arm light with a figure-eight plug
