370mm LED Lightbox Module - 7W Six Lens LEDs

370mm lens LED modules for illuminated display assemblies

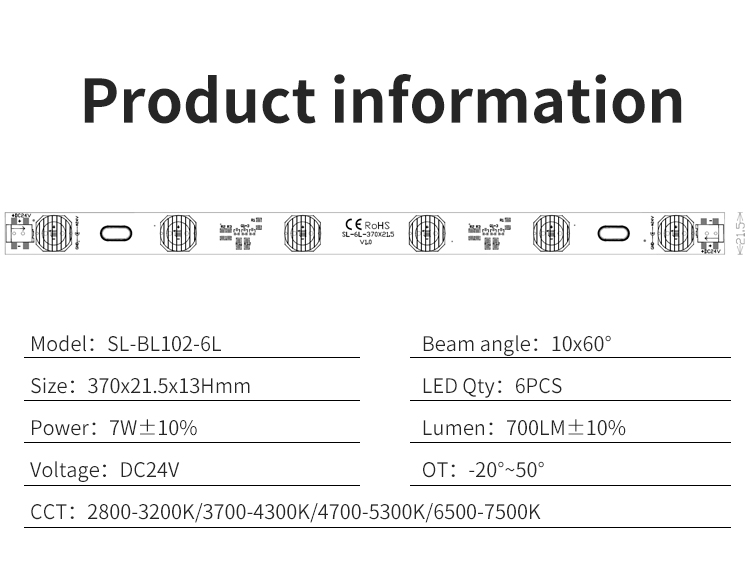

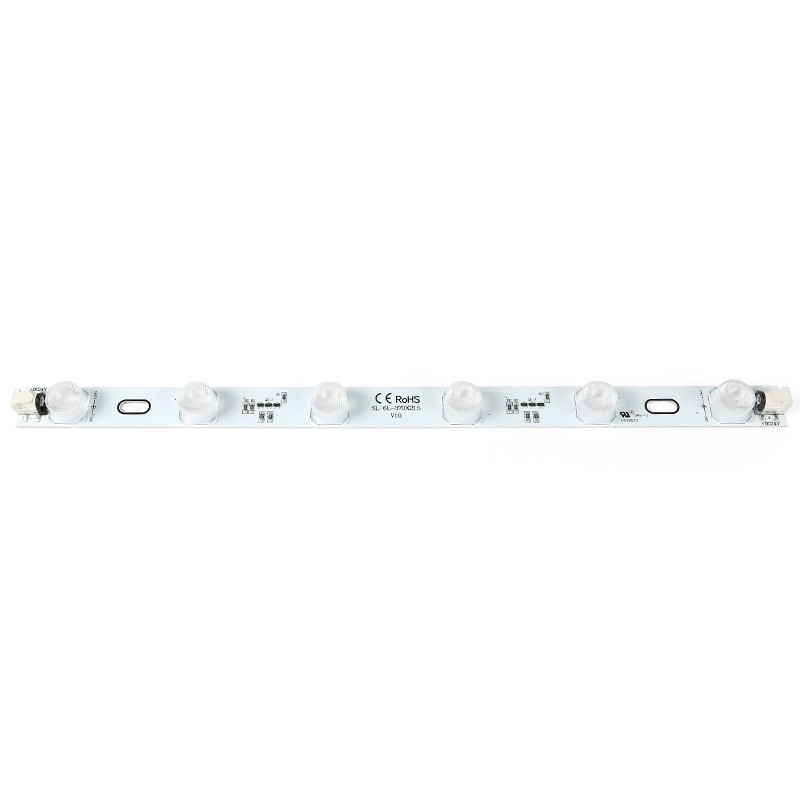

Build an illuminated-display specification around a 370mm, six-LED module. SL-BL102-6L is listed at 7W ±10% and 700 lm ±10%, with a 24V DC input and 10 × 60° lenses. Its 370 × 21.5 × 13mm envelope gives the sign maker a defined size for layout and fixing checks.

For advertising-lightbox fabricators and wholesale component buyers, the next ordering decisions are white-light appearance, mounting positions and connection parts. Send the enclosure dimensions, frame profile and planned module quantity to confirm the assembly scope and volume price.

7W lightbox module technical data

Mounting space and the aluminium substrate

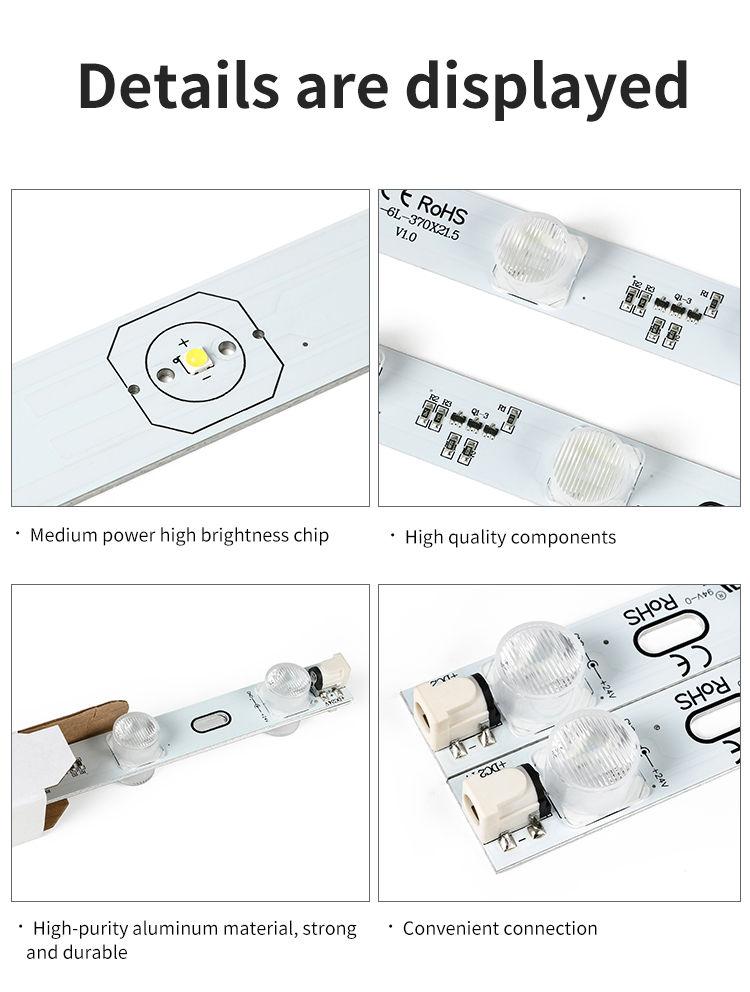

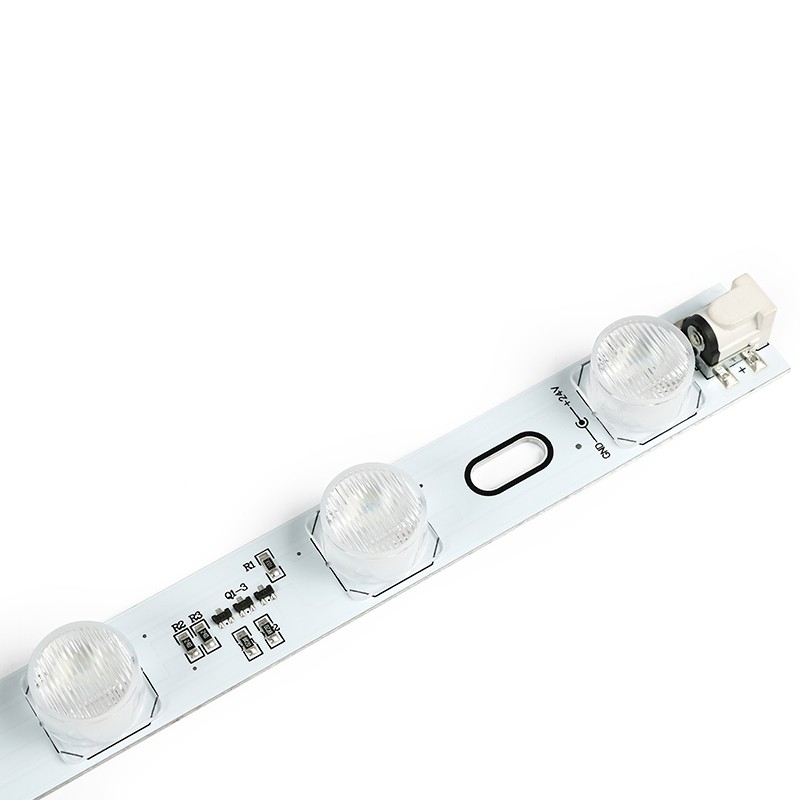

Plan the installation using the complete 370 × 21.5 × 13mm module dimensions. The construction picture identifies a 1.6mm aluminium substrate and shows slotted fixing areas.

Provide the usable enclosure space, frame profile and intended fixing points. These details allow the mounting components and module positions to be confirmed before production.

Connection sockets and the electrical bill of materials

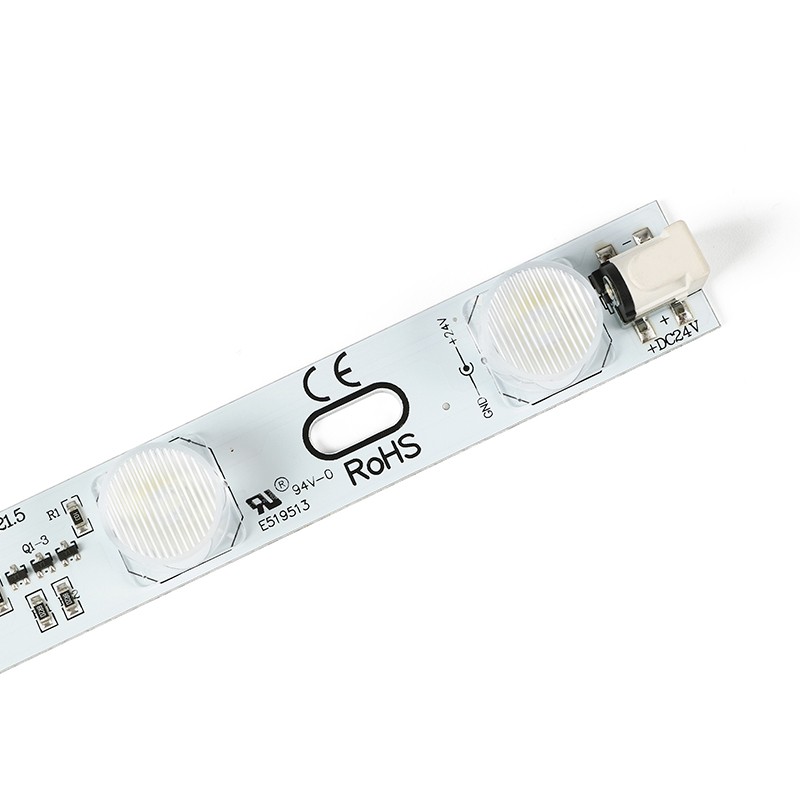

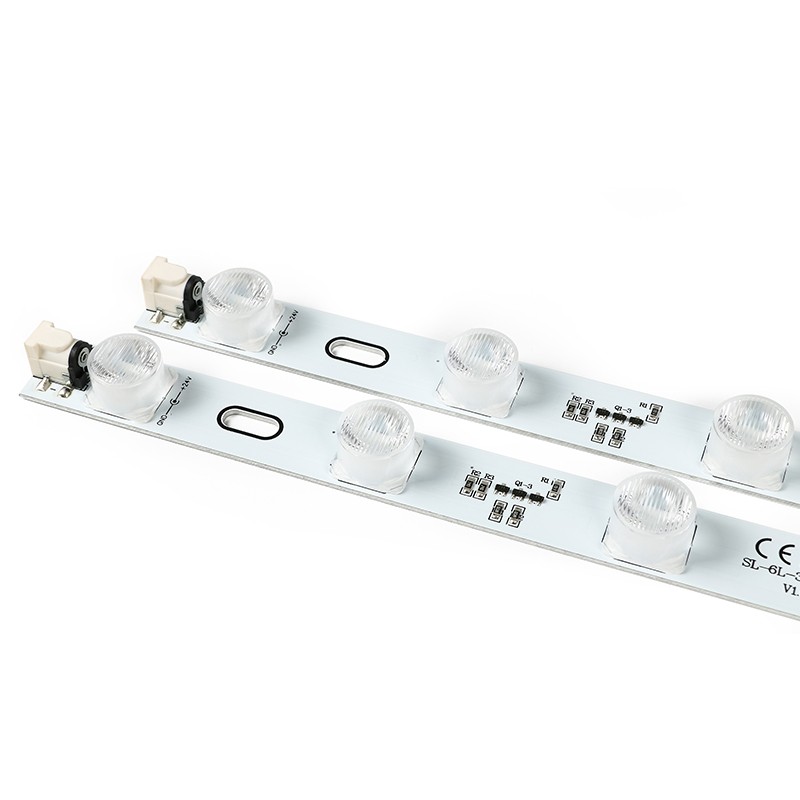

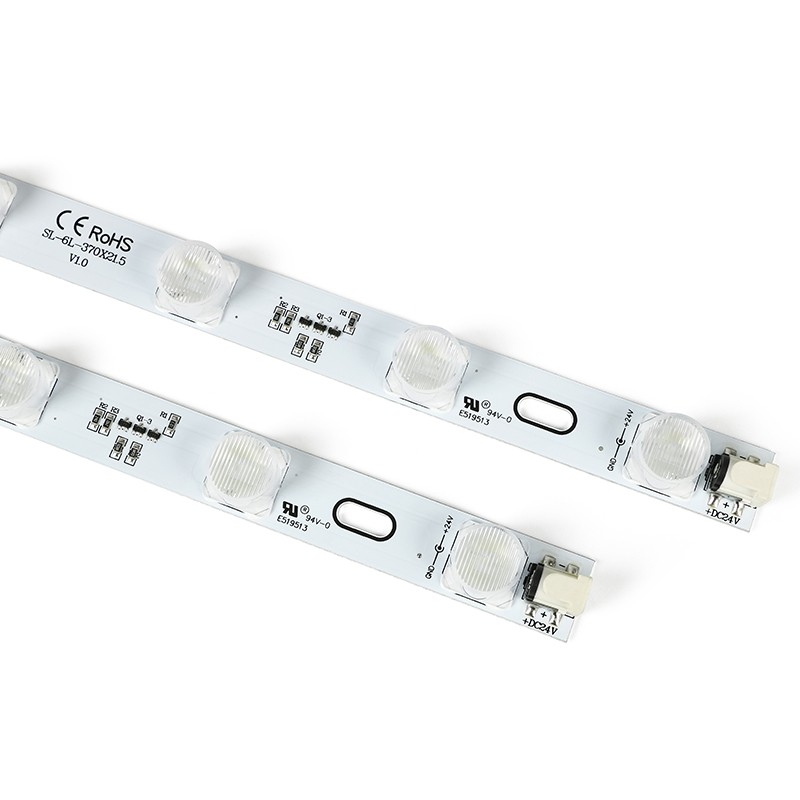

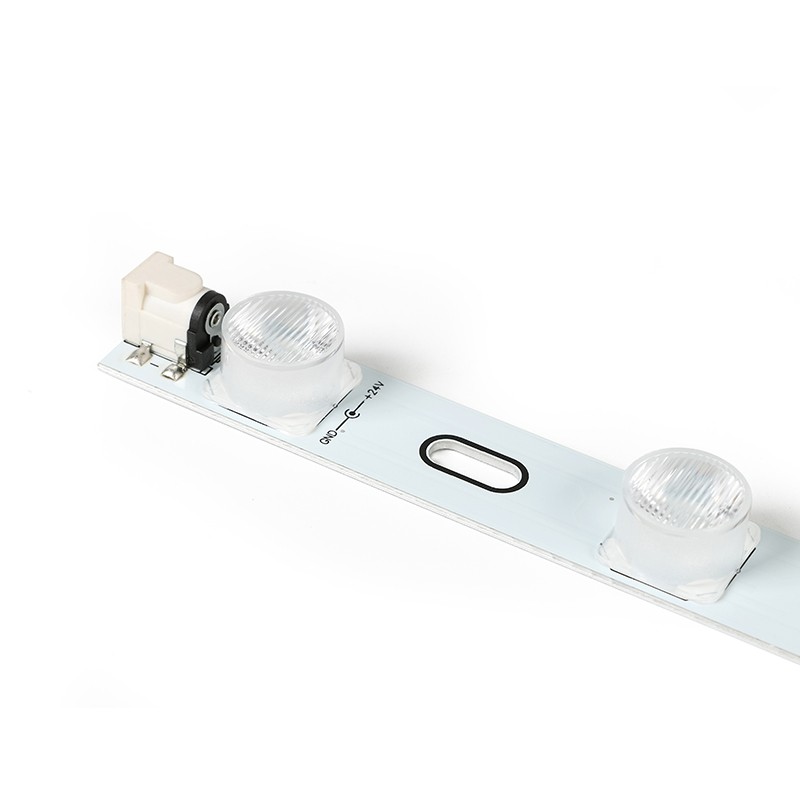

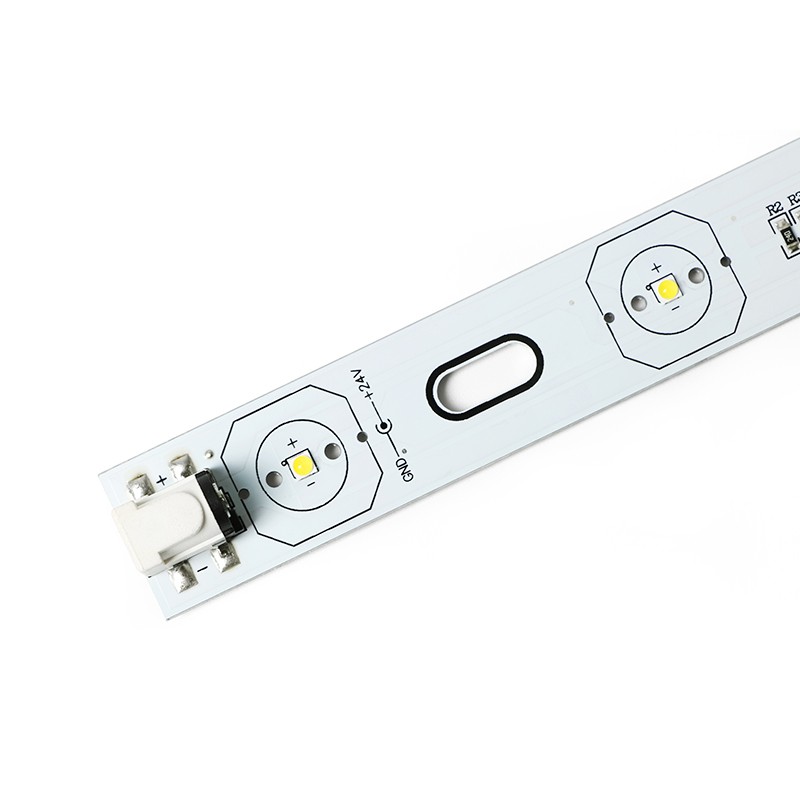

The board-end photographs show DC connection sockets with supply-polarity markings. Specify the wiring route, module quantity and required connecting parts alongside the lighting layout.

Itemise the modules, leads, fixing components and 24V power units in the quotation so the supplied assembly scope is clear for a first order and repeat sourcing.

White-light selection for the display face

The order ranges are 2800–3200K, 3700–4300K, 4700–5300K and 6500–7500K. Choose the required range with the model number and assess a sample against the actual sign face or diffuser.

The examples include advertising boxes and decorative displays. Send the enclosure drawing and face material to confirm a layout for the intended assembly.

Order packing and wholesale supply

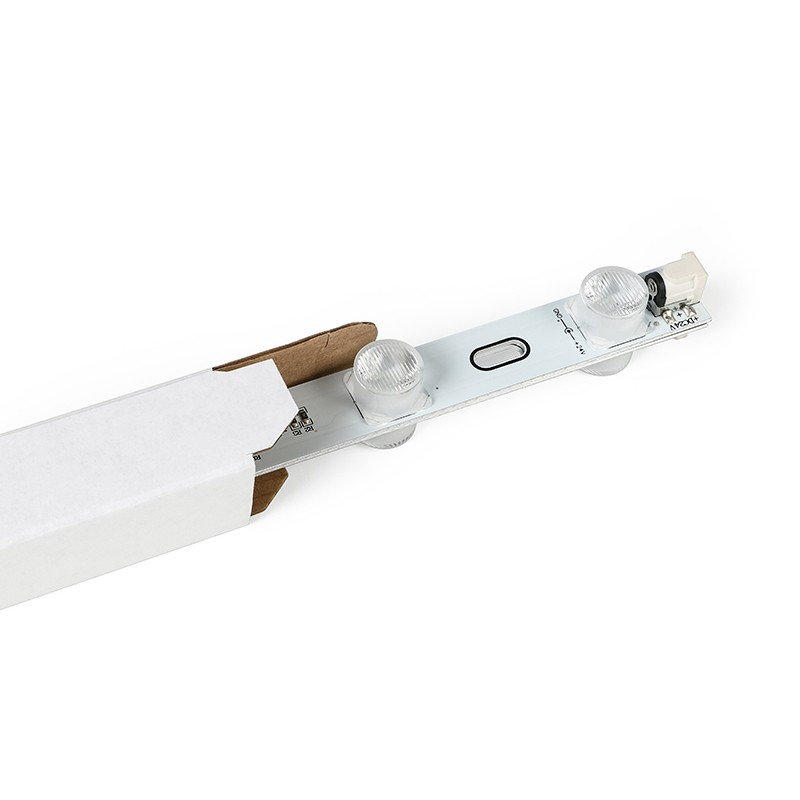

The packing graphic illustrates individual protection and cartons. Confirm the units per carton, supplied connection parts and shipment dimensions for your quantity.

Orders start from 20 pcs and higher quantities receive lower unit prices. Samples are available and standard lead time is 12–18 days. OEM, ODM and private-label requirements are supported; sample shipping, custom schedules and transit time are confirmed separately.

Purchasing questions for 370mm lightbox modules

What distinguishes this module within the SL-BL102 series?

This is the 370mm, six-LED SL-BL102-6L, specified at 7W ±10% and 700 lm ±10%. Compare the three- and eighteen-LED versions using each model’s dimensions, output and power.

Which details help confirm the fixing arrangement?

Send the frame profile, usable mounting space and fixing positions. The full module envelope is 370 × 21.5 × 13mm; the supplied hardware is confirmed for the quotation.

How should I specify the connecting parts?

Include the module positions, total quantity and wiring route on the drawing. The board-end sockets are illustrated; the exact leads, connecting components and 24V power units are itemised for the order.

Can I evaluate a white-light sample first?

Samples are available. State SL-BL102-6L, one of the four listed white-light ranges and the delivery country to confirm sample cost and shipping.

What are the wholesale quantity and production terms?

Wholesale orders begin at 20 pcs, with lower unit prices at larger quantities. Standard lead time is 12–18 days; OEM, ODM and private-label work is supported, with custom scope and transit confirmed separately.
